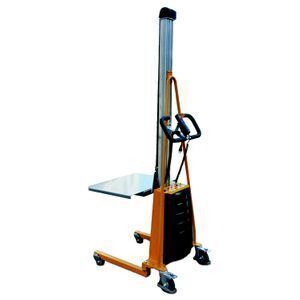

Sinolift E100 E150 E200 Light Duty Mini Electric Stacker With 80-200kg

Supplier: Shanghai Sinolift Mechanical and Electrical Equipment Co.,Ltd
Region: Shanghai, China
Contact: Mr David Deng
Price: $750.00 /piece
Min. Order: 1 piece

Click here to contact

Product details

Outrigger Height:	110mm;	Capacity:	100-200kg Mini Electric Stacker;
Power Unit:	24/200V/Ah;	Showroom Location:	India,Thailand;
Application:	Industrial Filed;	After Warranty Service:	Online support;
Load Wheel:	75 PU,Universal or Fixed type;	Certification:	CE;
Steering Wheel:	125 (PU)mm;	Applicable Industries:	Hotels,Garment Shops,Building Material Shops,Machinery Repair Shops,Food & Beverage Factory,Farms,Home Use,Retail,Food Shop,Printing Shops,Construction works ,Energy & Mining,Food & Beverage Shops;
Port:	SHANGHAI,China;	Place of Origin:	Shanghai China;
Condition:	New;	Material:	Steel Mini Electric Stacker;
Min.Fork Height:	20-80mm;	After-sales Service Provided:	Online support;
Brand Name:	sinolift;	Warranty:	3 years;
Payment Terms:	L/C,D/A,D/P,T/T,Western Union,MoneyGram;	Supply Ability:	1000.0 Piece/Pieces per Month;
Packaging Detail:	Sandard Export Package;	Net Weight:	65-78kg;
Local Service Location:	India,Thailand;

Product Description

Electric Work Positioners E80(L) E100(L) E100H(L) E150(L) E200(L) series Mini Electric Stacker

Stronger motor, Larger battery 12Ah, Low voltage protection.
A range of highly maneuverable, lightweight lifts, designed to take the strain out of any lifting job from ground level to over shoulder height.

Ideal for use in narrow aisles and confined spaces. Perfect for all applications from pharmaceutical to catering, from packing line to food processing, from warehouse to office, kitchens, laboratories, retail outlets, etc...

Various special design and optional accessories can be widely used.

Electric models: Automatic electronic overload protection system ensures safety.
Maintenance free and sealed batteries, automatic charger.

Quick change attachment options available.

Conforms to EN1757, CE marked.

Technical Date

Model		E80	E100	E100H	E150	E200A
Model		(E80L)	(E100L)	(E100HL)	(E150L)	(E200L)
Capacity	(kg)	80	100	100	150	200
Load Centre	(mm)	230	230	230	230	230
Max.Platform Height	(mm)	1500	1700	2000	1500	1200(1500)
Min.Platform Height	(mm)	130 (80mm for steel Platform)
Min.Fork Height	(mm)	20~80	20~80	20~80	20~80	20~80
Outrigger Height	(mm)	110mm (with universal front wheel) / 80mm (Fixed front wheel)
Platform Size	(mm)	470x600 (PE)
Overall Size	(mm)	870x600x1990	870x600x1990	870x600x2290	870x600x1790	950x650x1490(1790)
Load Wheel	(mm)	75 PU,Universal or Fixed type
Steering Wheel	(mm)	125 (PU)
Power Unit	V/W	24/200
Battery (Service Free)	V/Ah	24V/12(17)Ah
Net Weight	(kg)	66	62	68	65	78
