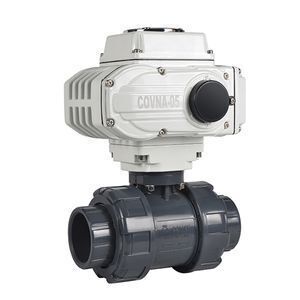

Electric Actuator Regulating Type Double Union Flow Control Valve

Supplier: COVNA Industry Automation Co., Ltd.
Region: Guangdong, China
Contact: Mr Bond COVNA
Price: $89.99 /set
Min. Order: 1 set

Click here to contact

Product details

Type:	Flow Control Valve;	Brand Name:	COVNA;
Temperature of Media:	Low Temperature,Medium Temperature,Normal Temperature;	Structure:	Ball;
Media:	Water;	Material:	UPVC Ball Valve;
Place of Origin:	Guangdong China (Mainland);	Power:	Electric Actuator Ball Valve;
Model Number:	HK60-Q-P Union Ball Valve;	Number of Ways:	2 Way Ball Valve;
Pressure:	Low Pressure;	Control Mode:	Modulating Electric Actuator;
Sealing Material:	NBR, EPDM, FKM (VITON), PTFE;	Port Size:	DN100 Ball Valve;
Payment Terms:	T/T,Western Union;	Supply Ability:	10000 Set/Sets per Month Stocking Items Same Day Shipping;
Media:	Air, Gas, Oil, Liquid;	Port:	Shenzhen;
Packaging Detail:	COVNA Electric Actuator Regulating Type Double Union Flow Control Valve Packed with Foam in Carton;	Power:	Electric Ball Valve;
Voltage:	DC24V (±10%), AC110-220V, 50/60Hz;	Port Size:	4 inch Ball Valve;
End Connection:	Double Union Ball Valve;	Application:	General;
Material:	Plastic;

Specifications

HK60Q-Q-3PS 3PC Ball Valve

HK60-Q-WT Sanitary Ball Valve

HK60-Q-PT Plastic Ball Valve

HK60-Q-F Flange Ball Valve

HK60-D Wafer Butterfly Valve

HK60-D-M Lug Butterfly Valve

In Stock, Start Order Now!

Item	COVNA Electric Actuator Regulating Type Double Union Flow Control Valve
Size Range	DN100, 4"
Operating Pressure	Low Pressure, 1.0MPa (145PSI)
Body Material	PVC
Core Material	PVC
Sealing Material	NBR, EPDM, FKM (VITON), PTFE
Structure	2 Way, 3 Way are Available
End Connection	Flanged End
Applicable Media	Control of Water, Air, Gas, Oil, Liquid
Temp. of Media	Range from -10 to +180°C (14 to 356°F) with PTFE Sealing
Application	Food & Beverage, Water & Wastewater, Ultra Pure Water, Desalination, Chemical, Textile, Pharmaceutical, Pulp & Paper, Mining, Boiler and Power Industries

Technical Parameter for Actuator

Control Mode	Function
ON-OFF Type	Feedback: the Active Contact Signal, Passive Contact Signal, Resistance
Regulation Type	Input & Output Signal: DC 4-20mA, DC 0-10V
Field Operation	The Field, Remote Control Switch Regulation and MODBUS, PROFIBUS Field Bus

Shell Material	Die-Cast Aluminum Alloy (Powder Coated)
Lifespan	100,000 (Ten Thousand) Times
Output Torque	50 to 4000Nm
Angle of Rotation	90° ±4°
90° Cycle Time	15S/30S/60S
Optional Voltage	DC24V (±10%), AC110-220V, 50/60Hz
Insulation Resistance	DC24V: 100MΩ/250V; AC110/220V/380V: 100MΩ/500V
Withstand Voltage	DC24V: 500V; AC110/220V: 1500V; AC380V: 1800V 1Minute
Protection Class	IP65
Explosion Proof	EX d II BT4
Optional Accessories	Over Torque Protectors, Dehumidify Heater, Stainless Steel Coupling & Yoke
Ambient Temp.	Range from -20 to +60°C (For Use In Temperatures Below 0°C, We Suggest Anti-Condensate Elements)

Wiring Diagram

ON/OFF Type with Passive Contact Signal Feedback
AC Voltages

Regulation Type with Servo Controller Module
AC Voltages

Production Flow

GERMAN TECHNOLOGY

COVNA havs invested in quality assurance, state-of-the-art machining and testing facilities in order to assist customers in safely controlling their processes.

MADE BY EXPERIENCED ENGINEERS

All products are designed, engineered and manufactured by experienced engineers to provide safe, reliable and dependable valves, actuators and solutions.

About COVNA

COVNA - Solve your technical questions with solid experience

We are COVNA Automations, one of the top manufacturers of quarter turn actuators and automatic control valve products in Dongguan, China with 18 years experience. Our industrial experience will be useful in your business and projects.

18 Years Operation

Good credit rating. Large quantities of regular clients.

German Imported CNC Machine

Fully automated, high accuracy.

ISO 9001 Certificated

With additional certifications that include TUV SGS RoHS.

Affordable Prices

Our prices are both fair and affordable.

Qualified Engineers

Designed and manufactured by experienced engineers.

Well-trained Staffs

Always available to answer your questions.

ODM Services

With access to download 2D & 3D models.

Standardization Production

Stable quality, strict quality control.

Same-day Shipping

Keep a large stock of electric ball valves.

Global Presence

Find us at the exhibition or contact local representatives.

In Stock, Start Order Now!

Packing

Packing: COVNA Electric Actuator Regulating Type Double Union Flow Control Valves packed with foam in carton.
Delivery Time: 15 working days after payment confirmed.
