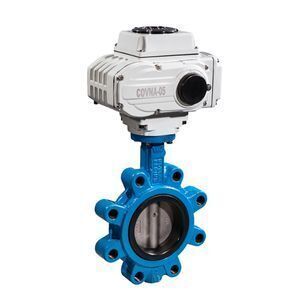

COVNA DN50 2 inch ANSI Class 150 EPDM Rubber Seat Lug Type Cast Steel 12 Volt Modulating Electric Actuator Butterfly Valve

Click here to contact
Product details
Port Size:2"~12";Power:Motorized Butterfly Valve;
Model Number:HK60-D-M Butterfly Valve;Pressure:ANSI Class 150~300;
Supply Ability:10000 Set/Sets per Month Stocking Items Same Day Shipping;Structure:Butterfly;
Packaging Detail:COVNA DN50 PN16 2 inch Lug Type EPDM Rubber Seat Cast Steel 12 Volt Modulating Electric Actuator Butterfly Valve Packed with Foam in Carton;End Connection:Lug Type;
Port:Shenzhen;Control Mode:On Off Type or Modulating Type;
Temperature of Media:Low Temperature,Medium Temperature,Normal Temperature;Media:Water;
Type:Lug Type Butterfly Valve;Power:Electric;
Port Size:DN15~DN300;Media:Air, Gas, Oil, Liquid;
Place of Origin:Guangdong China;Payment Terms:T/T;
Voltage:DC12~24V (±10%), AC110-220V, 50/60Hz;Brand Name:COVNA;
Application:General;Material:Cast Steel, Cast Iron;
Sealing Material:EPDM, PTFE;
Product Description

COVNA DN50 2 inch ANSI Class 150 EPDM Rubber Seat Lug Type Cast Steel 12 Volt Modulating Electric Actuator Butterfly Valve



Advantages:

  • MOQ: 1 set
  • 19 years of valve manufacturing experience
  • Strong inventory, part of commission returned for bulk delay
  • Product quality will be guaranteed for 1 year
  • OEM service to help customers to promote their brands
  • Offer various international standard, ANSI, JIS, DIN, etc
  • Custom complaints handed by one stop professional service.
  • Inquiry will be replied within 8 hours

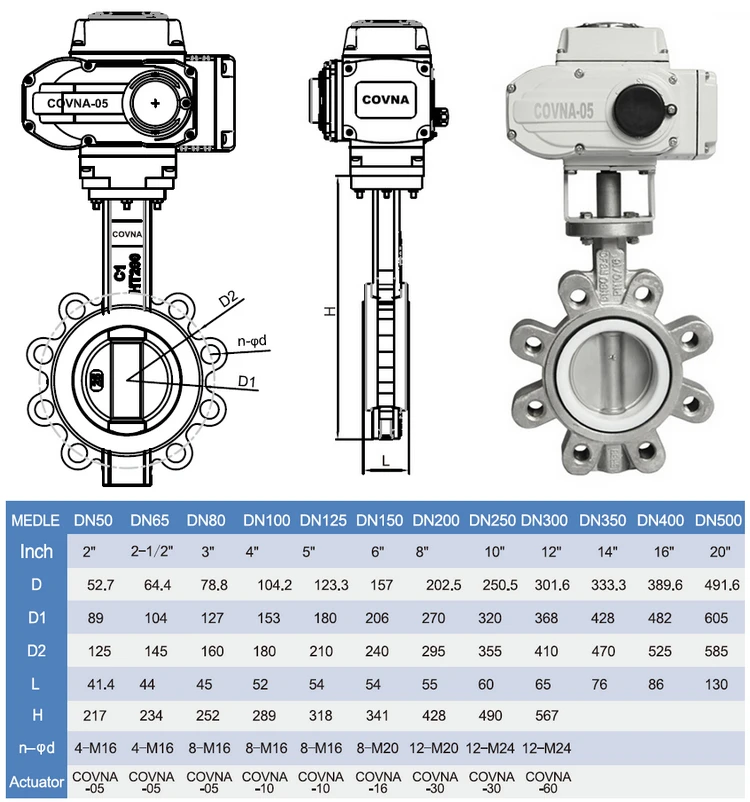

Size Range2"~12", DN50~DN300
Operating PressureANSI Class 150, Class 300
Control ModeOn Off Type / Modulating Type
Optional VoltageDC12~24V (±10%), AC110~220V, 50/60Hz
Body MaterialCast Iron, Stainless Steel
Disc MaterialStainless Steel
Sealing MaterialEPDM, PTFE
Stem MaterialStainless Steel
Connection TypeLug, Wafer
Applicable MediaControl of Water, Air, Gas, Oil, Liquid, Steam
Optional AccessoriesOver Torque Protectors, Dehumidify Heater, Stainless Steel Coupling & Yoke
ApplicationFood & Beverage, Water & Wastewater, Ultra Pure Water, Desalination, Chemical, Textile, Pharmaceutical, Pulp & Paper, Mining, Boiler and Power Industries

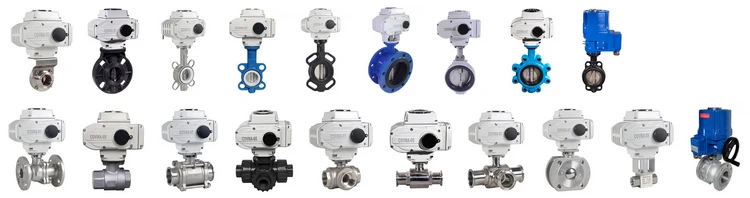

More models are offered!

Click here to ask more info about the quote and the catalog.

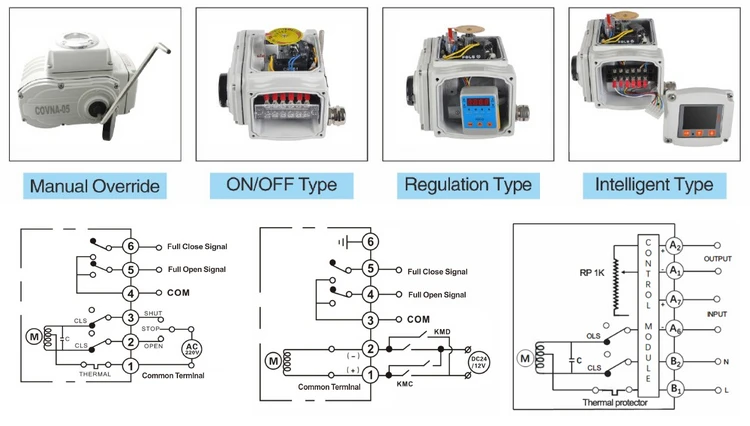

Electric Actuator

 ON/OFF Type (AC Voltage)                   ON/OFF Type (DC Voltage)          Regulation Type (AC Voltage / DC Voltage)

Other AC/DC voltage can also be customized!

Buyer Feedback

<>

Company Information

COVNA Automation is one of the professional manufacturer of automatic control valves in Dongguan, China. Our products applied for food & beverage, water & wastewater, ultra pure water, desalination, chemical, textile, transportation, pulp & paper, mining, boiler and power industries.



Certifications



Production Flow



FAQ

Q1. Is the sample order acceptable?
A: Yes, of course.

Q2. What is your MOQ?
A: 1 PCS.

Q3. What is the delivery time?
A: It is about 5-7 days after we receive the payment.

Q4. How to make the payment?
A: We accept T/T, Paypal, Ali Trade Assurance.

Q5. Do you have products in stock?
Yes, some stock can be shipped out within 3 days.

Q6. Do you test all your goods before delivery?
A: Yes, all products are fully inspected before delivery.

Q7. What is the warranty?
A: Our warranty is one year. After you receive the goods, if you find defect products, just take pics or videos to send us. We will re-make it for re-fund them to customers once we confirm it is our responsibilities.



<>
