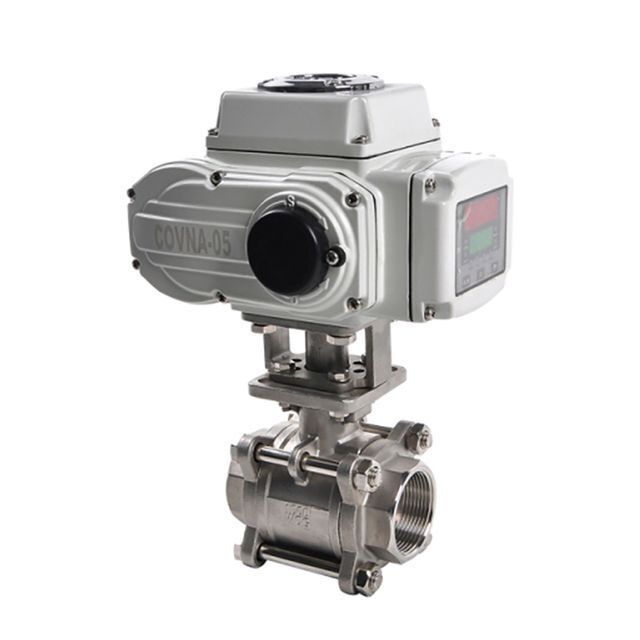

12V 24V 220V 3 PCS Stainless Steel On Off Type Electric Actuator Motorized Water Flow Control Ball Valve
-
Supplier: COVNA Industry Automation Co., Ltd. -
Region: Guangdong, China -
Contact: Mr Bond COVNA -
Price: $94.00 / 1 - 9 sets
$90.00 / 10 - 29 sets
$86.00 / 30 - 99 sets
$82.00 / >=100 sets -
Min. Order: 1 set
Product details
| Type: | Electric Motorized Ball Valve; | Payment Terms: | T/T; |
| Voltage: | DC12~24V (±10%), AC110~230V, 50/60Hz; | Supply Ability: | 1000 Mile/Miles per Month; |
| Power: | Electric; | Structure: | BALL; |
| Sealing Material: | PTFE; | End Connection: | Threaded, Tri Clamp; |
| Pressure: | PN1.0~6.4MPa; | Media: | Water; |
| Place of Origin: | Guangdong China; | Port Size: | DN15~DN100,1/2"~4"; |
| Port: | shenzhen; | Brand Name: | COVNA; |
| Control Mode: | On Off Type or Regulation Type; | Application: | General; |
| Warranty: | 12 Months; | Certificate: | ISO9001, ROHS, CE, TUV; |
| Temperature of Media: | Normal Temperature; | Model Number: | HK60-Q-3PS; |
| Packaging Detail: | 12V 24V 220V 3 PCS Stainless Steel On Off Type Electric Actuator Motorized Water Flow Control Ball Valve Packed with Foam in Carton; | Number of Ways: | 2 Way Ball Valve; |
Products Description
Size Range | 1/2"~2", DN15~DN50 |
Operating Pressure | 1.6MPa |
Control Mode | On Off Type, Regulation Type |
Optional Voltage | DC24V, AC24V, AC110V, AC220V DC12V and AC380V can be customized. |
Body Material | SS304, SS316, SS316L |
Sealing Material | PTFE Seal, PPL Seal |
Operating Temperature | PTFE(0~180degC), PPL (0~230degC) |
Connection Type | Thread, Flange, Tri Clamp, Welded, Socket |
Optional Protection Range | IP65, Water-proof IP68, Explosion proof |
Actuation Time | It depends on the torque of actuator. ·COVNA-05(50Nm)-20 seconds ·COVNA-10(100Nm)/COVNA-16(160Nm)-25 seconds ·COVNA-30(300Nm)/COVNA-60(600Nm)-60 seconds ·COVNA-125(125Nm)/COVNA-250(2500Nm)/COVNA-400(4000Nm)-100 seconds. |
Application | Food & Beverage, Water & Wastewater, Ultra Pure Water, Desalination, Chemical, Textile, Pharmaceutical, Pulp & Paper, Mining, Boiler and Power Industries |
Company Profile
Certification
Exhibition
Cooperation Customers
Finished Project
Packaging & Delivery
FAQ
Q:Which voltage of the electric actuator?
A: DC24V, AC24V, AC110V, AC220V
AC380V can be customized and DC12V is available for some smaller torque of actuator.
Q: What is the actuation time for electric actuator?
A: It depends on the torque of actuator.
The detailed timing would be as the following:
* COVNA-05(50Nm)-20 seconds
* COVNA-10(100Nm)/COVNA-16(160Nm)-25 seconds
* COVNA-30(300Nm)/COVNA-60(600Nm)-60 seconds
* COVNA-125(125Nm)/COVNA-250(2500Nm)/COVNA-400(4000Nm)-100 seconds.
Q: Can the actuation time be faster?
A: Electric actuator can be customized the quick actuation gear,
the soonest actuation time can be reach 10 seconds to open and close.
Q: What type of electric actuator you provide?
A: ON/OFF type, Regulation type and Intelligent type.

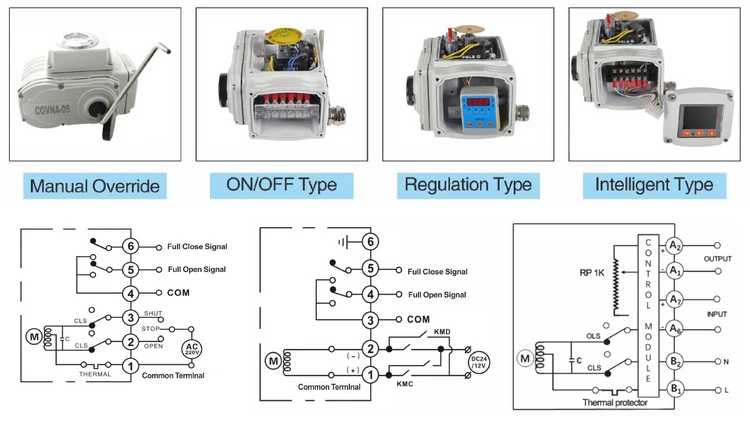

Q: What is the difference from ON/OFF type, Regulation type and Intelligent type?
A: 1)ON/OFF type
ON/OFF type is fully open and fully closed.
2)Regulation type
1.With input/output signal:4-20mA or 0-10V;
2.Opening position of valve can be adjusted by signal;
3.Available for PLC system.
3)Intelligent type
1.With input/output signal:4-20mA or 0-10V;
2.Opening position of valve can be adjusted by signal;
3.Available for PLC system.
4.With display screen to acheieve site control.
Q: Can this electric valve be resettable (normally open / closed) automatically when power is removed?
A: Our regular electric actuator can't be resettable automatically while power-off.
But it can go to the multiturn electric actuator model with the extra electrical storage device along,
which acheieve the valves can be automatic reset(normally closed) while power failure.
Q: Have the electric actuator had the presence of limit switches (contact about the position of the cut-off device)?
A: Yes, there is the position indicator on the top of actuator.
The open/closed status can be checked visually.
Q: Which type of protection class of this electric actuator?
A: IP65, IP68, Explosion proof.
Q. Is there any manual override of electric valve?
A: Yes, every electric valve includes the manual override.
You can open/close
Q:Have the electric valve had the limiting operating time?
A: Electric haven't had the limiting operating time.
It can be working for 99 hours continually without getting heating.
A: DC24V, AC24V, AC110V, AC220V
AC380V can be customized and DC12V is available for some smaller torque of actuator.
Q: What is the actuation time for electric actuator?
A: It depends on the torque of actuator.
The detailed timing would be as the following:
* COVNA-05(50Nm)-20 seconds
* COVNA-10(100Nm)/COVNA-16(160Nm)-25 seconds
* COVNA-30(300Nm)/COVNA-60(600Nm)-60 seconds
* COVNA-125(125Nm)/COVNA-250(2500Nm)/COVNA-400(4000Nm)-100 seconds.
Q: Can the actuation time be faster?
A: Electric actuator can be customized the quick actuation gear,
the soonest actuation time can be reach 10 seconds to open and close.
Q: What type of electric actuator you provide?
A: ON/OFF type, Regulation type and Intelligent type.
Q: What is the difference from ON/OFF type, Regulation type and Intelligent type?
A: 1)ON/OFF type
ON/OFF type is fully open and fully closed.
2)Regulation type
1.With input/output signal:4-20mA or 0-10V;
2.Opening position of valve can be adjusted by signal;
3.Available for PLC system.
3)Intelligent type
1.With input/output signal:4-20mA or 0-10V;
2.Opening position of valve can be adjusted by signal;
3.Available for PLC system.
4.With display screen to acheieve site control.
Q: Can this electric valve be resettable (normally open / closed) automatically when power is removed?
A: Our regular electric actuator can't be resettable automatically while power-off.
But it can go to the multiturn electric actuator model with the extra electrical storage device along,
which acheieve the valves can be automatic reset(normally closed) while power failure.
Q: Have the electric actuator had the presence of limit switches (contact about the position of the cut-off device)?
A: Yes, there is the position indicator on the top of actuator.
The open/closed status can be checked visually.
Q: Which type of protection class of this electric actuator?
A: IP65, IP68, Explosion proof.
Q. Is there any manual override of electric valve?
A: Yes, every electric valve includes the manual override.
You can open/close
Q:Have the electric valve had the limiting operating time?
A: Electric haven't had the limiting operating time.
It can be working for 99 hours continually without getting heating.
