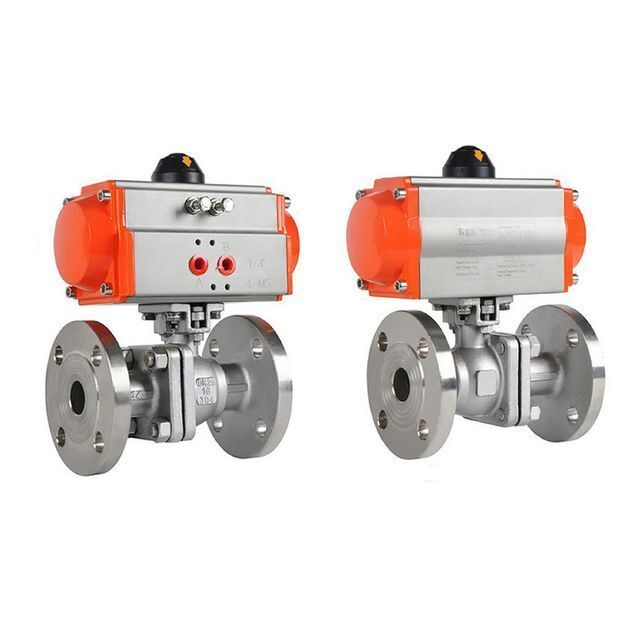

COVNA 2 Way Stainless Steel PTFE Flanged Connection Pneumatic Actuated Ball Valve

Supplier: COVNA Industry Automation Co., Ltd.
Region: Guangdong, China
Contact: Mr Bond COVNA
Price: $65.00 / 1 - 9 sets
$60.00 / 10 - 29 sets
$57.00 / 30 - 99 sets
$55.00 / >=100 sets
Min. Order: 1 set

Click here to contact

Product details

Customized support:	OEM,ODM;	Payment Terms:	T/T;
Power:	Pneumatic Ball Valve,Pneumatic;	Air Supply Pressure:	2.5 to 8bar;
Structure:	BALL;	Port:	Shenzhen;
Port Size:	DN15~DN200,1/2"~8";	Certification:	ROHS,CE,ISO9001;
Temperature of Media:	Normal Temperature;	Brand Name:	COVNA;
Pressure:	PN1.6MPa;	Supply Ability:	10000 Sets per Month Stocking Items Same Day Shipping;
Sealing Material:	PTFE;	Acting Mode:	Double Acting or Single Acting;
Application:	General;	End Connection:	Flanged;
Model Number:	HK55-F Ball Valve;	Type:	Flanged Ball Valve,BALL VALVES;
Package Preview:	;	Warranty:	1 years;
Material:	SS304, SS316;	Media:	Air, Gas, Oil, Liquid,Water;
Place of Origin:	Guangdong, China;	Packaging Detail:	COVNA 2 Way Stainless Steel PTFE Flanged Connection Pneumatic Actuated Ball Valve Packed with Foam in Carton;

COVNA 2 Way Stainless Steel PTFE Flanged Connection Pneumatic Actuated Ball Valve

Products Description

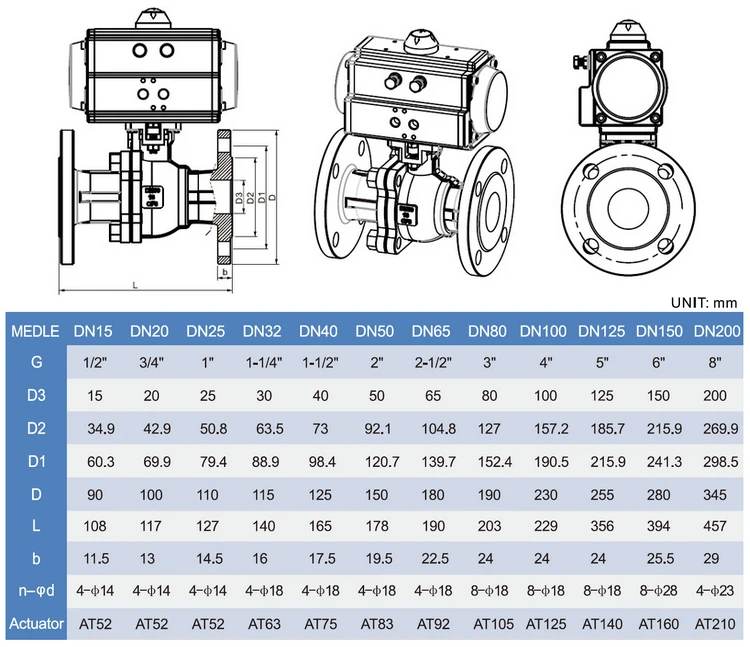

Size Range	1/2"~8", DN15~200

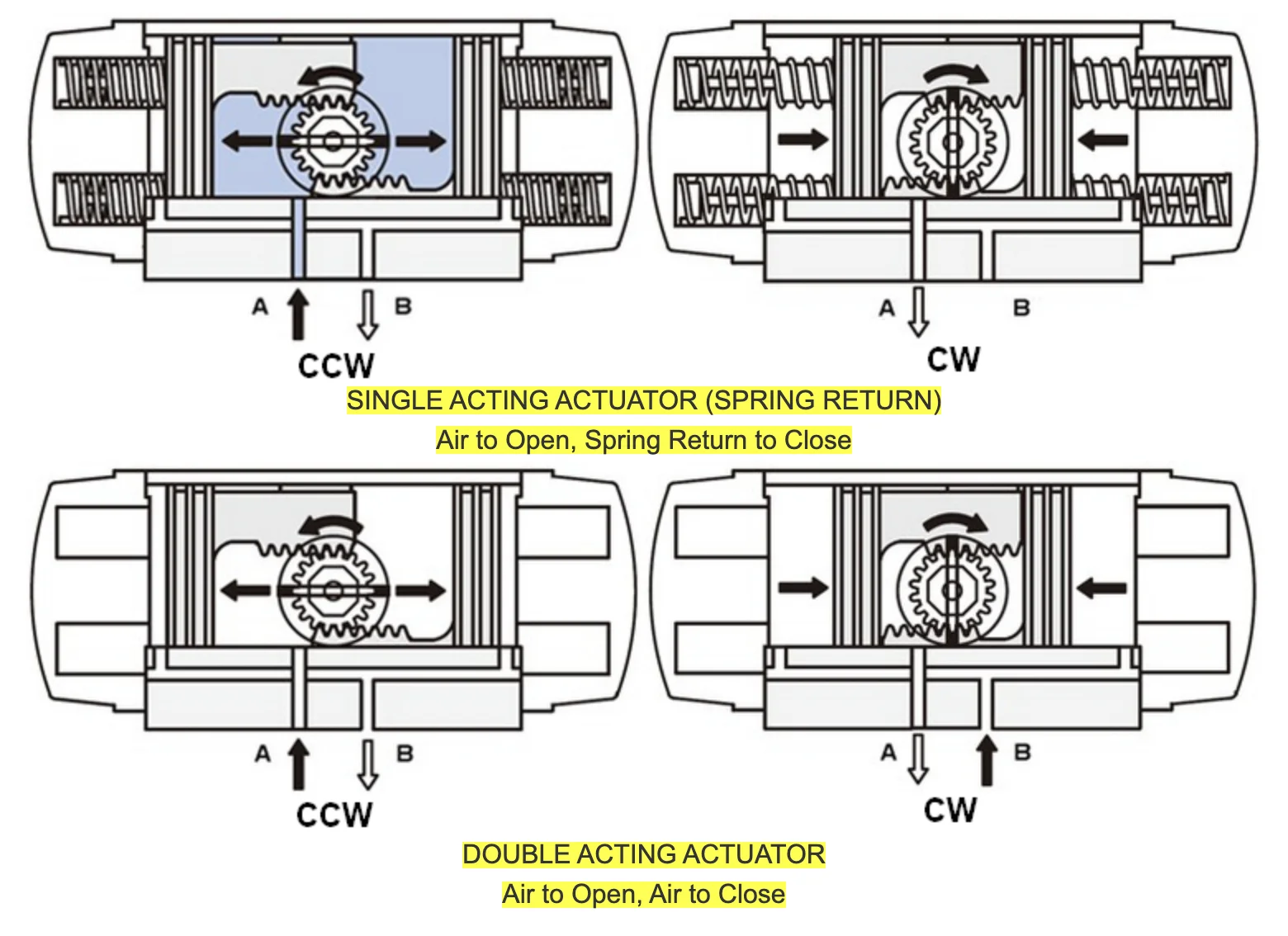

Acting Mode	Double Acting, Spring Return (Single Acting)
Operating Pressure	1.6MPa
Air Supply Pressure	2.5 to 8 bar
Angle of Rotation	90° ±4°
Actuation Time	1~2 seconds at 8.0 Bar Air Pressure
Body Material	SS304, SS316, SS316L
Sealing Material	PTFE: -20°C~180°C, PPL: -20°C~230°C
Number of Ways	2 Way
End Connection	Threaded, Flange
Applicable Media	Control of Water, Air, Gas, Oil, Liquid
Optional Accessories	Namur Solenoid Valve, Limit Switch, F.R.L, Position Indicator, Manual Device
Application	Food & Beverage, Water & Wastewater, Ultra Pure Water, Desalination, Chemical, Textile, Pharmaceutical, Pulp & Paper

Company Profile

Certification

Exhibition

Cooperation Customers

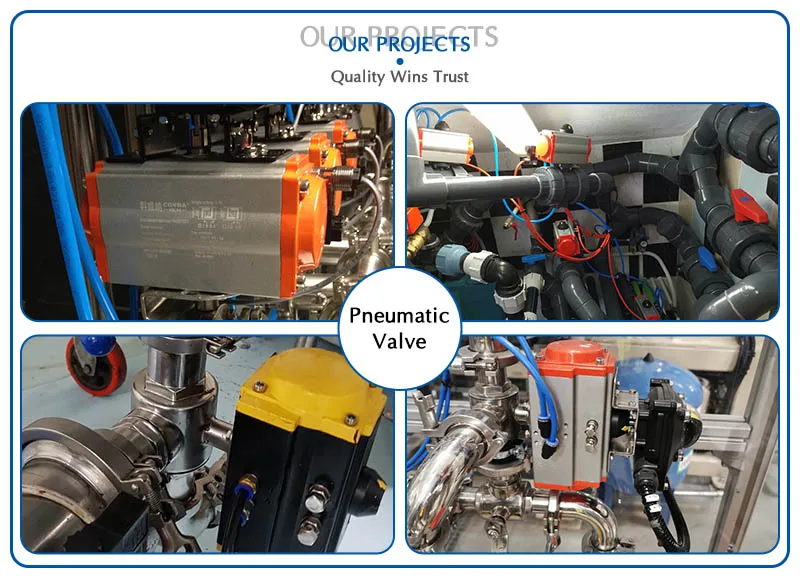

Finished Project

Packaging & Delivery

FAQ

Q: What is the difference between Normally Open and Normally Closed valves?
A: As the name suggests, Normally Open valves allow air to pass when they are not energized (or actuated). Normally Closed valves must be actuated to allow air to pass.

Q: What is the life span of your pneumatic actuators?
A: We have passed 1 million times of product quality test, and obtained the certificate

Q: Does the air actuated valve have a manual override?
A: The air actuator does not have a manual override, but a manual override is provided with optional direct mount solenoid valves.

Q:How fast does an air actuated valve operate?
A: See product specifications. Generally, smaller valves less than 2 inch pipe size, cycle in about one second. Larger valves up to 6 inch pipe, cycle in about 1.5 seconds. A cycle is per 90° rotation

Q:Can I add a High Temperature kit to an existing Valworx air actuated
A:Yes, you would need to select a kit matching both the actuator and valve mounting patterns. See actuator accessories

Q:Can I mechanically adjust the flow rate of an air actuated ball valve?
A: No, but we do offer pneumatic positioners with 4-20mA or 3-15PSI inputs. Positioners allow user to adjust flow 0-100%.

Q:Can I use the air actuated ball valve outside?
A: Yes, air actuated valves are weatherproof per materials of construction. Do not exceed minimum and maximum temperature
specifications.

Q:Do you have a way to confirm the air actuated valve is in the closed position? Open position?
A: Yes, we offer an optional valve monitor/limit switch box. Monitor contains (2) dry contact limit switches used to confirm open and closed position. There is also a highly visual valve position indicator.

Q:What is the maximum allowable fluid velocity?
A:Metal valves: 5 to 10 feet/second, closer to 5ft/sec is better PVC valves: < 5 feet/second

Q:Can you customize the color of the actuator?
A: We can customize different colors, LOGO and so on according to customer's requirements.
