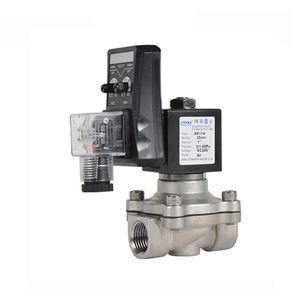

COVNA DN25 1 inch 2 Way 220V AC Normally Closed 304 Stainless Steel Timer Solenoid Valve

Supplier: COVNA Industry Automation Co., Ltd.
Region: Guangdong, China
Contact: Mr Bond COVNA
Price: $40.00 /set
Min. Order: 1 set

Click here to contact

Product details

Port Size:	1/2"~2";	Brand Name:	COVNA;
Payment Terms:	T/T;	Model Number:	HK11-4 Solenoid Valve;
Supply Ability:	10000 Set/Sets per Month;	Structure:	Diaphragm;
Power:	Solenoid;	Number of Ways:	2 Way Solenoid Valve;
Coil Voltage:	DC12~24V (±10%), AC110~220V, 50/60Hz;	Material:	SS304, SS316;
Pressure:	0 to 1.0MPa;	Temperature of Media:	Normal Temperature;
Application:	General;	Place of Origin:	Guangdong China;
Sealing Material:	NBR, EPDM, FKM (VITON);	Connection:	BSPP, BSPT, NPT;
Type:	Timer Solenoid Valve;	Packaging Detail:	COVNA DN 40 1.5 inch 2 Way 220V AC Normally Closed 304 Stainless Steel Timer Solenoid Valve Packed with Polybag in Carton;
Valve Operation Type:	Normally Closed (NC) or Normally Open (NO);	Media:	Air, Gas, Oil, Liquid;
Port:	Shenzhen;	Port Size:	DN15~DN50;
Media:	Water;

Product Details

Item	COVNA DN 40 1.5 inch 2 Way AC220V Normally Closed Stainless Steel Timer Auto Drain Solenoid Valve
Size Range	1/2" ~ 2", DN15~DN50
Medium	Water, Air, Steam, Gas, Oil, etc
Temperature	NBR: -5℃~80℃; EPDM: -5℃~120℃; VITON: -5℃~120℃
Pressure	0~1.0MPa
Port Thread	NPT, BSPP, BSP
Voltage	DC-12V, 24V AC-24V, 120V, 240V/60Hz; 110V, 220v/50Hz
Tolerance	±10%
Material	Body: Brass or Stainless Steel Seal: VITON, NBR, EPDM Armature Tube: Stainless Steel304 Stop: SS403F Springs: SS304 Shading Rings: SS304
Application	Food & Beverage, Water & Wastewater, Ultra Pure Water, Desalination, Chemical, Textile, Pharmaceutical, Pulp & Paper, Mining, Boiler and Power Industries

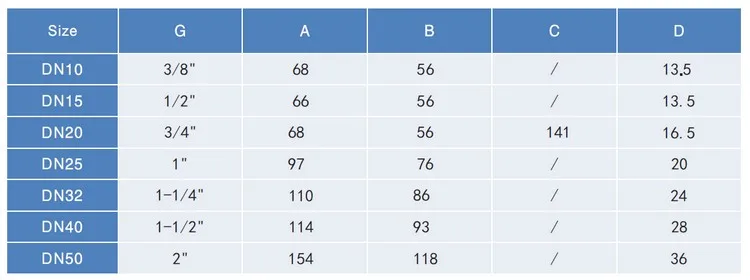

Dimension:

Coils Parameters:

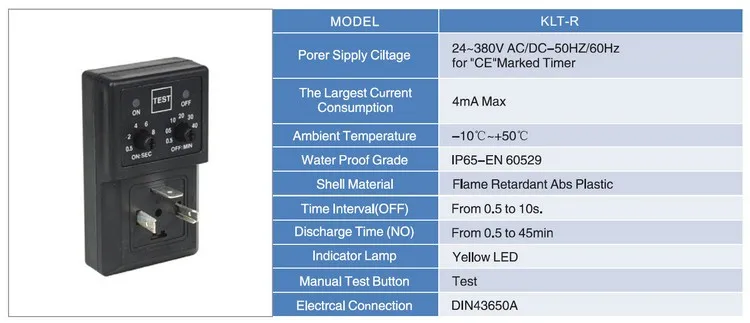

Specification of Timer:

Contact us for more details!

Installation

Make sure that the pipe is free of impurities.
It is recommended to install the solenoid in vertical position with the coil facing upwards.

Application

Production Flow

About COVNA

COVNA Automation is one of the professional manufacturer of automatic control valves in Dongguan, China. Our products applied for food & beverage, water & wastewater, ultra pure water, desalination, chemical, textile, transportation, pulp & paper, mining, boiler and power industries.
