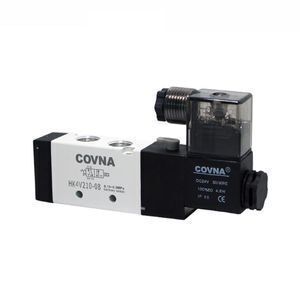

4V210-08 PT1/4 inch 2 Position 5 Way DC 12V Single Coil Air Directional Control Valve

Supplier: COVNA Industry Automation Co., Ltd.
Region: Guangdong, China
Contact: Mr Bond COVNA
Price: $12.00 / >=10 pieces
Min. Order: 10 pieces

Click here to contact

Product details

Place of Origin:	Guangdong China;	Material:	Aluminum Alloy;
Type:	Valves;	Number of Ways:	5/2 Way, Five Ways Two Positions;
Port Size:	1/4", DN08 Air Directional Control Valve;	Power:	Solenoid Operated;
Type:	Air Directional Control Valve;	Brand Name:	COVNA;
Voltage:	DC 12V;	Packaging Detail:	4V210-08 PT1/4 inch 2 Position 5 Way DC 12V Single Coil Air Directional Control Valve Packed with Polybag in Carton.;
Sealing Material:	NBR;	Pressure:	0.15 to 0.8MPa;
Proof Pressure:	1.0MPa;	Structure:	Pilot;
Payment Terms:	T/T,Western Union;	Media:	Air;

Specifications

Item	4V210-08 PT1/4 inch 2 Position 5 Way DC 12V Air Directional Control Valve
Valve Type	5/2 Way
Effective Area	16mm² (Cv=0.89)
Port Size	Inlet=Outlet=Exhaust Port=G1/4"
Fluid	40μm Filtered Air
Operation	Internal Pilot Operated
Operating Pressure	1.5~0.8kgf/cm²
Proof Pressure	10.5kgf/cm²
Ambient Temperature	0~60°C
Voltage Tolerance	±10%
Power Consumption	AC: 1.3W DC: 1.5W
Connector Protection	Class F, IP65
Connection	Cable, Lead Wire or DIN Connector
Switching Frequency	5 Cycles / Sec
Response Time	0.05 Sec

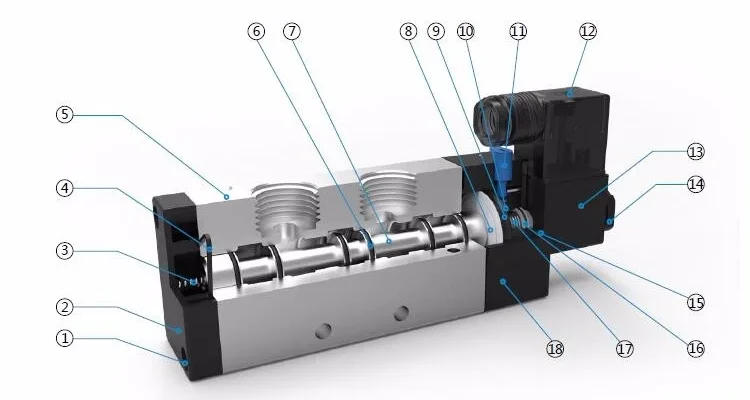

Internal Structure

#	Components	#	Components
1	Cross Slot Pan Screw	10	Spring
2	Back Cover	11	Mannual Ride Spindle
3	Spring	12	Terminal
4	Anomalous Seal	13	Coil
5	Valve Body	14	Coil Nut
6	Flat Ring	15	Connecting Part
7	Valve Spool	16	O Ring
8	Piston	17	Plunger
9	Y Ring	18	Piloted Valve Base

In Stock, Start Order Now!

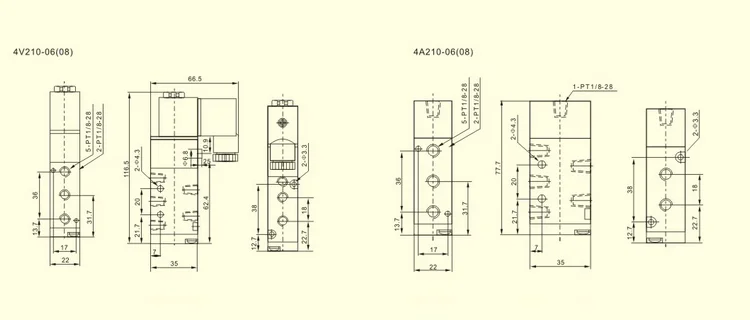

Dimension

About COVNA

COVNA - Solve your technical questions with solid experience

We are COVNA Automations, one of the top manufacturers of quarter turn actuators and automatic control valve products in Dongguan, China with 18 years experience. Our industrial experience will be useful in your business and projects.

18 Years Operation

Good credit rating. Large quantities of regular clients.

German Imported CNC Machine

Fully automated, high accuracy.

ISO 9001 Certificated

With additional certifications that include TUV SGS RoHS.

Affordable Prices

Our prices are both fair and affordable.

Qualified Engineers

Designed and manufactured by experienced engineers.

Well-trained Staffs

Always available to answer your questions.

ODM Services

With access to download 2D & 3D models.

Standardization Production

Stable quality, strict quality control.

Same-day Shipping

Keep a large stock of air directional control valve.

Field Service

Provide continuous assistance in over 40 countries.

One Year Warranty, Life Service

A period of twelve (12) months from the shipment date.

Global Presence

Find us at the exhibition or contact local representatives.

In Stock, Start Order Now!

Packing

Packing: 4V210-08 PT1/4 inch 2 Position 5 Way DC 12V Air Directional Control Valves packed with foam in carton.
Delivery Time: 15 working days after payment confirmed.
