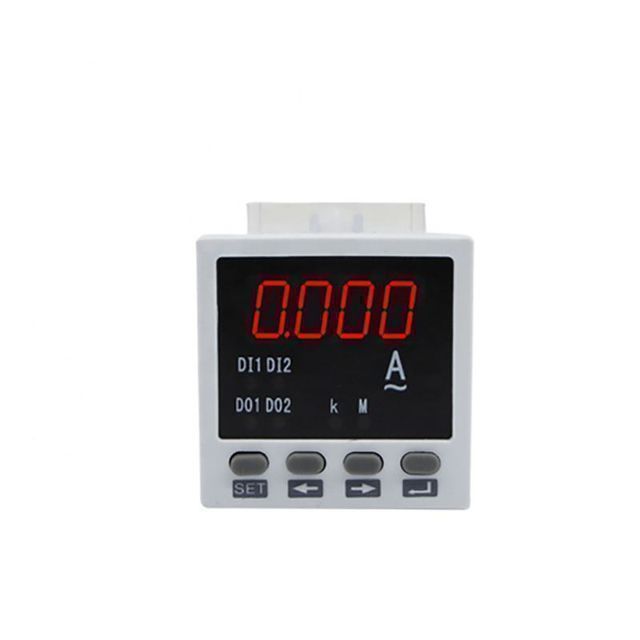

Ampere Indicator Single Phase CN-AA81 AC Current Ammeter

Supplier: Yueqing Renhe Electric Co., Ltd.
Region: Zhejiang, China
Contact: Ms Helen Huang
Price: $7.30 /piece
Min. Order: 1 piece

Click here to contact

Product details

Supply capacity:	1000 pieces per day	aspect:	48*48mm
voltage:	AC/DC80V~270V,AC220V,AC380V,AC100V,DC48V,DC24V	Packaging Details:	Standard export carbon package or as your request Ampere Indicator Single Phase RH-AA81 AC Current Ammeter
Operating temperature:	-10℃~+55℃	place of origin; place of origin:	Zhejiang, China
weight:	1 kilograms	color:	white/black
Function:	Smart single-phase digital ammeter	Accuracy class:	0.5
Display type:	numbers only	Measuring current range:	0~9999
Working current:	AC1A~AC5A DC20mA~dc75mA	product name:	Ampere Indicating Single Phase RH-AA81 AC Current Ammeter
Measurement rate:	1.2 times, 10 times/5 seconds	brand:	custom made
Measuring range:	0-5A	port:	Ningbo/Shanghai
payment terms:	Western Union, wire transfer	property:	Smart single-phase digital ammeter
model:	CN-AA81	feature:	Smart single-phase digital ammeter
usage:	Ampere measurement

Ampere Indicator Single Phase CN-AA81 AC Current Ammeter

Product Description

Size: customized	Custom Processing: Yes	Measuring range: 0-9999
Model: CN-AA	Accuracy class: 0.5	Installation method: embedded
Brand: Customized	Application: High-precision measurement of single-phase DC ampere	Auxiliary power supply: DC 80V-270V, DC48V, DC24V, AC220V, AC380V, AC100V(V)
Performance characteristics
High-precision measurement of single-phase AC current
Provide digital tube display, local data query
Programmable Voltage Ratio
Support RS-485 communication, Modbus-RTU protocol
Support digital input, output, analog transmission output
Auxiliary power supply: AC/DC 80V~270V, AC220V, AC380V, AC100V, DC48V, DC 24V
A variety of shapes to meet the different requirements of the cabinet circuit
Technical indicators
measurement accuracy	Current 0.5
signal input	single-phase connection
	AC1A, AC5A, DC20mA, DC1A, DC5A, DC75mV rated current
	Overload 1.2 times (continued), 2 times/sec (instantaneous)
	Power consumption <0.4VA/phase
	Impedance <20mΩ
	Frequency 45~65Hz or DC
Auxiliary power	AC/DC 80V~270V, AC220V, AC380V, AC100V, DC48V, DC 24V
	Power consumption <4VA
functional module	Communication interface 1 channel RS-485 communication, Modbus-RTU protocol
	Baud rate: 1200~9600bps, default 2400bps
	Switch input supports 2 stem node inputs
	Switch output supports 2 relay outputs, capacity: AC 250V/5A, DC 30V/5A
	Transmitter output supports 1 analog output: 0/4~20mA or 0~5/10V
surroundings	Operating temperature: -10°C ~+55°C
	Storage temperature: -25°C ~+70°C
	Relative humidity less than 93%, no corrosive gas
	Altitude≤2500m
Safety	Insulation resistance>100MΩ
	AC withstand voltage AC 2KV
Electromagnetic Compatibility	Anti-static class 4
	Electrical Fast Transient Burst Class 4

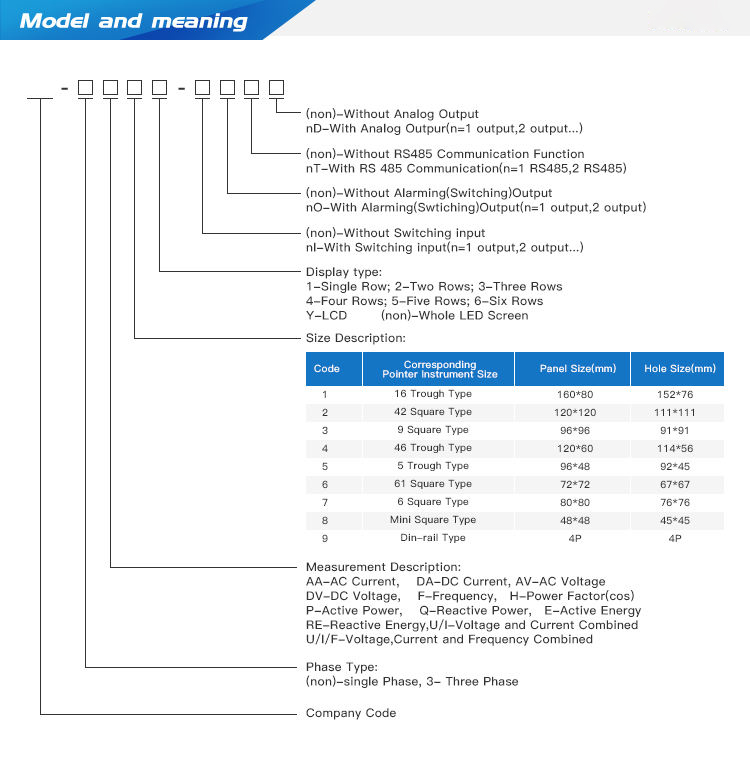

Specification selection
Digital intelligent single-phase AC ammeter (9999 display programmable)
model.	exhibit	Frame size (mm)	Aperture(mm)	Comment
CN-AA11	Digital Single Row LED	160*80	152*76
CN-AA21	Digital Single Row LED	120*120	111*111
CN-AA31	Digital Single Row LED	96*96	92*92
CN-AA41	Digital Single Row LED	120*60	114*56
CN-AA51	Digital Single Row LED	96*48	92*45
CN-AA61	Digital Single Row LED	72*72	68*68
CN-AA71	Digital Single Row LED	80*80	76*76
CN-AA81	Digital Single Row LED	48*48	45*45
Comment:
AC/DC power supply (switching power supply) $20
Ordering instructions: Please write clearly the required model, input signal and function module when purchasing. Others: Factory default settings (no instructions use default settings).
