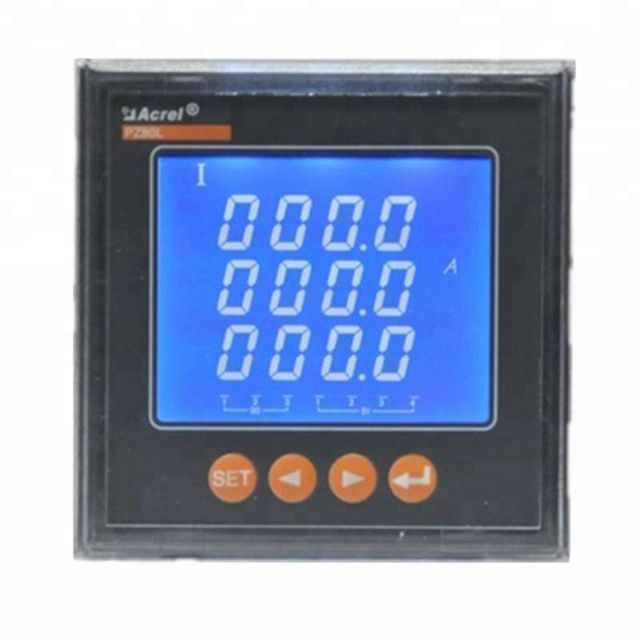

Intelligent three-phase AC ammeter LCD ammeter with alarm output

Supplier: Acrel E-Business (shanghai) Co., Ltd.
Region: Shanghai, China
Contact: Ms Rita Li
Price: $70.70 /piece
Min. Order: 1 piece

Click here to contact

Product details

frequency:	45~65Hz	Accuracy class:	0.5
Supply capacity:	1000 pieces per week	exhibit:	LCD Monitor
place of origin; place of origin:	Jiangsu, China	payment terms:	Letter of Credit, T/T, Western Union, MoneyGram
Display type:	numbers only	Delivery Details:	15 days after payment
aspect:	84*84mm	model:	PZ80L-AI3/J
Packaging Details:	carton	brand:	Akrel
Operating temperature:	-10 ~+55℃	Input Current:	AC 1A, 5A
alarm:	1 channel passive relay	voltage:	AC85~265V or DC100~350V
Measuring range:	0~9999	port:	Shanghai

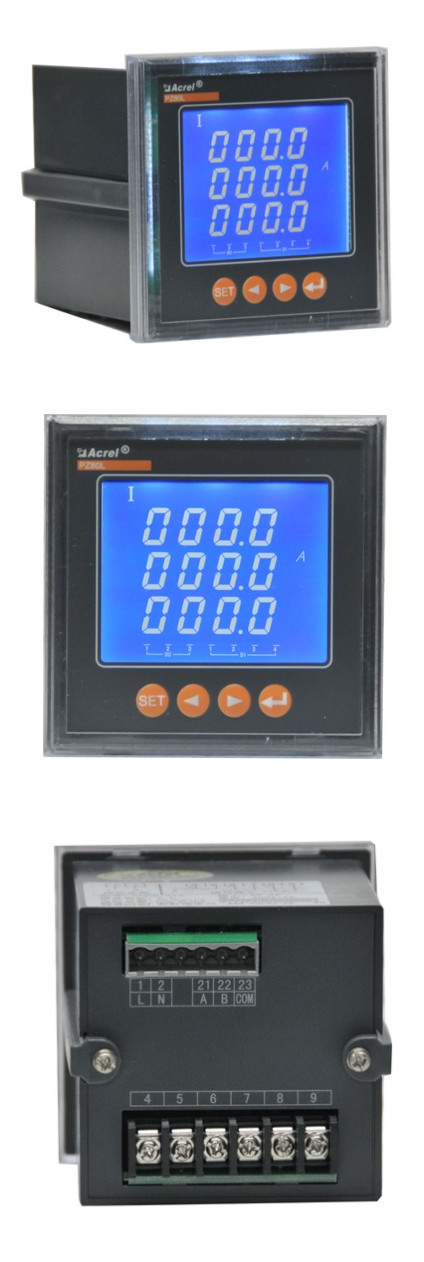

Three-phase ammeter PZ80L-AI3/C

PZ series electric energy meter adopts AC sampling technology, which can directly or indirectly measure many single-phase or three-phase power grid electrical parameters such as current, voltage, power, and electric energy. It can be used for local display, and can also be connected with control equipment to form a measurement and control system.

Product Specifications

Model

basic skills

Dimensions (mm)

optional features

PZ80L-AI3/J

Three-phase current measurement,

LED digital display

84*84

Single Passive Relay (/J)

Technical Features

technical parameter		value
enter	face value	AC current: 1A, 5A (special specifications can be consulted in advance)
	overload	Voltage: 1.2 times (continuous), 2 times/1s; Current: 1.2 times (continuous), 10 times/sec
	frequency	45Hz~65Hz
	consume	<0.5VA
accuracy		Level 0.5
Function	show	PZ80L-AI3/J: LCD Range -9999~9999 Set the magnification at will
power supply	voltage range	AC85~265V or DC100-350V
power supply	energy consumption	<5VA
Insulation resistance		≥100MΩ
Power frequency withstand voltage		2kV/1min (RMS)
mean time between failures		≥5000h
surroundings	temperature	Operation: -10~+55℃ (LED display) -10~+45℃(LCD display) Storage: -20~+70℃
	humidity	≤93%RH, no condensation, no corrosion
	high	≤2500m

Cut Outline and Dimensions:

outline	Panel size		Shell size			Cut size
Unit: mm	high	width	high	width	depth	width	high
84*84	84	84	75	75	98	76	76

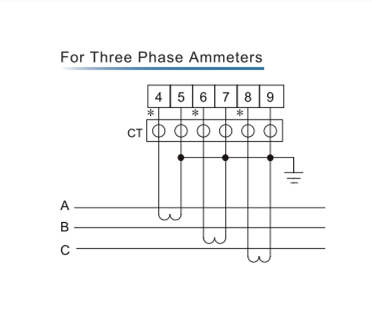

Install:

Acreier Co., Ltd. [stock code: 300286.SZ] is one of the few leading companies in China that provides various system solutions such as power monitoring, power control, energy management and electrical safety for smart grid users.

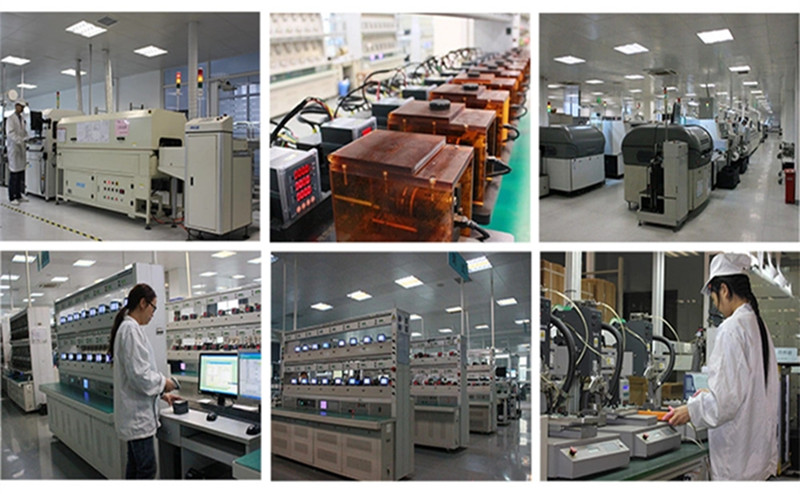

Since June 2003, we have been focusing on the research, production and sales of smart meters. We specialize in providing products and services that help customers improve power efficiency and safety. So far, we have the following comprehensive solutions for different applications: 35(10)/0.4kV Substation Automation System, Building Photovoltaic (BMPV) System, Power Quality Management System, Energy Management System, Electrical Fire Monitoring System, Medical IT Power Distribution System Positioning, precise power distribution management system, fire equipment power supply monitoring system, fire emergency lighting and evacuation indication system, fire access control monitoring system, intelligent lighting control system, lithium battery management system, electric vehicle charging system.

Certificate
