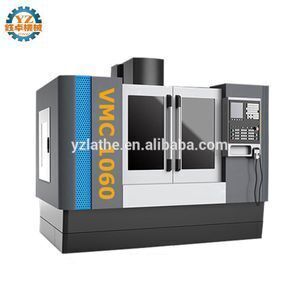

CNC Milling Vertical Machining Center VMC1060

Supplier: Taian Yuzhuo Machinery Co., Ltd.
Region: Shandong, China
Contact: Mr Chao Han
Price: $28000.00 /unit
Min. Order: 1 unit

Click here to contact

Product details

Applicable Industries:	Machinery Repair Shops,Manufacturing Plant,Metalwork processing;	Dimension(LWH):	3000x2500x2650mm;
Selling Units:	Single item;	Key word:	cnc milling machine;
Color:	Custom-made;	Lubrication:	Auto lubrication;
Weight:	6000kg;	Type:	Vertical;
CNC Controller:	Fanuc Siemens Syntec;	Cutting Mode:	Mechanical;
Single package size:	320X270X280 cm;	CNC Control System:	GSK;
Voltage:	3 Phase 220V/ 380V/ 415V;	Delivery Detail:	0 days after payment;
After-sales Service Provided:	Online support,Video technical support,Free spare parts,Field installation, commissioning and training,Field maintenance and repair service;	Key Selling Points:	Competitive Price;
Single gross weight:	6,200 KG;	Application:	Metal machining/ training;
Package Type:	3 Axis Milling Machine CNC Vertical Machining Center VMC1060: Exporting standard package, water proof, anti-rust and fumigation-free.;	Place of Origin:	Shandong China (Mainland);
Certification:	CE SGS;	Name:	CNC Milling Vertical Machining Center VMC1060;
Brand Name:	YZ CNC;	Warranty:	1 Year;
Tool Changer:	Funnel type/ Arm type;	Guideways:	Taiwan linear guideways;
Power(W):	11/15kw;	Spindle:	Taiwan 8000 RMP spindle;
Condition:	New;

Product Description

SPECIFICATIONS FOR 3 AXIS MILLING MACHINE CNC VERTICAL MACHINING CENTER VMC1060
Travel	X axis	mm	1000
	Y axis	mm	600
	Z axis	mm	600
	Spindle nose to table	mm	150-750
	Spindle nose to column	mm	600
Feed	Max. X/Y/Z rapid feed	m/min	24/24/18
	Cutting feed	mm/min	1-10000
	Torque	N.m	15/15/15
Table	Table size	mm	1200x600
	Max. load	kg	800
	T slot	mm	5-18-100
Spindle	Speed	rpm	50-8000
	Spindle bore	mm	150
	Spindle taper		BT40
	Pull stud		MAS403-40BT-1
	Main motor	kw	11/15
Machine	Size	mm	3000×2500×2650
Machine	Weight	kg	6000

Main Features

1) CNC controller : Taiwan Syntec 21MA.

2) Taiwan funnel type tool changer.

3) Full guard.

4) Taiwan spindle.

5) Automatic lubrication system.

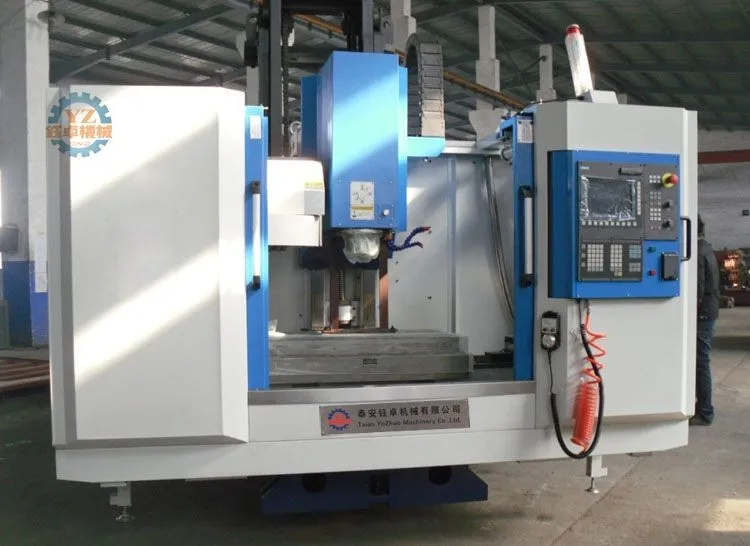

Detailed Images

Automatic Tool Changer

Funnul type tool changer with 12 position.

Guide full protection

High quality Taiwan brand spindle bore.

Our Company

Taian Yuzhuo Machinery Co., Ltd. ( or “YZ CNC” for short) is a professional manufacturing enterprise engaged in the research, development, production, sale and service of CNC machines. Dedicated to strict quality control and thoughtful customer service, our experienced staff members are always available to discuss your requirements and ensure full customer satisfaction.

Our main products are Wheel Repair CNC Lathe Machine, Vertical CNC Lathe Machine, Horizontal CNC Lathe Machine, Slant Bed CNC Lathe Machine, Universal Lathe Machine, Pipe Threading CNC Lathe Machine, CNC Milling Machine and CNC Vertical Machining center. All the above products have passed CE, SGS certificates.

Certifications

Our Customers

Our Service

Pre-Sales Service

* Inquiry and consulting support.
* Sample testing support.
* View our Factory.

After-Sales Service

* Training how to instal the machine, training how to use the machine.
* Engineers are available to service machinery overseas.
* Warranty is one year, we would offer the parts (quality problem) free of charge during this period.
Note: GSK, Servo driven, motor and transformer, warranty is 3 years.

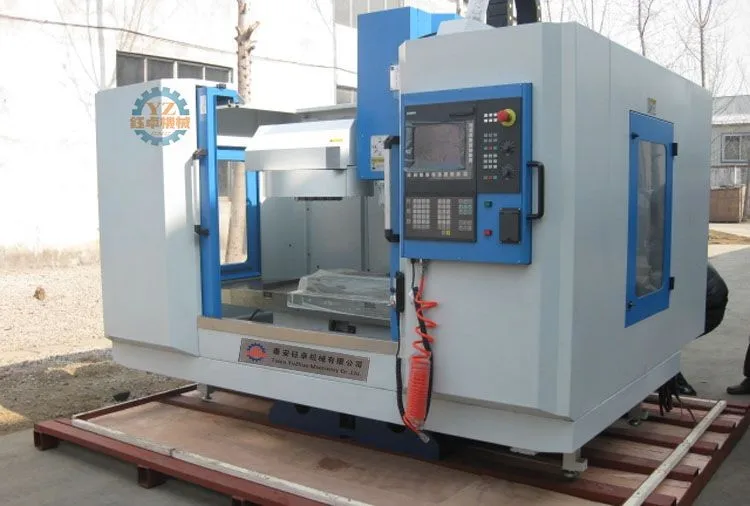

Packing & Delivery

3 Axis Milling Machine CNC Vertical Machining Center VMC1060

Packaging Size: 3050X2550X2800mm

Weight: 6200kg

Packaging Details: Standard export package, custom suffocating free.

FAQ

Q1. How can I choose the most suitable machines ?
A: Please tell us your requirement of the machine, or you can also send us the products drawing, our engineer can help to choose the best model for you.

Q2. What's the main products of your company?
A: We specialized in many kinds of CNC machines, such as Wheel Repair CNC Lathe Machine, Vertical CNC Lathe Machine, Horizontal CNC Lathe Machine, Slant Bed CNC Lathe Machine, Universal Lathe Machine, Pipe Threading CNC Lathe Machine, CNC Milling Machine and CNC Vertical Machining center and so on.

Q3. Where is the factory located? How can I visit there?
A: Our factory is located in Tai’an City, Shandong Province, China. With very convenient transportation access, you can come by airplane or by high speed railway. And warmly welcome you to visit us.

Q4. What is the Trade Terms?
A: FOB, CFR and CIF all acceptable.

Q5. What's the Payment Terms ?
A: 30% T/T initial payment as deposit, 70% T/T balance payment before shipment.

Q6. What's the MOQ?
A: MOQ is 1 set.
