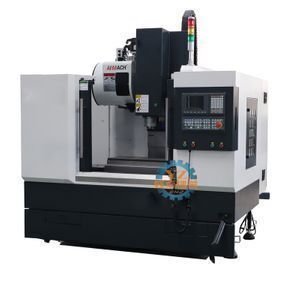

VMC850 Mini CNC Milling Machine and CNC Machining Center

Click here to contact
Product details
working table trave:800x500x500mm;Brand Name:YUZHUO;
Place of Origin:China;Packaging Detail:VMC850 Mini CNC Milling Machine and CNC Machining Center: standard exported wooden case and with iron foot.;
Condition:New;Weight:4800kg;
CNC or Not:CNC;spindle face to working table distance:100-600mm;
Certification:CE ISO9001;Repeatability (X/Y/Z) (mm):0.01mm/300;
Spindle Taper:BT40;Payment Terms:L/C,D/A,D/P,T/T,Western Union;
Supply Ability:50 Set/Sets per Month VMC850 Mini CNC Milling Machine and CNC Machining Center;Table Travel (mm):1000x500mm;
X Y Z fast speed:24m/min;Voltage:220v/380v;
Year:NEW;Load weight:600kg;
spinde speed range:8000RPM;After-sales Service Provided:No after-sales service,Free spare parts,Field maintenance and repair service,Online support,Video technical support;
Warranty:1 Year;Positioning Accuracy (mm):0.01mm;
Table size:10000x500mm;Power(W):7.5KW;
Port:qingdao ,guangzhou , shenzhen and so on;Precision:0.01mm;
Spindle taper:BT40;Type:Vertical;
Dimension(L*W*H):2700X2300X2500;Range of Spindle Speed(r.p.m):8000rpm;
Model Number:VMC850;main motor power:7.5kw/11kw;
Machine Type:Cnc Vertical Milling Machine;
Product Description
VMC850 Mini CNC Milling Machine and CNC Machining Center
item
Unit
VMC850
VMC855
VMC865
Travel
X axis
mm
800
850
850
Y axis
mm
500
550
650
Z axis
mm
500
550
550
Spindle nose to table
mm
120-620
120-670
120-670
Spindle nose to column
mm
550
550
550
Feed
Max.X  rapid feed
M/Min
24
24
24
Max.Y  rapid feed
M/Min
24
24
20
Max.Z rapid feed
M/Min
15
15
15
Cutting feed
MM/Min
1-1000
1-1000
1-1000
Torque(x y z)
N.m
10/10/15
15/15/15
15/15/15
Table
Table size
mm
1000x500
1000x500
1000x500
Max.load
kg
500
500
500
T Slot
mm
5-18-90
5-18-90
5-18-90
Spindle
Type
Belt
Speed
rpm
50-8000
50-8000
50-8000
Spindle bore
mm
120
120
120
Spindle Taper
BT40
BT40
BT40
Pull stud
MAS403-BT-1
Spindle motor and belt
Taiwan
Main Motor
kw
7.5/11kw
7.5/11kw
7.5/11kw
Accuracy
Positioning Accuracy
mm
0.015/300
0.015/300
0.015/300
Repeatibility
mm
0.0075
0.0075
0.0075
Machine
Size( L W H)
mm
2650×2300×2450
2650x2300x2450
2650x2300x2450
Weight
kg
5200
5200
5200

Standard configuration:

1-Synetec CNC Controller
2-Full Enclosure Machine Guard
3-Funnel Type Tool Changer

4-Autmatic Central Lubrication System With Alarm

5-Work Lamp

6-high precision ball screw and guide

Optional configuration:

1-GSK KND Siemens Fanuc Mitusbishi
2-Arm type ATC
3-chip conveyor
4-4 axis and 5 axis
5- Spindle oil coolant,center to water
6.Renishaw probe for workpiece and tool

VMC850 Cnc Machining Center

Choose other Configurtions

Choose other Models

  VMC500 CNC Machining Center


  VMC650 CNC Machining Center


 VMC1060 CNC Machining Center


Detailed Images

Machine Inspection Euipment

Processing Case

Packing & Delivery

Packaging Details :Exporting Standard Package, Water Proof, Anti-rust and Fumigation-free.

Our Company
Our Service

Pre-Sales Service

1.Customers provide the detailed work piece size or drawing, our professional engineer will check and recommend suitable machine model for you.

2.Or customers send us samples by courier, we can process some samples for customers checking.

3.We can customize machine for customers' requirements.

4.Welcome customers can come to our factory Taian Yuzhuo company for visiting and checking machine.

After-Sales Service

1.Training how to instal the machine, training how to use the machine.

2.Engineers are available to service machinery overseas.

3.Warranty is one year, we would offer the parts (quality problem) free of charge during this period.

4.Note: GSK, Servo driven, motor and transformer, warranty is 3 years.

FAQ

Q1.How to send my enquiry?

You can contact us by email, phone call, message (Whats APP, We Chat, Skype).


Q2.How long can I get feedback after enquiry?

We will reply you within 6hrs in working day.


Q3.Where is your factory located? How can I visit there?

Our factory is located in South Development zone, Tai An City, Shan Dong Province, China. There has flight from Jinan need 1.5 hours, or High speed train directly to our city. Welcome to visit our factory.


Q4.Delivery time

Machines order takes 20 days after deposit payment received. Please inquiry sales.


Q5.What is the package? Is it suitable for shipment?

Machine is by waterproof cloth to covered.And be packed by standard exported wooden case with steel foot.. It is very much strong for oversea transportation.


Q6.Payment term

30% by T/T as down payment, balance 70% by T/T before delivery. If others payment terms, we can discuss.Welcome to inquiry sales.


Q7.Can I trust you?

Sure, we're Alibaba Gold Suppliers , Alibaba Assessed Supplier , Alibaba Trade Assurance Supplier.


Q8.How long is the warranty for machines?

Machines warranty is 24 months after receive goods. in Warranty time,we can provide new free parts for changing.Please contact your YZ CNC sales representative for details.


Q9.How' s your after-sale service?

Out after sales support and service is second to none and we urgently respond to your queries, if parts are required they would be sent to you by international courier within 48 hrs upon registering your need.


Q10.Can you engineer come to our place to help with machine installation & commission?

Yes, our engineers are available to travel to your place. Round flight tickets & accommodation will be at your cost.


Q11. If i can't know how to operate. Can your engineer help me programme well on machine ?

Sure. You can provide your detailed sample drawing.engineer can programme well on machine. Or in some machines, we will put into U-disc of operation video to help you.
