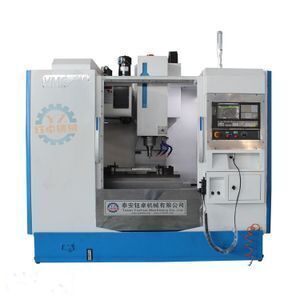

VMC 650 VMC-650 VMC650 China CNC Machining Center Vertical CNC Milling Machine

Supplier: Taian Yuzhuo Machinery Co., Ltd.
Region: Shandong, China
Contact: Mr Chao Han
Price: $16500.00 /set
Min. Order: 1 set

Click here to contact

Product details

Voltage:	220v/380v;	Selling Units:	Single item;
working Tslot,number/width/distance:	3-16;	Spindle taper:	BT40-120;
Spindle Taper:	BT40-120;	Machinery Test Report:	Provided;
Showroom Location:	United Kingdom,United States,Italy,France,Germany,Viet Nam,Indonesia,Spain;	Table Travel (Y) (mm):	500;
Table size:	800X400MM;	Single package size:	20X20X20 cm;
Weight (KG):	2800;	Local Service Location:	United Kingdom,United States,Italy,France,Germany,Indonesia,Spain;
Weight:	2800kg;	working table trave:	650X400X500MM;
Repeatability (X/Y/Z) (mm):	0.01;	Warranty of core components:	1 Year;
Certification:	CE ISO9001;	After-sales Service Provided:	Free spare parts,Field installation, commissioning and training,Field maintenance and repair service,Online support,Video technical support;
Type:	VERTICAL;	Machining Capacity:	Medium Duty;
Single gross weight:	60.0 KG;	Video outgoing-inspection:	Provided;
Spindle Motor Power(kW):	5.5;	CNC Control System:	GSK;
Range of Spindle Speed(r.p.m):	20 - 8000;	Place of Origin:	China;
spinde speed range:	8000RPM;	Applicable Industries:	Manufacturing Plant,Machinery Repair Shops,Construction works ,Energy & Mining;
Marketing Type:	New Product 2020;	Core Components:	Bearing,Motor,Pump;
spindle face to working table distance:	100-600 mm;	Table Travel (Z) (mm):	500;
After Warranty Service:	Video technical support,Online support,Spare parts,Field maintenance and repair service;	Packaging Detail:	VMC 650 CNC Milling Machine CNC Machining Center Vertical Type : standard exported wooden case and with iron foot.;
Dimension(LWH):	2500x2000x2300mm;	Machine Name:	VMC650 CNC Machining Center;
main motor power:	5.5KW;	Condition:	New;
Brand Name:	YUZHUO;	Year:	New;
Max. Table Load(kg):	600;	Key Selling Points:	High Safety Level;
Package Preview:	;	Number of Axes:	3;
Table Travel (mm):	800x400mm;	Model Number:	VMC650;
Positioning Accuracy (mm):	0.001;	Warranty:	1 Year;
Table Travel (X) (mm):	650;	Precision:	0.01mm;

VMC650 China CNC Machining Center Vertical CNC Milling Machine VMC 650 VMC-650

VMC650 CNC Machining center Parameter

ITM		Unit	VMC650
Travel	X axis	mm	650
	Y axis	mm	400
	Z axis	mm	500
	Spindle nose to table	mm	90-590
Feed	X Y Z rapid feed	m/min	20
	Cutting feed	mm/min	1-6000
Table	Table size	mm	800X400
	Max.load	kg	500
	T slot	mm	3-16-90
Spindle	Speed	rpm	8000
	Spindle bore	mm	120
	Spindle taper		BT40
	Main motor	kw	5.5/7.5
Accuracy	Positioning Accuracy	mm	0.01/300
Machine	Size( L W H)	mm	2500X2000X2300
	Weight	kg	3800

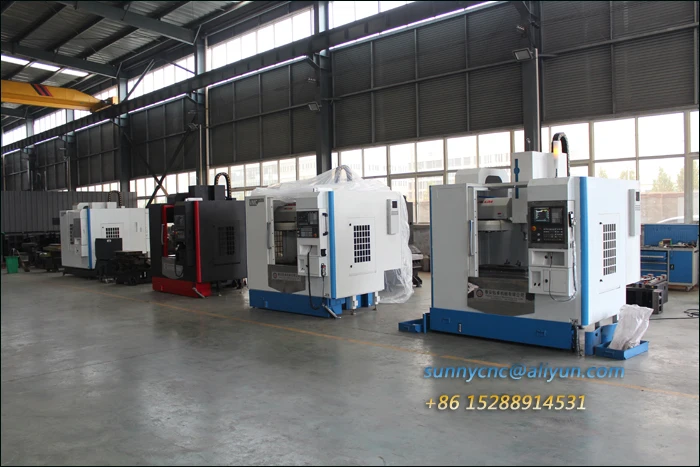

VMC650 Photos

Standard Configuration

1)GSK/KND CNC controller,servo motor, servo driver

2)16T funnel type tool changer.

3) Spindle servo motor

4) BT40 / 120 (VM650) spindle unit,

5) 8000rpm speed

6) precision screw and guide

7) Three axis linear guide Taiwan HIWIN

8) Three-axis rail protection

9) Intermittent lubrication system

10) cooling system,With water pump

11) Full protection of sheet metal system

12)380v 50hz 3phases

Optional Configuration

FANUC, SIEMENS, SYNTEC, MITSUBISHI CNC

16T arm type tool changer

Spindle oil coolant

Spindle center outlet water

Spindle directly connect

Chip conveyor

VMC650 Machine Package
