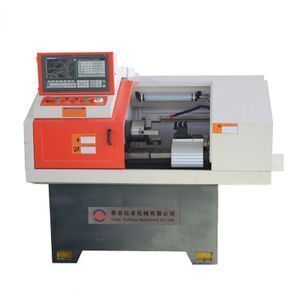

Hot sell!!! Newest Hobby mini CNC Lathe CK0640A machine/ easy operation bench CNC lathe

Supplier: Taian Yuzhuo Machinery Co., Ltd.
Region: Shandong, China
Contact: Mr Chao Han
Price: $4300.00 /unit
Min. Order: 1 unit

Click here to contact

Product details

Spindle speed:	20-3000rpm/min;	Single package size:	1X1X1 cm;
Power(W):	3KW;	Single gross weight:	1.0 KG;
Machining Capacity:	Light Duty;	Chuck:	3-jaw Chuck;
Local Service Location:	United States,Italy,France;	Travel (X Axis)(mm):	300;
Selling Units:	Single item;	Place of Origin:	Shandong China;
Marketing Type:	New Product 2020;	Dimension(LWH):	1550 x 1000x 1450mm;
Max. Spindle Speed (r.p.m):	3000 r.p.m;	Spindle Motor Power(kW):	3;
Applicable Industries:	Manufacturing Plant;	Type:	Horizontal;
Showroom Location:	United States,Italy,France;	Core Components:	Bearing,Motor,PLC;
Width of bed (mm):	260;	After Warranty Service:	Online support,Spare parts;
Spindle bore:	40mm/32mm;	Warranty:	2 YEARS,1 Year;
No. of Spindles:	Single;	Max. Swing Diameter (mm):	360;
Year:	NEW;	Brand Name:	YZ CNC;
Warranty of core components:	1 Year;	Travel (Z Axis)(mm):	260;
After-sales Service Provided:	Online support;	CNC Control System:	gsk;
Function:	machining metal;	Key Selling Points:	Competitive Price;
Turning length:	450mm;	Voltage:	380V 220v 415v;
Weight (KG):	890;	Structure:	Flat Bed Lathe;
Certification:	CE ISO;	Packaging Detail:	Hot sell!!! Newest Hobby mini CNC Lathe CK0632A machine/ easy operation bench CNC lathe : exporting standard package, water proof,and anti-rust. fumigation-free;
Video outgoing-inspection:	Provided;	Number of Axes:	2;
Max. Length of Workpiece (mm):	300;	Machinery Test Report:	Provided;
Model Number:	CK0640;	Tool Post Stations:	none;
Control system:	GSK SIEMENS FANUC;	Spindle Bore(mm):	42;
Condition:	New;	Weight:	900kgs;
Turret Type:	4 Station Electrix Turret;

CK0640 CNC Lathe Small CNC Lathe Machine Micro Lathe

CK0640 CNC Lathe Specification

Item	CK0640	CK0660	CK0680
Max. swing dia. over bed	Φ260mm	Φ260mm	Φ260mm
Max. swing dia. over cross slide	Φ130mm	Φ100mm	Φ130mm
Max. workpiece length	Collet 200mm Chuck 120mm	Collet 200mm Chuck 120mm	Collet 200mm Chuck 120mm
Diameter of spindle bore	Φ48mm	Φ70mm	Φ90mm
Drawn pipe diameter	Φ42mm	Φ60mm	Φ80mm
X-axis fast moving speed	6000mm/min	6000mm/min	6000mm/min
Z- axis fast moving speed	8000 mm/min	8000 mm/min	8000 mm/min
X-axis feed rates	1~2000mm/min	1~2000mm/min	1~2000mm/min
Z- axis feed rates	1~1800mm/min	1~1800mm/min	1~1800mm/min
Range of spindle speed	50~2500rpm	50~2500rpm	50~2500rpm
Thread machining scope (metric system)	0.25~12mm	0.25~12mm	0.25~12mm
Thread machining scope (British system)	28~3 1/2	28~3 1/2	28~3 1/2
Stations of tool carrier	gang-type tool carrier	gang-type tool carrier	gang-type tool carrier
Main motor	3KW	4KW	4KW
Dimension	1550×920×1450mm	1650x1000x1600mm	1650x1000x1600mm
Weight	850KG	950KG	1000KG

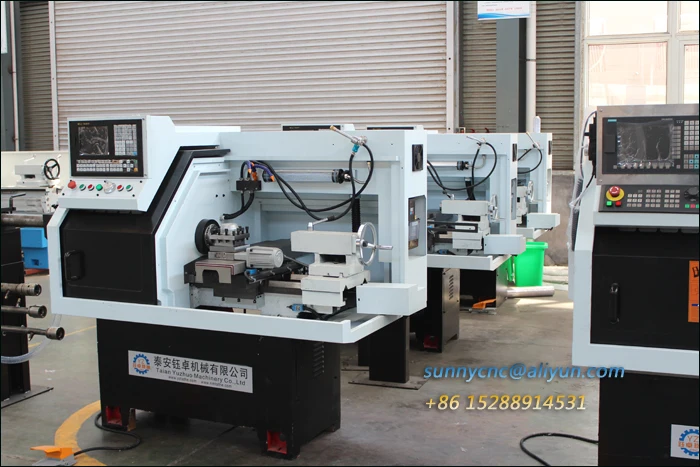

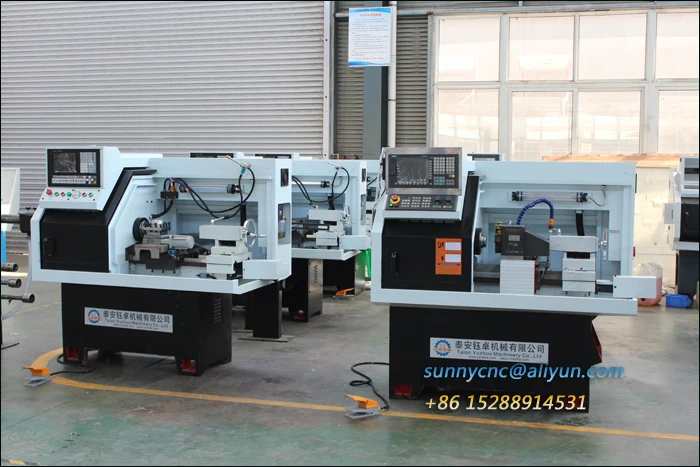

CNC Lathe Photos

Standard Configuration

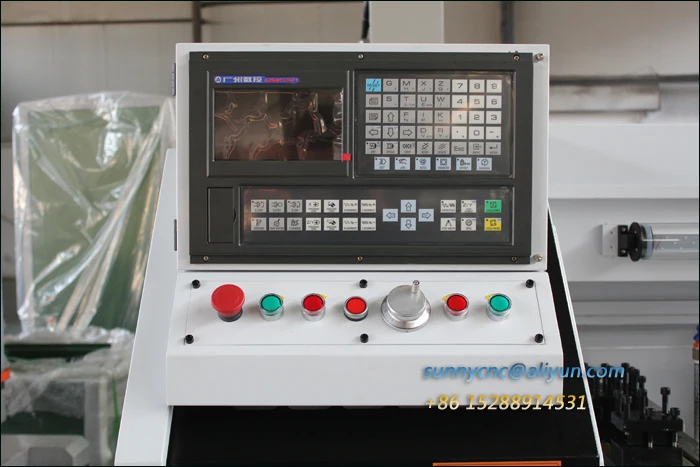

CNC GSK928 TD-L CNC Controller,
Pneumatic spring collet

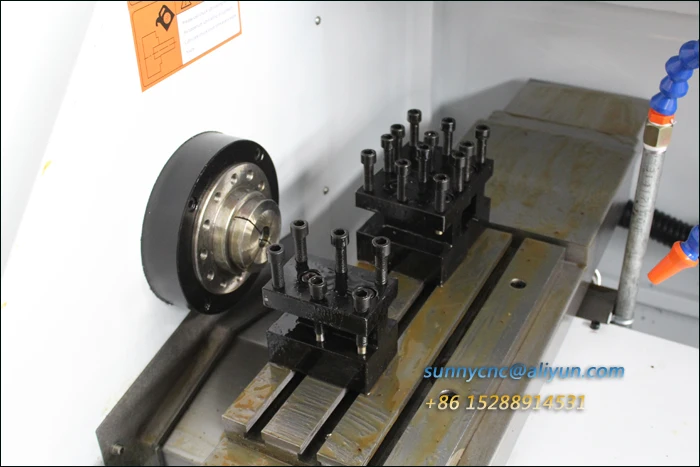

2 Pieces Gang type tool carrier,
Without manual tail stock
Light, lubrication, coolant system
Instructions, tool box, 380v 50hz 3phases

Optional Configuration

Manual tail stock
8 Station tool post
Hydraulic chuck
SIEMENS CNC Controller
FANUC CNC Controller

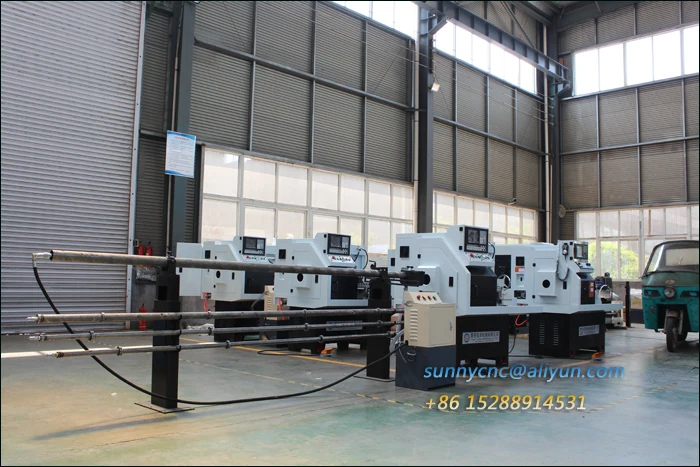

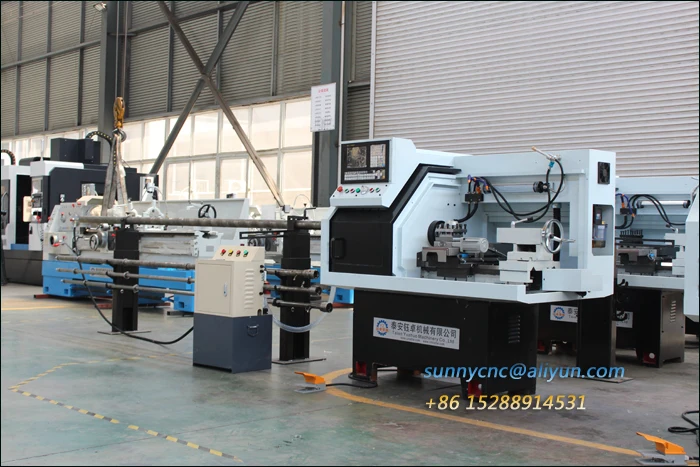

Auto bar feeder

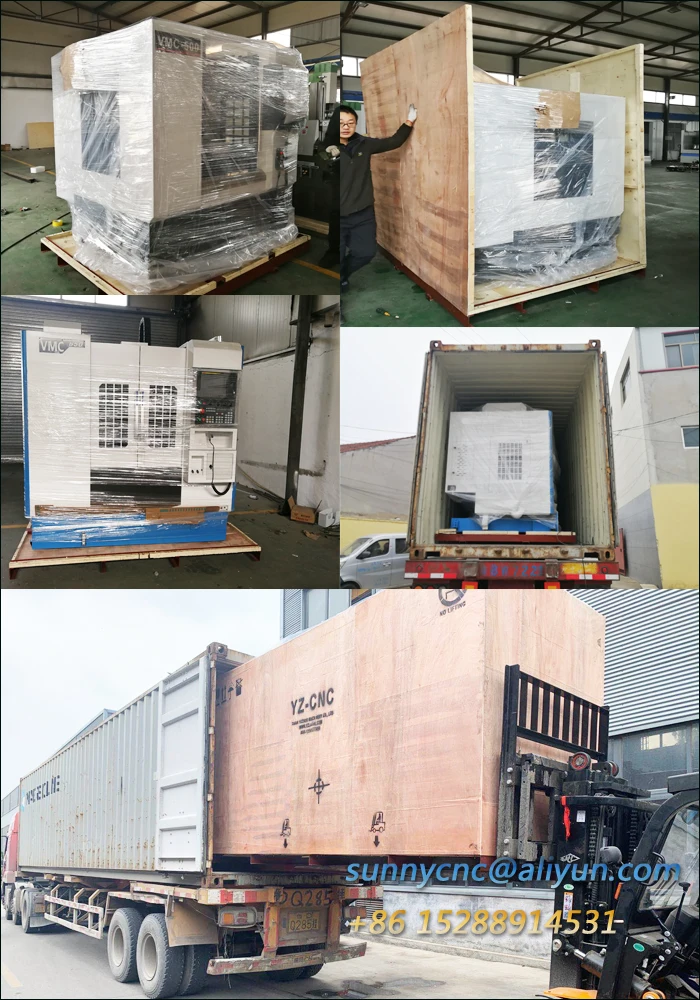

CNC Lathe Package
