T904F Smart AC DC Digital Panel Ammeter Voltmeter Power Meter Process Indicator with RS485 Modbus and 4-20mA

Product details
exhibit:LED 4-digit displayThe sampling period:DC type: 50ms, AC type: 16.6ms
aspect:48*48mm,48*96mmMeasuring range:0~9999
A/D conversion method:Practical oversampling using successive approximation ADCsOperating temperature:0-60
Display type:numbers onlyvoltage:AC/DC100~240V
AC measurement function:Optional RMS or AVGSub output:RS485 communication, 4-20mA transmitter output
Packaging Details:Packaging Details: Standard carton with TMCON logo Outer carton size: 440*312*258place of origin; place of origin:Guangdong, China
Accuracy class:0.1%~0.3%installation method:Panel flush installation
brand:TMCONport:Guangzhou
Delivery Details:3 daysMeasurement input:AC Ampere, AC Voltage, AC Frequency, DC Ampere, DC Voltage, Analog Signal
model:FT904payment terms:letter of credit, wire transfer
Indication range:-1999t0 9999Alarm Output:3 Alarm relay
Supply capacity:500 pieces per dayvoltage:100-240V AC/DC 50/60Hz or 12-24VDC
Product Description

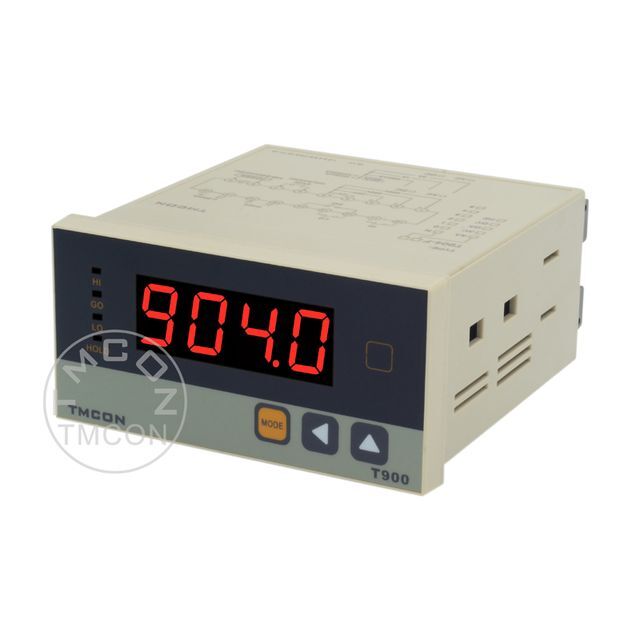

T904-F intelligent AC and DC digital panel ammeter voltmeter power meter analog process indicator

High-precision, multi-function, various power and analog signal measurement


●Various range input specifications can be selected.
●Various output options (default: LED):
RS485 communication output, current (4-20mA) output, NPN/PNP open collector output, relay output.
●Max. Display range: -1999 t0 9999.
●High/low scale function.
●Various functions: maximum monitoring function. and minutes. Display value function, display cycle delay function, zero return function, high display correction function, current output scale function.
●AC frequency measurement function: 0.1 t0 9999Hz.
●High-performance global switching power supply AC/DC100~240V or DC12-24V for users to choose.
● strong anti-interference performance, accurate and reliable measurement.

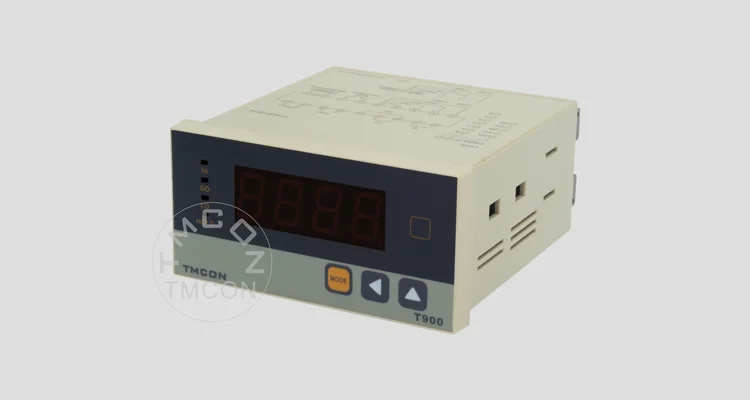

detailed image

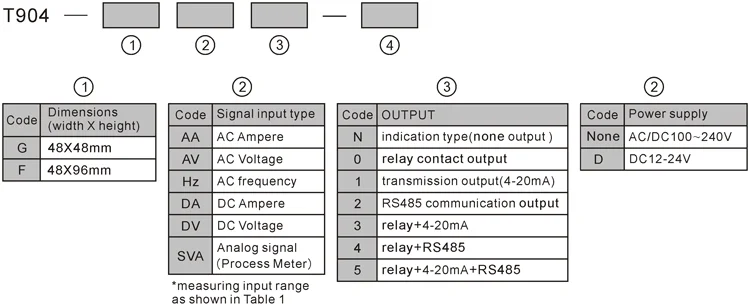

model code

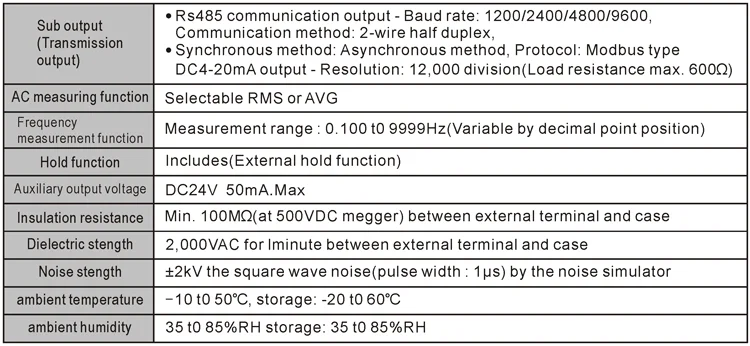

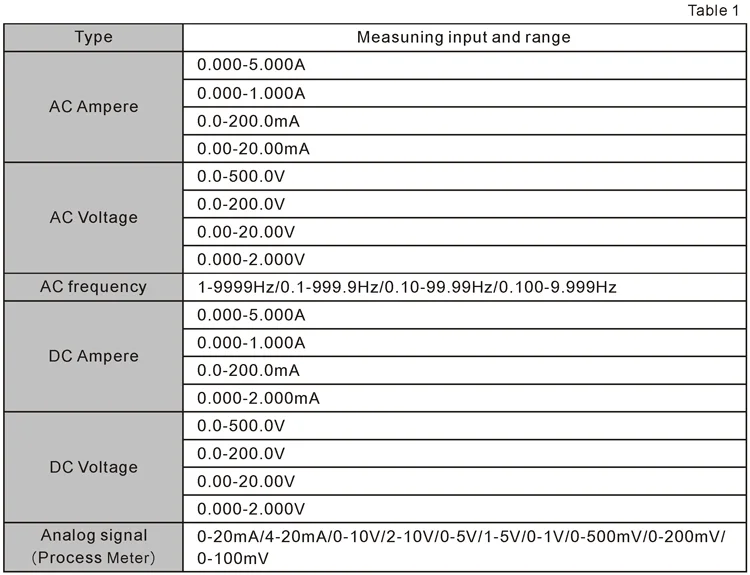

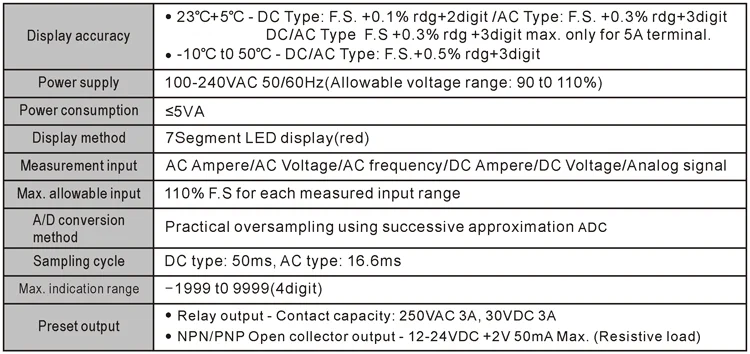

Specification

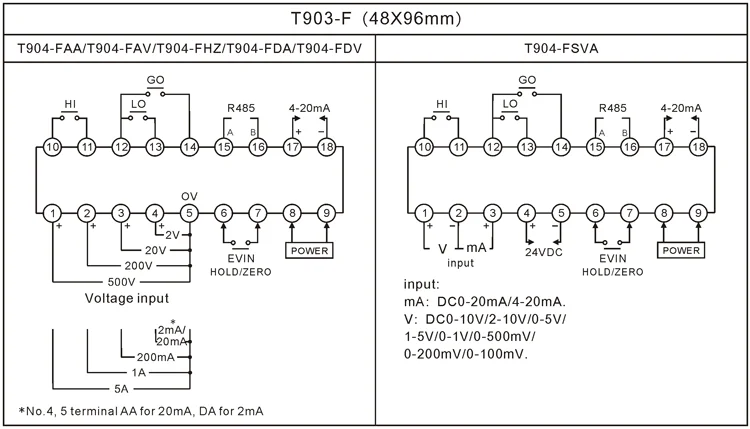

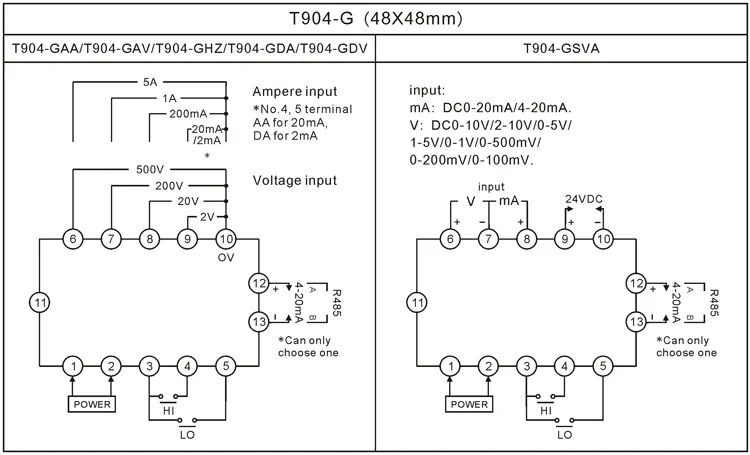

Wiring Diagram
Packaging and Delivery

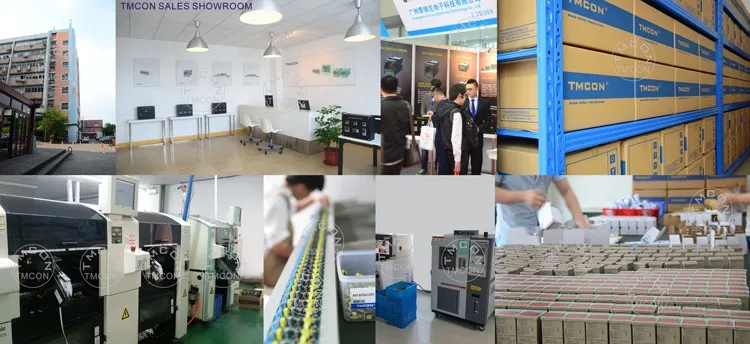

about us
