Integral Blade Stabilizer

Supplier: Dongying Lake Petroleum Technology Co., Ltd.
Region: Shandong, China
Contact: Mr Bing Xin
Price: $500.00 /piece
Min. Order: 1 piece

Click here to contact

Product details

Payment Terms:	L/C,T/T;	Supply Ability:	100 Piece/Pieces per Month;
Brand Name:	LAKE;	Condition:	New;
Color:	blude;	Packaging Detail:	standard wooden cases;
Dimension(LWH):	5"-36";	Port:	Chinese port;
Application:	well drilling;	Delivery Detail:	depend on quantity;
Place of Origin:	China (Mainland);

Product Description

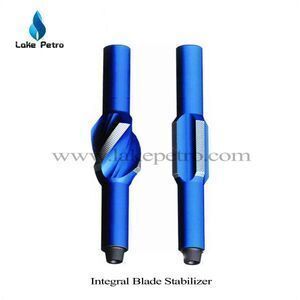

Integral blade stabilizer is an important tool in the drilling engineering to control the well deviation. It can stabilize the drilling tools in the drilling process of oil, gas and geological exploration. It can increase the bit life, drilling speed and well bore quality. There are two kinds of integral stabilizers: spiral integral blade stabilizer and straight integral blade stabilizer

Hardfacing type: HF1000, HF2000, HF3000, HF4000

Model

Hole Size OD mm(inch)

Fishing Neck OD

mm(inch)

Upper

Conn.

Lower

Conn.

mm(inch)

Fishing Neck Length mm(inch)

Blade Axial Width mm(inch)

Blade Length mm(inch)

Remark

LX98

98.4(3 7/8)

79.4

(3 1/8)

NC23

31.8(1 1/4)

240(9 29/64)

34 (11/32)

240

(9 29/64)

String

LX149

149.2(5 7/8)

120.7

(4 3/4)

NC38

50.8(2)

600(23 5/8)

(1 31/32)

350

(13 25/32)

String

LX149-NB

3 1/2REG

Near Bit

LX216

215.9(8 1/2)

165.1

(6 1/2)

NC50

57.2(2 1/4)

600(23 5/8

60(2 3/8)

406(16)

String

LX216-NB

4 1/2REG

Near Bit

LX311

311.15(12 1/4)

203.2(8)

6 5/8REG

71.4(2 13/16)

700(27 9/16)

(2 61/64)

406(16)

String

LX311-NB

Nar Bit

LX444.5

444.5(17 1/2)

228.6(9)

7 5/8REG

76.2(3)

700(27 9/16)

121(4 3/4)

460

(18 7/64)

String

LX444.5NB

Near Bit

LX660

660.4(26)

241.3

(9 1/2)

7 5/8REG

76.2(3)

762(30)

121(4 3/4)

508(20)

String

LX660-NB

Near Bit

LX914

914.4(36)

241.3

(9 1/2)

7 5/8REG

76.2(3)

889(35)

121(4 3/4)

610(24)

String

LX914-NB

Near Bit

Our Services

Our stabilizers are made from premium chrome molybdenese alloy steel (except for non-magnetic style), heat treated by special procedure and obtain expected hardness, strength and impact value properties. All threads are made strictly in accordance with API specification. The hardbanding of stabilizers employ "pressed in" Tungsten Carbide alloy buttons or other anti-wear materials. All stabilizers should be ultrasonic tested.

When Ordering Please Specify:

1.Hole size or required blade O. D ;

2.Hardfacing type ;

3.Connections;

4.Reark;
5.Special requirements.
