API11B Factory price Oilfield Wheeled Rod guide/Roller Guide Coupling for sucker rod
- 30.99 >=10 pieces
| Selling Units: | Single item; | After-sales Service Provided: | Overseas third-party support available; |
| Package Preview: | https://sc01.alicdn.com/kf/HLB1zURtN4TpK1RjSZR0q6zEwXXaO.jpg_640x640.jpg,https://sc01.alicdn.com/kf/HLB188pvN9zqK1RjSZFjq6zlCFXaZ.jpg_640x640.jpg; | Warranty: | 1 Year; |
| Single gross weight: | 5 KG; | Place of Origin: | Henan China (Mainland); |
| Certification: | ISO9001/API11B; | Features: | Customer Requirement; |
| Model Number: | 5/8" 3/4" 7/8" 1" 1-1/8"; | Single package size: | 68.6X4.13X4.13 cm; |
| Condition: | New; | Application: | Oil Filed; |
| Color: | Black; | After-sales Service Provided: | Online support,Video technical support; |
| Brand Name: | Renhe; | Weight: | 5kg; |
| Dimension(L*W*H): | 686mm; | Voltage: | --; |
| Delivery Detail: | 0 days after payment; |

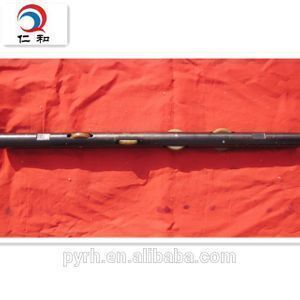

API11B Factory price Oilfield Wheeled Roller Guides for sucker rod
| NO | PART NO | NAME | QTY | MATERIAL |
| 1 | RG-01 | Wheel | 4 | Glass-fiber Reinforced Nylon 6 |
| 2 | RG-02 | Roll pin | 4 | Stainless steel |
| 3 | RG-03 | Coupling body | 1 | 35CrMo |
(1 ) Temperature Caution
Standard models are for applications in wellbore temperature up to 175°F. (fitted with glass-fiber reinforced nylon 6 wheels), For service in higher temperature, Special metal wheels are used.
APPLICATION | DIMENSIONS(INCH) | ||
Diameter | Length | Length of the groove | |
5/8”ROD/2-3/8”TUBING | 1.50 | 27 | 1.80 |
3/4ROD/2-3/8”TUBING | 1.50 | 27 | 1.80 |
5/8”ROD/2-7/8”TUBING | 1.50 | 27 | 2.25 |
3/4”ROD/2-7/8”TUBING | 1.50 | 27 | 2.28 |
7/8”ROD/2-7/8”TUBING | 1.625 | 27 | 2.28 |
1”ROD/2-7/8”TUBING | 2.0 | 29 | 2.28 |
3/4”ROD/3-1/2”TUBING | 1.50 | 31 | 2.75 |
7/8”ROD/3-12”TUBING | 1.625 | 31 | 2.75 |
1””ROD/3-1/2”TUBING | 2.0 | 31 | 2.75 |
MATERIALS OF GONETRUCTION
Guide/Coupling Body
Standard guide/coupling bodies are machined from cold rolled steel.
Special Material
Other metals such as steel are available on Special 'order to meet some
specifications for extra strength and/or corrosion resistance,
Wheel and Roll Pins
Wheels are set on stainless Steel journals and roll pine, Standard wheels, for applications up to 175°F are made of glass-fiber reinforced nylon 6.
