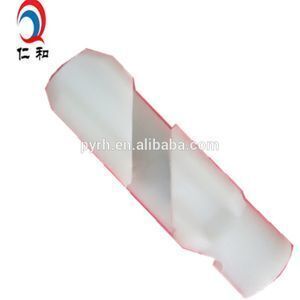

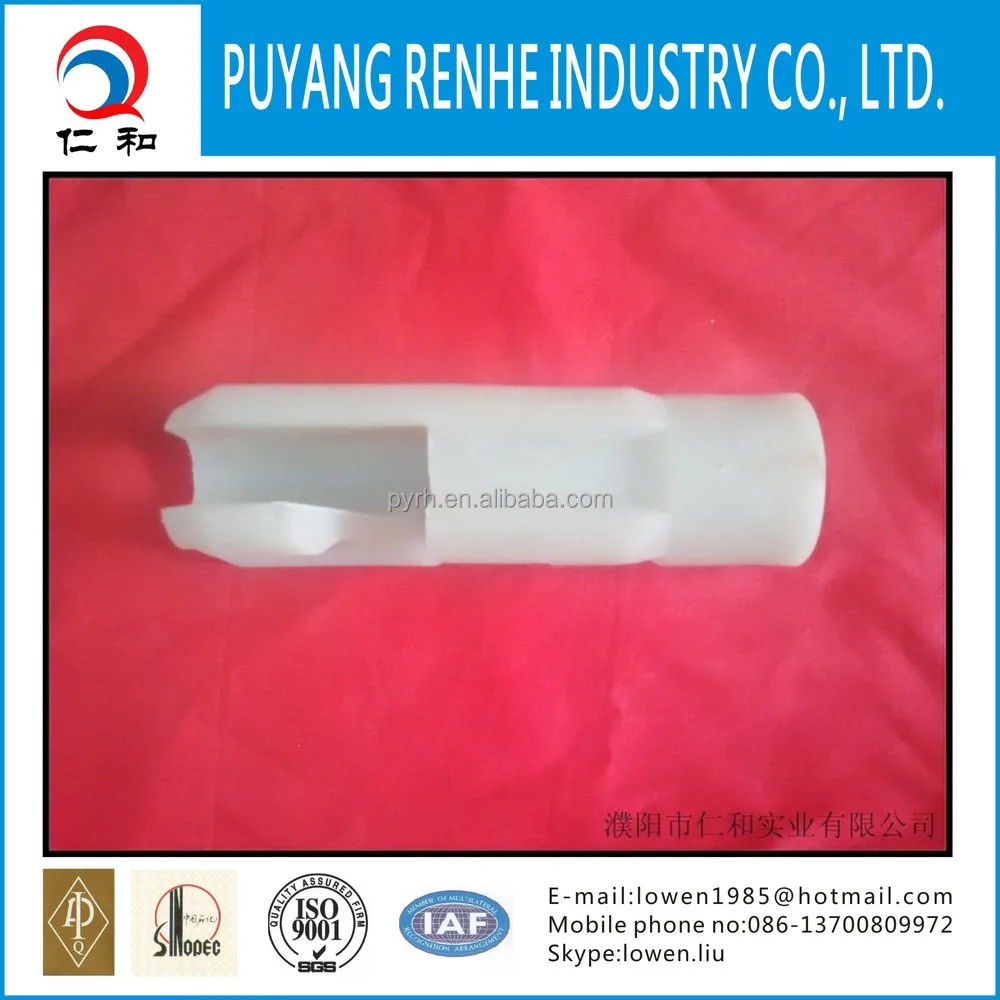

API11B Snap-on Sucker rod poly centralizer
- 2.00 >=100 pieces
| Brand Name: | RENHE; | Weight: | 245g; |
| Place of Origin: | Henan China; | Port: | Tianjin Qingdao; |
| Applicable Industries: | Energy & Mining; | Warranty: | 1 Year; |
| Certification: | ISO9001; | COLOR: | White or Black or Blue; |
| Supply Ability: | 5000 Piece/Pieces per Week; | Condition: | New; |
| After-sales Service Provided: | Engineers available to service machinery overseas; | Payment Terms: | L/C,D/A,D/P,T/T,Western Union,MoneyGram; |
| Model Number: | 3/4; | Application: | --; |

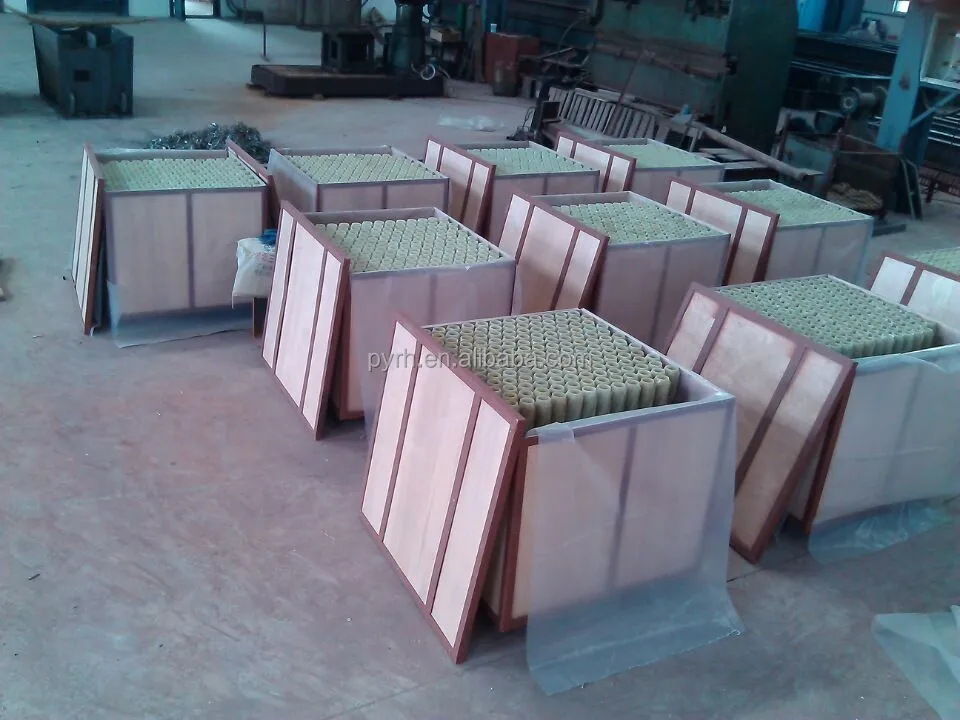

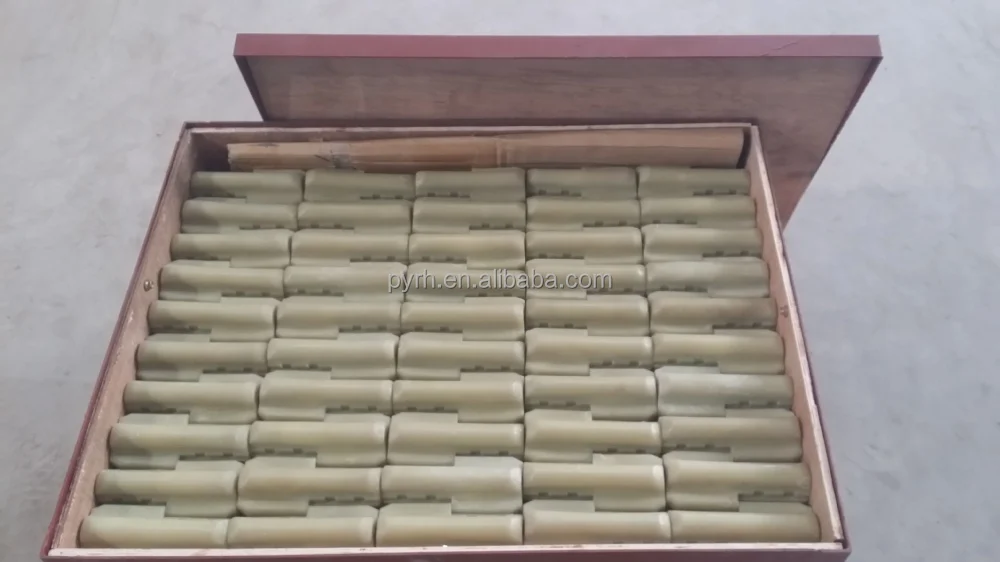

| Packaging Detail: | by the requirements of customers; | After-sales Service Provided: | Online support,Video technical support; |
| Voltage: | --; | Dimension(L*W*H): | 19*58*175mm; |

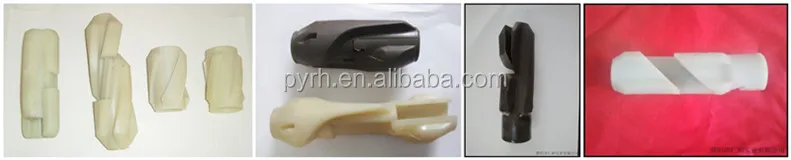

API11B Snap-on Sucker rod poly centralizer
Characters and Parameters of Sucker Rod centralizer
| Size | Guide OD.(mm) | Guide Length(mm) | Tubing ID.in (mm) | Service Temperature(°C) |
| FZ46×15/16QG | 46 | 80 130 150 | 2(50) | 75-140 |
| FZ46×1-1/16QG | ||||
| FZ58×15/16QG | 58 | 2-1/2(62) | ||
| FZ58×1-1/16QG | ||||
| FZ58×1-3/16QG | ||||
| FZ70×15/16QG | 70 | 2-7/8(73) | ||
| FZ70×1-1/16QG | ||||
| FZ70×1-3/16QG | ||||
| FZ70×1-3/8QG | ||||
| FZ70×1-9/16QG |
2.The major technical indicators
Rockwell hardness (HRC): M85 - M114
Compressive strength: 60 - 90 MPa
Impact Strength: 3.5 - 4.8 kJ/m2
Scope: 16mm,19mm, 22mm 25mm Sucker Rod
Maximum OD: 46mm,58 mm,72mm
Length: 135 mm
Medium temperature: 0-120 °C
3.Use principles
a.If it is little partial-wear well section, a set of this product will be installed on the middle of each sucker rod.
b.If it is less serious partial-wear well section, two sets of this product will be installed on the middle and one end of each sucker rod.
c.If it is serious partial-wear well section, three sets of this product will be installed on the middle and ends of each sucker rod.
