External slip connector API
- 1.00 set
Registered Supplier
Direct Contact
Inquiry via Message
Product Details
| Payment Terms: | L/C,T/T; | After-sales Service Provided: | No overseas service provided; |
| Brand Name: | SANMON; | Weight: | 100KG-1000KG; |

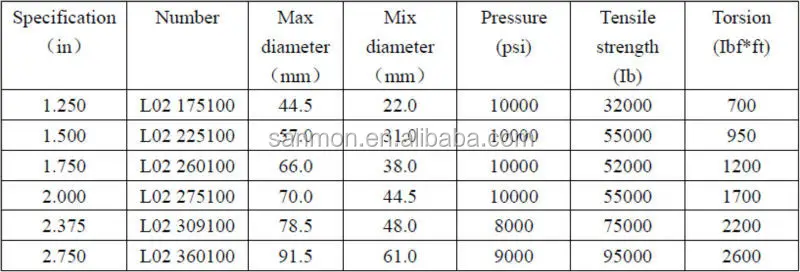

| specification: | 1.250/ 1.500/ 1.750 / 2.000 / 2.375; | Packaging Detail: | wooden caged or as clients' request; |
| pressure: | 10000/10000/10000/10000/8000/9000; | Delivery Detail: | 30 days after remittance; |
| Place of Origin: | Shandong China; | minimum diameter: | 22 /31 / 38 /44.5/48/61; |
| Dimension(L*W*H): | 1900*1900*5690; | Application: | Double slip connector suit for all coiled tubing downhole tools; |
| Certification: | API; | Features: | Spiral; |
| Condition: | New; | Port: | SHANGHAI/TINAJIN; |
| Supply Ability: | 1000 Set/Sets per Month; | Warranty: | 1 Year; |
| Diameter: | 44.5 /57 /66 / 70 /78.5/ 91.5; |
Product Overviews

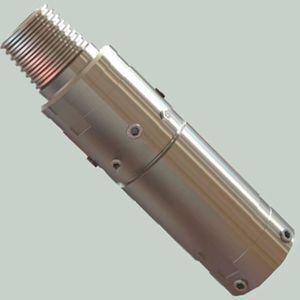

Double slip connector is a tool to quickly connect downhole tools to coiled tubing. Double slip connector is different from conventional connector, double slip lock rings make sure the tool lock to the coiled tubing, no need for buckle. Two slip rings can share the load and improve the reliability, two O-rings to seal tubing string.
Advantages
- Easy to installation, and quick to connect.
- The slip lock ring is special designed, which improves the reliability
- Large load capability
- Double O-ring seal
Functions
- Double slip connector suit for all coiled tubing downhole tools
- Load high torque, can connect to mud motor
- High strength connection application
- Remove one rock ring as single connect
