API 7K Q3-3/8~12-3/4-75 Type B Manual Pliers
- 800.00 piece
Registered Supplier
Direct Contact
Inquiry via Message
Product Details
| Core components: | pump, engine | Health status: | new |
| standard: | API 7K | payment terms: | T/T, Western Union |
| Certificate: | application programming interface | Package: | standard |
| Package preview: | Showroom location: | not any | |
| color: | all | Marketing Type: | 2020 New Products |
| brand: | petro l. | Mechanical test report: | if |
| port: | China Harbor | Core component warranty: | 6 months |
| Applicable industries: | Manufacturing plants, machine repair shops, construction, energy and mining, oil and gas | Warranty: | 6 months |
| Video outbound inspection: | if | Local service locations: | not any |
| Supply capacity: | 10000 pieces per month | product name: | manual pliers |
Product Description

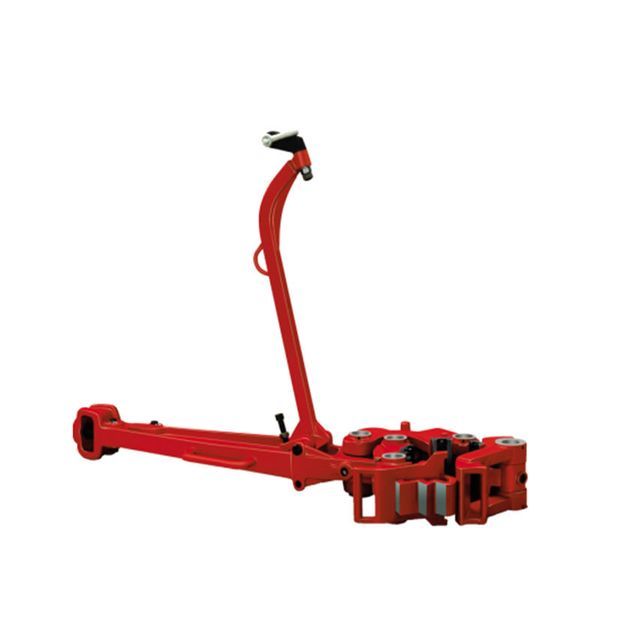

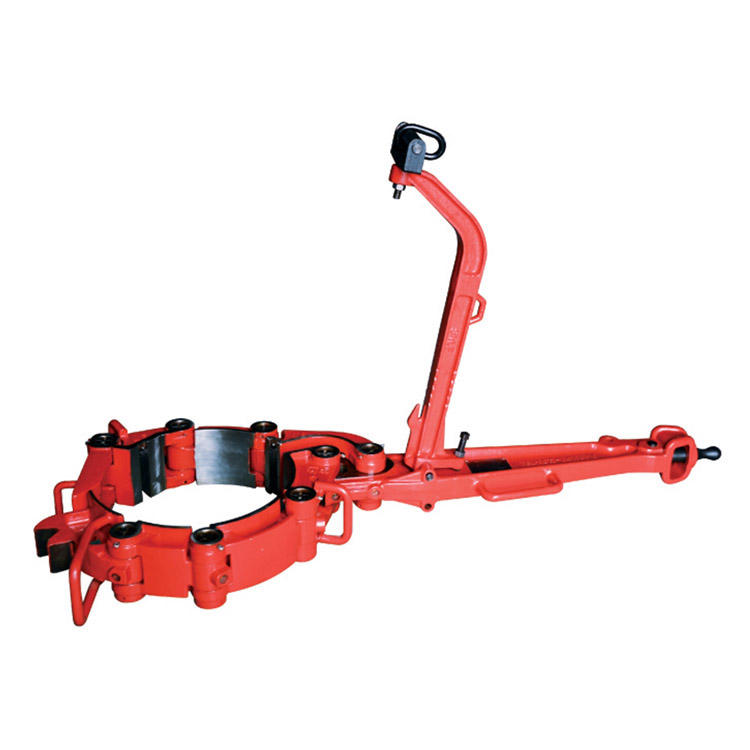

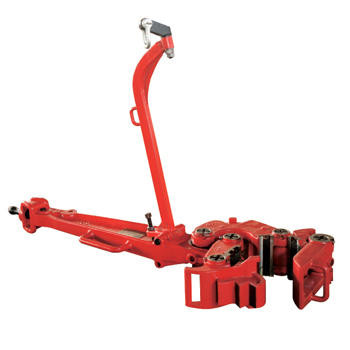

API 7K Q3-3/8~12-3/4-75 Type B Manual Pliers
Hand tongs are useful tools for loading and unloading drill pipe, drill pipe collars, subs, casings, casing collars, etc. when the drilling tool is raised and lowered. The handling size of the lifting tongs can be adjusted by changing the lifting jaws and carrying shoulders or holes. Pliers with different torques can be selected according to the requirements of use.
product description
manual pliers
high quality
API 7K
Product parameters
Manual tongs are an essential tool for loading and unloading pipes. Replacing the tongs and latch steps allows for adjustment to different operating dimensions of the tongs. They are designed and manufactured according to API Spec 7K specifications for drilling and workover equipment.
Manual tongs are essential tools for loading and unloading various pipe strings and tools in drilling and workover operations. By changing the buckles on the pliers head and the shoulder, it can meet the needs of make-up and break-out of pipe diameters of different sizes.
It is an essential tool for loading and unloading drill pipes, casing joints or coupling threads in oil drilling operations. The thread size can be changed by changing the clamping fixture and changing the clamping shoulder.
Fastening pliers size Number of latch lugs | Snap shoulder lock step | Fastening pipe diameter size range | rated value Rated torque (kN.m) | ||
exist | mm | ||||
5a | 1 | 3 3/8~4 1/8 | 85.7~104.8 | 55 | |
2 | 4 1/8~5 1/4 | 104.8~133.3 | 75 | ||
5b | 1 | 4 1/4~5 1/4 | 107.9~133.3 | ||
2 | 5~5 3/4 | 127~146 | |||
3 | 6~6 3/4 | 152.4~171.4 | |||
5b1 | 1 | 5 1/4~5 3/4 | 133.3~146 | ||
2 | 6~6 5/8 | 152.4~168.3 | |||
3 | 6 3/4~8 | 171.4~203.2 | 55 | ||
5c | 1 | 6 5/8~7 3/8 | 168.3~187.3 | 75 | |
2 | 7 3/8~8 | 187.3~203.2 | |||
3 | 8 1/2~8 5/8 | 215.9~219 | 55 | ||
5 days | 1 | 8 1/2~9 5/8 | 215.9~244.5 | ||
2 | 10 5/8~10 3/4 | 269.9~273 | |||
5e | 1 | 11 3/4 | 298.5 | ||
2 | 12 3/4 | 323.8 | |||
5e1 | 1 | 10 3/4 | 273 | ||
2 | 11 3/4 | 298.5 | |||
5e3 | 1 | 13~13 3/8 | 330.2~339.7 | ||
