Type DD Center Latch Elevators Casing Elevator API Spec 8A/8C for Drill Collar/tubing/casing Lake Petro Pump,engine 6 Months

Supplier: Dongying Lake Petroleum Technology Co., Ltd.
Region: Shandong, China
Contact: Mr Bing Xin
Price: $800.00 /piece
Min. Order: 1 piece

Click here to contact

Product details

Standard:	API 8A/8C;	Packing:	Standard;
Warranty of core components:	6 months;	Colour:	All;
Application:	Drill Collar;	Brand Name:	Lake Petro;
Port:	China Seaport;	Packaging Detail:	Standard;
Applicable Industries:	Manufacturing Plant,Machinery Repair Shops,Construction works ,Energy & Mining,Oil & Gas;	Marketing Type:	New Product 2020;
Package Preview:	;	Core Components:	Pump,Engine;
Condition:	New;	Product name:	Casing Elevator;
Certificate:	API;	Payment Terms:	T/T,Western Union;
Machinery Test Report:	Provided;	Video outgoing-inspection:	Provided;
Showroom Location:	None;	Local Service Location:	None;
Supply Ability:	10000 Piece/Pieces per Month;	Warranty:	6 months;

Products Description

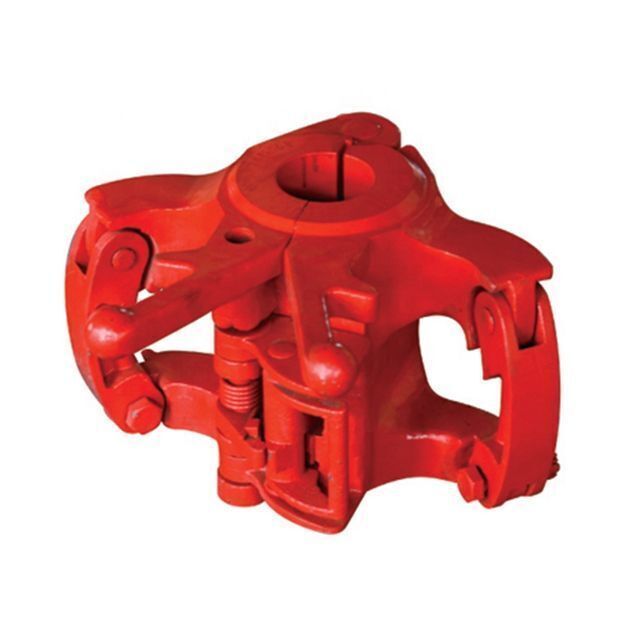

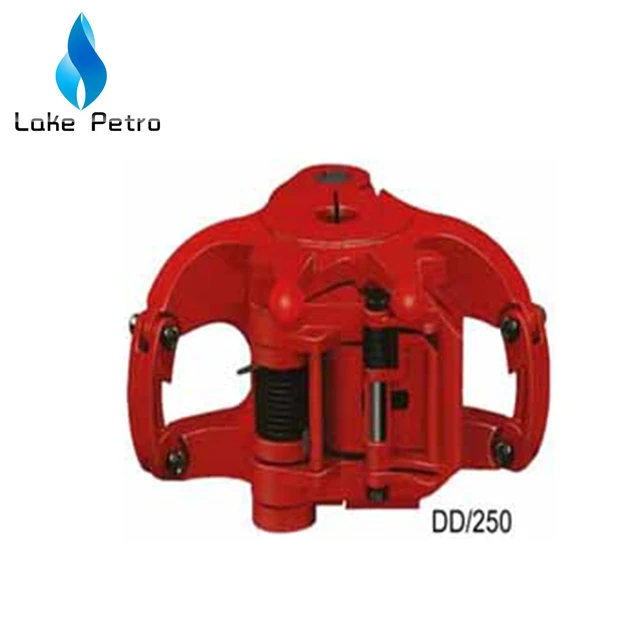

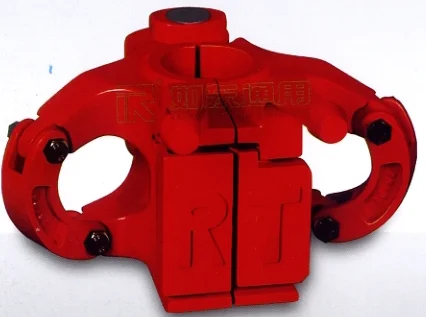

API Spec 8A/8C Type DD Center Latch Elevators

API Spec 8A/8C Type DD Center Latch Elevators are convention bottleneck center latch elevators to handle pipes in drilling operation. The elevators can be used at temperature from minus 20 ℃ to 70℃, and can accommodate plain shoulder drill pipes from 2-3/8 in to 5-1/2 in, working capacity as following: 150t(1350kN), 250t(2250kN), 350t(3150kN)。

Product Overview

Type DD

High Quality

API 8A/8C

Product Parameters

Elevator is a kind of tool used to lift drill pipe, tubing and casing pipe. It is suspended in the lifting rings on both sides of the hook of the hoisting system, so as to pull out or run in drilling tools, tubing and casing.

It is mainly used for clamping and lifting of tubing, casing, drill pipe and drill collar in oil and gas drilling and workover operations. The products are designed and manufactured according to the requirements of API Spec 8C.

Main technical parameters:

Model	Size (in)				Rated Capacity (short tons)
Model		DP	Casing	Tubing	Rated Capacity (short tons)
DD-100	2 3/8~5 1/2	4 1/2~5 1/2	2 3/8~4 1/2	150
DD-250	2 3/8~5 1/2	4 1/2~5 1/2	2 3/8~4 1/2	250
DD-350	2 3/8~5 1/2	4 1/2~5 1/2	2 3/8~4 1/2	350
