Water Drill HDD S135 Drill Pipe

Supplier: Dongying Lake Petroleum Technology Co., Ltd.
Region: Shandong, China
Contact: Mr Bing Xin
Price: $140.00 /piece
Min. Order: 1 piece

Click here to contact

Product details

use:	Horizontal Directional Drilling	Type of machine:	hard disk
Health status:	new	length:	3M
Local service location:	not any	Processing type:	forging
Marketing Type:	normal product	type:	drill pipe
connect:	NC31	Showroom location:	not any
Gross weight per piece:	45.000 kg	Material:	small, small
Packaging Preview:		size:	73mm
Warranty:	6 months	place of origin; place of origin:	China
color:	according to your request	Mechanical test report:	if
Single package size:	30X10X10 cm	Applicable industries:	Construction Engineering, Energy and Mining
Sales unit:	single product	Video external inspection:	if
product name:	Water Drill HDD S135 Drill Pipe

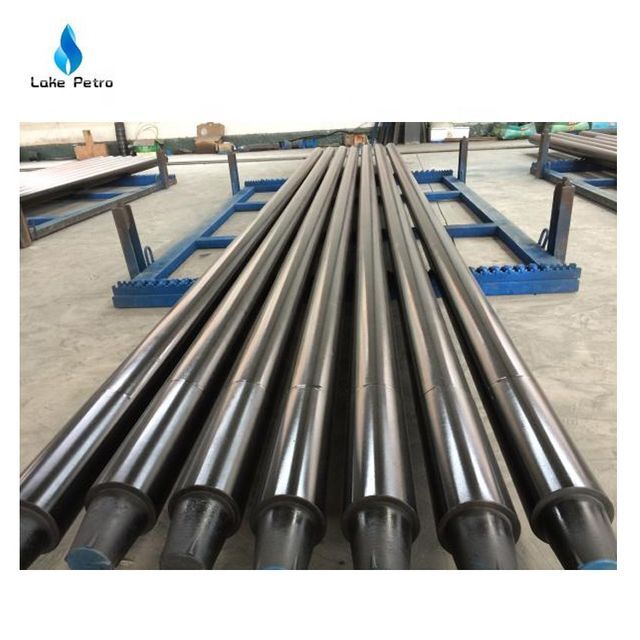

Water Drill HDD S135 Drill Pipe

Product Description

Horizontal Directional Drilling Rig HDD 3M 73mm Drill Pipe/Drill Pipe

1. Double top structure:

The drill pipe joint adopts a double boss (double top) structure, which can enhance the sealing performance of the joint and prevent the mud pressure from leaking in the middle. Greatly reduces the resistance of the drill bit and drill back Using this structure improves the torsional strength of the drill bit, so that the box thread will not be deformed

2. Through the optimized design of equal strength and stress dispersion, the role of drill pipe material can be fully exerted.

3. After forging the joint material, the density of the material is increased and the material of the fibrous tissue is changed, thereby enhancing its mechanical properties.

4. The joint is treated with nitriding, phosphide or copper to ensure anti-corrosion and anti-sticking of the thread and improve the fatigue resistance of the joint surface.

5. The tube is demolded and thickened, the metallographic structure is improved, the impact toughness is improved, the comprehensive mechanical properties are ensured, and the friction weld seal is not damaged.
