API DDZ Drill Pipe Lift
- 1050.00 1 - 1 sets
- 1000.00 >=2 sets
Registered Supplier
Direct Contact
Inquiry via Message
Product Details
| Packaging Details: | 1 set/plywood box | type: | DDZ, drill pipe elevator |
| Processing type: | to throw | Video shipment inspection: | if |
| model: | DDZ | Applicable industries: | Energy and Mining, Energy and Mining, Petroleum Machinery, Oil Extraction |
| product name: | Drill pipe elevator | Core components: | pin |
| Warranty: | 1 year | Showroom location: | Turkey, USA, Vietnam, Philippines, Saudi Arabia, Indonesia, Pakistan, India, Russia, Kenya, Argentina, Chile, UAE, Kazakhstan, Ukraine, Nigeria, Uzbekistan |
| port: | Shanghai port or other | brand: | strong |
| payment terms: | L/C, Western Union, T/T | usage: | Moving tools |
| Package preview: | Health status: | new, new | |
| color: | Red | Origin: | Jiangsu, China |
| Mechanical test report: | provide, provide | Certification: | API 8C |
| Marketing Type: | Hot Products of 2021 | Supply capacity: | 30 sets per month |
| Core component warranty: | 1 year |

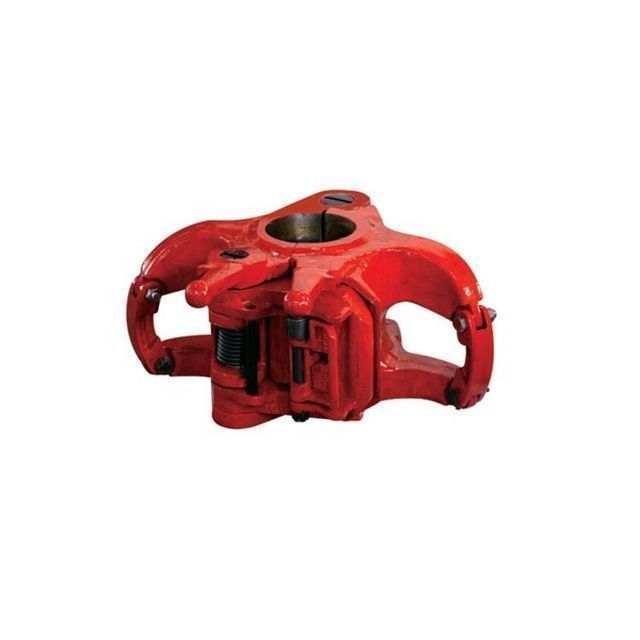

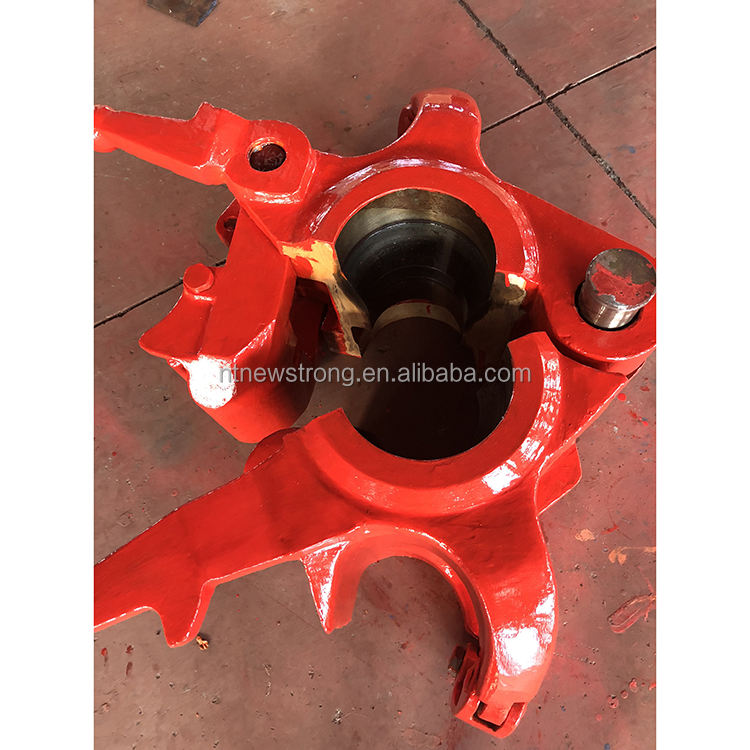

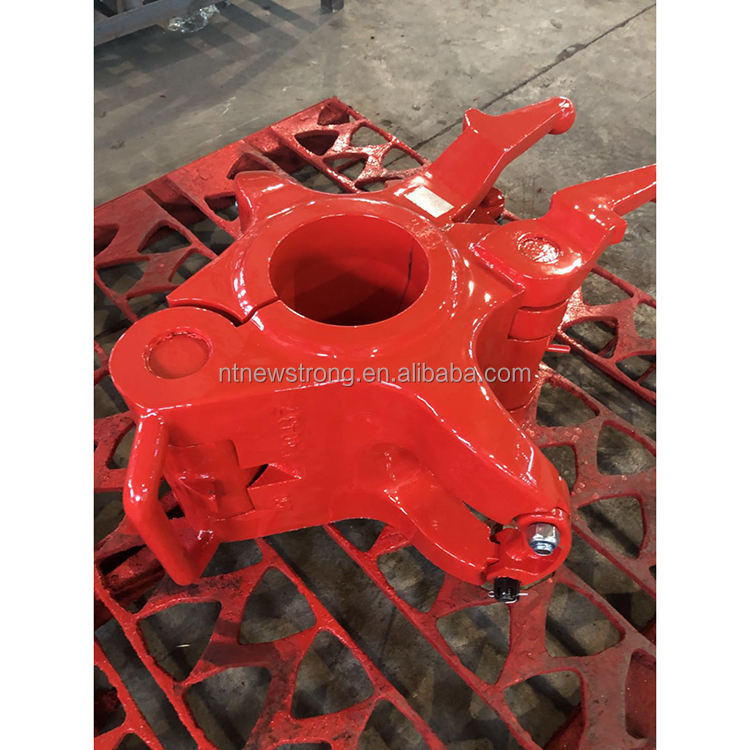

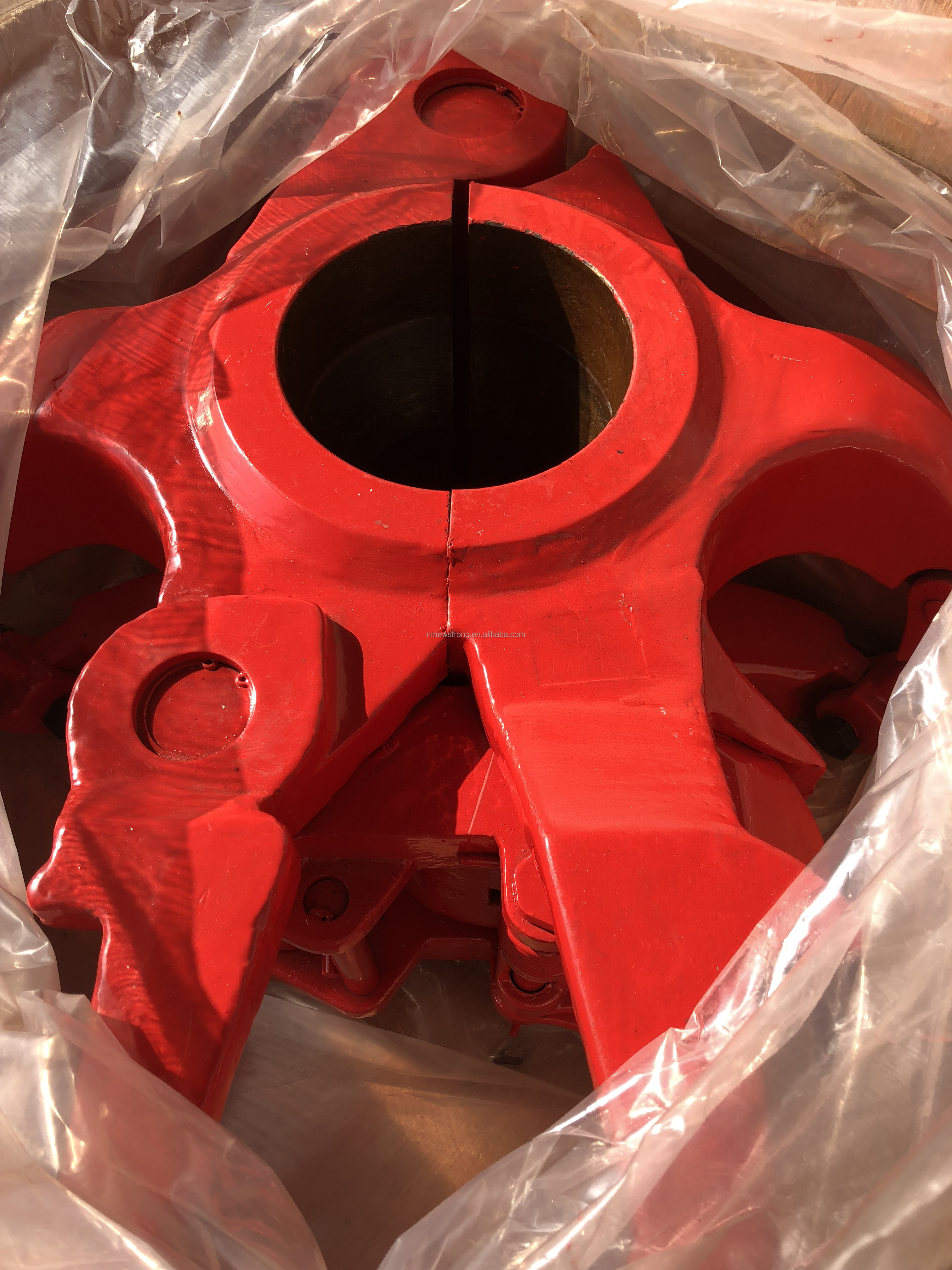

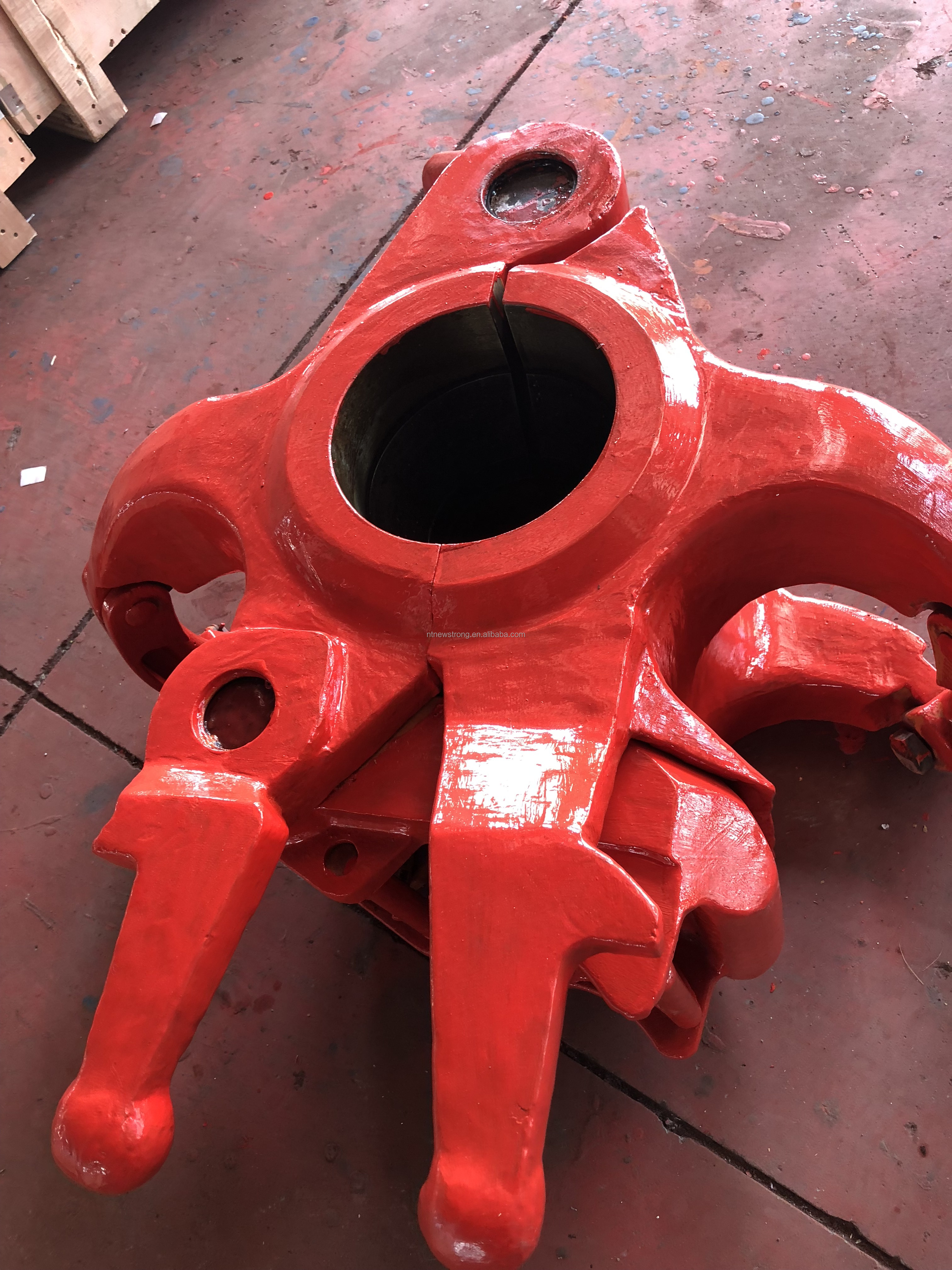

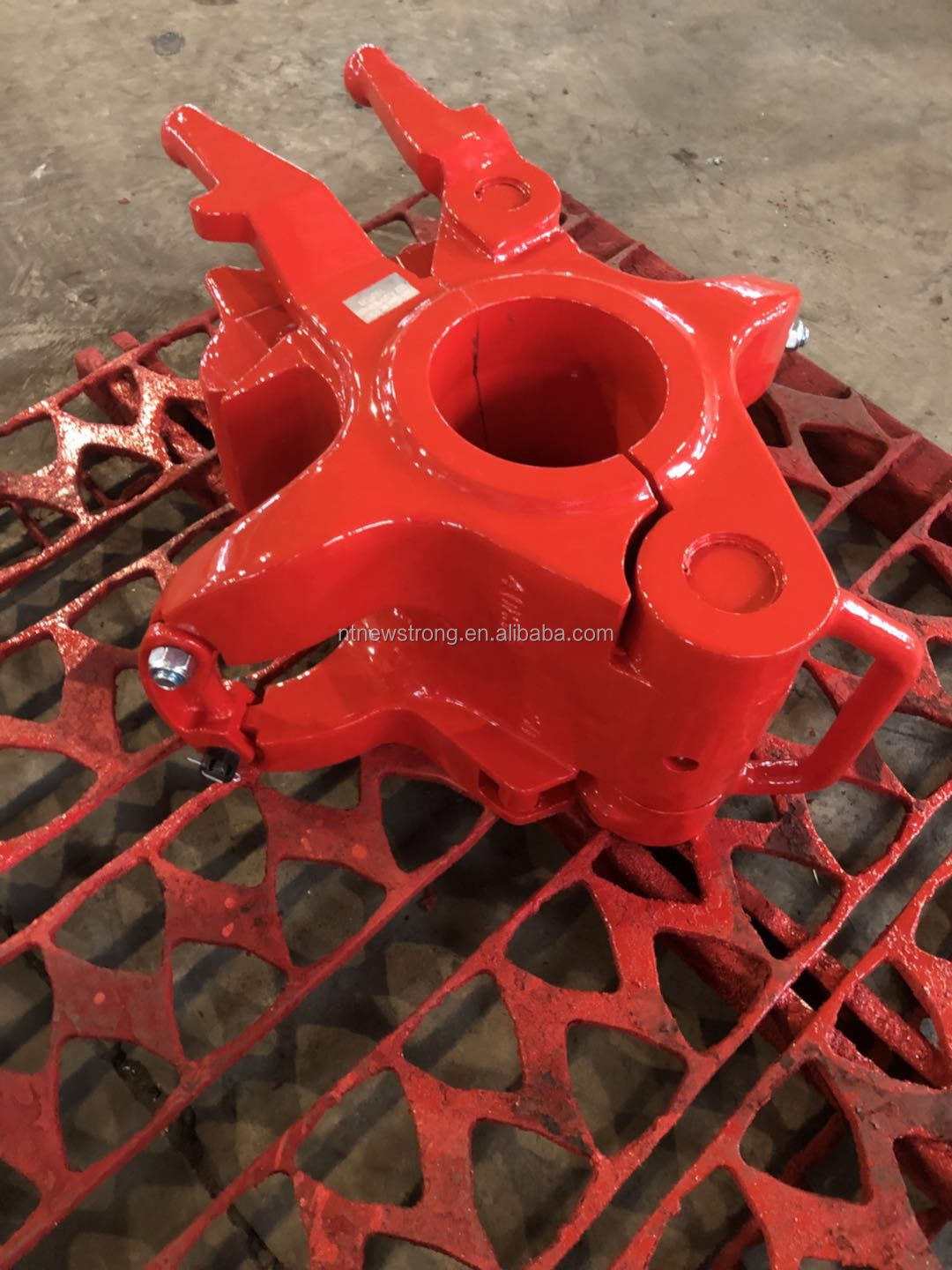

2021 API 8C 100 Ton Drill Pipe Elevator For Drilling Equipment DDZ Elevator Tubing Elevator
Product Description
DDZ series elevators are conventional center-latch elevators with 18-degree conical shoulder, suitable for handling drill pipes, drilling tools, etc., with a lifting range of 100 tons to 750 tons. Sizes range from 2.3/8" to 6.5/8". DDZ drill pipe elevators are forged from high-quality alloy steel, and have undergone heat treatment and non-destructive testing. The products are designed and manufactured in accordance with the requirements of API 8C "Drilling and Production Lifting Equipment Specifications".
Model | Dimensions (inches) | Rated capacity (short tons) | Comment |
DDZ-100 | 2.3/8-5 | 100 | mg |
DDZ-150 | 2.3/8-5.1/2 | 150 | RG |
DDZ-250 | 2.3/8-5.1/2 | 250 | MGG |
DDZ-350 | 3.1/2-5.7/8 | 350 | GG |
DDZ-350TD | 3.1/2-5.7/8 | 350 | for top drive |
DDZ-500 | 3.1/2-6.5/8 | 500 | HGG |
DDZ-500TD | 3.1/2-6.5/8 | 500 | for top drive |
DDZ-750 | 4-6.5/8 | 750 |
