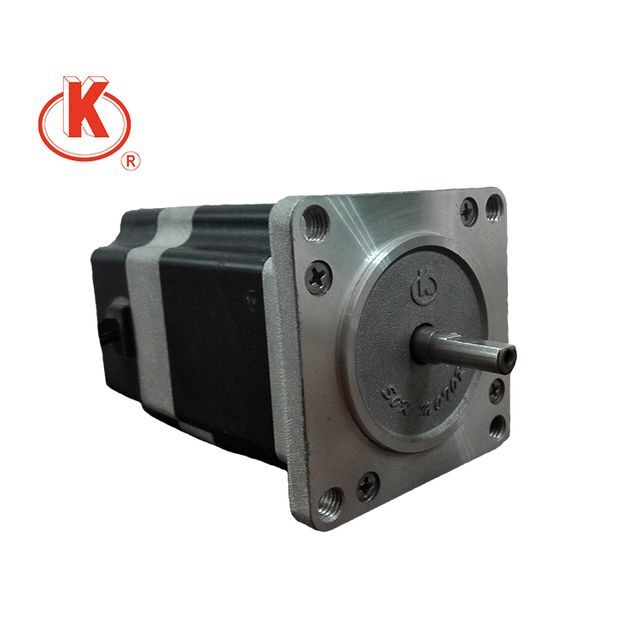

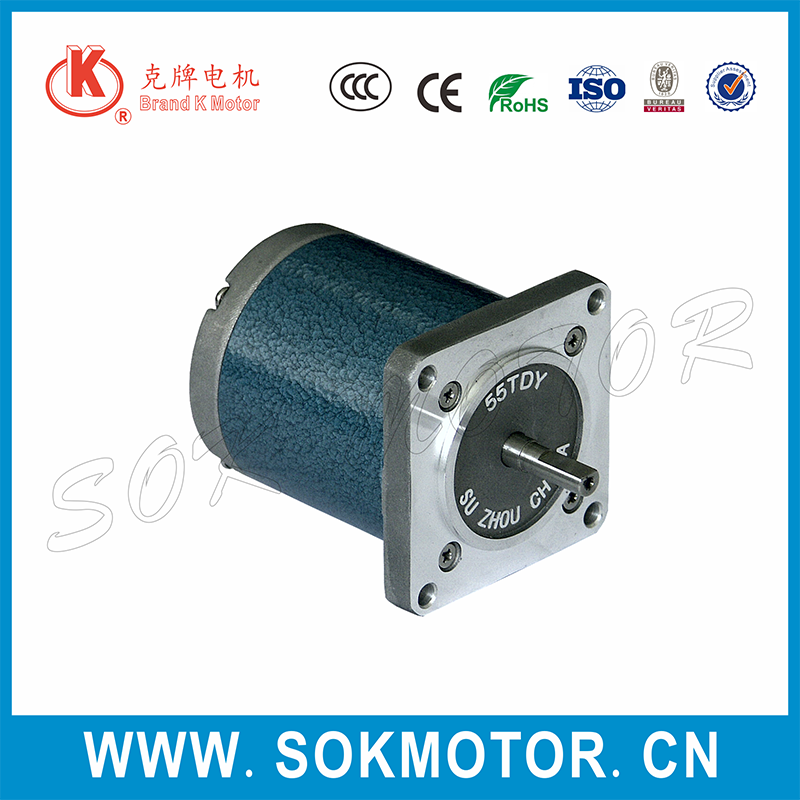

55TDY060D4-2B Permanent magnet synchronous motor for heat recovery

Supplier: Suzhou Sok Micro Motor Manufacturing Co., Ltd.
Region: Jiangsu, China
Contact: Ms Helen Zhou
Price: $69.00 / 1 - 99 pieces
$39.90 / >=100 pieces
Min. Order: 1 piece

Click here to contact

Product details

Sales unit:	single product	Gross weight per piece:	2.000 kg
AC voltage:	230V	Rated torque:	400mNm
stage:	Simplex	Insulation level:	Second
input power:	16W	type:	Synchronous motor
frequency:	50 Hz	Single package size:	17X17X18 cm
brand:	Sauk Motor-55TDY060D4-2B	efficiency:	other
Capacitor:	0.33uF/630V	speed:	60 rpm
maximum. Torque:	450mNm	model:	55TDY060D4-2c-55TDY060D4-2B
55TDY060D4-2B:	55TDY060D4-2B Permanent magnet synchronous motor for heat recovery	Packaging Details:	Ctn size: 370270270mm 18 pcs/ctn, NW: 13.5kgs, GW: 14.7kgs Delivery time: within 30 days after payment for 55TDY060D4-2B
northwest:	0.75Kg	place of origin; place of origin:	Jiangsu, China
Starting torque:	200mNm	Input Current:	0.07A

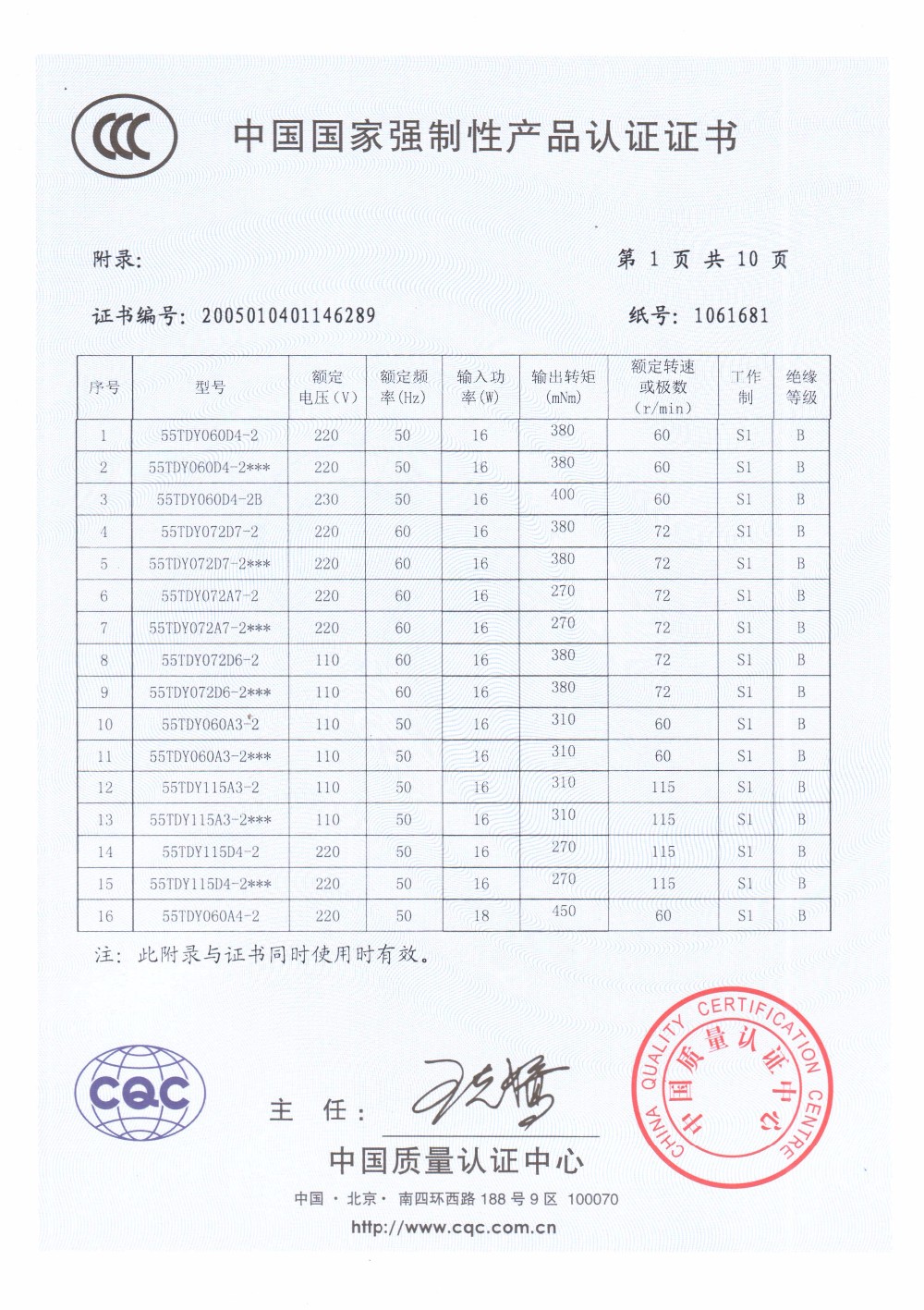

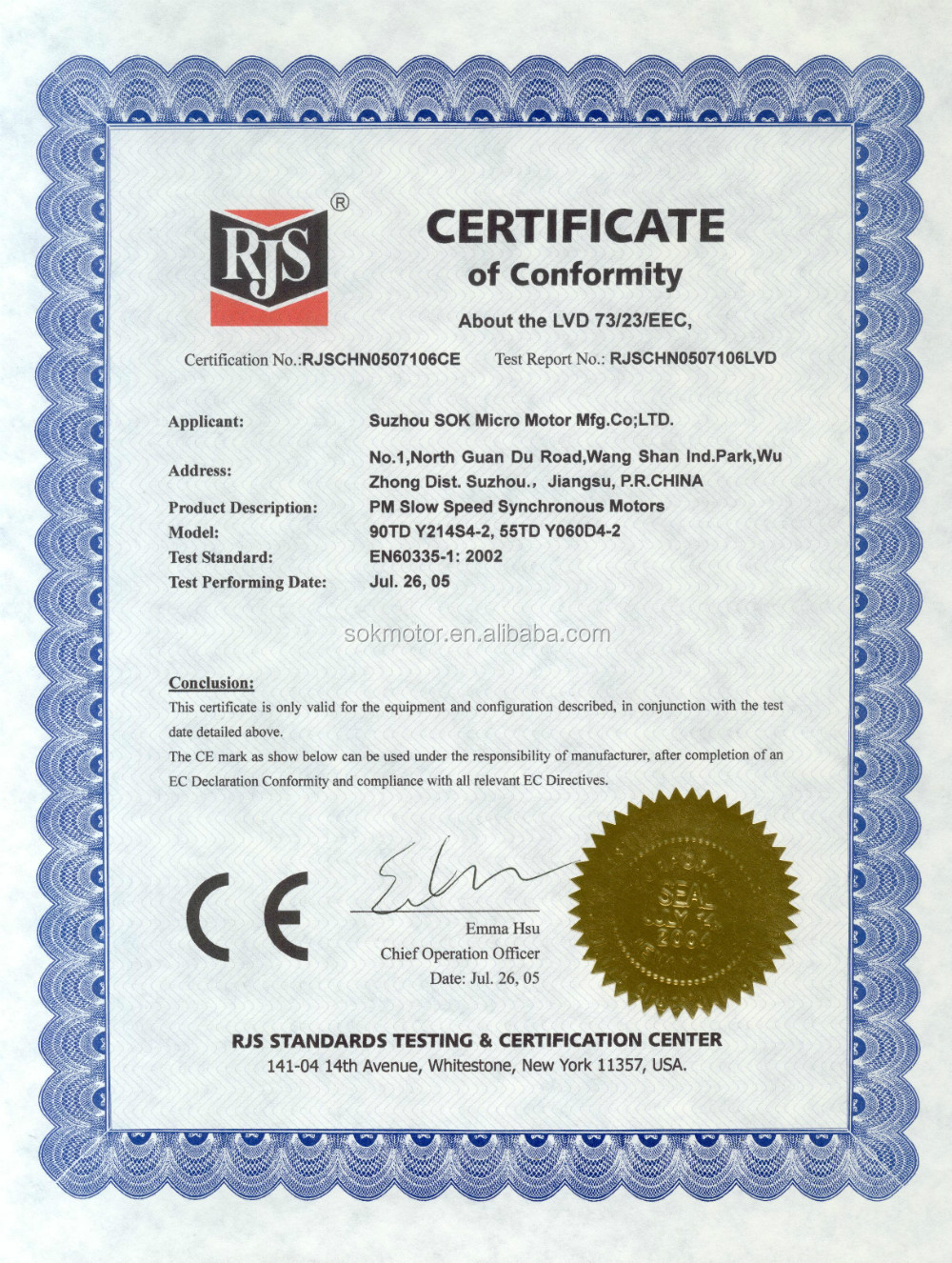

Certification:	CCC, CE, RoHS, BV	Protective function:	Drip-proof

Product Description

55TDY060D4-2B Description

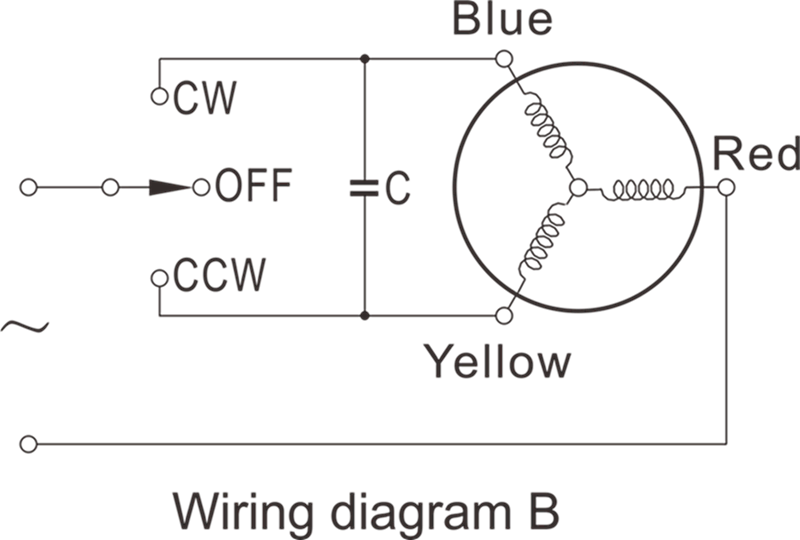

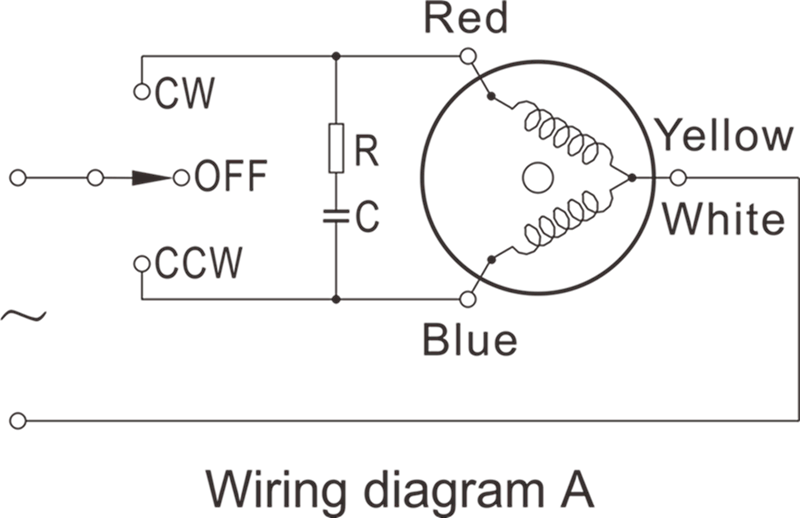

A PM slow synchronous motor is a fully enclosed motor with a high pole count motor with a low natural rotational speed (72 or 60RPM). They only need a Resistor-Capacitor (RC) network to operate from single-phase AC mains. They are very cost effective and easy to use for loads running at 72 RPM or slower.

Other motor technologies (induction, DC, servo and stepper motors) either require gear reducers or electronic drives to match the speed of SOK synchronous motors. The cost of gear reduction alone or the cost of an electronic drive often exceeds the total cost of a SOK synchronous motor.

For slower speeds planetary gear reducers are available. SOK synchronous motors produce very slow speeds with only moderate gear reduction.

Typical application of 55TDY060D4-2B

automatic test equipment

medical equipment

Timing belt drive

X-ray scan

Textile machinery

Electric valve actuator

cryopump

heat exchanger

Remote Control Switch Rheostat

Printing and packaging machinery

Antenna rotor

Automatic welding machine

environmental conditions

Environmental conditions for 55TDY060D4-2B

1. Temperature: -25℃～+40℃;

2. Relative humidity: ≤95%;

3. Atmospheric pressure: 74.8KPa (2500m);

4. Vibration: 10～55Hz, double amplitude 1.5mm;

5. Shock: 150m/s²

Specification

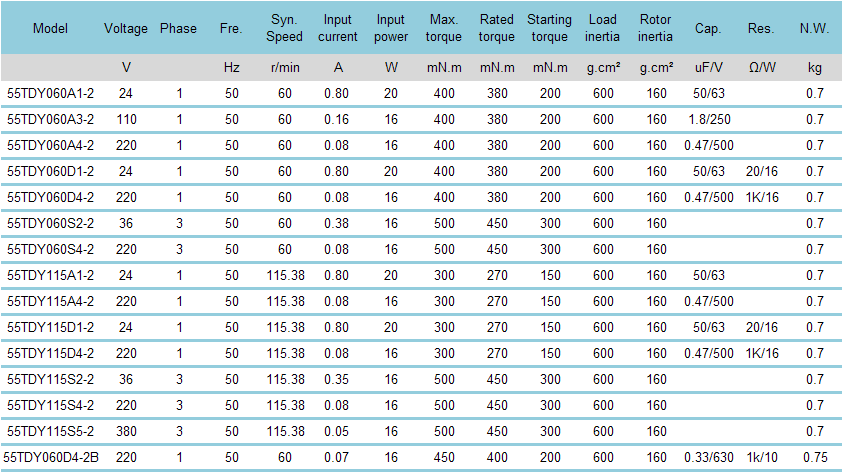

55TDY060D4-2B motor parameters

notes:The following typical specifications are for your reference only. Motor voltage, frequency, speed, torque, shaft extension, overall dimensions, and insulation level can be customized. If you can't find the motor you need, please feel free to contact us. We are always ready to help.

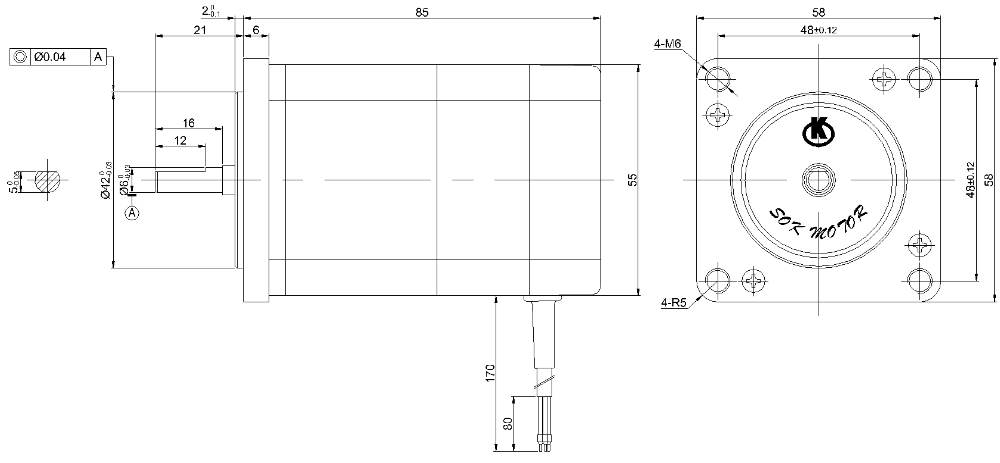

contour map
