55TDY060D4-2c PMSM synchronous motor for heat exchanger
-
Supplier: Suzhou Sok Micro Motor Manufacturing Co., Ltd. -
Region: Jiangsu, China -
Contact: Ms Helen Zhou -
Price: $39.90 /piece -
Min. Order: 1 piece
| Brand Name: | SOK MOTOR; | Capcitor: | 0.33uF/630V; |
| Max. torque: | 450mN.m; | Single gross weight: | 2 KG; |
| Input current: | 0.07A; | Efficiency: | Other; |
| Place of Origin: | Jiangsu China; | Frequency: | 50Hz; |
| Insulation class: | B; | Protect Feature: | Drip-proof; |
| Package Type: | 1pc in a carton; | Speed: | 60RPM; |
| Single package size: | 15X15X13 cm; | Rated torque: | 400mN.m; |
| Input power: | 16W; | Phase: | Single-phase; |
| Starting torque: | 200mN.m; | AC Voltage: | 230V; |
| 55TDY060D4-2c: | 55TDY060D4-2c PM synchronous motor for heat exchanger; | Model Number: | 55TDY060D4-2c; |
| N.W.: | 0.75Kg; | Selling Units: | Single item; |
| Type: | Synchronous Motor; | Certification: | CCC,CE,ROHS,BV; |
PM slow speed synchronous motor is one kind of totally enclosed motor, which can naturally turn at low speed ( 60 rpm ,72 rpm, 115 rpm, 214 rpm,300 rpm ,etc.).
For even lower speed planetary gear reducers are offered. SOK synchronous motors produce very low speed with modest gear reductions.
1.Temperature:-25℃～ +40℃；
2.Relative humidity:≤95%；
3.Atmospheric pressure :74.8KPa（2500m);
4.Vibration:10～55Hz,double amplitude1.5mm;
5.Impact: 150m/s2
Typical application
Auto-testing equipment
Medical equipment
Timing belt drives
X-ray scanning
Textile machines
Electrical valve actuator
Cryogenic pump
Heat exchanger
Remote control of switches rheostat
Printing,packaging machines
Antenna rotors
Auto-welding machines
Parameter of PM synchronous motor
Note: The typical specifications above just for your reference. Please feel free to contact us if you can’t find the motor you required. We are always here being ready to help.

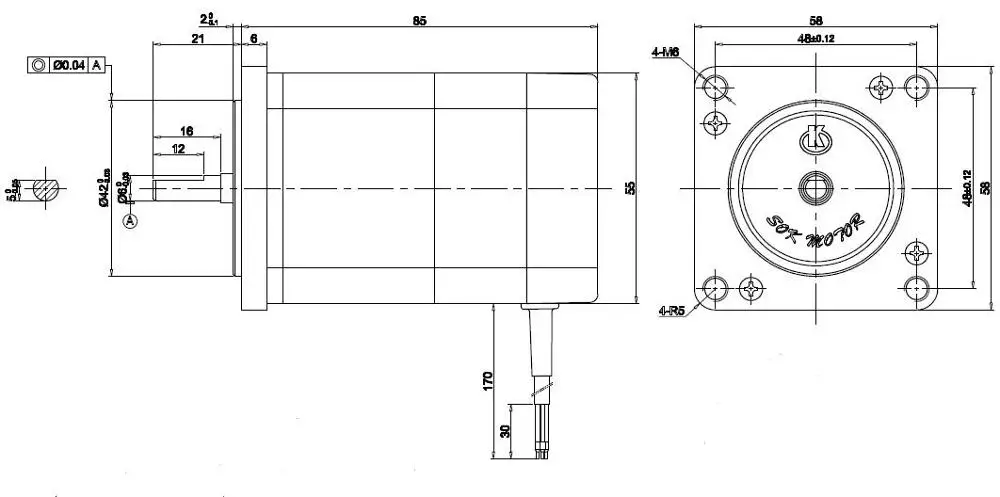

Outline Drawing
Dimension of PM synchronous motor

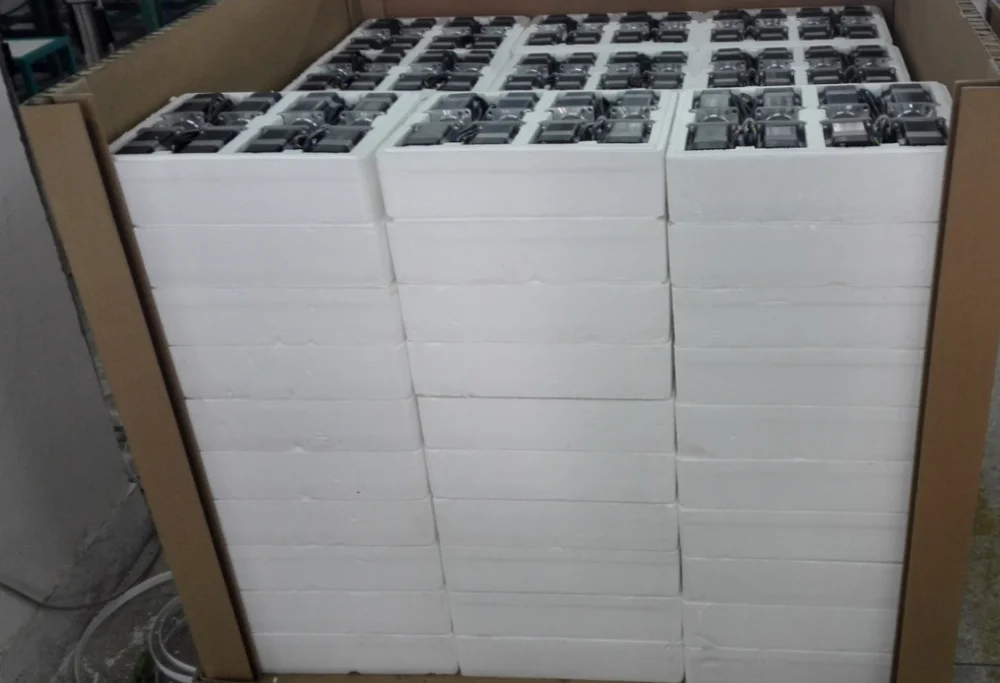

Picture of 55TDY060D4-2B product and Package
