Waterproof 24s 200a Bms Discharge Current 530a 24s Protection Circuit Module 24v 200ah Li-ion Battery Pack
- 120.00 piece
| Min. Line Width: | 1MM; | Model Number: | 24s 200A; |
| Selling Units: | Single item; | Copper Thickness: | 1OUNCE; |
| Surface Finishing: | Spaint spray; | Board Thickness: | 2MM; |
| Package Type: | Bubble bag+Outer carton +Free Shipping Warranty:Lifetime afterservices; | Resistance: | ≤10mΩ; |
| Power consumption: | lower than 50mw; | Self- consumption: | ≤50 uA; |
| Single package size: | 1X1X1 cm; | Base Material: | FR-4; |
| Min. Line Spacing: | 1MM; | Sample/oem/odm services: | acceptable; |
| Key word: | bms protection circuit module; | Products Name: | 24S lifepo4 PCM bms; |
| Working temp: | -30/+80 ℃; | Single gross weight: | 0.8 KG; |
| Min. Hole Size: | 1MM; | Delivery Detail: | 0 days after payment; |
| Brand Name: | Deligreen; | Power balancing: | 4.18 V; |
| Place of Origin: | Guangdong China (Mainland); | Battery type: | All lithium battery; |
Waterproof 24s 200A bms Discharge Current 530A Protection Circuit Module 24s :

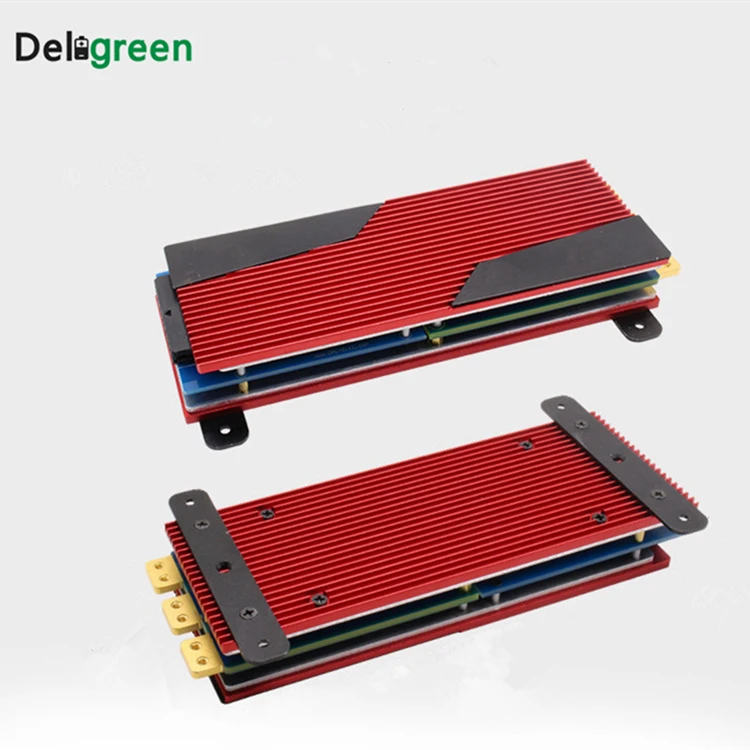

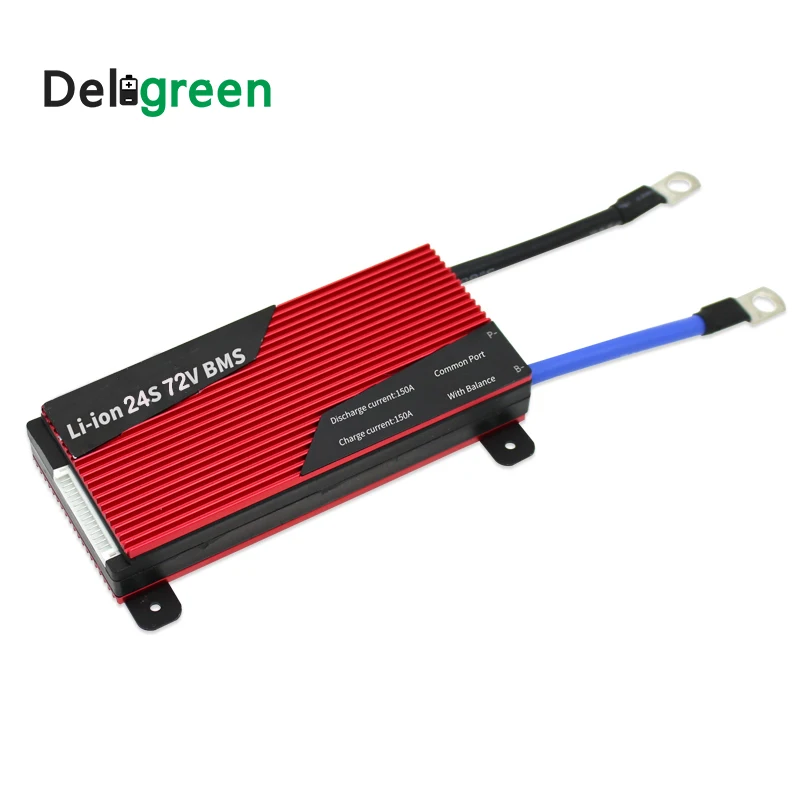

Image of Deligreen PCB/BSM :
Advantage of Deligreen PCB/BMS:
*Use top quality (A-level) protective integrated circuit IC, from the solution of Seiko of Japan.
*Strong load ability, constant discharge current 35A, use high voltage resistance, low inner resistance power mosfet ,the heat sink will greatly help cooling
*IC itself has power balancing function. The circuit is simple and reliable.
*Typical voltage detection for each cell. each battery will be prevented over charged or over discharged. Over current and short circuit protection function is very reliable.Long time short circuit of the load won’t affect the PCB and the battery.Temperature protection during charging and discharging.
*Extreme low power consumption. The consumption of the whole device is less than 50uA.

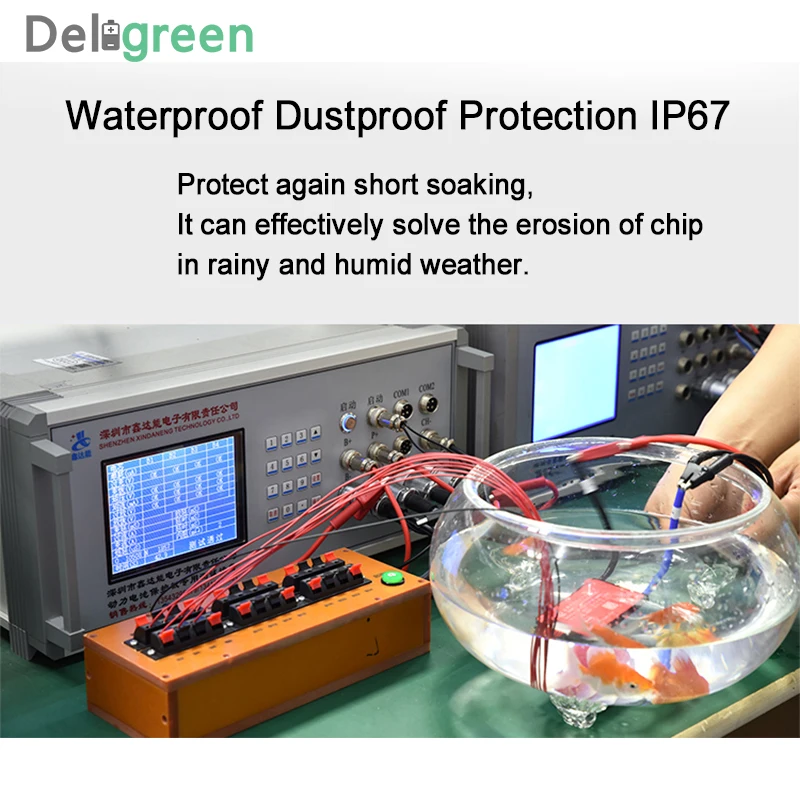

*PCB use high anti-corrosion, high water resistance, high impedance ESD conformal Coating

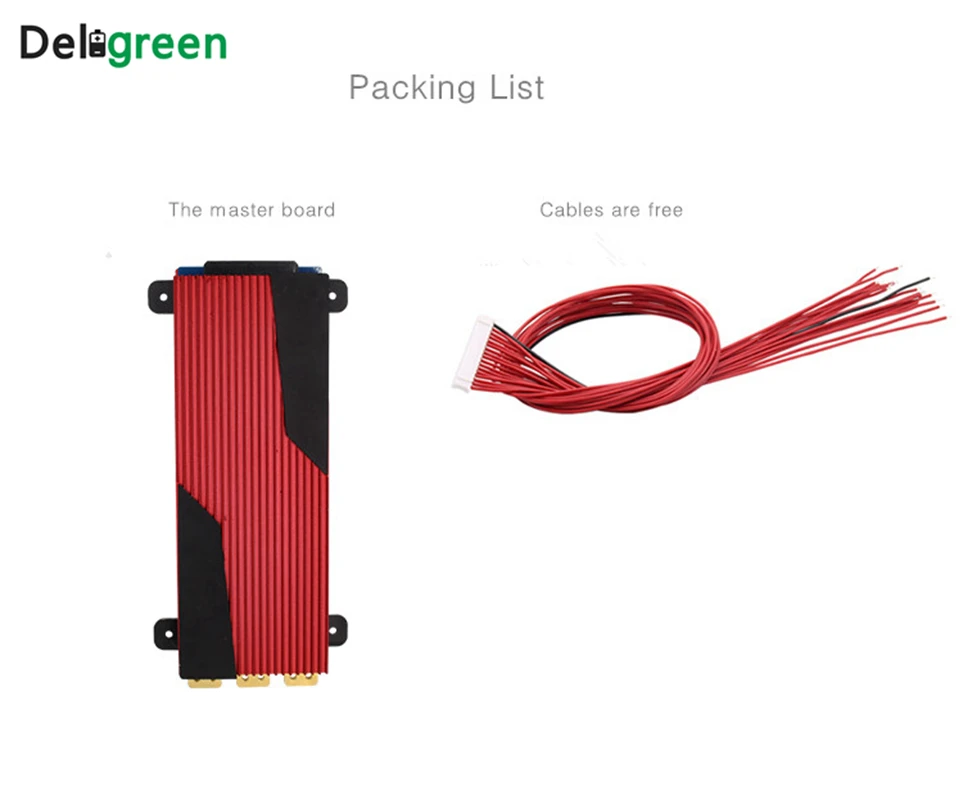

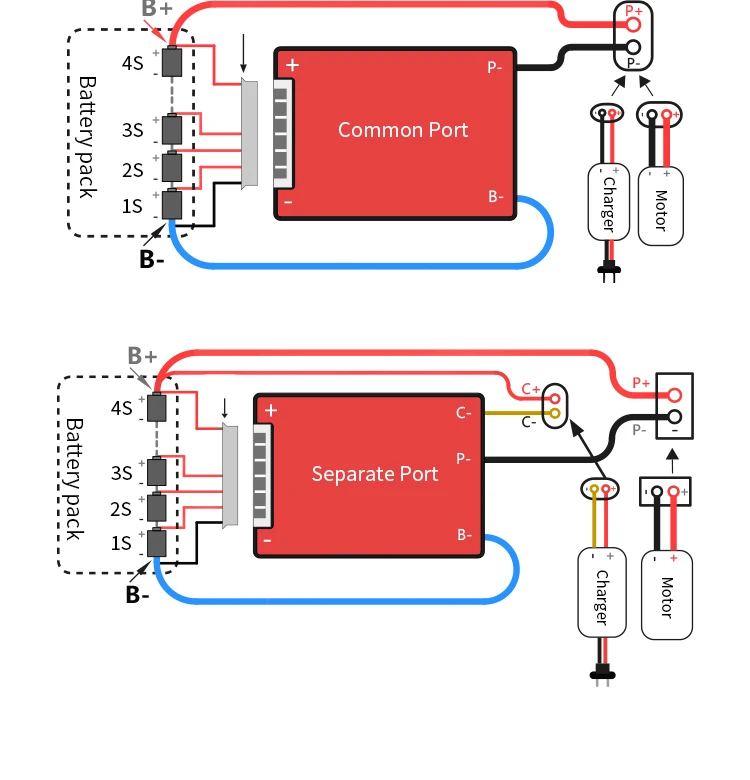

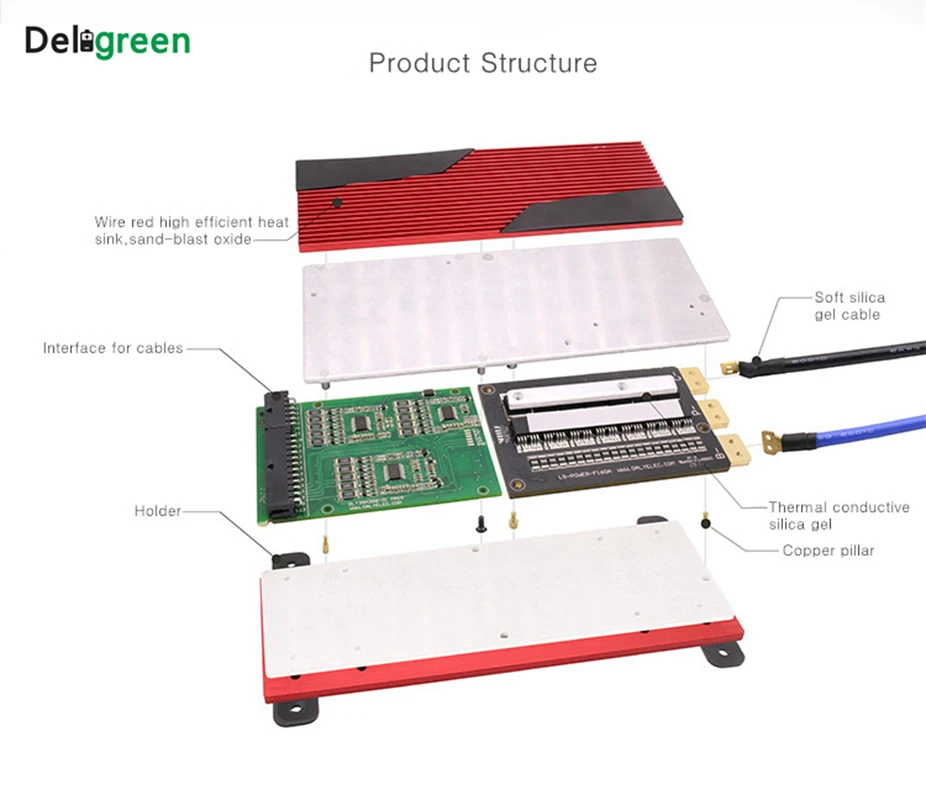

Products details& images:
