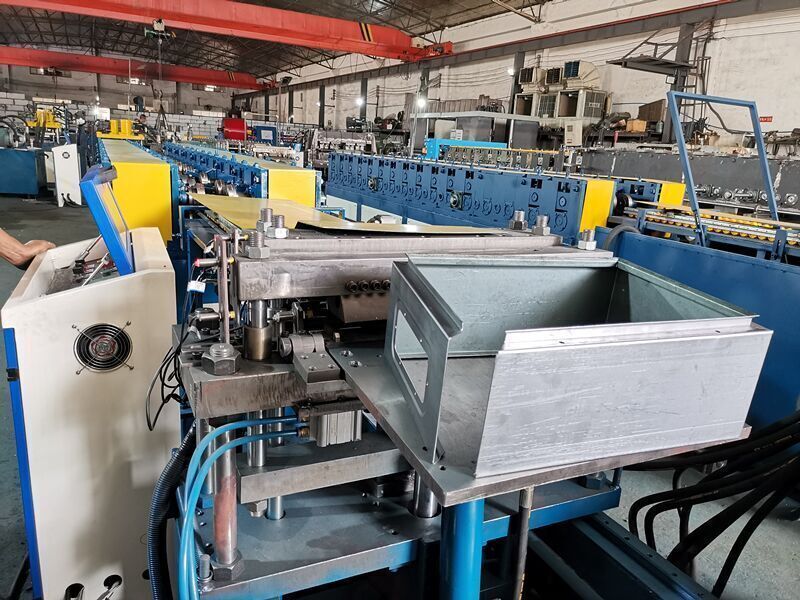

Superda Electrical Enclosure Roll Forming Machine
- 78000.00 piece
Registered Supplier
Direct Contact
Inquiry via Message
Product Details
Export Oversea Electrical Box Machine Form Making Different Size Distribution Board Enclosure.
Produced wall mount box dimension, height adjustable 300-1200mm, depth adjustable 150-350mm.
Electrical box machine technical parameters
|
Item |
Technology parameter |
|
|
Material |
Material |
cold-roll strip,galvanized steel strip |
|
Thickness |
1.0-1.5mm（base on 1.5mm design, when T.1mm effect alittle not good as 1.5mm） |
|
|
Coil Inner |
Ф360—Ф510 |
|
|
Process |
Form Speed |
0-13m/min |
|
Length |
Not limit |
|
|
Quality |
Length Precision |
L≤1000mm：±0.5㎜ |
|
Straight, Deflection |
L≤1000mm，Bend no more than 1mm；Deflection no more than 2mm |
|
|
Forming size |
As per design |
|
Electrical distribution board roll forming machine production line process
Uncoiler→ Straightening→Servo feeder→Hydraulic device→ Guide device → Roll forming machine →Bending device
whatsapp:+8618814355377
