2019 New Complete Set 500tpd - 2000tpd Gold CIP Processing CIL Plant

Product details
Condition:New;Application:gold processing plant;
After-sales Service Provided:Online support,Video technical support,Field installation, commissioning and training,Field maintenance and repair service;Motor Type:AC Motor;
Payment Terms:L/C,T/T;Supply Ability:50 Set/Sets per Week;
Warranty:1 Year;Type:Leaching Tank;
Port:Qingdao Yantai Dalian;Brand Name:baofeng;
Packaging Detail:Standard package for export;Place of Origin:Shandong China;
Product Description

Product Application

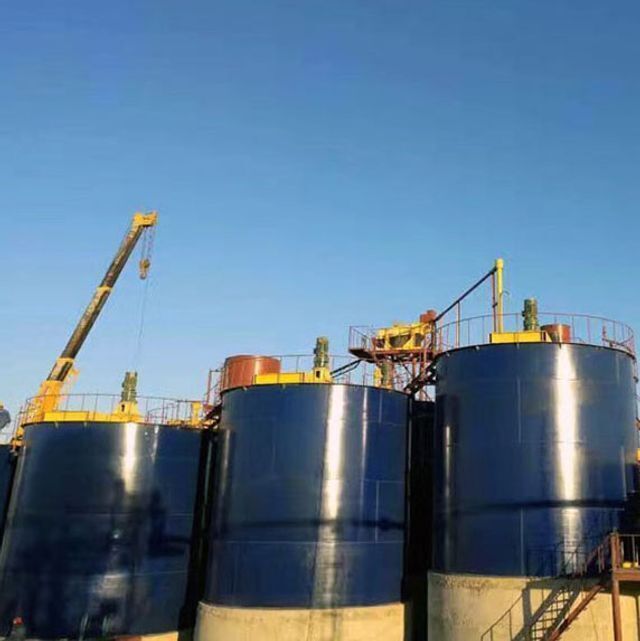

Double-impeller leaching tank is a equipment used for gold cyanidation leaching process and absorption, two transmission ways, one is the planet-cycloid reducer drive; the other is the plane envelope reducer drive.


This equipment working conditions: pulp concentration ≤ 45%, pulp concentration ≤ 1.4 t / m.


Double impeller leaching tank equipped with motor, cycloidal planetary gear speed reducer, bearing block and agitating shaft, is characterized by compact structure, little occupied space, and the agitating shaft equipped with a double impeller , from the top view the impeller rotating clockwise, each impeller composed of 4 blades, and the angle of the top blade and the below one is 45 degree. The compact air gets through the elbow pipe or the hollow shaft to the tank's bottom, the raising air plays the role of mixing , at the same time the big bubble shattered by the impeller changing into small bubbles, in the end the pulp and air reaches fully mixing and sodium cyanide solution contacts with the pulp completely, thereby gets the better gold leaching result. The design of this device keeps the impeller low-speed moving, reducing the possibility of wearing or smashing the active carbon, so as to achieve high leaching rate, high absorption rate and collects more gold.

Agitator impeller driven by the motor, and pulp flow to tank's bottom, in order to prevent bottom's wear, base plate lined at the bottom to extend the service life

SPECIFICATIONS
Model
Size of tank,D*L(mm)
Effective volume(m3)
Weight(kg)
SJ2.0*2.5
2000*2500
6
2144
SJ2.5*3.15
2500*3150
13.14
3096
SJ3*3
3000*3000
18.93
4323
SJ3.5*3.5
3500*3500
30
5025
SJ3.55*4
3550*4000
33.6
5825
SJ4*4.5
4000*4500
48
7450
SJ5*5.6
5000*5600
98
14291
SJ5.5*6.0
5500*6000
112
18745
SJ6*6.5
6000*6500
170
21006
SJ6.5*7
6500*7000
215
25567
SJ7*7.5
7000*7500
245.4
30486
SJ7.5*8
7500*8000
268.6
34365
SJ8*8.5
8000*8500
342
42468
SJ8.5*9
8500*9000
395
46623
SJ9.5*10
9500*10000
648
59786

Main Features

1.high gold recovery rate

2.adopt a planet-cycloid reducer or flat envelope Reducer drive, high-efficiency to 92%;

3. special structure compared with the same type equipment reducing the motor power, energy-saving rate 27.3%;

4. Little chance of accident happening, high overload capacity;

5. Light weight, low-cost, long service life;

6. low noise;

7.compact structure.

Certifications
Detailed Images

Machine Parts

Name: bearing

Brand: BAOFENG

Original: China

Main Features

Name:Impeller
Brand:Baofeng
Original: China

Machine Parts

Name:Reducer
Brand:Baofeng
Original:China

Main Features

Name:Bearing
Brand: Baofeng
Original: China

Our Service

Pre-Sales Service

* Inquiry and consulting support.

* Sample testing support.

* View our Factory.

After-Sales Service

* Training how to instal the machine, training how to use the machine.

* Engineers available to service machinery overseas.

Packing & Delivery
Transportation
smaller one
By truck to station
Big one
steel plate will be transported to site, and welding on site.
Transporation
Container
