API Gardner Denver Mud Piston Pump Spares parts Ceramic Cylinder ceramic mud pump Liners

Supplier: Shandong Beyond Petroleum Equipment Co., Ltd.
Region: Shandong, China
Contact: Mr Alex Zhao
Price: $500.00 / 1 - 99 pieces
$100.00 / >=100 pieces
Min. Order: 1 piece

Click here to contact

Product details

Packaging Detail:	Packing in Wooden Box;	Supply Ability:	10000 Piece/Pieces per Week;
Brand Name:	BEYOND;	Showroom Location:	Egypt,India,Argentina,Kazakhstan;
Power rating HP/KW:	800/597;	Valve:	API 6#;
Applicable Industries:	Construction works ,Energy & Mining;	Stroke Length (mm/in):	9"/228.6;
Type:	Triplex Single Acting Mud Pump;	Gear ratio:	4.185;
Port:	QINGDAO / TIANJIN / SHANGHAI;	Machinery Test Report:	Provided;
Outlet dia. (in):	5-1/8" flange 5000psi;	Model Number:	F800;
Video outgoing-inspection:	Provided;	After-sales Service Provided:	Free spare parts,Field maintenance and repair service,Field installation, commissioning and training,Video technical support,Online support;
Condition:	New;	Inlet dia. (in/mm):	10"/254;
Core Components:	Pump,Gear,Bearing;	Local Service Location:	Egypt,India,Argentina,Kazakhstan;
Max. liner (in/mm):	6-3/4" / 170;	Marketing Type:	New Product 2020;
Warranty of core components:	1 Year;	Payment Terms:	L/C,Western Union,D/P,D/A,T/T,MoneyGram;
Package Preview:	;	Stroke Rating SPM:	150;
Warranty:	1 Year;

PRODUCT DESCRIPTION

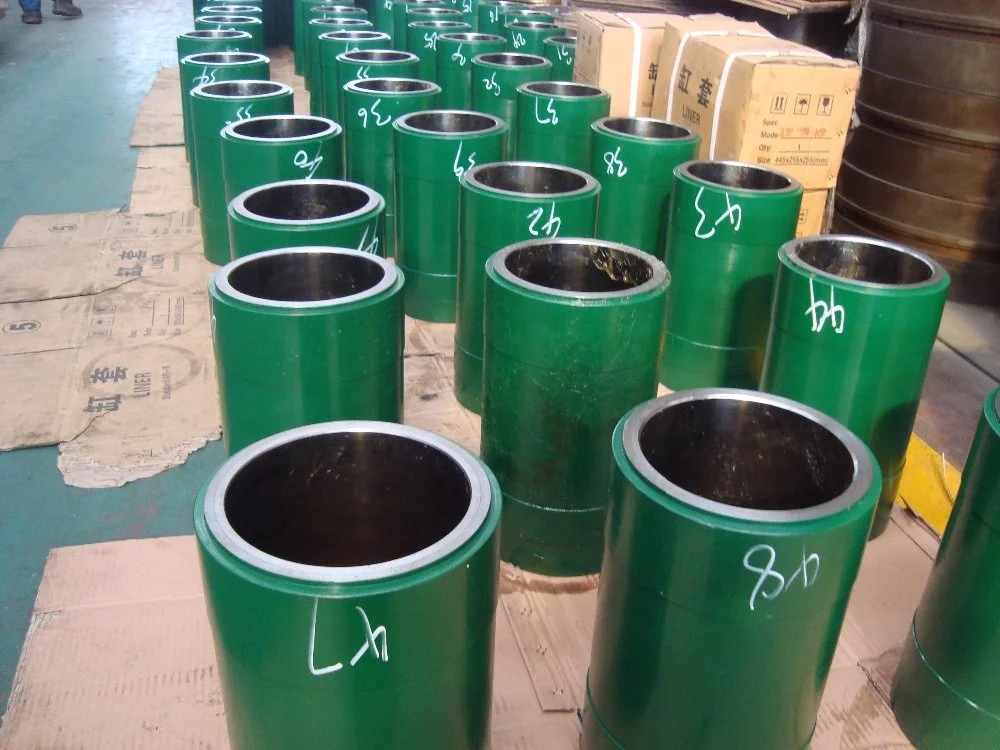

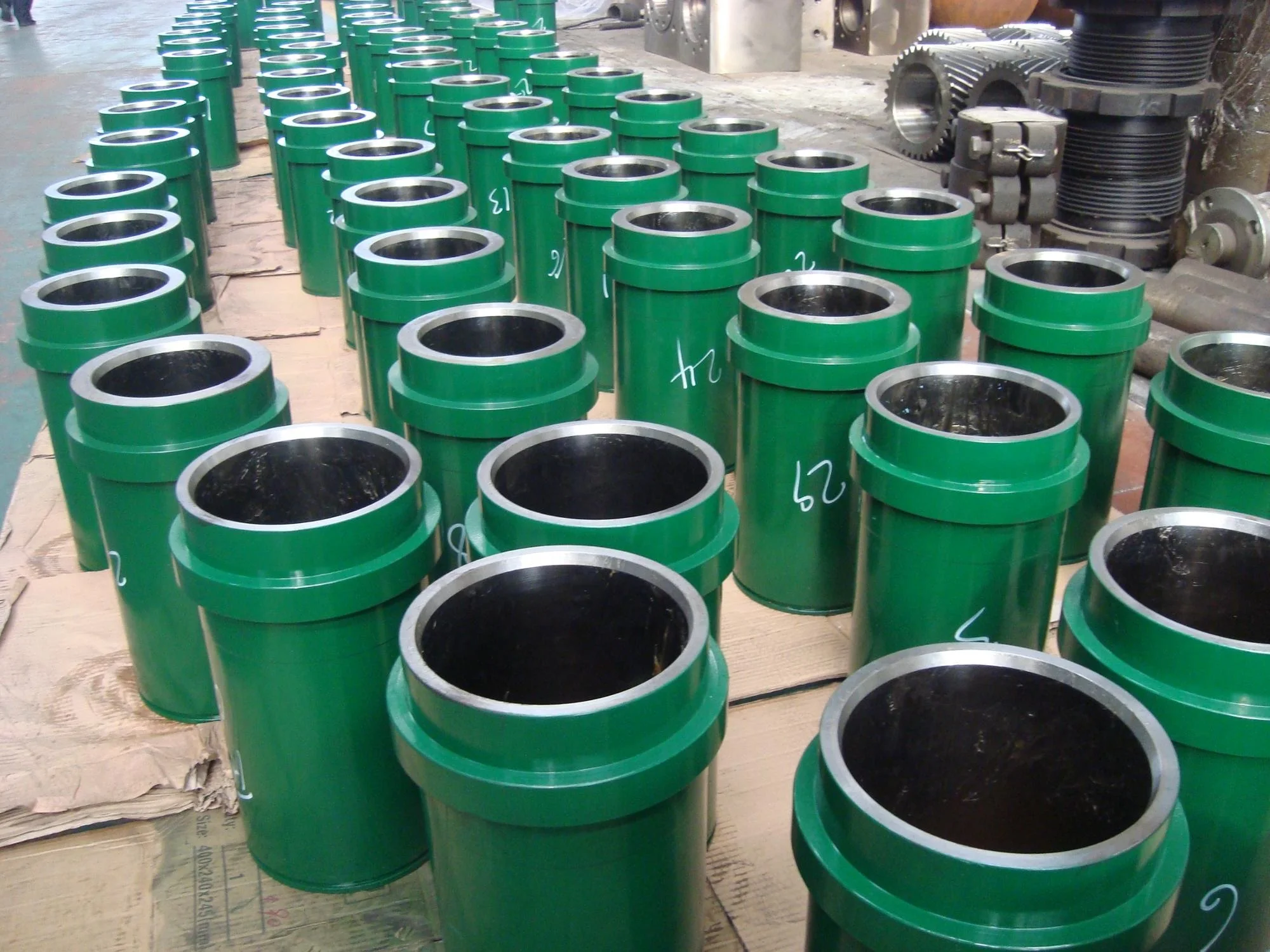

API Mud Pump Spares Ceramic Cylinder Liner

Our F series mud pump are designed and manufactured on the basis of American Emsco F series mud pump strictly according to America Petroleum Institution API 7K Standard. All of its expendable parts are interchangeable with any other spare parts produced according to API standard. Therefore it is easy to repair and maintain internationally .

PRODUCT PARAMETERS

Item	F500	F800	F1000	F1300	F1600
Power Rating HP(kw)	500 (373)	800 (597)	1000 (746)	1300 (969)	1600 (1193)
Stroke RatingSPM	165	150	140	120	120
Stroke Length(in /mm)	7.5" /190.5	9"/228.6	10"/254	12"/305	12"/305
Gear Ratio	4.286	4.185	4.207	4.206	4.206
Inlet Dia. (in/mm)	8"/203	10"/254	12"/305	12"/305	12"/305
Outlet Dia. (in)	4" Flange 5000psi	5-1/8" Flange 5000psi	5-1/8" Flange 5000psi	5-1/8" Flange 5000psi	5-1/8" Flange 5000psi
Valve	API5#	API6#	API6#	API7#	API7#
Max. Liner (in/mm)	6-3/4"/170	6-3/4"/170	6-3/4"/170	7"/180	7"/180
*Overall Dimension LWH(mm)*	36582709 2231	39633025 2410	42673167 2580	46173260 2600	46153276 2688
Approx. Weight (kg)	9770	14500	18790	24572	24791

Stroke per Minute	Liner size (mm) and Pressure Rating(Mpa/psi)
		φ170	φ160	φ150	φ140	φ130	φ120	φ110	φ100
		9.4 1365	10.6 1540	12.1 1750	13.9 2010	16.1 2335	18.9 2740	22.5 3260	27.2 3945
		Displacement (L/S)(gpm)
165	35.67 565	31.60 501	27.77 440	24.19 383	20.86 330	17.77 281	14.93 236	12.34 195
150	32.43 514	28.73 455	25.25 400	21.99 348	18.96 300	16.16 256	13.58 215	11.22 178
140	30.27 480	26.81 425	23.56 373	20.53 325	17.70 280	15.08 239	12.67 201	10.47 166
130	28.11 445	24.90 394	21.88 347	19.06 302	16.44 260	14.00 222	11.77 186	9.73 154
120	25.94 411	22.98 364	20.20 320	17.60 279	15.17 240	12.93 205	10.86 172	8.98 142
110	23.78 377	21.07 334	18.52 293	16.13 255	13.91 220	11.85 188	9.96 158	8.23 130
Based on 100% volumetric efficiency and 90% mechanical efficiency

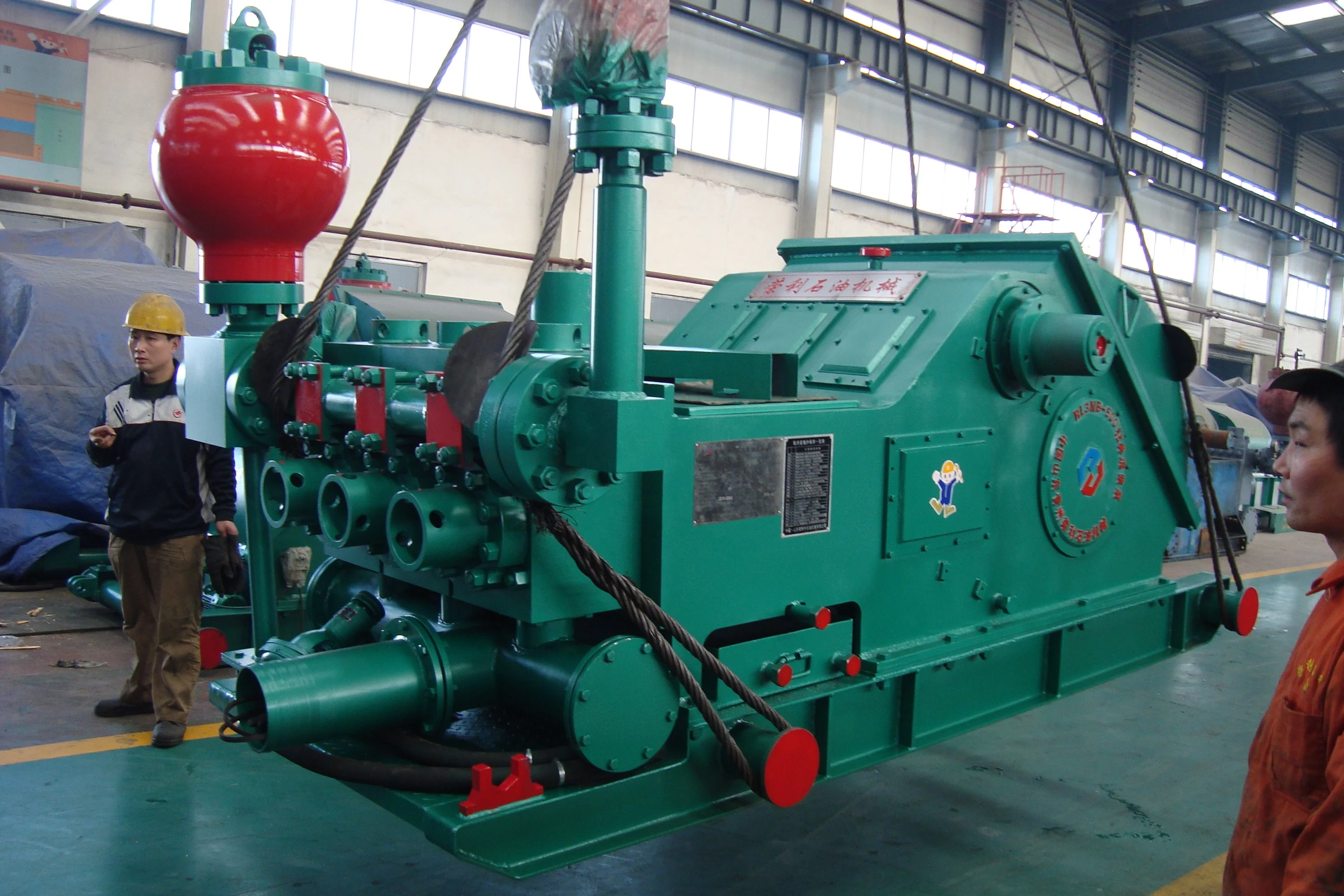

F series mud pump are applicable to the requirement of high pump pressure in oilﬁeld and high displacement technology of well drilling with its solid and compact structure,small volume and out-standing operation performance.

F series mud pump has a longer stroke and can be operated at a lower stroke, thus improved the water supplying performance effectively and extended the lifetime of expendable parts in the fluid end greatly. The suction pulsation dampener has an advanced structure which is reliable to use and can make the pump realize its best suction performance.

The power end of F series mud pump adapts combined lubricating system of forced lubrication and splash lubrication. Reliable to lubricate and increased the service life of power end.

COMPANY PROFILE

BEYOND is established on request of customer and aimed to supply best product and service for the customer. It focuses on to supply best solutions for the overseas oilfield customer on equipment & spares maintenance and supply.

China has become main equipment supplier for oil production countries, but Chinese equipment has some special features different with European and American countries, also there exits big language and cultural difference between China and other countries, so it has become one big challenge for the overseas customer to get the exact equipment and parts they need in a short time.

However, BEYOND takes root in China, and has very good cooperation relationship with most of famous factories, plus strong technical support and good advantage in language. Therefore, BEYOND is quite capable to help the customer to solve this challenge.

BEYOND products cover but not limited to: China-make oil drilling rigs, workover rigs, wellhead and downhole tools, drilling tools, OCTG and other related equipment and parts. Meanwhile, BEYOND can offer technical services, personnel training and maintenance guide towards China-made drilling rigs. Only if it is what you need, BEYOND can get it for you: from best factories, with most competitive price and within shortest lead time.
