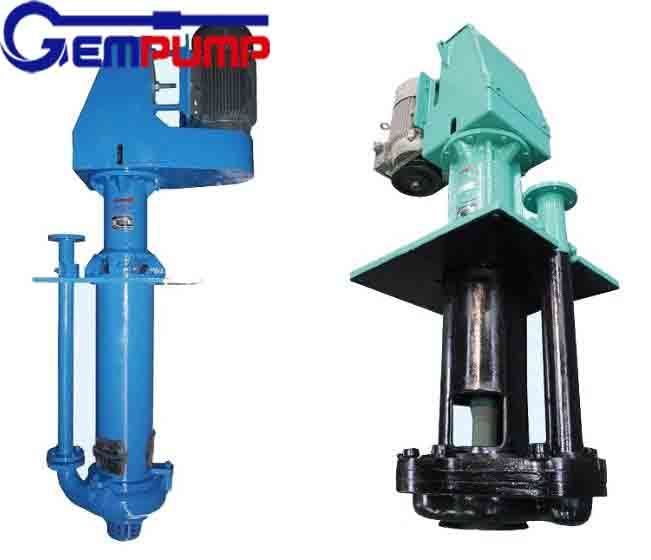

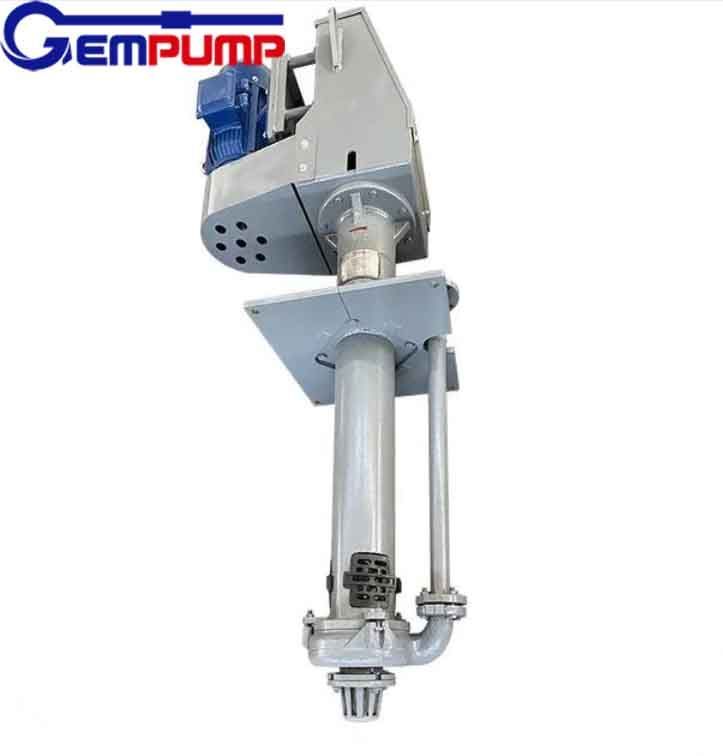

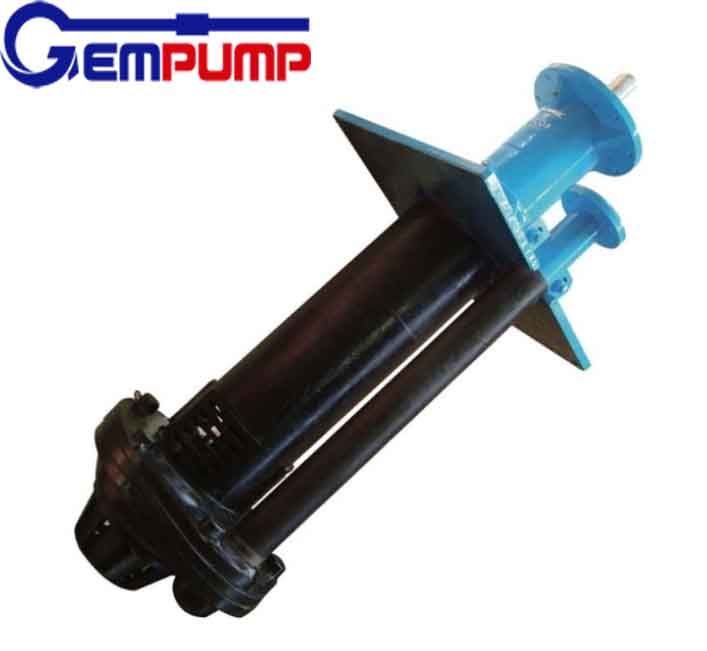

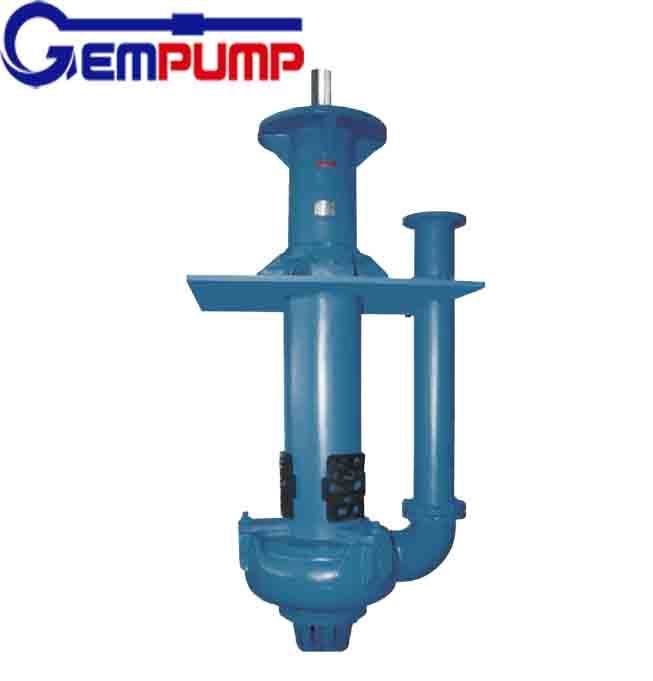

China Vertical Spindle Slurry Pump, Submersible Sump Pump

High Quality Electric Industrial Semi Submersible Vertical Sump sewage Pump Heavy Duty Sp Spindle Sand Mud Gravel Slurry Centrifugal Water Pump for Mining

China SVP(R) Series Introduction:

SP(R) series is vertical centrifugal sump slurry pumps, which is designed to be immersed in liquid for conveying abrasive, coarse particles, dirty water and particle contaminated water.

Features:

1. Metal or rubber lined wet parts

2. Double suction semi-open impeller

3. Agitator option keeps solids in suspension

4. Recessed impeller option passes over-sized material

Specification:

D: 40-200 mm

Q: 17-891m³/h

H: 4-37 m

Application:

SP(R) slurry pumps are mainly used for handing corrosive, coarse particles and high density slurries , and are widely used in sewage treatment, metallurgy, mining, mineral processing, dredging, de-watering, water treatment, coal washing, mill, cyclone feed, tailing, power, building material...etc. various industrial sites. For different duties, pump is named as High head pump, High pressure pump, Mineral processing pump, Mill discharge slurry Pump, Booster pump, Feeding pump, Tailing pump,Transfer pump Thickner Underflow Pump, De-watering screen pump, Pressure pump, Concentrate pump.

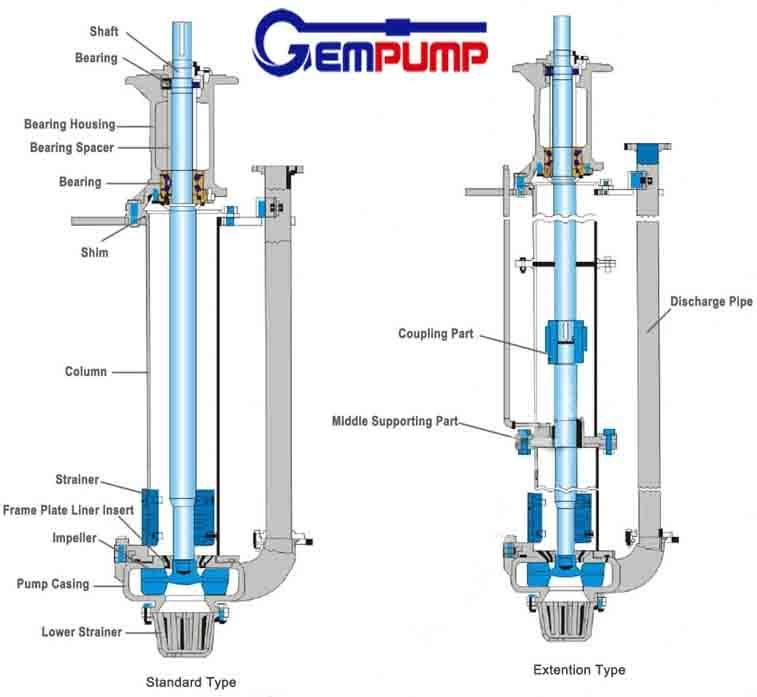

The upper part of the pump is supported by a bearing; the pump is installed under the liquid without any shaft seal and shaft seal water, and it can work normally under conditions of insufficient suction.

The flow parts are made of wear-resistant materials, which are used to transport abrasive, coarse particles, and high-concentration slurry.

It is mainly suitable for conveying corrosive, coarse particles and high-concentration slag slurry. It is widely used in metallurgy, mining, coal, electric power, building materials, environmental protection and other departments.

The transmission type of this pump is BD and DC, namely belt drive and direct drive.

The depth of immersion in the liquid can be determined according to the actual needs of users within the standard size range.

Seen from the direction of the pump suction port, it rotates counterclockwise.

Shijiazhuang Jiemu Machinery Equipment Co., Ltd is a modern pump company specializing in production, research and development, sales and service. We have been in the centrifugal pump industry for more than 20 years. We have a modern standard pump room and a processing workshop with a variety of advanced processing equipment. The whole process from casting to assembly is one-stop closed-loop production. The team of experienced production R&D engineers is professional and efficient. Choose us, professional team, professional equipment, trustworthy.

China Gempump Main products:

1.Slurry pumps

2.Gravel pumps

3.ZJQ submersible slurry pumps

4.Inline booster pumps

5.Multi-stage pumps

6.Split case pumps

7.Sewage pumps

8.Magnetic pumps

9.Self priming pumps

10.Pump spare parts
