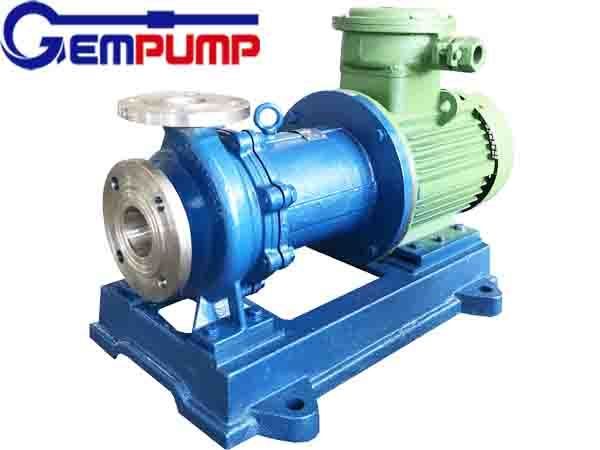

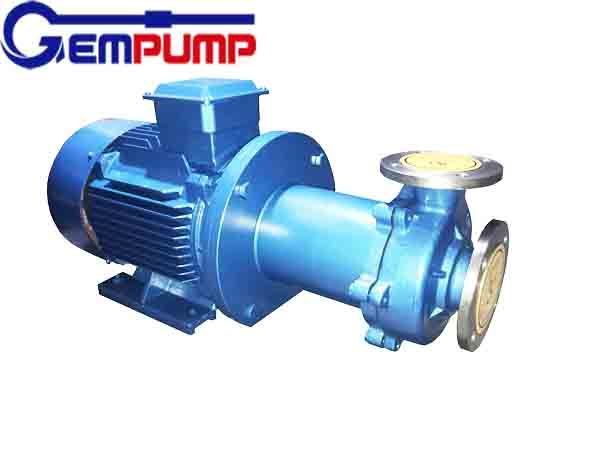

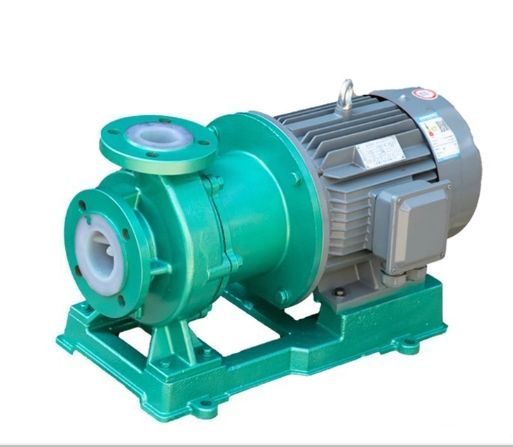

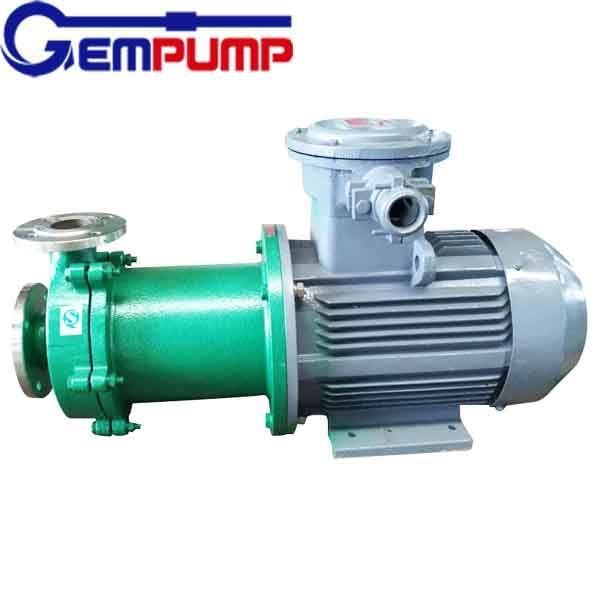

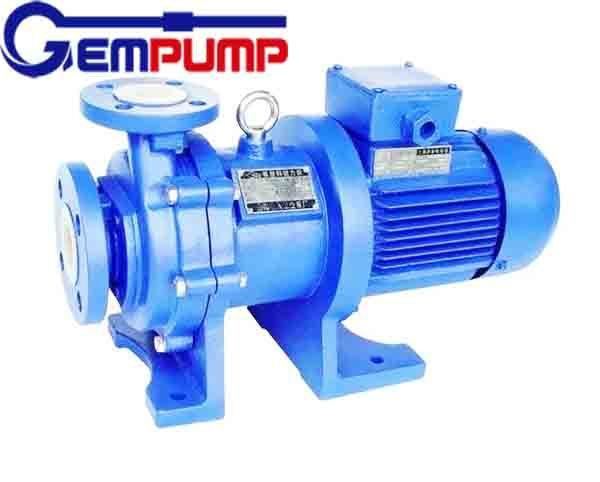

Cqb Stainless Steel Chemical Circulating Magnetic Drive Pump

Cqb Stainless Steel Chemical Circulating Magnetic Drive Pump

Summarize:

1. CQB stainless steel no-leak chemical liquid pump magnetic drive pump is a new product with the working princ iple of a permanently magnetic clutch applied on a centrifugal pump and features a reasonable design, advanced technologies, full-seal, non-leak and anti-corrosion

2.  It uses a static seal instead of a dynamic one so as to have the flow-passing parts in a fully sealed state, completely settling the problems of run-away, pop-up and drop unable to avoid with the mechanical seals of other pumps.

3.  The magnetic pump features a compact structure, nice outlook, small volume, low noise, reliable run and easy use and maintenance.

4. It can be used to pump acids, alkali, oils, rare and noble liquids, toxic liquids, volatile liquids and for completing with cycling water equipments and filters in che-mical industry, pharmacy, petroleum, electric plating, food movie and photograph development, scientific research organ, national defense industry etc.

5. Especially for pumping the easily leaking, combustible and explosive liquids, it is more ideal to use this pump.

6.  Suitable for transporting the liquid containing no hard grains and fiber and with the suck-in pressure not more than 0.2MPa, the maximum working pressure 1.6MPa, the density not more than 1600Kg/m3 and the graininess not bigger than 30×10-6m2 /S.

Company Information:

Shijiazhuang Jiemu Machinery Equipment Co., Ltd is one of the leading manufacturers and exporters in the field of industry pumps with manufacturing facilities in mainland China. We are specialized in slurry pump, magnetic pump, multistage  pump, centrifugal pump, submersible pump, chemical pump etc.

CQB Pump Application

Our CQB pumps are widely used in chemical, making acid, alkali manufacturing, pesticide, dye, medicine, papermaking, electroplating, electrolysis, pickling, scientific research institutions, national defense industry and other industries conveying arbitrary concentration of acid, alkali, oil, the rare and precious liquids, toxic liquid, volatile chemical medium, etc.

Specifications

            Model                        Inlet Dia. (mm) Outlet Dia. (mm) Head (m) Capacity (m3/h) NPSH (m) Power (kw) Speed (r/min) Efficiency (%) Voltage (v)

CQB15-10-85F 15 10 8 1.8 6 0.12 2800 33 220/380

CQB20-15-105F 20 15 12 3 6 0.37 2900 33 220/380

CQB32-25-125F 32 25 20 3.2 5 0.75 2900 35 380

CQB40-32-115F 40 32 15 6.3 6 0.75 2900 45 380

CQB40-32-145F 40 32 25 6.3 5 1.5 2900 42 380

CQB50-40-125F 50 40 20 12.5 3.5 2.2 2900 50 380

CQB50-40-160F 50 40 32 12.5 3.5 3 2900 46 380

CQB65-50-125F 65 50 20 25 4 3 2900 58 380

CQB65-50-160F 65 50 32 25 4 5.5 2900 56 380

CQB80-65-125F 80 65 20 50 4 7.5 2900 66 380

CQB80-65-160F 80 65 32 50 4 11 2900 64 380

CQB100-80-125F 100 80 20 100 4 11 2900 72 380

CQB100-80-160F 100 80 32 100 4 18.5 2900 70 380
