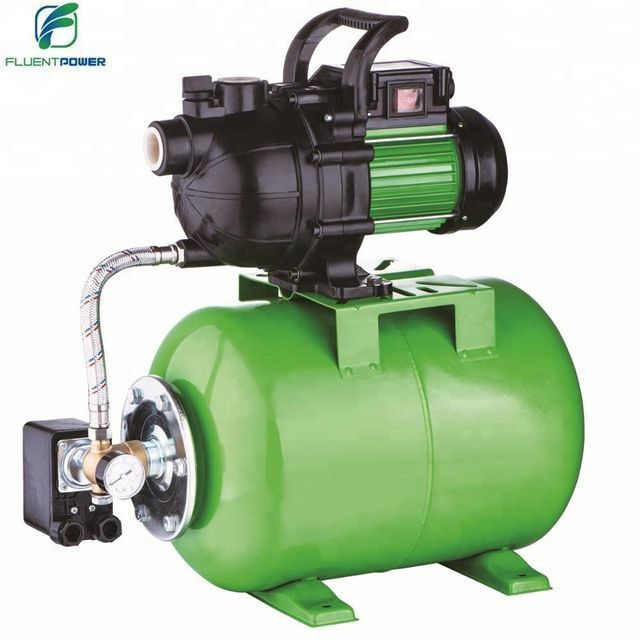

Long-term irrigation household water pressure booster pump

Supplier: Ningbo Fluent Tools Co., Ltd.
Region: Zhejiang, China
Contact: Ms Ivy Dai
Price: $44.00 /piece
Min. Order: 1 piece

Click here to contact

Product details

color:	green, blue or any other color	brand:	fluent
Supply capacity:	40000 pieces per month for long-term irrigation household water pressure booster pump	Origin:	Zhejiang, China
Output connector:	1''	horsepower:	1-2 hp
structure:	single stage pump	Maximum H mouse:	35m to 46m
pressure tank:	19L or 24L	Packaging Details:	Cardboard Surrounding and Master Carton, 1pc/Ctn Long Life Irrigation Home Water Pressure Booster Pump
port:	Ningbo	cable length:	1.2M
Export size:	1"	cable:	H07RN-F 3G1.0mmx1.2m
Bars (min~max):	1.2-3.0	Certificate:	CE, GS, Rohs
Voltage:	230v/50Hz or 110V/60Hz, 230V	strength:	600w to 1200w, 50HZ
model:	FGPxx5JD	Max Q Mouse:	2800 l/h to 3500 l/h
Customization support:	OEM production	application:	Others, automotive industry, domestic housing, irrigation and agriculture
Energy source:	electrical	pressure:	high pressure
payment terms:	L/C, D/P, T/T

product information

Long-term irrigation household water pressure booster pump

Operating restrictions:
- Fluid temperature up to 35°C
- Maximum ambient temperature 40°C

additional

deal with

Pump construction:

- Pump body: plastic or stainless steel

-Impeller: PP/stainless steel

- Motor shaft: 45# steel or stainless steel

-Mechanical seal: ceramic and graphite

-Insulation class: B/F

-Protection grade: IPX4

idea:
- rain barrel water supply
- booster, irrigation system
- Installation/equipment industry, industrial applications
- Rainwater utilization, filtration system, groundwater reduction
- WC flushing supplies flushing water to wells or tanks

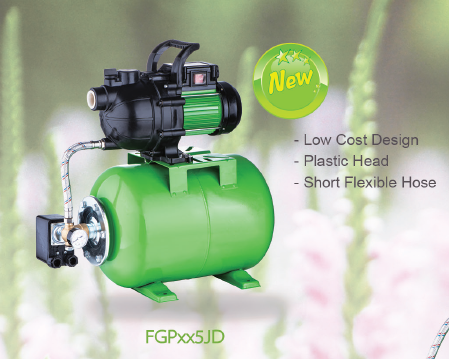

FGPxx5JD (“xx” stands for power in watts)

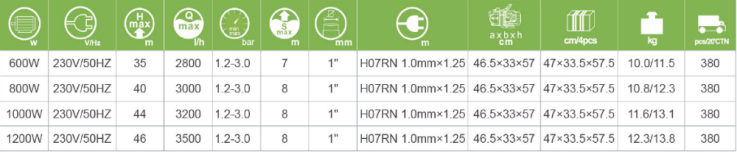

Specification:

110V/60Hz also available

Pump application:

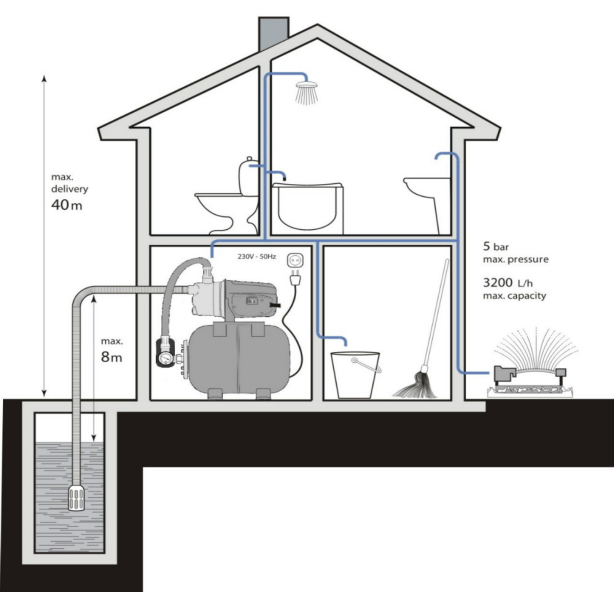

- The automatic pressurization system consists of water pump, diaphragm tank, pressure gauge and pressure switch.

- The garden jet pump can be used to increase the water pressure of clean water in the home, such as gardening, water supply and washing. Stainless steel housing prevents rust and is durable.

- These pumps should be installed in a covered area, protected from the weather.

- It is always recommended to install a foot or check valve on the suction.

Long-term irrigation household water pressure booster pump
