8HP Diesel Engine Cement Slurry Pump for BW-160 Drilling Rig
- 1000.00 set
| Video shipment inspection: | if | model: | BW-160 |
| port: | Qingdao, Shanghai, Tianjin | Applicable industries: | Farms, construction, energy and mining |
| Supply capacity: | 200 sets per month | Cylinder diameter: | 95mm |
| Marketing Type: | 2019 Hot Products | Warranty: | 1 year |
| brand: | lead song | Outlet inner diameter: | 32mm |
| Inlet inner diameter: | 42mm | Showroom location: | not any |
| Mechanical test report: | if | product name: | BW-160 mud pump |
| Core components: | the host | Piston stroke: | 85mm |
| payment terms: | Western Union, T/T | Packaging Details: | wooden box |
| Core component warranty: | 1 year | State of health: | new |
| engine: | 8 hp | Types of: | single line |

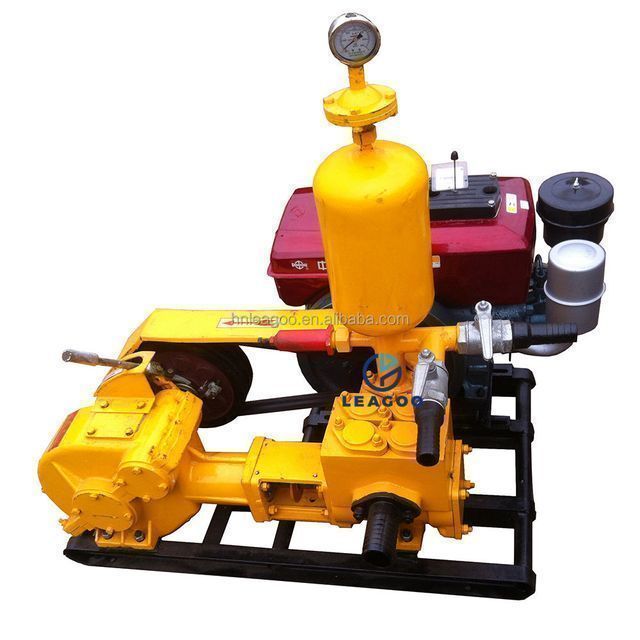

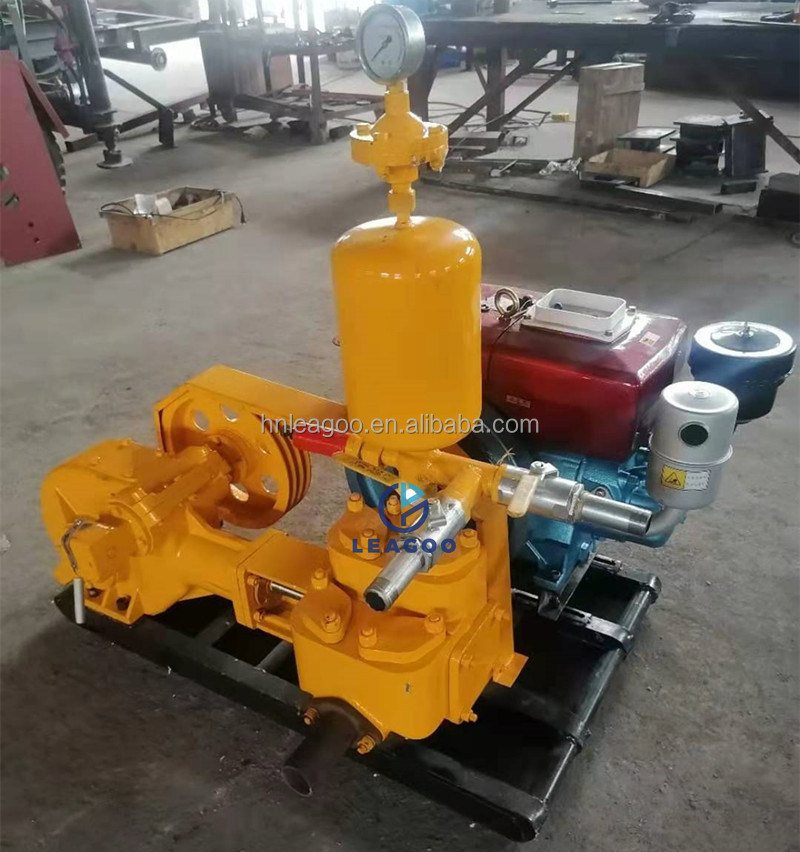

8HP Diesel Engine Cement Slurry Pump for BW-160 Drilling Rig
BW-160 mud pump is a portable mud pump. The pump is a horizontal single-cylinder reciprocating double-acting plunger pump with four flows and four pressures, flows and pressures.
|
Do not. |
Name |
Technical Parameters |
|
1 |
Model |
BW-160 |
|
2 |
number of cylinders |
1 |
|
3 |
bore |
95mm |
|
4 |
Piston stroke |
85mm |
|
5 |
frequency |
165 times/min |
|
6 |
theoretical flow |
160 l/min |
|
7 |
preset pressure |
1.3Mpa |
|
8 |
volumetric efficiency |
88% |
|
9 |
pulley speed |
951rpm |
|
10 |
strength |
5.5kw/8HP |
|
11 |
Inlet diameter |
42mm |
|
12 |
Outlet inner diameter |
32mm |
1. Professional pre-sales and after-sales technical support
2. Provide spare parts at cost price all year round.
3. 24 hours * 7 days online service
4. The host is guaranteed for one year
5. Operation video and manual are available.
Sales Manager: MS Debbie Liu
Henan Ligu Electromechanical Co., Ltd.
Mobile/Whatsapp: +86-13213019085
Email: info(at)hnleagoo.com
Provide 100m-2000m drilling rigs and drilling measuring instruments, please contact me for details!
