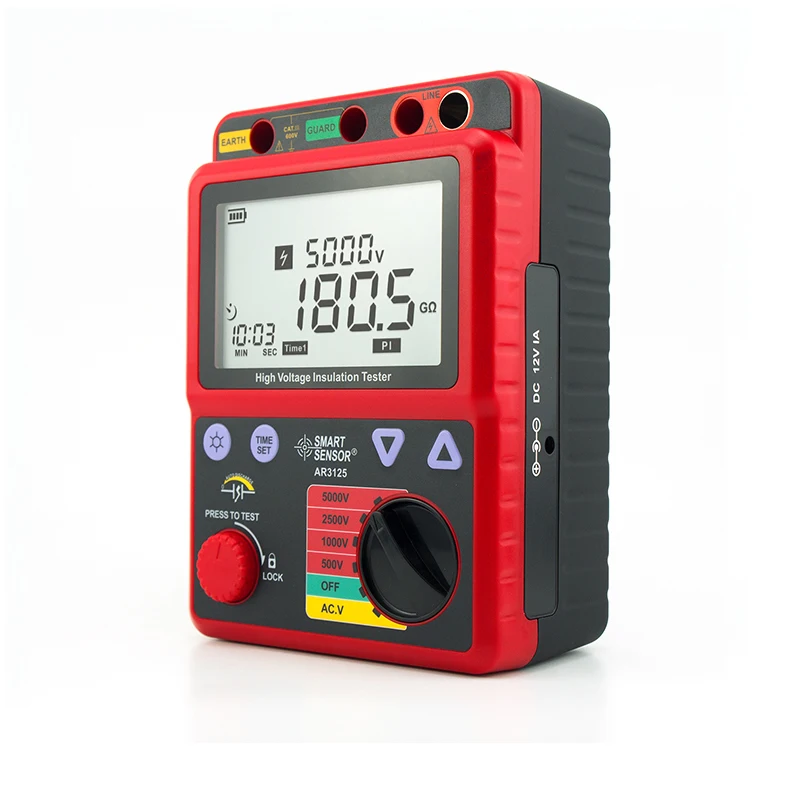

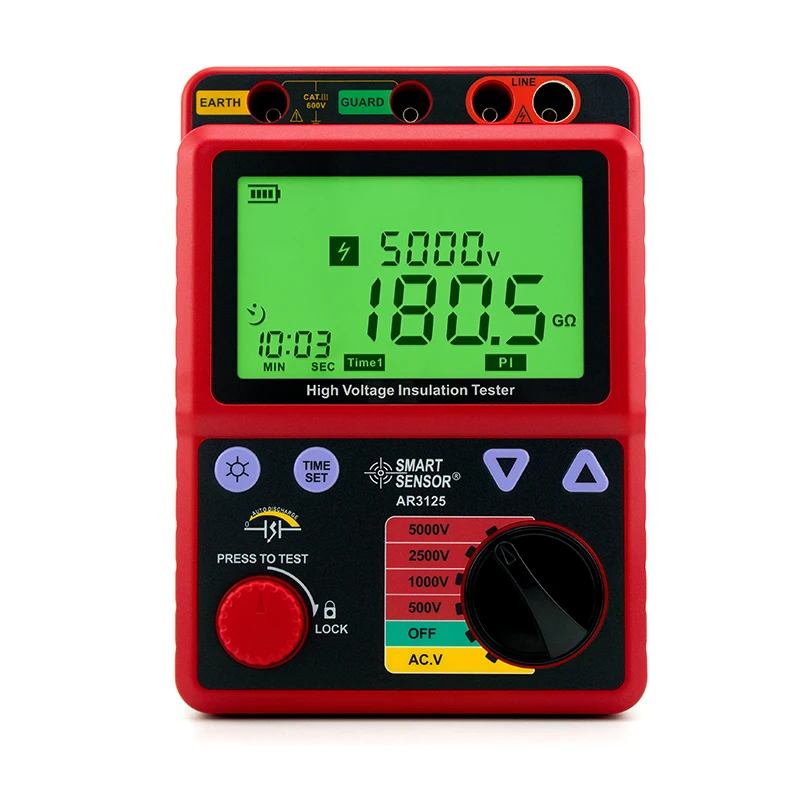

SMART AR3125 500 - 5000V Digital Megohmmeter Voltage Tester Ohm Meter Insulation Resistance Tester
- 110.00 set
| Packaging Detail: | CARTON BOX, 12sets/carton; | Payment Terms: | Western Union,D/P,D/A,T/T; |
| Product name: | SMART AR3125 Insulation Resistance Tester; | Supply Ability: | 10000 Set/Sets per Month; |
| Port: | SHENZHEN, GUANGZHOU, SHANGHAI ETC; | Measuring Range: | 0MΩ-1000GΩ; |
| Brand Name: | SMART SENSOR; | Testing Voltage: | 0-600V AC DC; |
| Usage: | Test Insultaion Resistance, voltage; | Accuracy Class: | ±2%rdg ±3rdg; |
| Rated testing voltage: | 5000V; | Package Preview: | ; |
| Application: | Electronic Industry; | Model Number: | AR3125; |
| Operating Temperature: | 0~40 ℃; | Place of Origin: | Guangdong China; |
| Dimensions: | 153*213*95mm; | Display: | Digital Display; |
| Display Type: | Digital Only; | Warranty: | 1 Year; |
| Keyword: | insulation resistance tester; | Power supply: | 8*1.5 LR14; |
| Function: | Resistance voltage Test; |
SMART AR3125 500 - 5000V Digital Megohmmeter Voltage Tester Ohm Meter Insulation Resistance Tester
AR3125
|
Rated voltage |
500V / 1000V / 2500V / 5000V |
|
Open Circuit Voltage |
DC 500V +30%, -0% ~ DC 5000V +20%, -0% |
|
Insulation Resistance Testing Range |
0.0MΩ~1000GΩ |
|
Short Circuit Current |
1.3 mA Approx |
|
Insulation Resistance Accuracy |
0~99.9GΩ : ±5% rdg ±3% rdg above 100GΩ : ±20% |
|
Voltage Testing Range |
DC : ±30 ~ ±600V ; AC : 30 ~ 600V (50/60Hz) |
|
Voltage Resolution |
1V |
|
Accuracy |
±2%rdg ±3rdg |
|
Sampling Rate |
0.5 ~ 10 times / sec |
|
Operation Condition |
0°C ~ 40°C, ≤ 85% RH |
|
Storage Condition |
-20°C ~ 60°C, ≤90% RH |
|
Over Load Protection |
√ |
|
Auto Discharge |
√ |
|
Battery Indication |
√ |
|
Polar index measurement
|
√ |
|
Alarm |
High Voltage Warning Symbol & Buzzer Alarm |
|
External power supply |
DC adapter 12V / 1A |
Any question on the packing details, shipping fee, just contact us!
