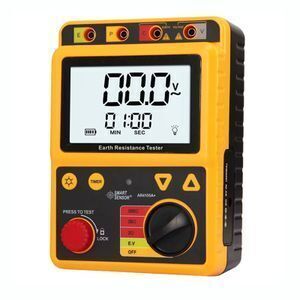

SMART AR4105A 200 Ohm Ground Resistance Meter Digital Earth Resistance Tester
- 54.00 set
| Display: | Digital Display; | Supply Ability: | 10000 Set/Sets per Month; |
| Dimensions: | 17.4*12.2*6.5cm; | Function: | Ground Resistance Test; |
| Operating Temperature: | 0~40 ℃; | Keyword: | digital earth resistance tester; |
| Packaging Detail: | CARTON BOX, 6sets/carton; | Package Preview: | ; |
| Port: | SHENZHEN, GUANGZHOU, SHANGHAI ETC; | Brand Name: | SMART SENSOR,SMART SENSOR; |
| Warranty: | 1 Year; | Power supply: | DC 9V; |
| Model Number: | AR4105A+,AR4105A+; | Product name: | Earth Resistance Tester; |
| Measuring Range: | 2-200Ω; | Resolution: | 0.001; |
| Display Type: | Digital Only; | Application: | Electronic Industry; |
| Place of Origin: | Guangdong China; | Accuracy Class: | 0.001Ω; |
| Testing Voltage: | 0-200V; | Payment Terms: | D/A,D/P,T/T,Western Union; |
SMART AR4105A 200 Ohm Ground Resistance Meter Digital Earth Resistance Tester
An earth resistance tester is used to measure grounding resistance for grounding pole connected to some conductive part of facility in the power distribution unit of power circuit or building structure, for working grounding, for safeguard grounding.
Applications: furnish power, transformer station, power distribution lines, in-house wiring system, electrical appliances etc.
Here are two models resistance tester for you:
|
Model |
AR4105A+ |
AR4105B |
|
Measuring Range |
2Ω : 0.5 ~ 1.999Ω 20Ω : 2 ~ 19.99Ω 200Ω : 20 ~ 199.9Ω |
20Ω : 0.5 ~ 19.99Ω 200Ω : 2 ~ 199.9Ω 2000Ω : 20 ~ 1999Ω |
|
Accuracy |
±2% rdg±0.1Ω (2Ω) ±2% rdg±3Ω (20Ω) ±2% rdg±3 rdg (200Ω) |
±2% rdg±0.1Ω (20Ω) ±2% rdg±3Ω (200Ω) ±2% rdg±3 rdg (2000Ω) |
|
Voltage |
0 ~ 200V |
|
|
Resolution |
0.001Ω / 0.01Ω / 0.1Ω |
0.01Ω / 0.1Ω / 1Ω |
|
Over Load Protection |
√ |
√ |
|
Auto Power Off |
√ |
√ |
|
Remove Measured Wires Resistance |
-- |
√ |
|
Measured Time Setting |
-- |
√ |
|
Safety Standard |
IEC 61010-1 Over-voltage CAT III 300V Pollution Degree 2 IEC 61010-2-31 / IEC 61557-1,5 / IEC 60529 (IP54) |
|
|
External power supply |
9V DC |
|
AR4105A+
LCD Backlight
Auto power off
Dust-proof, drop-proof
Standard accessories:
