Good quality ETtype ET28 Type common mode choke

Supplier: Nantong Tianyi Electronics Co., Ltd.
Region: Jiangsu, China
Contact: Mr Justin Jiang
Price: $0.16 / >=200 pieces
Min. Order: 200 pieces

Click here to contact

Product details

Impedance:	according to customer's requirement;	Voltage Rating - AC:	according to customer's requirement;
Voltage - Rated:	/;	Single package size:	10X15X15 cm;
Certification:	CE CQC RoHS;	Transfer Function:	Low Pass;
Brand:	common mode choke;	Bobbin Material:	Phenolic;
Number of Lines:	/;	Voltage - Rated AC:	1~500V;
Insertion Loss:	according to customer's requirement;	Height - Seated (Max):	/;
Height:	according to customer's requirement;	Frequency:	20KHz-500KHz;
Product name:	Common mode choke;	Frequency - Operating:	20KHz-500KHz;
Nominal Center Frequency:	according to customer's requirement;	Features:	/;
Input Impedance:	according to customer's requirement;	Place of Origin:	China;
Outer Dimension:	/;	Model type:	ET20, ET24, ET28, ET35;
Capacitance:	according to customer's requirement;	Difference inductance:	0.3mH Max;
3dB Bandwidth:	according to customer's requirement;	Core Material:	Ferrite;
Inner Dimension:	/;	Insulation Resistance:	100MΩ Min;
Package Preview:	;	Stopband Attenuation:	according to customer's requirement;
Application:	TV set Power supply, household appliances;	Configuration:	according to customer's requirement;
Current Rating (Max):	/;	Impedance @ Frequency:	/;
Attenuation Value:	/;	Single gross weight:	0.3 KG;
Inductance:	0.1~50mH;	Packaging Detail:	Export carton and wooden pallet;
Temperature Coefficient:	/;	Number Of Channels:	/;
Center / Cutoff Frequency:	according to customer's requirement;	Brand Name:	Tianyi;
DC Resistance (DCR) (Max):	according to customer's requirement;	Package:	Carton;
Input Type:	/;	Voltage - Rated DC:	1~500V;
Selling Units:	Single item;	Height (Max):	5CM;
Type:	EMI Filter;	Filter Type:	Power, Signal Line;
Technology:	/;	Number of Poles:	/;
Mounting Type:	Not Applicable;	Model Number:	ET20 ET24 ET28 ET35;
Voltage Rating - DC:	according to customer's requirement;	Resistance - Channel (Ohms):	/;
Output Type:	according to customer's requirement;	Current:	/;
Length:	/;

Hot sell products-Common mode chokes(Line filters) - ET28 Type

All the raw materials are UL certified.

Part No.:

TYC-ET28-01

Materials:

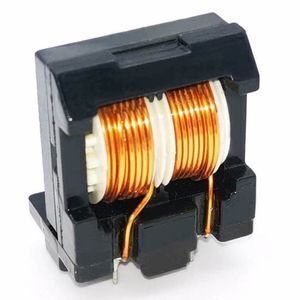

Product Picture:

Features:

Ferrite core: ET28/TL10

Customizable, Competitive price, Free sample

Phenolic bobbin: T375J /150℃ 94V-0

Good after-sale service

Copper wire: 2UEW Φ0.5mm /130℃

Lower profile and weight

Insullac: XI14-70

Temperature rise:<55K

Solder: Sn-0.7Cu/ Lead-free

Approximate 1% stray inductance for symmetrical interference suppression

Teflon tape: 7mm/300℃

Working frequency range: 20KHz-500KHz

Operating temperature: -40°C to +125°C

Dimensions:(Unit:mm)

Front view	Side view	Bottom view

Schematic

Electrical Charactersistics:

No.

Items

Test Terminals

Specification

Test Conditions (At 25℃)

Test meters

Inductance

1-2

L=15mH Min

1KHz /1.0V

HP4284A

4-3

L=15mH Min

Difference inductance

|L1-L2|

0.3mH Max

1KHz /1.0V

HP4284A

Insulation resistance

Coil - Core

100MΩ Min

DC 500V

NF2511

Coil - Coil

100MΩ Min

Withstand voltage

Coil - Coil

No Abnormal

AC1800V 50Hz 5mA/12Sec.

DZ2672B

All of types:

NO.

Product Name

TYPE

Detailed Type

High frequency transformers

EE8.3, EE10, EE13, EE16, EE19, EE20, EE25, EE28, EE30, EE33, EE40, EE42, EE49, EE50, EE55, EE60, EE65, EE70, EE75, EE80, EE85

EC/ER

ER/EC20, ER/EC25, ER/EC28, ER/EC28, ER/EC29, ER/EC35, ER/EC40, ER/EC42, ER/EC49

ETD

ETD29, ETD35, ETD40, ETD49

EF16, EF20, EF25

EFD

EFD15, EFD20/21, EFD25/26, EFD30

EDR

EDR2009, EDR2037, EDR2809, EDR2828, EDR3012, EDR3909, EDR4008

EP7, EP10, EP13

EPC

EPC11.5, EPC13, EPC19, EPC25

EQ2512, EQ2610, EQ3209, EQ4013,

POT

POT3016, POT3930

PQ2016, PQ2020, PQ2625, PQ2620, PQ3225, PQ3520, PQ3525, PQ3535, PQ4040, PQ49

RM6, RM8, RM10, RM12, RM14

Common mode chokes(Line filters)

Bobbin

EE8.3, EE12, EE19, EE25

UU9.8, UU10.5, UU16

ET20, ET24, ET28, ET35

SQ1212, SQ1515, SQ2418

FT20-22, FT20-21, FT20-15, FT20-13, FT20-10

Toroidal

6X3X2, 6X3X3, 8X5X3, 9X5X3, 9X5X4, 10X6X3, 10X6X3.5, 10X6X5, 13X8X6, 14X9X5, 20X12X6, 22X14X8, 25X15X10, 25X15X12, 25X15X13, 28X14X10, 31X19X11, 31X19X13, 32X14X11,36X23X15, 38X18X13, 49X32X16 (Ferrite core); 16X10X6, 20X12.5X8, 25X16X10, 30X20X10, 30X20X15, 40X25X15, 50X40X20, 63X50X25, 80X63X25, 100X80X25, 130X100X25(Nanocrystalline core)

Inductors(Choke coils)

Peaking/Drum

4*6, 5*7, 6*8, 8*10, 9*12, 10*12, 10*16, 14*15, 16*18, 18*20

Toroidal

6X3X2, 6X3X3, 8X5X3, 9X5X3, 9X5X4, 10X5X4,10X6X3, 10X6X3.5, 10X6X5, 13X8X6, 14X9X5, 20X12X6, 22X14X8, 25X15X10, 25X15X12, 28X14X10, 31X19X11, 31X19X13, 32X14X11,36X23X15, 38X18X13, 49X32X16

Rod

3X12, 3X15, 4X15, 4X20, 5X15, 5X20, 5X25, 5X30, 6X15, 6X20, 6X25, 6X30, 6X32, 6X35, 8X20, 8X30

Bobbin

EE8.3, EE10, EE13, EE16, EER(PFC)

SMD power inductors

Unshielded

MT, MTQ, MTF, MTG

Shielded

MTH, MTHII, MTP, MTB, MTE, MTL, MTF

Low frequency transformers

EI14, EI16,EI19, EI24,EI28, EI30, EI35, EI38.5, EI41,EI48, EI57, EI60, EI66, EI74, EI76, EI86, EI96, EI105, EI114
