GF2000 0.1mm~1.0mm customized electromagnetic shielding thin sheets EMI absorber for NFC phone/IC card

Supplier: Shenzhen Jia Rifeng Tai Electronic Technology Co., Ltd.
Region: Guangdong, China
Contact: Ms Besy Wu
Price: $0.86 /piece
Min. Order: 1 piece

Click here to contact

Product details

3dB Bandwidth:	25MHz.;	Surface Resistance:	1.0 Ω.;
Brand Name:	Karefonte;	Port:	shen zhen;
Place of Origin:	Guangdong China;	Use Frequency:	10MHz;
Supply Ability:	10000 Square Meter/Square Meters per Week;	Use Temperature:	-40℃~+80℃.;
Thickness:	0.1mm~1.0mm.;	color:	sliver gray;
Stopband Attenuation:	20-100dB,;	Packaging Detail:	OPP bag,Carton.;
Size:	300mm50m,300mm25m or customize;	Name:	EMI absorber;
Nominal Center Frequency:	10MHz;	Transfer Function:	High Pass;
Payment Terms:	L/C,Western Union,T/T,MoneyGram;	permeability:	50~120;
Ambient Standard:	RoSH/Halogen Free.;	Brand:	absorber;
Model Number:	GF2000;	Volume Density:	3.6g/cm3;
Insertion Loss:	100db;	Mounting Type:	Installed directly;
Input Impedance:	50ohm,;	Type:	EMI Filter;

Product Description

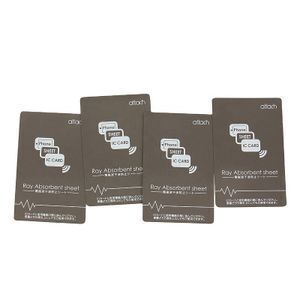

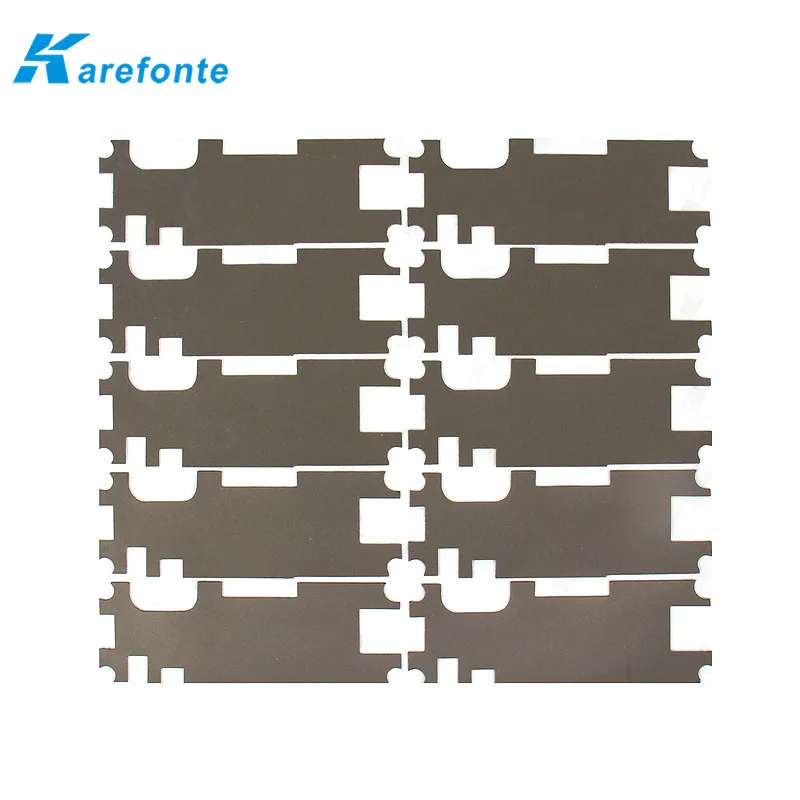

GF2000 0.1mm~1.0mm customized electromagnetic shielding thin sheets EMI absorber for NFC phone/IC card

Absorber Is a kind of excellent sheet materials used in 10MHz communication magnetic field around antenna for anti metal .That is based on the magnetic ferrite sheet material of high temperature sintering , by increasing the magnetic field strength, effectively improve the induction distance.

Features
1.High permeability, low magnetic loss(10MHz)
2.It,s also possible to load on a little gap because it is thin type.
3.Has flexibility, it does not crack by impact or the like.

Applications :
1.Mobile phone, GPS and other wireless communications products;
2.Notebook computers, digital cameras, flat panel display(PDP) and other digital products;
3.Health care equipment of high precision electronic equipment and electronic circuit board(PCB)
At the same time, the absorbing material is widely applied to increase the RFID/NFC identification distance and efficient wireless charger design.
4.Integrate IC card with metal
5,Integrate IC card with metal
6.Improved antenna reception sensitivity
7.For improving reception performance in RFID reader/writer
Specifications :

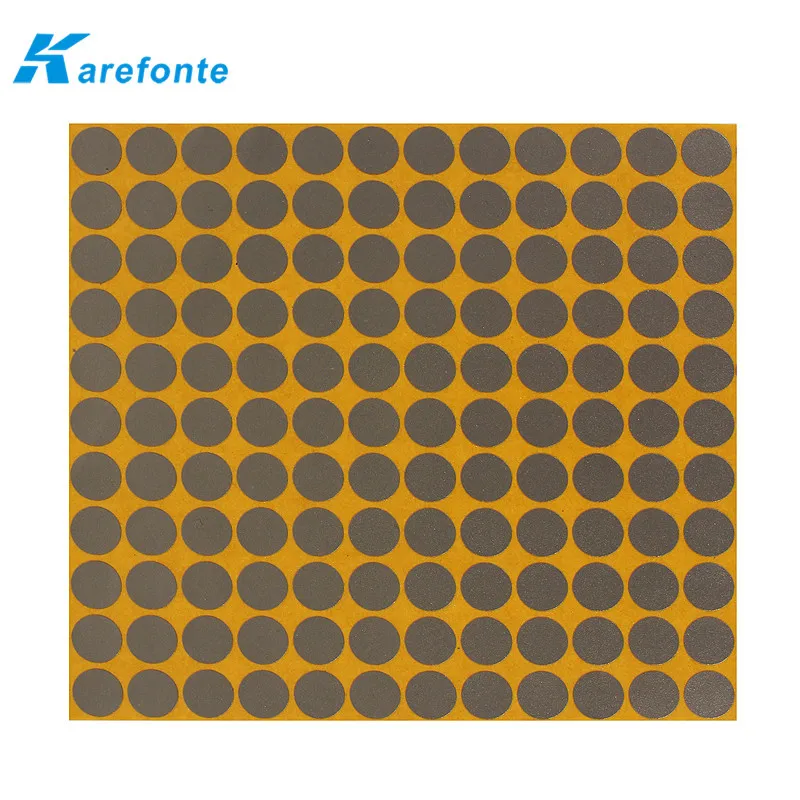

Regular size :0.15mm*250mm*50m,0.2mm*295mm*50m,0.3mm*300mm*50m,1.0mm*25m Special size , can be according customer's requirement to stamping .
Application in NFC (Near Field Communication) payment type mobile phone and other handheld devices, electronic labels.The main role is to reduce the absorption of metal materials on the signal of magnetic field, by increasing the magnetic field strength, effectively increasing the induction distance.Payment type mobile phone (NFC) payment method is realized through the 10MHz RFID radio frequency identification system.The application of RFID smart label is affixed to the cover of mobile phone shell, it can maximize the space saving.!

PROPERTIES PARAMETERS
Test Item	Test Parameter		Test Tool	Unit	Reference Standards
Material	Oversea	Domestic	--	--	--
Color	Black	sliver gray	Visual	-	Visual
Use Frequency	13.56MHz	10MHz	Frequency Meter	MHz	GB/T 15151
Thickness	0.08~0.3	0.15~1.0	Hardness Gauge	MM	ASTM D374
Use Temperature	-40~+90	-40~+80	Industrial Refrigerator/Oven	ºC	EN344
Permeability	150	50~150	Dedicated Permeability Tester	μ'(1MHz)	GB/T 5026-1985
Density	3.6	3.6		g/cm³	GB4472-84
Resistance	1MΩ	1MΩ	Industry Resistance	Ω	GB/T 3048

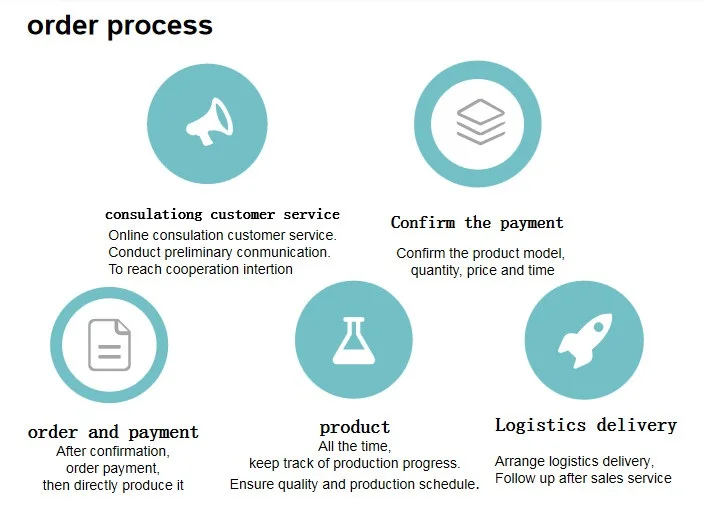

order process

Application

Certifications

Our Services

Online Services:24 hours,Inquiry reply within fastest.

Well- Trained & Experienced Staff are to answer all your requirements.

Standard Export Carton Or Marked With Customer's Information Or Customized.

Sample Order delivered within 24 hours.

Packaging & Shipping

-Packaging:Export Standard Packing

-Shipping:TNT/UPS/EMS/DHL/FedEx

-Delivery Time :3-5 days

Company Information

Shenzhen City Jia Rifeng Tai Electronic Technology Co., Ltd.was founded in 2010, a total investment of more than 1 million yuan, Jia Rifeng Tai is a professional dedicated to electronic thermal insulation materials research and development, production and sales of integrated sets high-tech enterprises.

Our products have thermally conductive filler material , high thermal silicone gap pad, insulator silicone sheet , silicone heating film / pad, thermal phase change material , silicone rubber heater drums, thermal graphite , thermal grease / paste , thermal encapsulant , RTV silicone sealant , thermal double-side tape , alumina ceramic , ALN ceramic, zirconia ceramic, si3n4 ceramic, NFC ferrite , EMI absorber material . (Fujipoly) silicone , Bergquist thermal conductivity material K4, K6, K10 insulation pads and so on. Our products are widely used in power supplies, LED lighting, welding machines, laptops, wireless charger, set-top boxes, high-power and other industries. Currently, the company has passed SGS and other international certification authority.

FAQ

Q:Can we get the sample? If can , how to get it ?A:Yes , we can offer you the free sample if have in stock , but not include the shipping cost . Please feel free to contact to our sales if you need the sample.

Q:How can you guarantee the quality ?

A:With advanced professional machine and testing equipment,we ensure 100 % quality before shipment.

Q: Can we OEM or according to our requirement to cut the size ?

A:We are a China Manufacture specialized in the thermal insulation materials, for example,Silicone Rubber pad,Thermal tape,Thermal Grease,Silicone Cloth with more than 11 years old.

Q:What payment term is available?

A:Bank transfer , Paypal , Western Union , Master Card , VISA .

Any question or want to know, pls contact to me !!!
