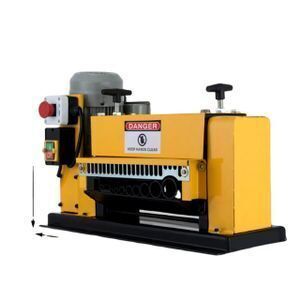

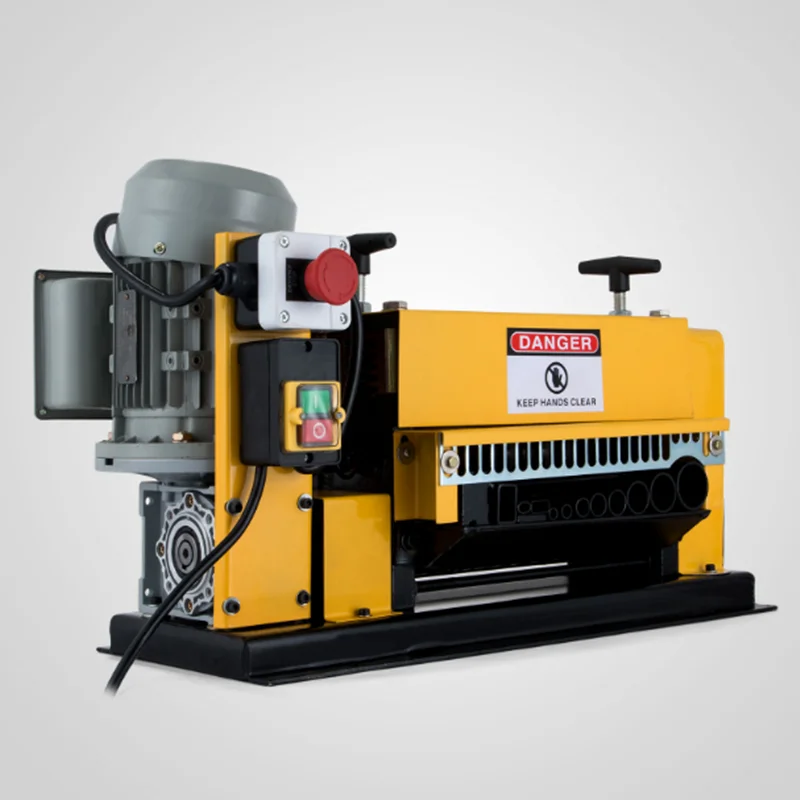

Wire Stripper Cable Stripping Machine Recycling Copper Cable Stripper

Wire Stripper Cable Stripping Machine Recycling Copper Cable Stripper

Product Description:

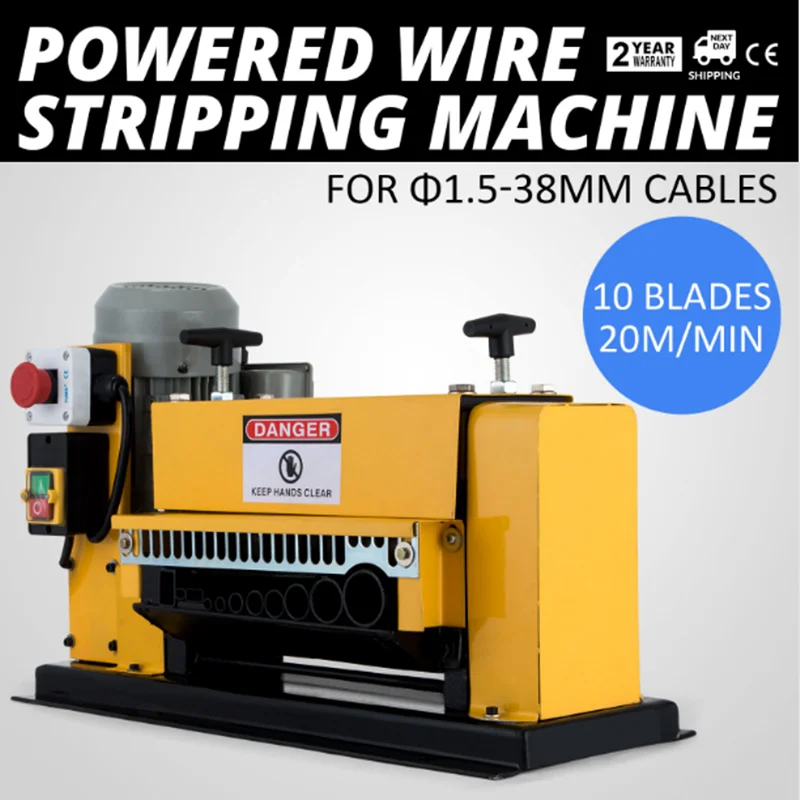

This cable peeling machine is easy to transport and ready for use just with a 220V power supply and a stable table. It is an equipment of recycling copper and aluminum from a large number of scrap wires. It reliably splits cables between Φ1.5mm  and Φ38mm with up to 20m per minute.

Function button

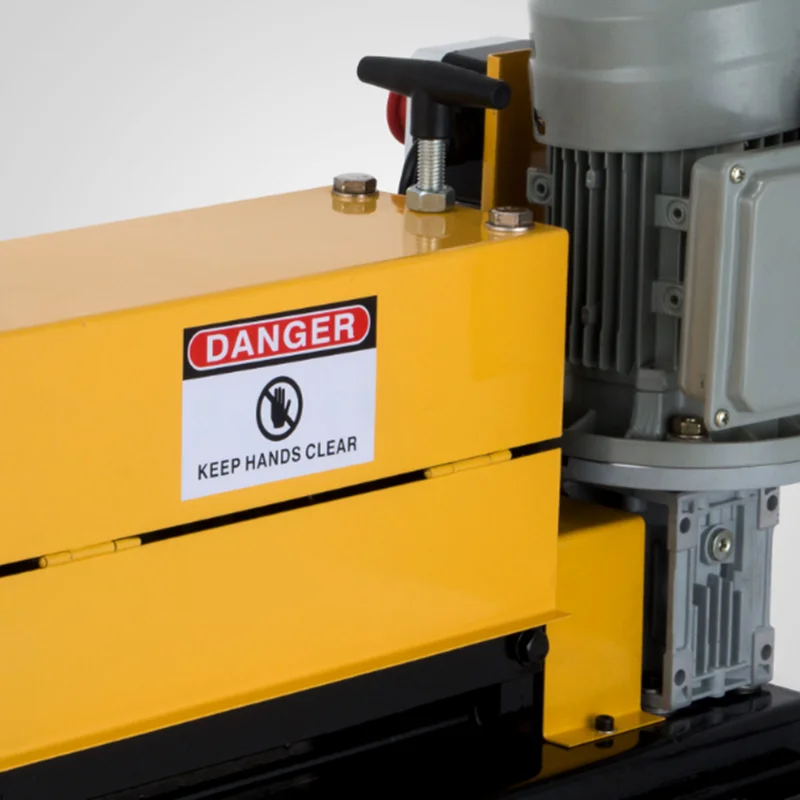

Adjuster- Used to adjust the distance of blades up and down.

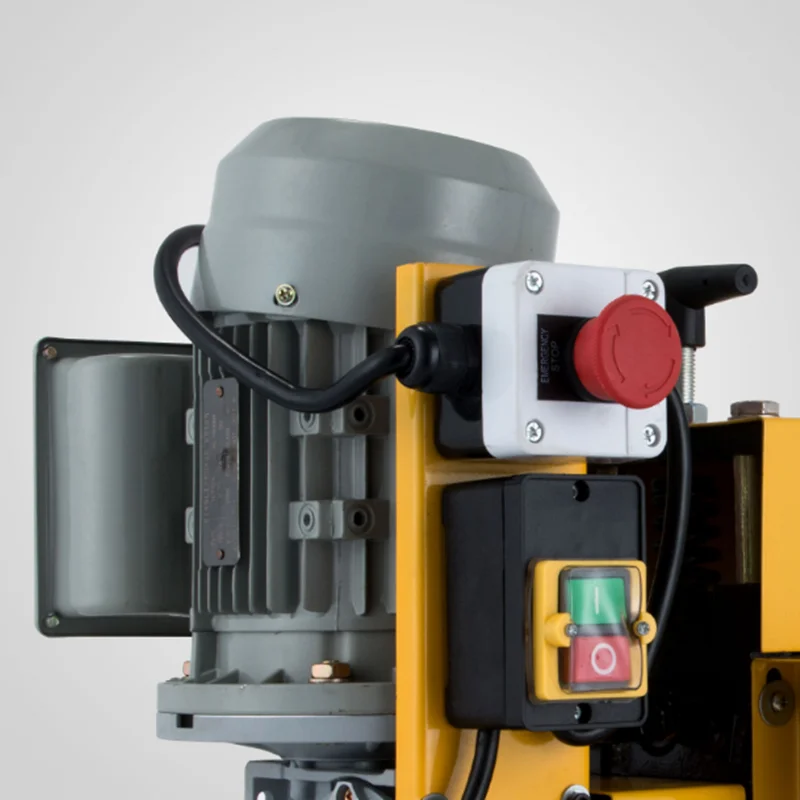

Stop button- Stop machine.

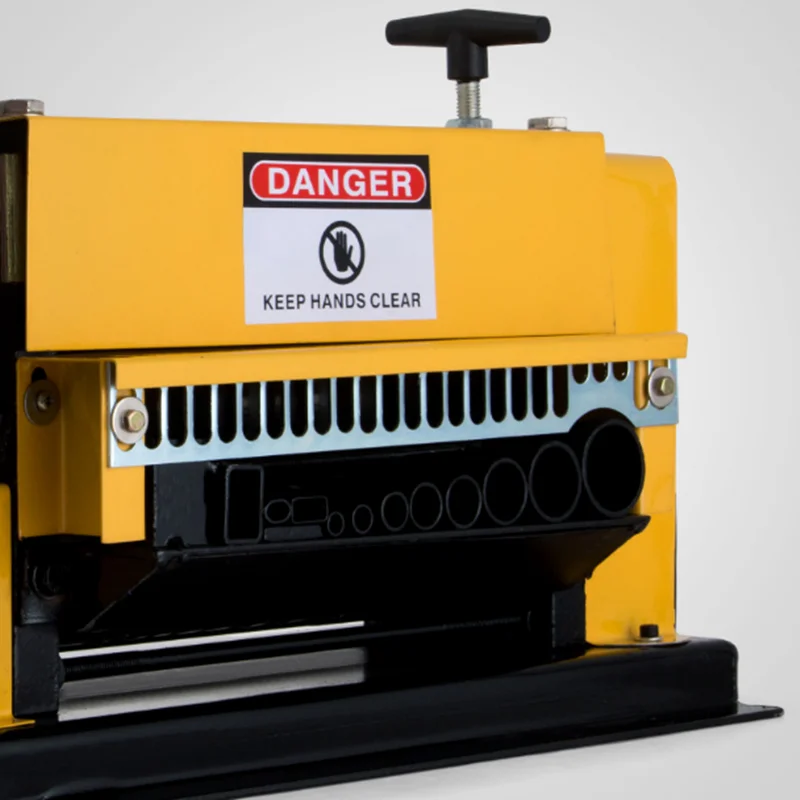

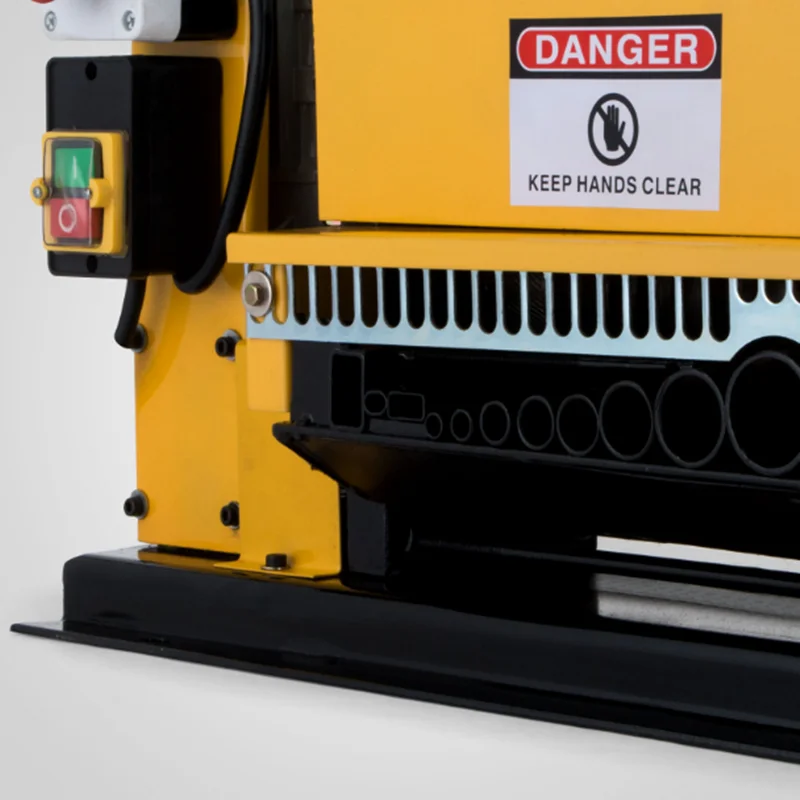

Feeding hole- Fit for the scrap cables diameter within Φ1.5mm-Φ38mm.

0peration

Input the cables according to the feeding hole.

The cables should be corresponding with feeding hole.

Check the rotating direction of the machine, you can operate when the direction rightly, or else change the connector direction.

Make sure that the diameter of cables is similar with that of the feeding holes: large cables in large feeding holes, small cables in small feeding holes, and flat cables in flat feeding holes.

Note

Check the machine before using in case that there is something in the machine brokes blades; To extend the blades life, user need to cut the cable joint when feeding.

Feature

Multi-holes for varieties of diameter

Strips cables with a diameter from Φ1.5mm-Φ38mm

Suitable for processing varieties of cables like electric wire, aluminum wire, metal cables and etc

It's frame dual blades principal can process different diameter cable

This model is automatically and manually dual-using

Whatever hard wire or soft wire, it always can be easily stripped by use this model

Specifications

Color: Yellow

Voltage: 220V 50Hz

Power: 0.37KW/0.5HP

Speed: 20m/minute

Wire range: Φ1.5mm-Φ38mm/Φ0.06"-Φ1.5"

Blades quantity: 10

Holes quantity: 11

Usage: Stripper

Wire material: Vehicle line, communication cable and miscellaneous line

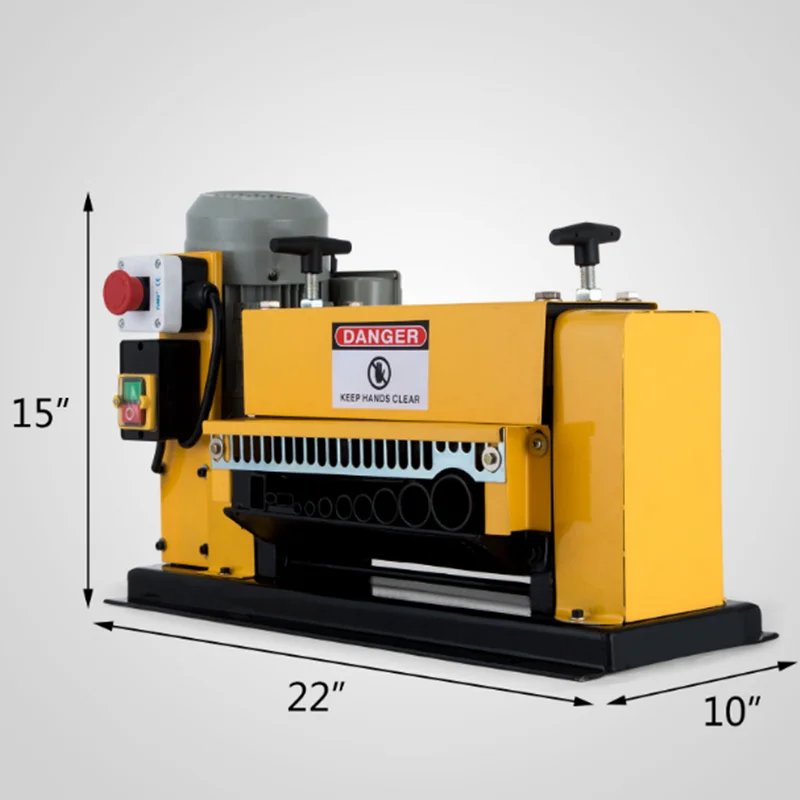

Packaging size: 65X32X42cm/26X13X17inch

N.W.: 70kg/154lbs

G.W.: 78kg/172lbs

Package Content

1 X Stripping Machine
