POWERED RUBBER PVC BELT CONVEYOR W/ GUARD BAR
- 160.00 >=10 pieces
| Core Components: | other; | Applicable Industries: | Electric Conveyor Machine; |
| Single package size: | 150X20X75 cm; | Voltage: | 220v; |
| Machinery Test Report: | Provided; | Dimension(L*W*H): | 150X20X75cm; |
| Condition: | New; | Showroom Location: | None; |
| Video outgoing-inspection: | Provided; | Product name: | Conveyor Machine Stainless; |
| Power: | 250w; | After Warranty Service: | Online support; |
| Certification: | CE; | Width or Diameter: | /; |
| Selling Units: | Single item; | Place of Origin: | Shanghai China; |
| Warranty of core components: | 1 Year; | Structure: | Conveyor System; |
| Warranty: | 1 Year; | Local Service Location: | None; |
| Marketing Type: | Ordinary Product; | Single gross weight: | 20.0 KG; |
| Material: | Stainless Steel; | Brand Name: | VEVOR; |
| Packaging Detail: | Carton; | After-sales Service Provided: | Online support,Overseas service center available; |

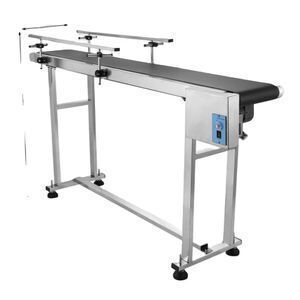

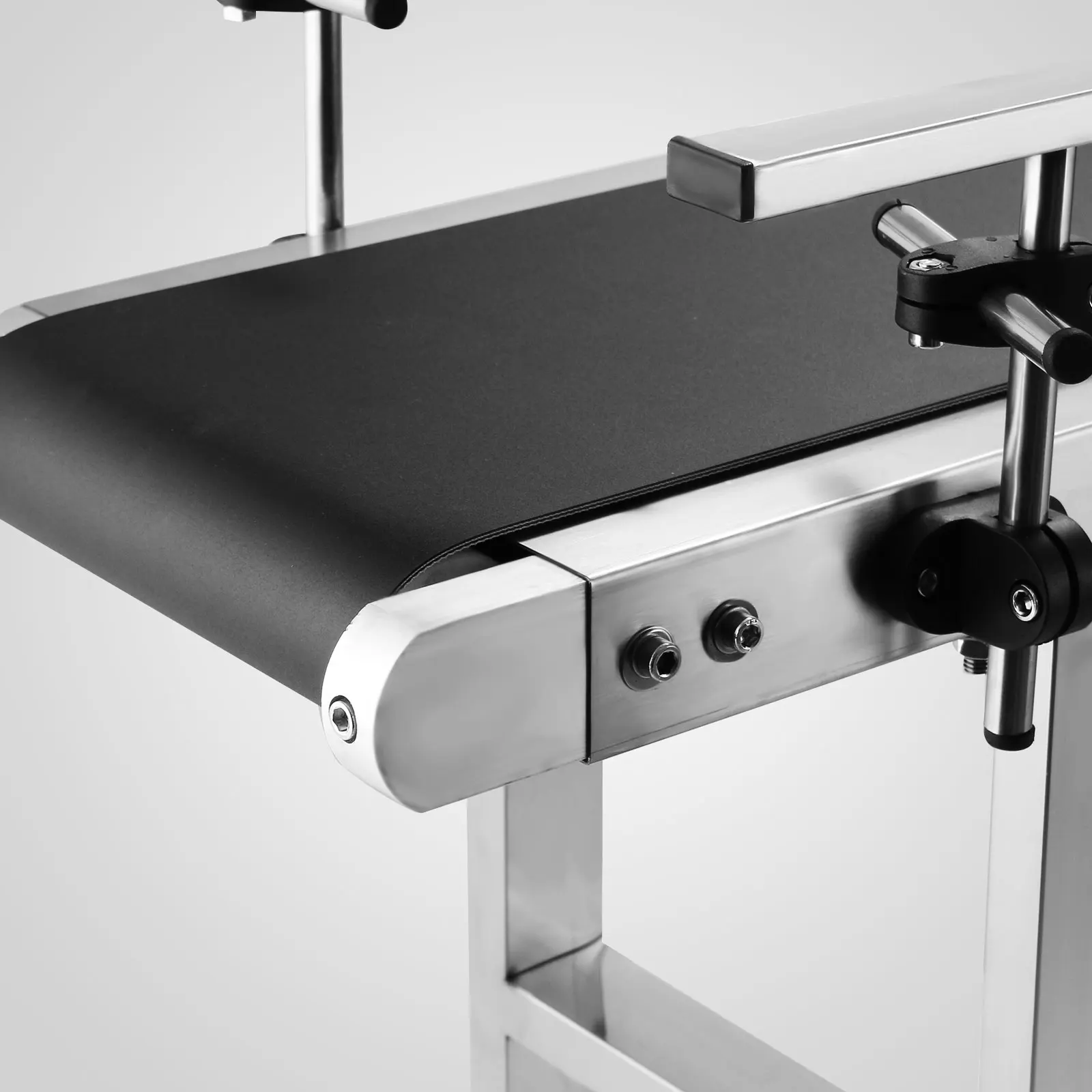

This belt conveyor is made of full stainless steel, with automatic speed and steady speed circuit of the electronic governor. It has higher stability and best conveyor belt made with Italian high anti-static PVC industry, ensuring high anti-static ability. In this listing, our machine is also equipped with a pair of guardrails, preventing products from falling and bringing better user experience.
Our conveyor can be used to spurt code machines or can be used independently. By applying this reliable machine, working efficiency and speed will be highly improved in countless application industries including food, beverage, pharmaceutical, electronic parts, tobacco, chemistry, cosmetics and auto parts, thus saving time and labor as well as production costs.
Application
- Process ancillary work for printing code and brand; spraying production date, batch number, anti-fake mark, etc.
- Mainly used for conveying glass bottles, plastic bottles, bottle caps, metal, plastic bags, paper boxes, cartons, labels, etc.
- Reliable machine for countless industries including food, beverage, pharmaceutical, electronic parts, tobacco, chemistry, cosmetics and auto parts.
Kindly Notes
- Make sure power switch is in the "off" state before plugging in the machine, then follow the manual procedures.
- When machines has not been used for quite a time, please clean with soft dry cloth instead of corrosive detergents.
- Keep liquid away from the machine, as it may lead to corrosion or short-circuit to internal electrical components if any liquid has been spilt into machine internal.
- Check the machine as soon as received. Make sure there’s no deformation, damage or corrosion. Its shaft should be of flexible rotation without blocking.
- Be careful not to connect with 380V power supply, otherwise the machine will be burned.
Instructions
Basically, first operation sequence should be performed in the following orders:
1. Plug into a single-phase power supply (good ground connection is required).

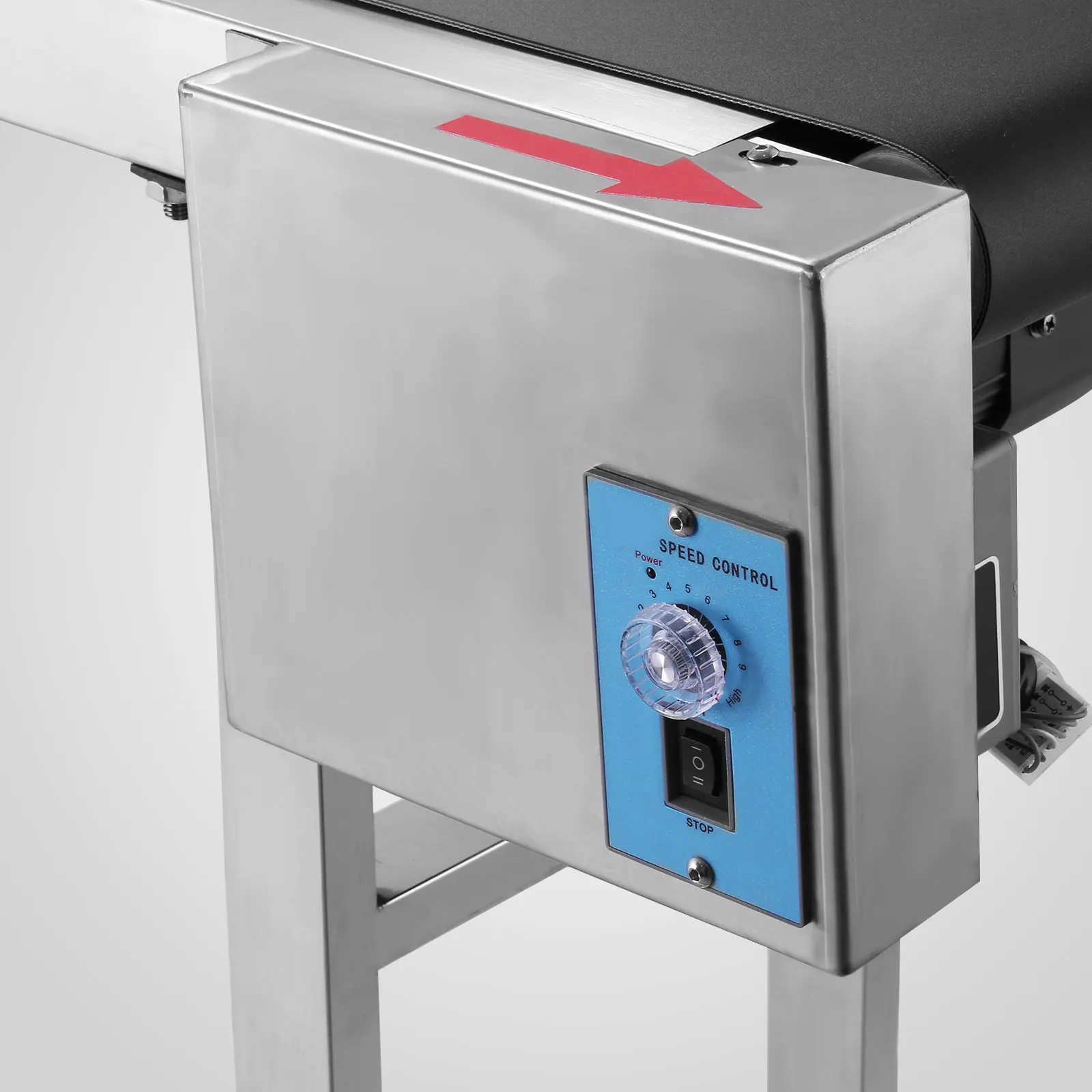

2. Turn on the switch and speed rotary knob.
3. If you encounter with belt deviation, please try fine tuning the screws inside the rear aluminum block.
- Made of stainless steel
- 100% brand new and of best quality
- Comes with guardrails of adjustable height
- Adjustable automatic speed
- Easy operation even for beginners
- Better electronic governor for higher stability
- Belt made with Italian high anti-static PVC industry
Technical
- Rated Voltage: 220V, 50Hz
- Power: 250W
- Belt Length: 150cm (59")
- Belt Width: 20cm (7.8")
- Belt Height from Ground: 75cm (29.5")
- Operating Speed: 0-82 ft /min adjustable
- Gross Weight: 20kg (44lbs)
- Package Dimensions: 150*26*24cm (59"*10"*9")
- Product Dimensions: 150X20X75cm(59 x 7.8 x 29.5 inches)
- Guardrail Width: 28cm (11")
| Company name | Shanghai Sihao E-Business Co., Ltd |
| Business modle | Manufacture&Trading |
| Place of origin | Shanghai,China(Mainland) |
| Delivery time | 5~10 days |
| Minimun order quantity | 1 set |
| Payment | L/C;T/T |
| Warranty | 2 years |
