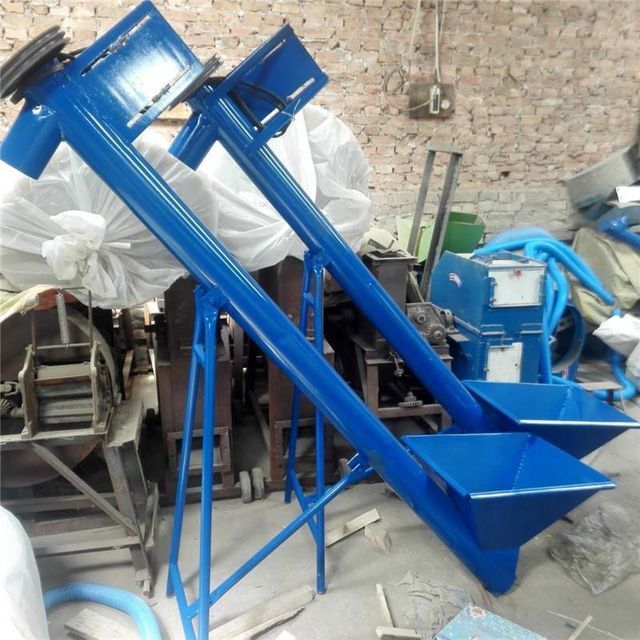

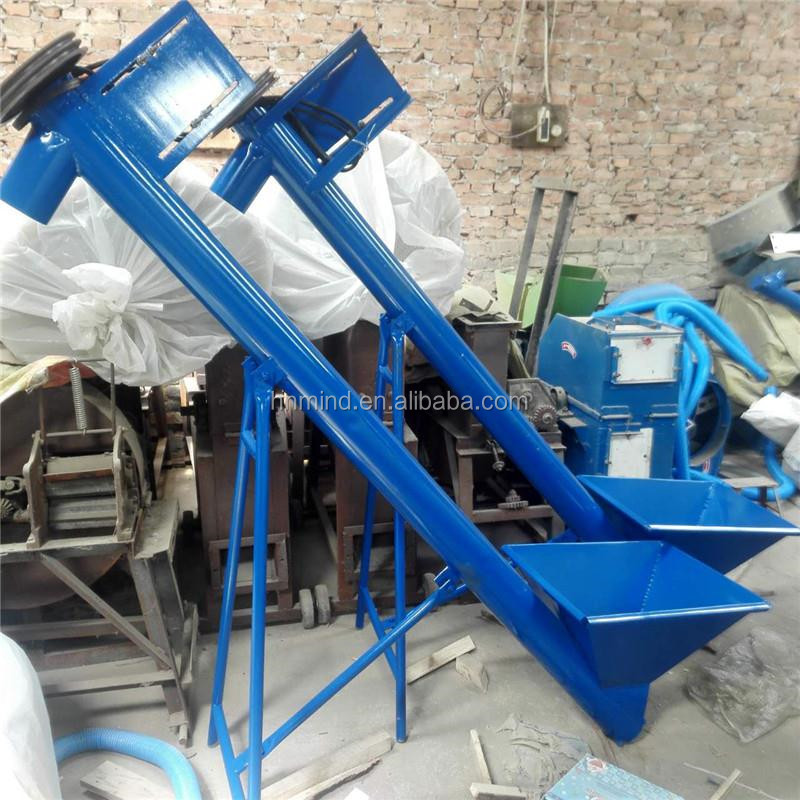

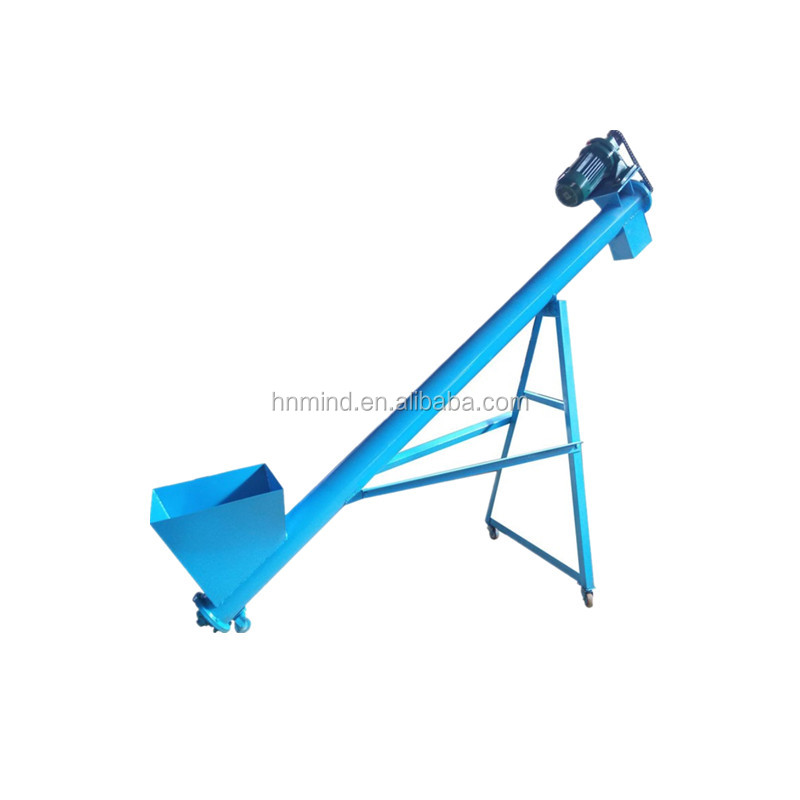

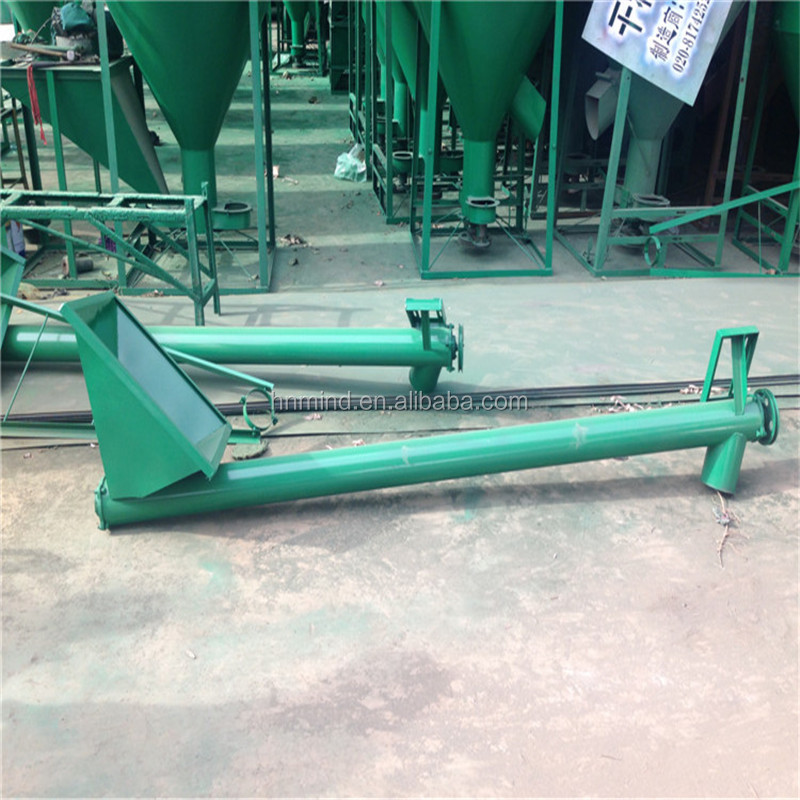

Large capacity helical blade inclined bucket screw conveyor

Supplier: Henan Mind Machinery Equipment Co., Ltd.
Region: Henan, China
Contact: Ms Kayla Zhang
Price: $100.00 /set
Min. Order: 1 set

Click here to contact

Product details

Install:	Engineer's Guide	Origin:	Henan, China
Key words:	Feed Conveyor	structure:	Transmission lines
After-sales service provided:	online support	Packaging Details:	1. Outer packing: standard export wooden box 2. Inner packing: stretch film
Material properties:	heat resistant	application:	Feed food chemical
Material:	Carbon steel	Supply capacity:	200 sets per month
Health status:	new	brand:	mind
engine:	Chinese famous brand	Voltage:	380 volts
Pipe Thickness:	108-500mm	Dimensions (LWH):	as a model
Warranty:	1 year	product name:	food funnel
color:	Require	Certification:	CE certification
port:	Qingdao, Shanghai, Tianjin, Guangzhou, Ningbo, Shenzhen, etc.	strength:	0.6-9 kW
feature:	High capacity	MOQ:	1 set
payment terms:	L/C, D/A, T/T, Western Union, MoneyGram	Function:	Conveying equipment

Large capacity helical blade inclined bucket screw conveyor

Product Description

illustrate:

1. Screw conveyor is the main unit of mechanized conveying work in various sectors of industry and agriculture. It can reduce labor intensity, improve work efficiency, and has a wide range of applications.

2. It is suitable for various industries such as building materials, chemical industry, electric power, metallurgy, and grain. It is suitable for horizontal or inclined conveying of powdery, granular, and small lump materials such as coal, ash, slag, cement, and grain. The temperature of the material is less than 200°C.

3. This machine is used for horizontal, inclined or short-distance conveying of materials.

4. It has the function of stirring while conveying, and can feed and discharge materials at multiple points.

notes:The screw machine is not suitable for conveying materials that are perishable, viscous and easy to agglomerate.

working principle:

1. The front casing is a round tube, and the centrifugal force generated by the high-speed rotating spiral belt animal material pushes the material to the tube wall, and then is pushed upward by the blades.

2. The lifting height is within 20 meters. The rear sleeve is also a round tube.

3. Blades are arranged inside the tube along the inner helix.

4. The casing is supported on the drum and rotates at a low speed, and the material moves forward along the blades, and is loaded and unloaded at both ends. It can transport slightly inclined materials without jamming.

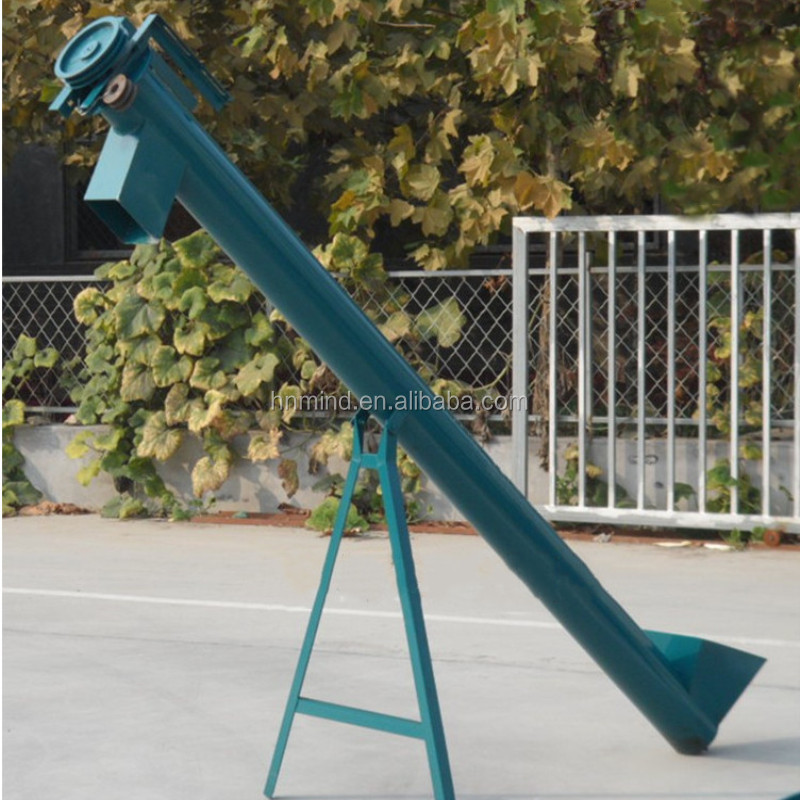

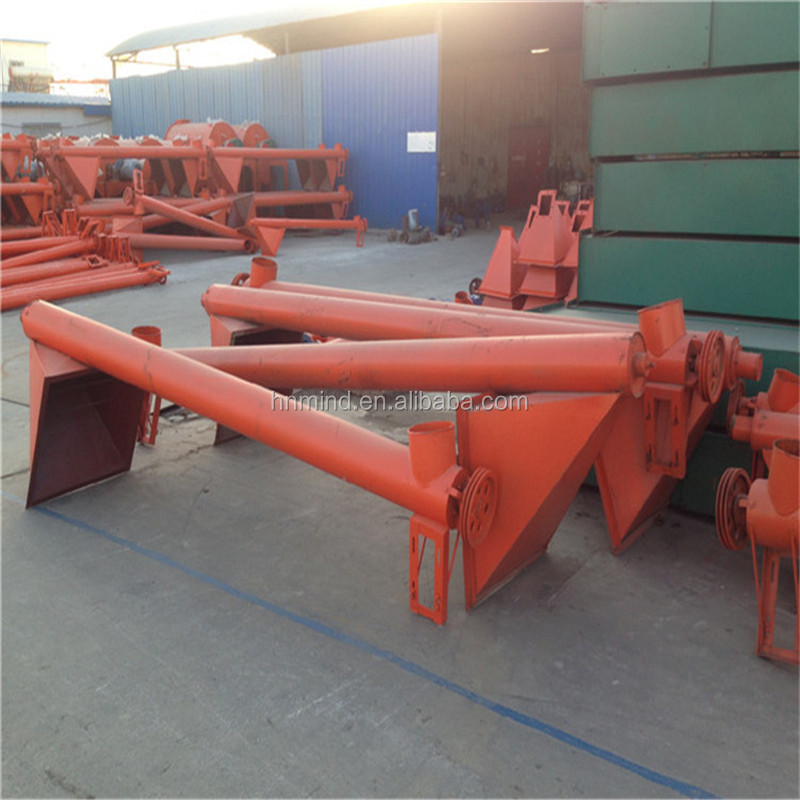

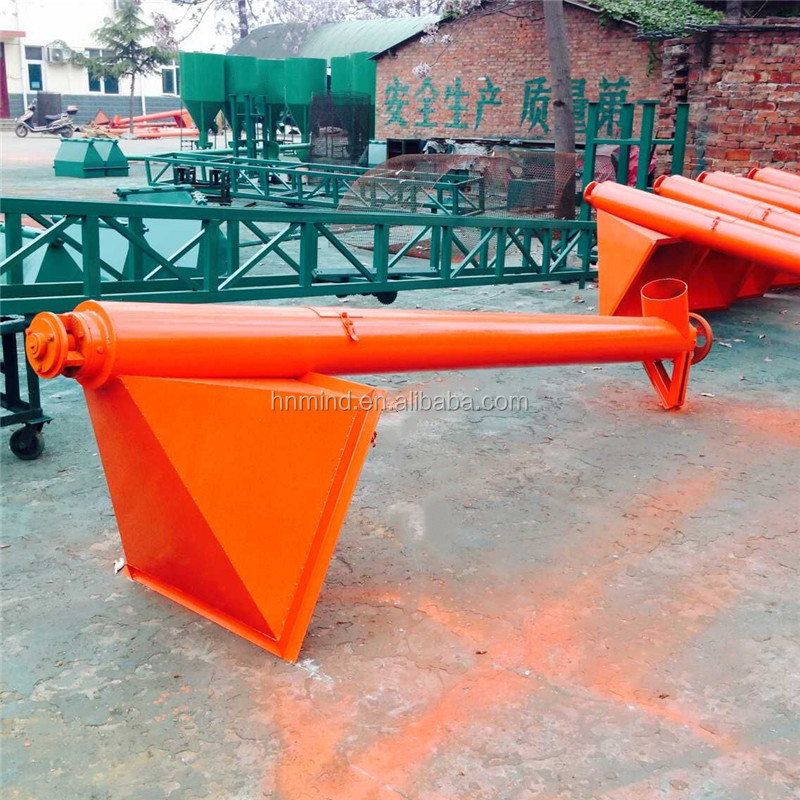

more details

Specification:

Model	Pipe diameter (mm)	Capacity (m3/h)	strength	Blade Thickness(mm)	Tube wall thickness (mm)
M-10	108	0.5--2	0.6	2	3
M-16	159	2--6	1.5
M-18	180	4--8	1.5
M-20	219	6--10	2.25
M-28	275	12--16	4.5	4	5
M-30	325	15--20	6.6
M-50	500	30--40	9

raw material:

our service

pre-sale service

1) Production arrangement.

2) Provide production plan.

3) You can visit the workshop.

4) Detailed specification of the machine provided.

5) Able to provide detailed solutions.

After-sales service:

1) Assist in the establishment of factory.c

2) Repair and maintenance for any problems during the warranty period.

3) Installation and clerk training.

4) Free or discounted spare and wearing parts.

5) Factory inspection.

Packaging and Shipping

delivery time	a. If there are machines in stock, we can send out your products within 5-7 days after receiving payment from customers. b. If you need special molds or customized production lines, the delivery time is based on your machine quantity, but we will ship as soon as possible.
payment terms	T/T, L/C, D/P, D/A, Escrow, Paypal, Western Union
pack	a. If you order a single machine, it can be packed in a wooden box. b. If you order more machines or production lines, 20ft container or 40ft container
Quality Assurance Terms	a. The quality guarantee period is one year. b. Our factory is responsible for the faults caused by the machine itself and its quality. c. Other failures caused by operating errors and human problems are the responsibility of the customer.
