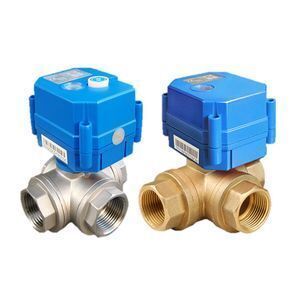

DN8 1/4 inch 3 Way L Port 24V DC CR2 2 Wire Auto Return Brass Electric Water Flow Control Valve

Supplier: COVNA Industry Automation Co., Ltd.
Region: Guangdong, China
Contact: Mr Bond COVNA
Price: $89.99 /set
Min. Order: 1 set

Click here to contact

Product details

Structure:	Ball;	Number of Ways:	3 Way Ball Valve;
Power:	Electric Actuator Ball Valve;	Power:	Electric Ball Valve;
Media:	Water;	Application:	General;
Model Number:	HK62-H-T Ball Valve;	Temperature of Media:	Low Temperature,Medium Temperature,Normal Temperature;
Material:	Brass;	Brand Name:	COVNA;
Supply Ability:	10000 Piece/Pieces per Month Stockng Items Same Day Shipping;	Material:	Brass Ball Valve;
Payment Terms:	T/T,Western Union;	Sealing Material:	EPDM, PTFE;
Place of Origin:	Guangdong China (Mainland);	Port Size:	DN8 Ball Valve;
Media:	Air, Gas, Oil, Liquid;	Wiring Method:	CR2 2 Wires Auto Return;
Type:	Electric Ball Valve;	Port:	Shenzhen;
Packaging Detail:	DN8 1/4 inch 3 Way L Port 24V DC CR2 2 Wire Auto Return Brass Electric Water Flow Control Valve Packed with Foam in Carton;	Port Size:	1/4 inch Ball Valve;
Pressure:	Low Pressure;	Voltage:	24VDC Electric Actuator;
End Connection:	Female Thread Ball Valve;

Specifications

HK62-S Series Electric Ball Valve

HK62-3PS-C Series Electric Ball Valve

HK62-S-T Series Electric Ball Valve

HK65-S Series Electric Ball Valve

HK62-H-T Series Electric Ball Valve

HK62-P Series Electric Ball Valve

In Stock, Start Order Now!

Item	DN8 1/4 inch 3 Way L Port 24V DC CR2 2 Wire Auto Return Brass Electric Water Flow Control Valve
Size Range	DN8, 1/4"
Operating Pressure	Low Pressure, 1.0MPa (145PSI)
Wiring Method	CR2 2 Wire Auto Return
Body Material	Brass
Core Material	Brass
Sealing Material	EPDM, PTFE
End Connection	Female Threaded
Applicable Media	Control of Water, Air, Gas, Oil, Liquid
Temp. of Media	Range from -10 to +100°C (14 to 212°F) with EPDM Sealing
Application	Petrochemical, Power, Environmental Protection and Large-Scale Intelligent Water Meter Control and Other Fields

Optional Configuration for Actuators

Technical Parameter for Actuators

Shell Material	Engineering Plastics
Lifespan	70,000 (Seventy Thousand) Times
Output Torque	4 to 10Nm
Angle of Rotation	90° ±4°
90° Cycle Time	≤ 7 Sec
Locked-Rotor Delay Time	≤ 4 Sec
Working Current	≤ 80mA
Optional Voltage	DC24V (±10%), AC110-220V, 50/60Hz
Wiring Control Methods	CR2-01, CR2-02 , CR3-03, CR4-01, CR5-01, CR5-02, CR7-03, CR7-04 (Optional)
Cable Length	0.5m,1.5m(Optional)
Manual Override	No
Position Indicator	Yes
Protection Class	IP67
Ambient Temp.	Range from -20 to +60°C (For Use In Temperatures Below 0°C, We Suggest Anti-Condensate Elements)

Wiring Diagram

CR2-01

RD connect with positive, BK connect with negative, the valve closed, the actuator automatically power off after in place, the valve remains fully closed position.

BK connect with positive, RD connect with negative, the valve open, the actuator automatically power off after in place, the valve remains fully open position.

Suitable Working Voltage: DC12-24V.

Exceeding the working voltage is forbidden.

CR2-02

When the SW is closed , the valve open, the actuator automatically power off after in place.

When the SW is open, the valve closed, the actuator automatically power off after in place.

Suitable Working Voltage: DC12-24V.

Exceeding the working voltage is forbidden.

Flow Diagram of T Pattern

In Stock, Start Order Now!

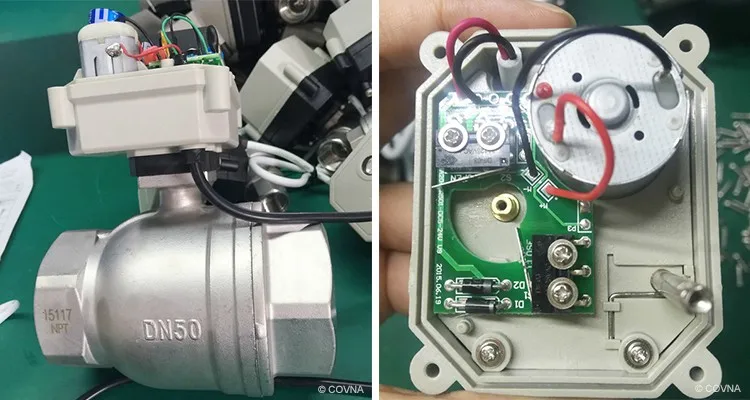

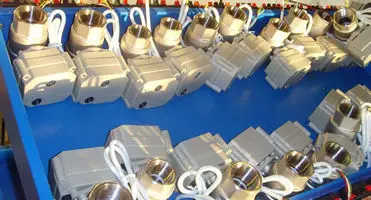

Production Flow
