Electronic SMT Pick and Place Machine LED PCB Making Machine LED Bulb Chip Mounting Machine

Product Description

------Introduction------

Application:Prototyping Machine, Small Production, LAB work, D&R, Education.

Brief Introduction: Machine is customized for small production and prototyping business, with self-designed operating system for developers.

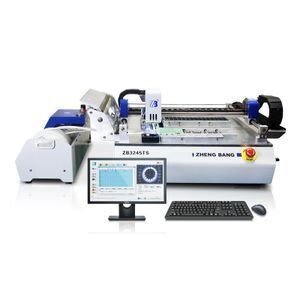

ZB3245TS 0402 component actual pick and palce

https://www.youtube.com/watch?v=3NfK15T-LuA

2. Product specifications:

System Items Content
Mounting System Mounting head number 2 pieces
Mounting accuracy 0.025mm
Mounting angle 0~360°
Theoretical Velocity 6500pcs/hour
Normal mounting 5000pcs/hour
Visual Mounting 3500pcs/hour
Nozzle type Juki series nozzle
Elements for mounting RC (0402, 0603, 0805, 1206, etc)
LED lamp (0603, 0805, 3014, 5050, etc)
Chip (SOT, SOP, QFN, BGA, etc)
Substrate Substrate minimum size 10×10mm
Substrate maximum size (no tray) 320×450mm
Substrate maximum size (with tray) 320×220mm
Substrate thickness ≤2mm
Substrate warp allowed value <1mm
Feeder 8mm 20pcs
12mm 4pcs
16mm 2pcs
24mm 1pc
Preposition IC material level 10pcs
Postposition IC tray 1pc
Tubular materials feeder Zhengbang dedicated Five tubular materials feeder one (optional)
X, Y, Z axis X, Y axis moving range 430*530mm
Z axis moving range 10mm
Z axis rotation angle 0~360°
Visual system independent research and development
Visual System Visual camera CCD high-definition camera
Visual quantity 2 (Parts camera, PCB camera)
Identification ability MAX.20*20mm
Control System PC system Microsoft  WIN7
Operational software independent research and development
Compatible file format CSV, TXT. format file
Programming mode Support online and offline
Pressure 0.4 MPa (The built-in pump)
Basic Parameter Vacuity degree MINUS 92KPA
Power 150W
Power  supply AC220V  50HZ
Main engine outline size L 830*W 730* H375 mm
Materials feeder outline size L 235*W 700*H 245 mm
Net weight 56kg
Gross weight 83kg
Outline package size 1190*850*560mm

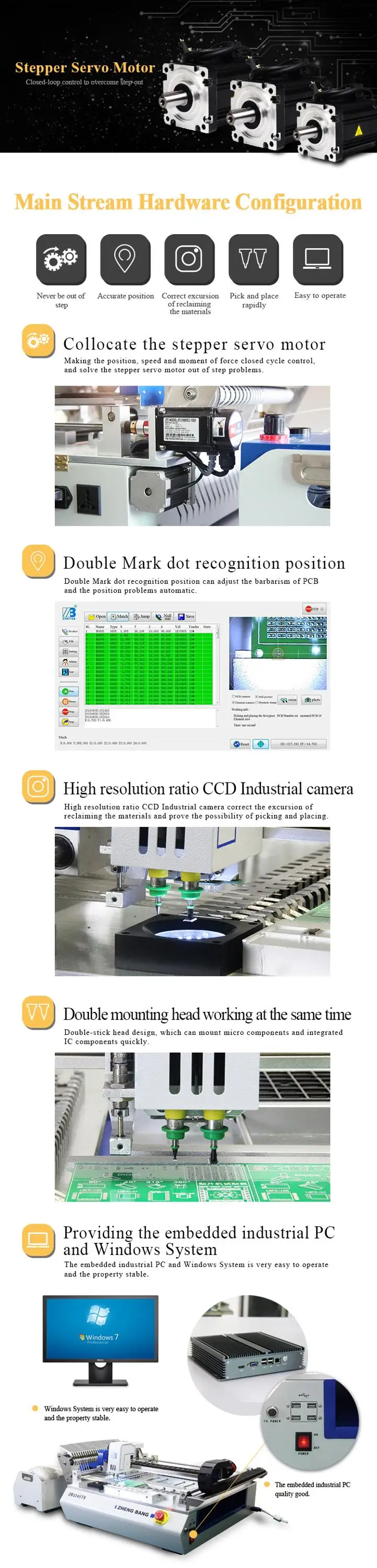

3. Stepper servo motor system and embedded industrial PC and Windows system

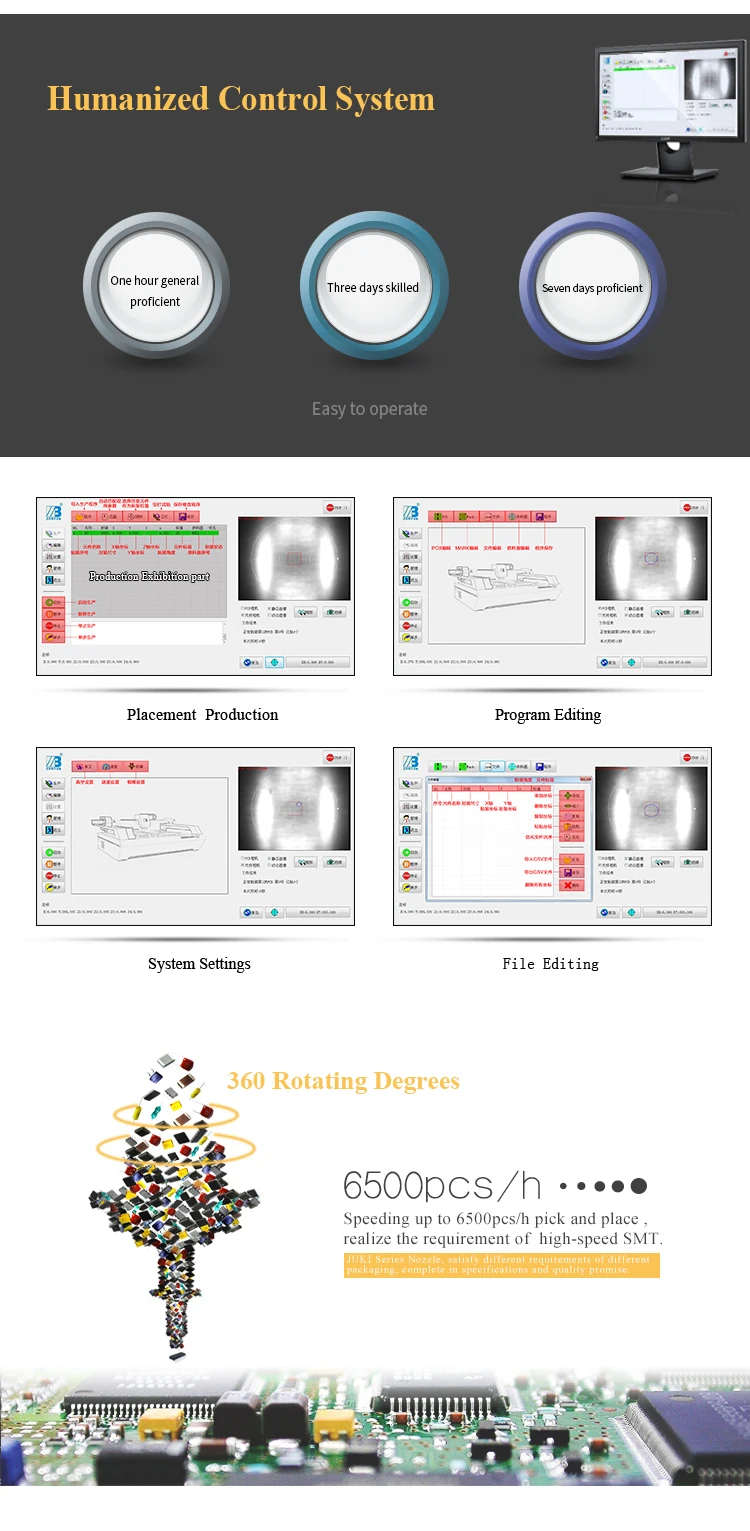

4. Humanized control system

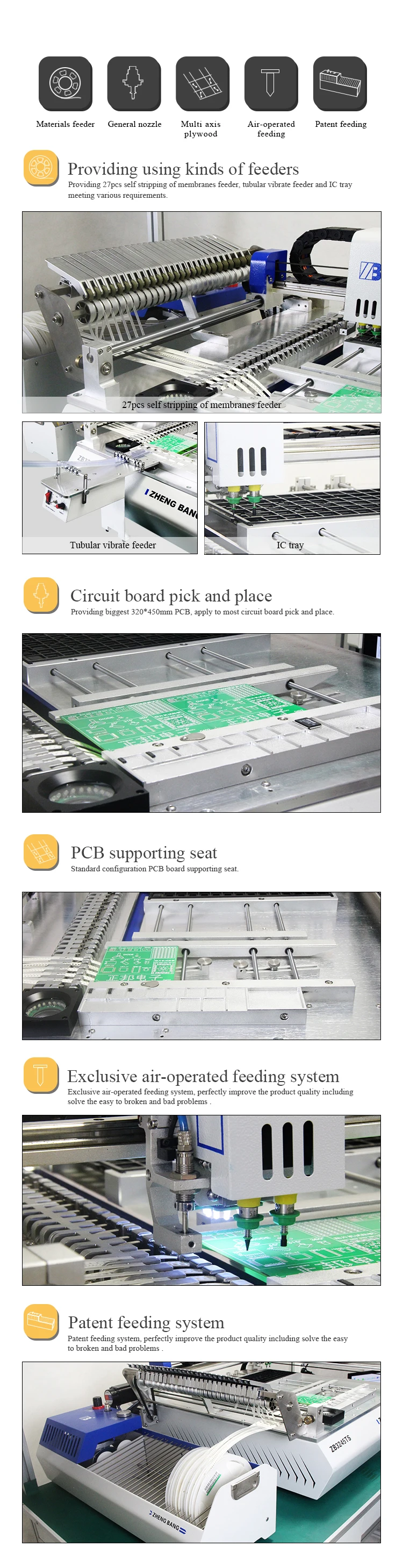

5.  Providing using kinds of feeders: Providing 27pcs self stripping of membranes feeder, tubular vibrate feeder and IC tray meeting various requirements.

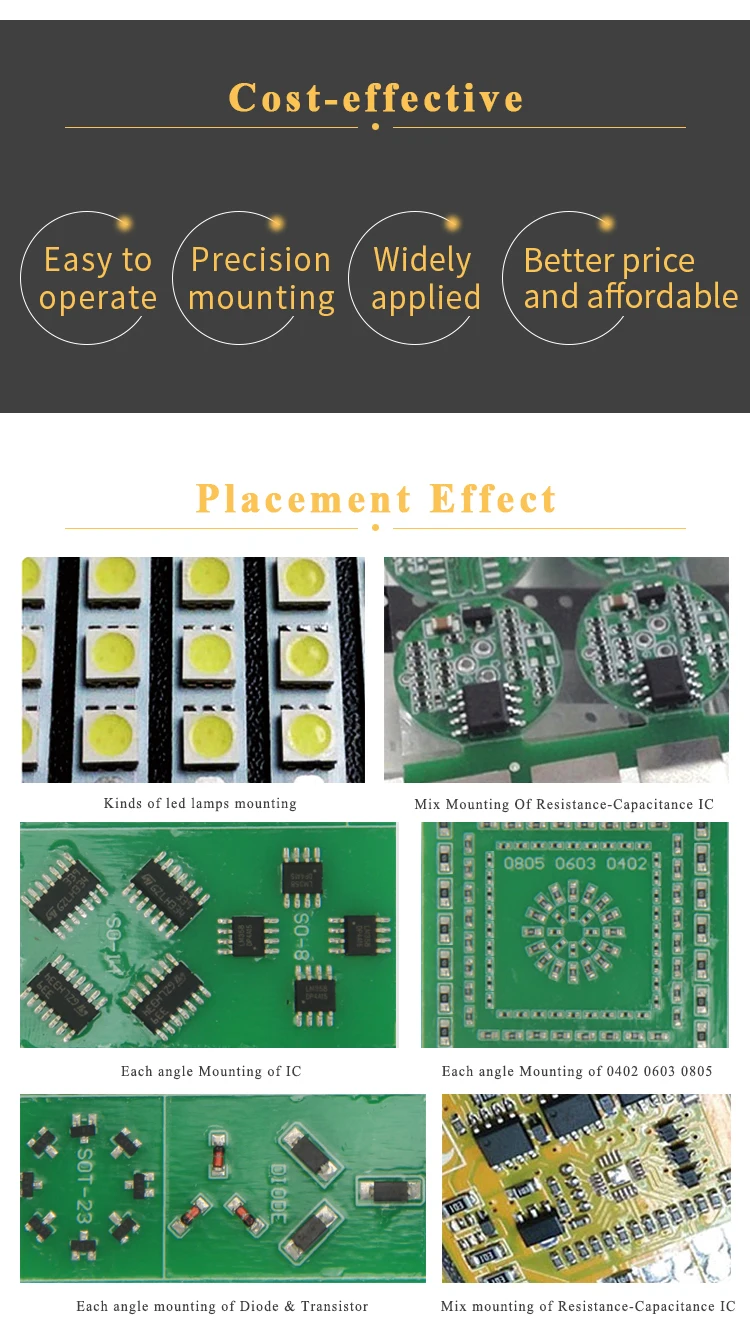

6. Placement effect images:



8. Product analysis:

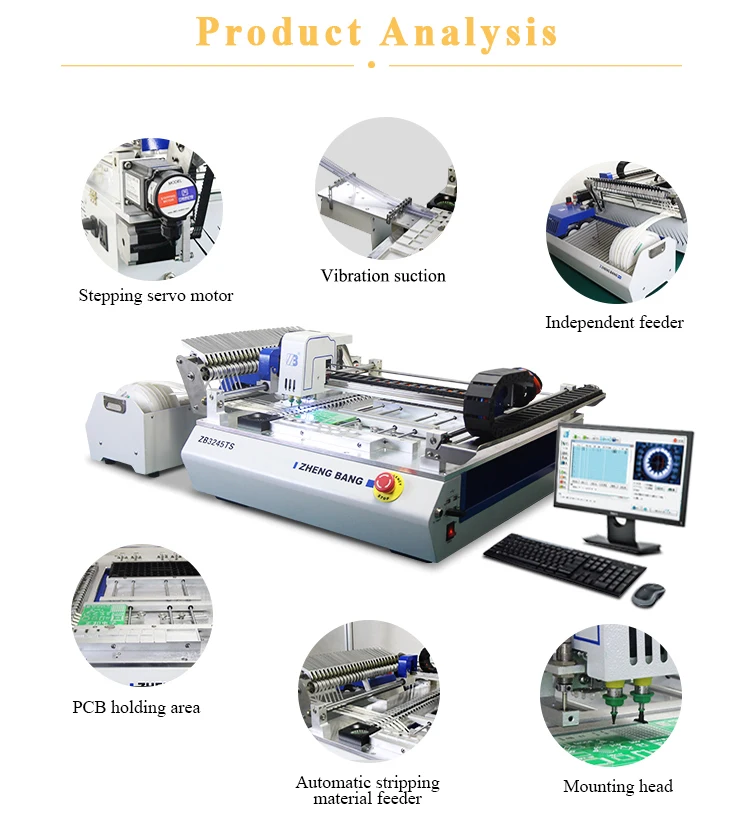

(1). Stepping servo motor (2). Vibration suction (3). Independent feeder (4). PCB holding area (5). Automatic stripping material feeder (6). 2 Mounting heads

8. High Quality And Full Functions: Nine Big Core Functions

9. Patent Authority and Equipment Show

10. Compare with other product:

11. SMT series related products:



JUKI smt pick and place machine, smt pick and place machine, pick and place, led mounter machine, led pick and place

13. Notes
1.Machines need keeping away from the humid environment and dust, or which will get on electrical shock and fire.
2.Machines need lying stable platform, or which the shake may lead to reduce the precision and even turn over and personal injury.
3.Don’t dismounting the machines casually, or the machine may be broken.
4.Don’t touch the optical axis and the mounting head, or which may damage the machine and hurt yourselves.
5.Make sure the machine engine accordance with the requirements of the standard machine and make sure lie on the ground very well.
6.Make sure the machine away from the inflammables and explosives to avoid the fire and getting the electric shock.
7.Take the small machine parts like suction nozzle at the place where the babies can’t touch.
8.Don’t take the pulling needle stretch out for too long time, or the pulling needle will be broken.
9.Don’t take the machine in the Sun or the highlight directly, or which will reduce the machine precision and even broke the machine.
10.Please kindly contact us if any other questions.
