Zhengbang Small pick and place machine/SMT assembler machine/ SMD mount machine

Supplier: Wenzhou Zhengbang Electronic Equipment Co., Ltd.
Region: Zhejiang, China
Contact: Mr Zhou
Price: $5000.00 /set
Min. Order: 1 set

Click here to contact

Product details

Machinery Test Report:	Provided;	Warranty:	12 months;
Package Preview:	;	Normal mounting:	5500PCS/h;
Single package size:	125X118X64 cm;	Core Components:	PLC;
Place of Origin:	Zhejiang, China;	Number of visual:	2pcs;
PCB minimal Size:	10*10mm;	Certification:	CE;
SMT series:	4PCS;	Condition:	New;
Visual mounting:	4000 PCS/h;	Marketing Type:	New Product 2020;
Dimension(LWH):	L1165W1105H630mm;	Feeder numbers:	30 level;
Brand Name:	HUAQIZHENGBANG;	Applicable Industries:	LED Lamb/PCB assembly line;
Local Service Location:	Germany,Spain,Thailand,South Korea;	Packaging Detail:	WOODEN CASE;
Single gross weight:	190.000 KG;	Selling Units:	Single item;
Showroom Location:	Germany,Spain,Thailand,South Korea;	Video outgoing-inspection:	Provided;
Power:	500W;	A visual camera:	CCD High-definition camera;
After Warranty Service:	Video technical support,Online support;	IC tray:	Postposition 1PC tray;

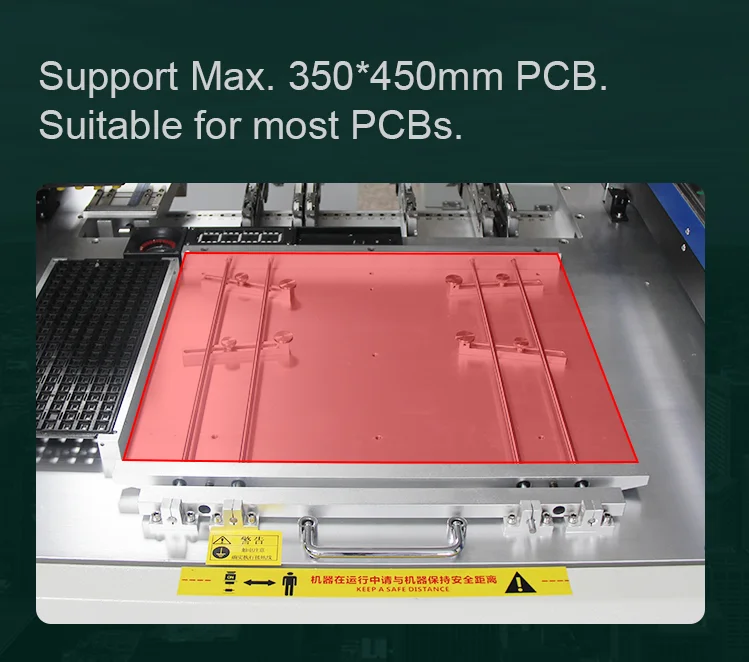

Warranty of core components:	1 Year;	PCB maximum Size:	350*450mm;
After-sales Service Provided:	Overseas service center available;	Voltage:	AC220V ±10% 50Hz;
Weight:	120kg;

Product Description

Product Specification
System	Project	Content
Mounting system	Mounting numbers	4 pcs
		Precision	0.025mm
		Theoretical speed	7500 pcs/h
		Normal speed	6000 pcs/h
		Visual speed	5000 pcs/h
		Applicable element	RC( 0402 , 0603 , 0805 , 1206 etc)
				LED lamp beads (0603,0805,3014,5050 etc)
				Chip ( SOT , SOP , QFN , BGA etc)
PCB	Minimal Size	10 x 10 mm
		maximum size	350 x 450 mm (no try)
		maximum size	320 x 220 mm( with try)		320 x 220 mm( with try)
		Thickness	≤ 2 mm
Feeder	Quantity	38 pcs
		Type	YAMAHA CL Feeder
		Tubular Materials Feeder	YAMAHA YV Feeder

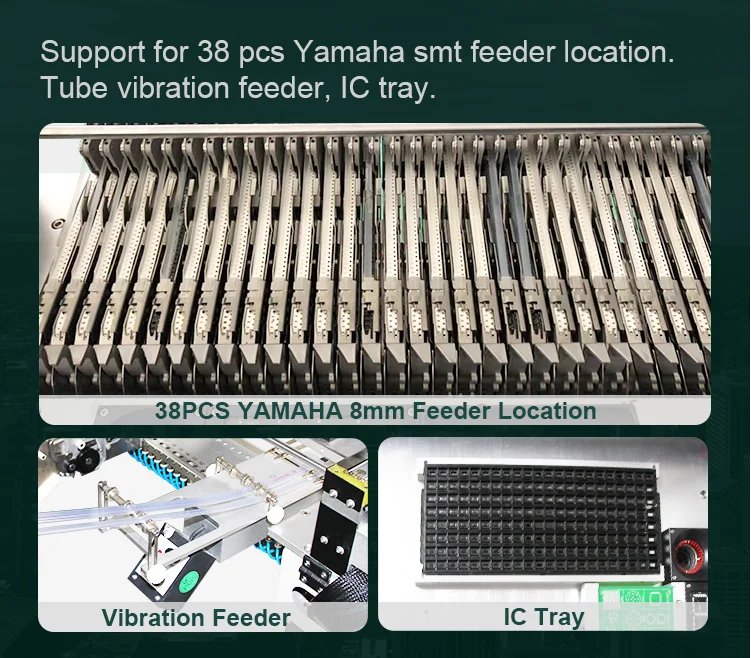

		IC tray	Postposition 1 PC tray
		Preposition IC	10 pcs
X / Y / Z axis	X/Y axis moving range	655x575 mm
Visual Camera	Quantity	6 pcs
Visual Camera		Recognition capability	MAX 20 x 20mm
Control system	Syetem	Microsoft WIN7
		file format	CSV, TXT
		Air pressure	0.8 Mpa
Basic parameter	Power	500 W
		Power supply	AC220V±10% 50Hz
		Outline Package Size	1185 x 840 x 560 mm
		Gross weight	123 kg

Vusual Camera and material

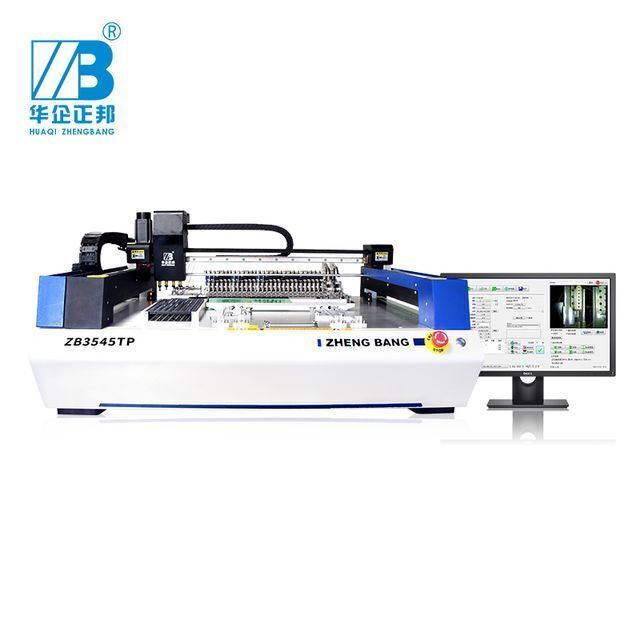

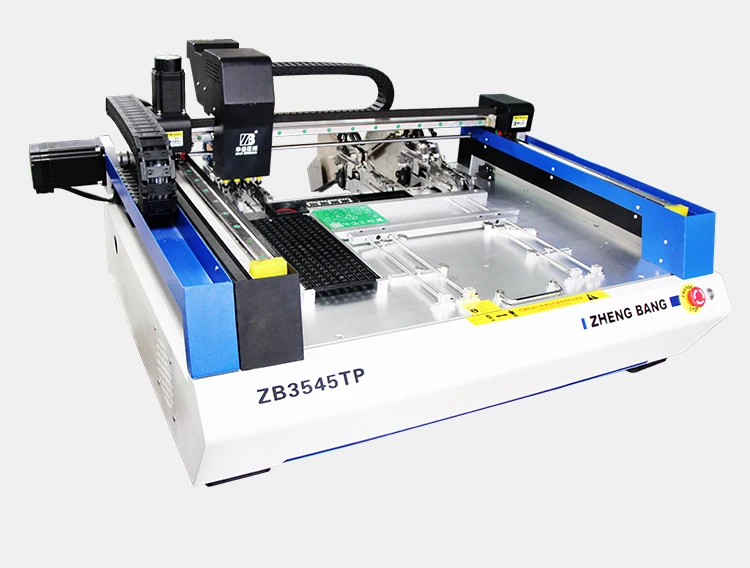

ZB3245TP

About the applicable element.

The minimal applicable element is 0402

The maximum applicable element is BGA100.

How about other style? How about the 0201?

Please feel free to contact me.

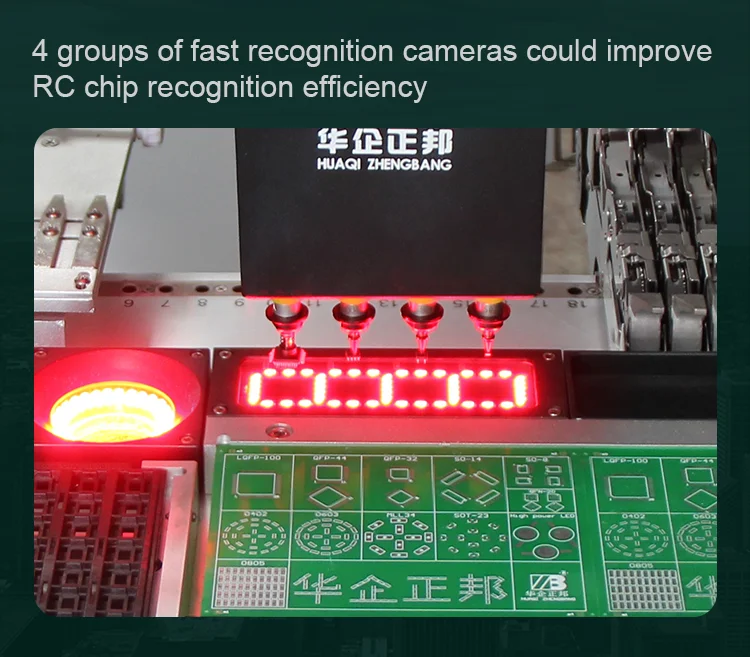

Visual camera: Equipped with 6 pcs of cameras that could effectively mount 0402-5050 components, LED beads, diodes, transistors, SOP, 40mm*40mm range pin pitch ≥0.3mm chip QFP, BGA etc.

Speed: the max mounting speed: 7500CPH, average mounting speed: 5000CPH.

Main Feature

1. Closed-loop control, Step servo motor with the professional flexible.
2. Pcb size: Max: 320x450mm (without tray). 320x250 (put tray).
3. The smallest component can be attached 0402. The largest: 20x20mm.
4. Industrial control computer: Install WIN7 system, the operation is simpler, can be networked, support remote assistance debugging.
5. Independent research and development system.
6. 27 kinds of plated materials.
7. S deceleration, performance as same as general servo motor.
8. With HD CCD Camera, accuracy and quick.

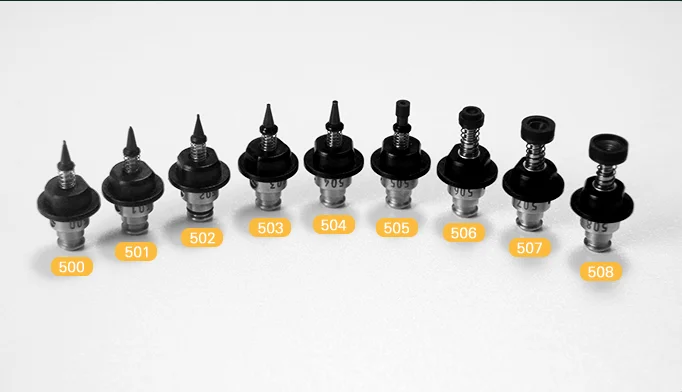

9. With 2 pick and place heads, types of high-precision nozzles, compatibility as Juki.

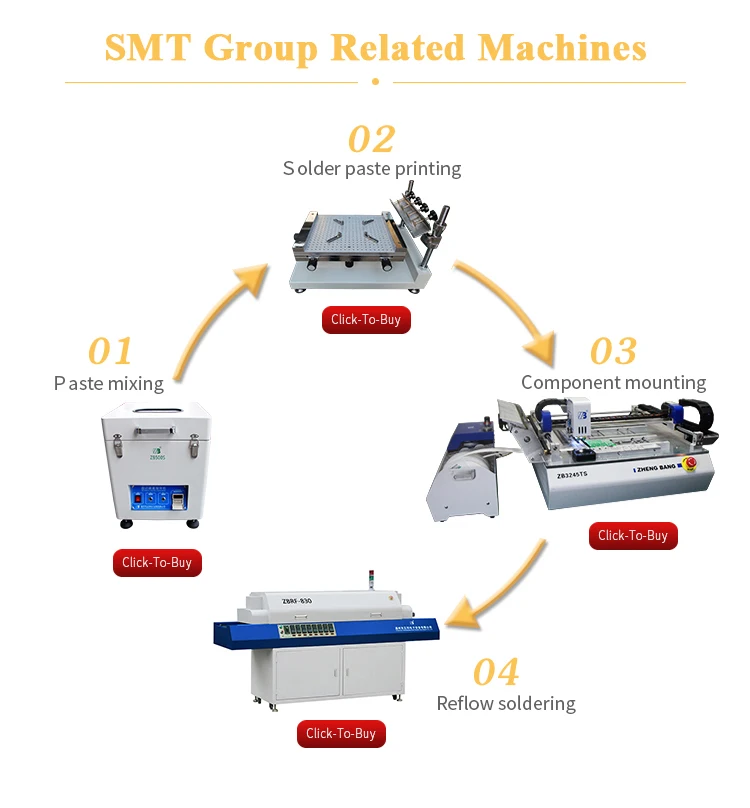

SMT Group Related Machines

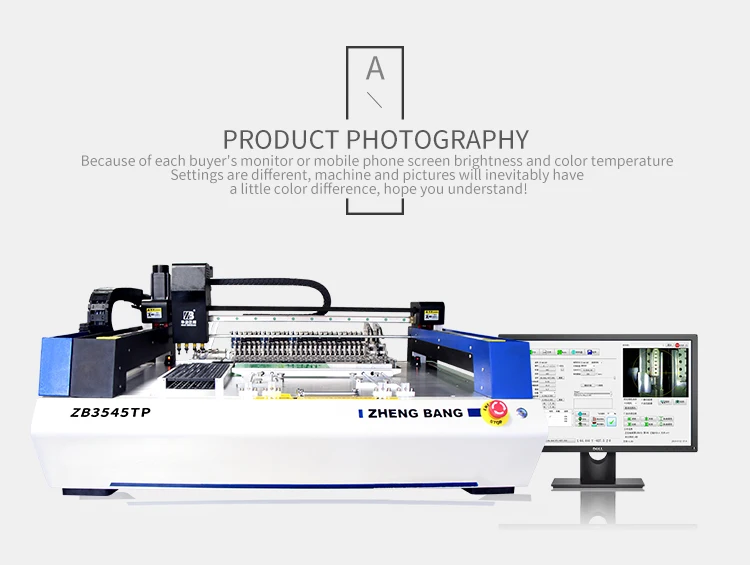

Product Photograph

About Us

FAQ

1).Q: How many nozzles do you supply? Do you sell nozzles and spares?
A: If the machine has two nozzle-heads, we supply 4 nozzles. If has four nozzle-heads, we supply eight nozzles. Yes, we do sell nozzles and spares. If you need any spars, just let us know.
2).Q: What's the way of shipping?
A: These are all heavy machines; we suggest you use cargo ship. But components for mending the machines, air transportation would be fine.
3).Q: How is the training?
A: After buying our machines, your engineers can go to our company or our engineers go to your factory if require, and we will train them how to use these machines.
4).Q: Is it hard to use these machines?
A: No, not hard at all. For our previous clients, at most 2 days is enough to learn to operate the machines.
5).Q: Does you machines have quality certificate?
A: All of our machines have passed CE certificate, ISO14001(BCC), ISO9001(IQNET) and have own patent.
6).Q: How about the warranty?
A: We support one year warranty( The nozzle with a warranty of 1 months; belt with a warranty of 3 months ). We will regularly update the software for customers. If there is any doubt in the process of operating the machine, pls feel free contact us. We will help you in time.

All the spare parts will be provided free of charge for you within the warranty period.
