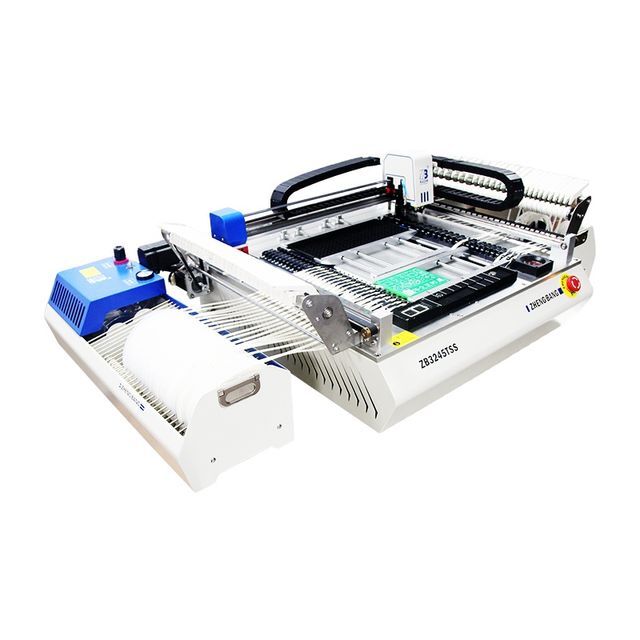

ZB3245TSS SMT mounter automatic surface mounter electric feeder for smt production

Supplier: Wenzhou Zhengbang Electronic Equipment Co., Ltd.
Region: Zhejiang, China
Contact: Mr Zhou
Price: $4050.00 / 1 - 4 sets
$4000.00 / 5 - 9 sets
$3950.00 / >=10 sets
Min. Order: 1 set

Click here to contact

Product details

brand:	Huaqizhengbang	port:	Ningbo, Shanghai
Marketing Type:	New Products 2020	Video external inspection:	if
Supply capacity:	300 sets per month	Vision camera:	2 sets
Health status:	new	Core Components Warranty:	1 year
Normal installation:	7000/hour	Showroom location:	India, Russia, South Korea
Weight (kg):	85	payment terms:	L/C,Western Union,D/P,D/A,T/T,MoneyGram
Maximum size of PCB:	320x450 mm	Core components:	engine, motor
product name:	SMT placement machine	Feeder:	54
Programming method:	Support online and office mode	Packaging Details:	wooden box
place of origin; place of origin:	Zhejiang, China	Warranty:	1 year
Mechanical test report:	if	Certification:	Chief Executive
Preposition IC Material Grade:	10	Installation number:	2
model:	ZB3245TSS

Virtual Reality

Product Description

Product Specifications
system	project	content
install the system	Installation number	2
		accurate	0.025mm

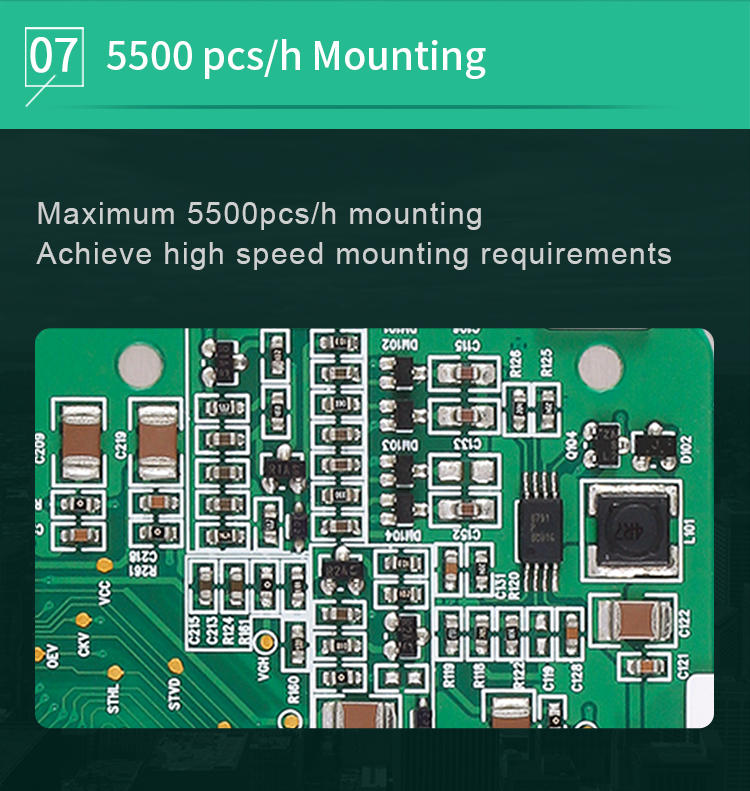

		Theoretical speed	6500/hour
		normal speed	5000/hour
		visual speed	3500/hour

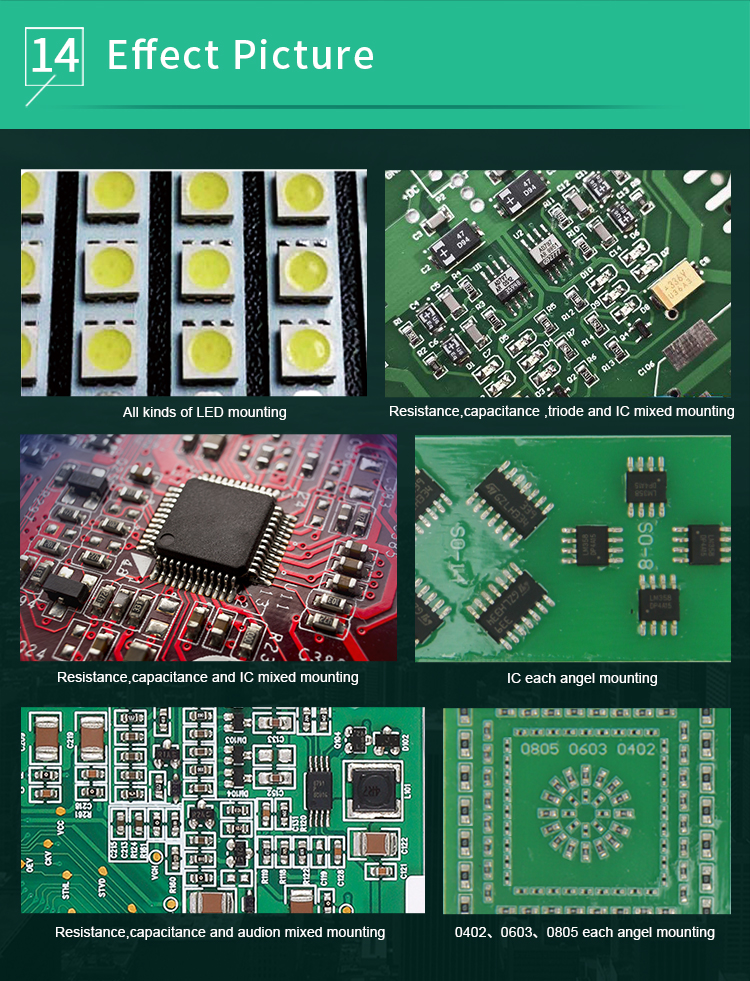

		Applicable elements	Reinforced concrete (0402, 0603, 0805, 1206, etc.)
				LED lamp beads (0603, 0805, 3014, 5050, etc.)
				Chip (SOT, SOP, QFN, BGA, etc.)
A printed circuit board	smallest size	10 x 10 mm
		biggest size	320 x 450 mm (not tried)
		biggest size		320 x 220 mm (with trial)
		thickness	≤ 1 mm
		Wrapper Allowed Values	≤ 2 mm
feeder	quantity	27
		8 mm	20
		12mm	4
		16 mm	2
		24 mm	1
		Preposition IC	10
		tubular feeder	One set of special five-tube feeder for Zhengbang (optional)

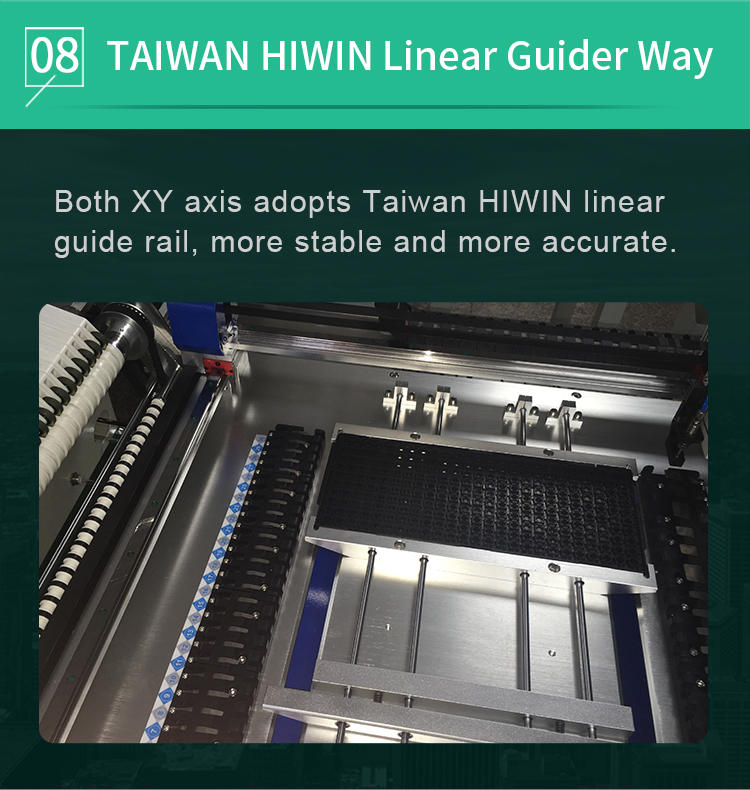

X/Y/Z axis	X/Y axis movement range	430×530mm
X/Y/Z axis		Z-axis movement range	10 mm

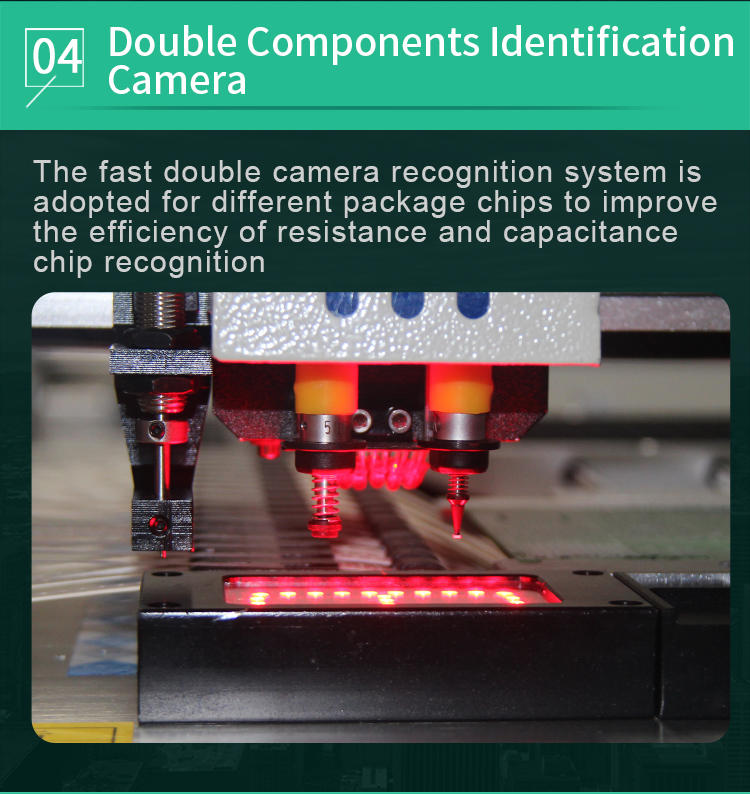

Vision camera	quantity	2 (Part camera, PCB camera)
Vision camera		Recognition ability	up to 20 x 20 mm
Control System	system	Microsoft WIN7
		file format	CSV, TXT
		air pressure	0.4 MPa
Basic parameters	strength	150W
		power supply	AC220V±10% 50Hz
		Mainframe Dimensions	L830 x W730 x H375 mm
		Feeder Dimensions	L235 x W700 x H245 mm
		net weight	56 kg
		gross weight	83 kg

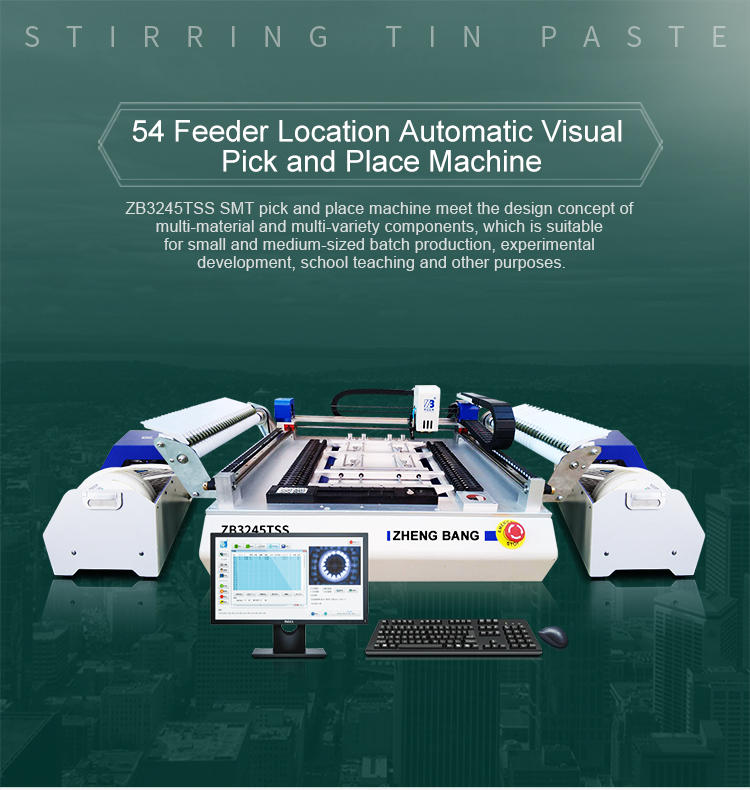

Best Selling 2 Heads ZB3245TSS Led SMT Mounter 54 Feeder + Camera Supplier Automatic Small PNP Machine

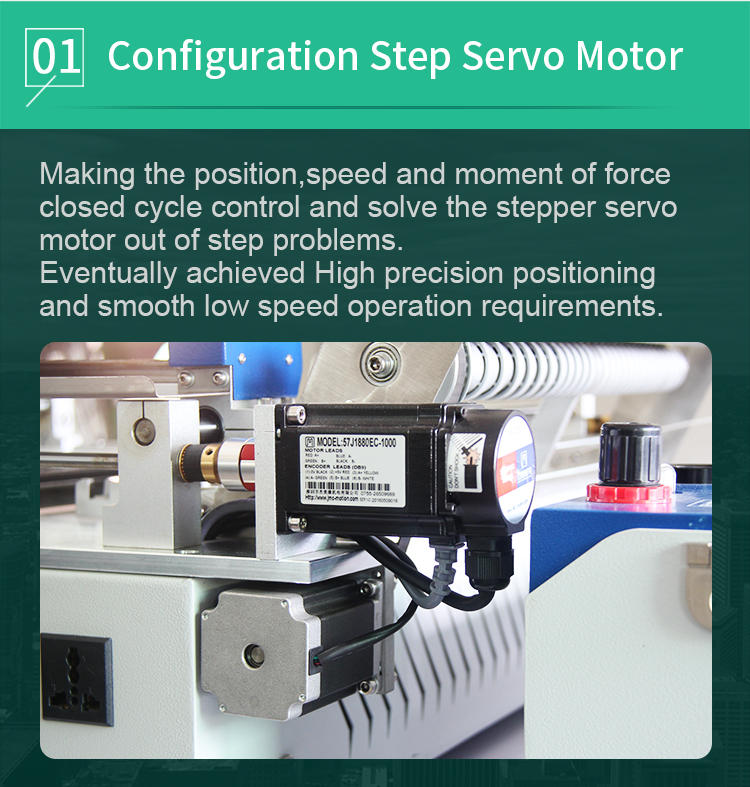

1). Closed-loop control, professional and flexible stepper servo motor
S deceleration, the performance is the same as the general servo motor.

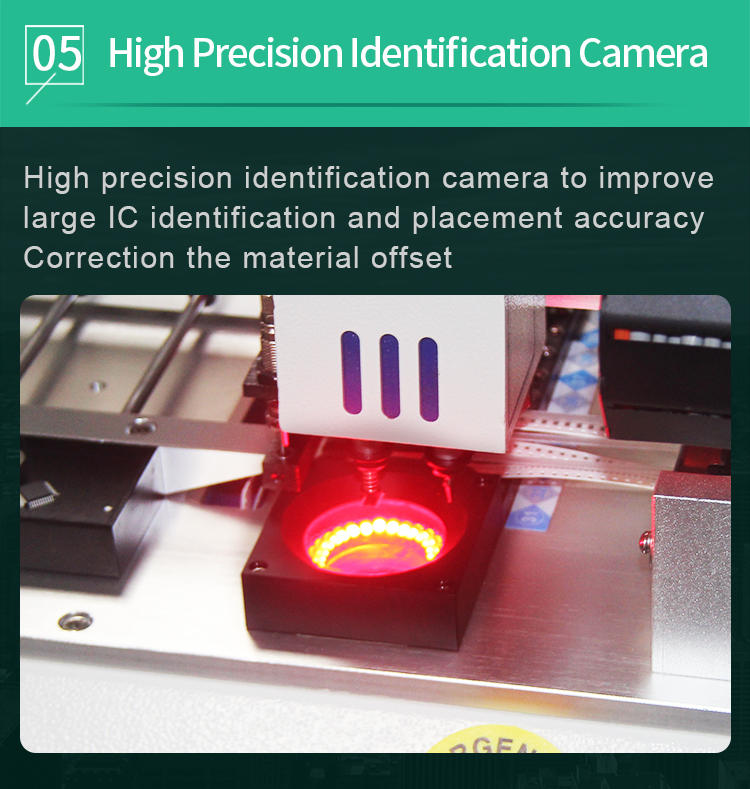

2). Equipped with high-definition CCD camera, accurate and fast.

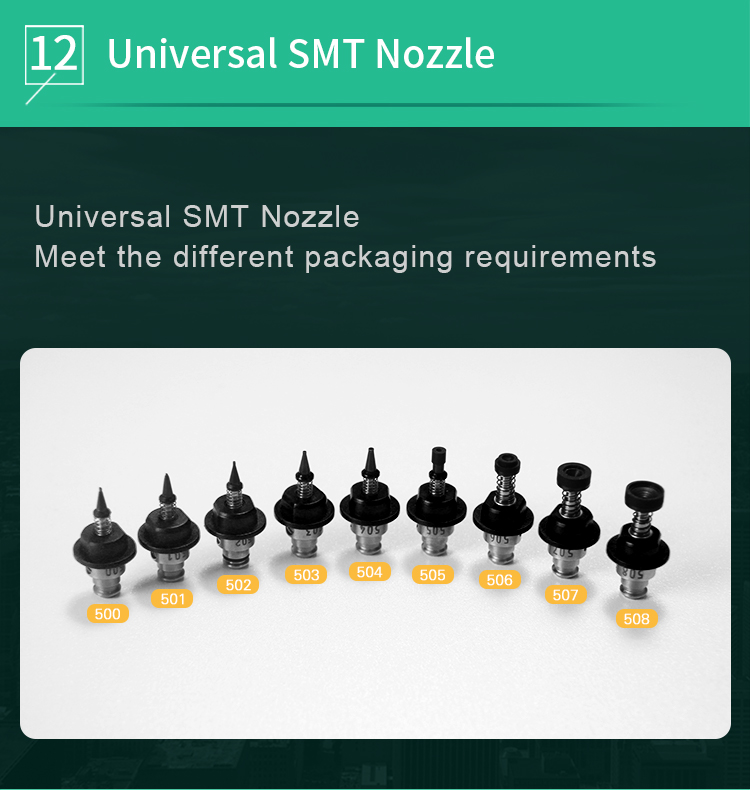

3). With 2 pick and place heads, high precision nozzle type,
Compatibility as Juki.

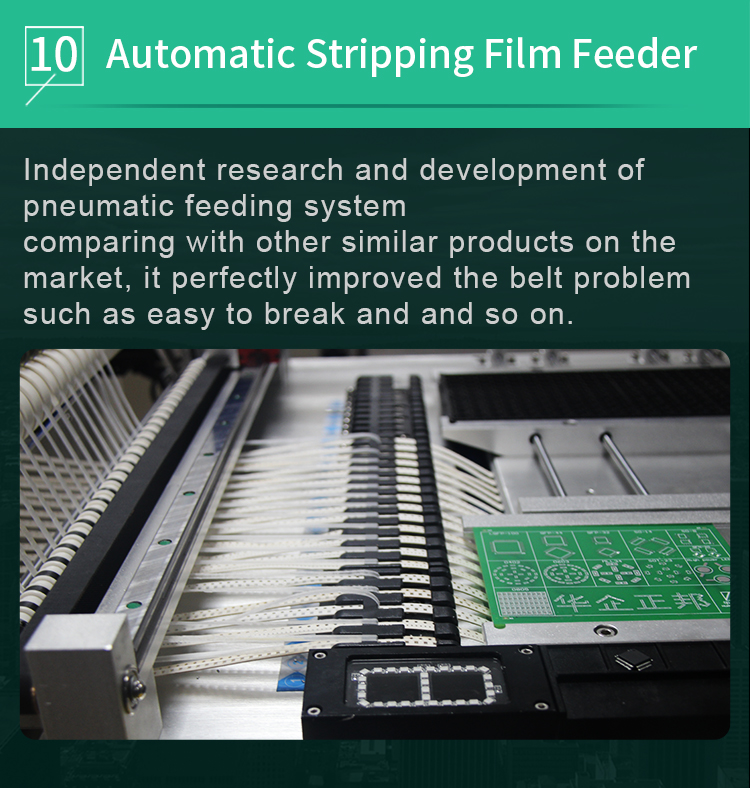

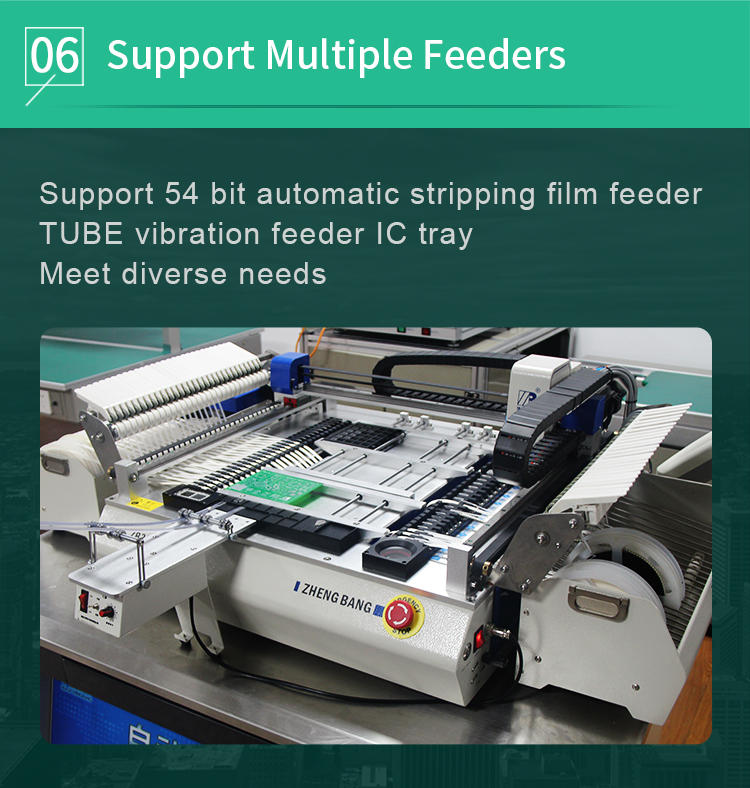

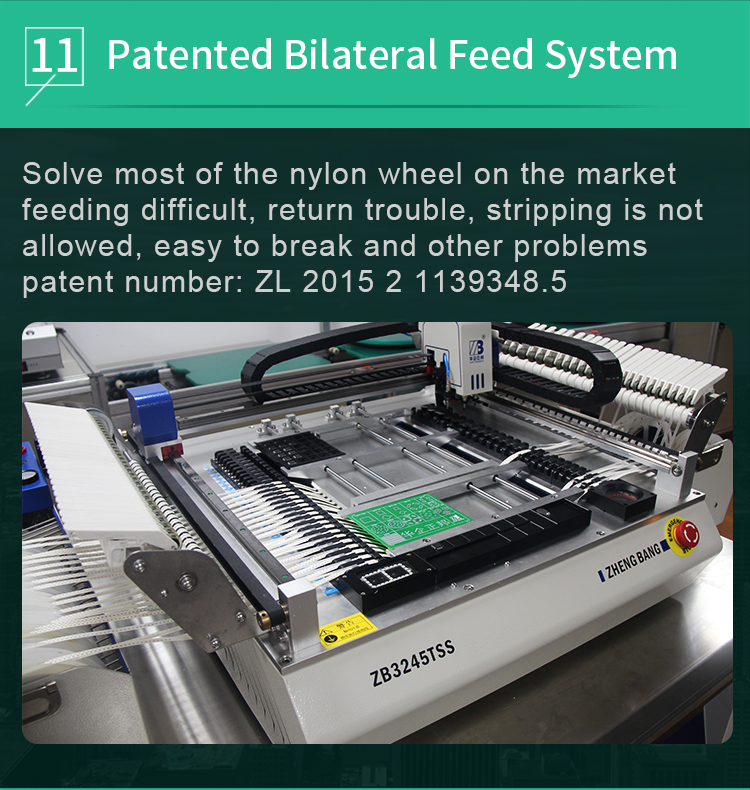

4). Vibration/tubular feeder.
5). Vision system

Product Details

Main features

1.Closed-loop control, stepper servo motor with professional and flexible.

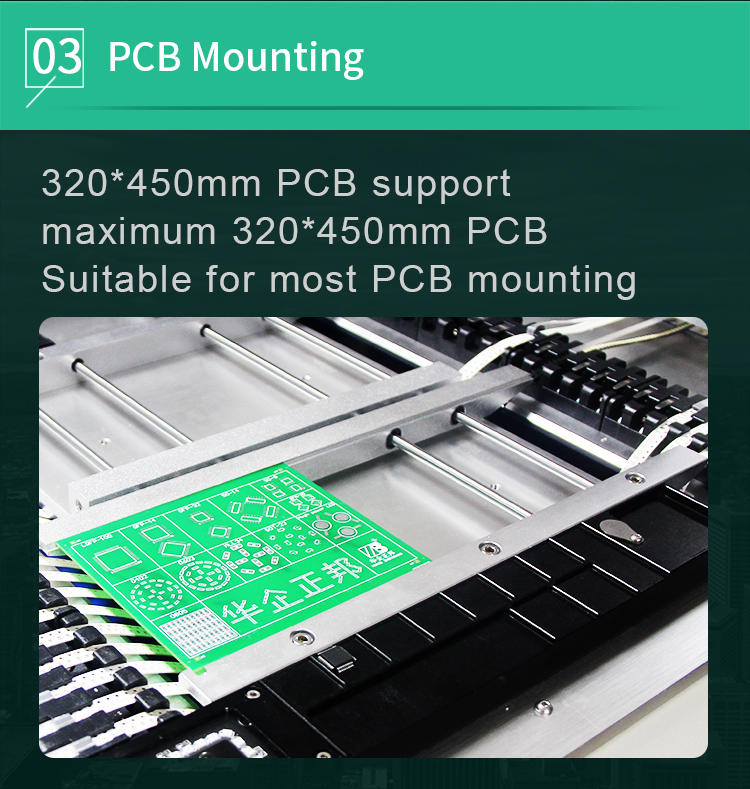

2.Board size: Max: 320x450mm (without tray). 320x250 (place the tray).
3. Minimal components can be attached0402. biggest:20x20mm.

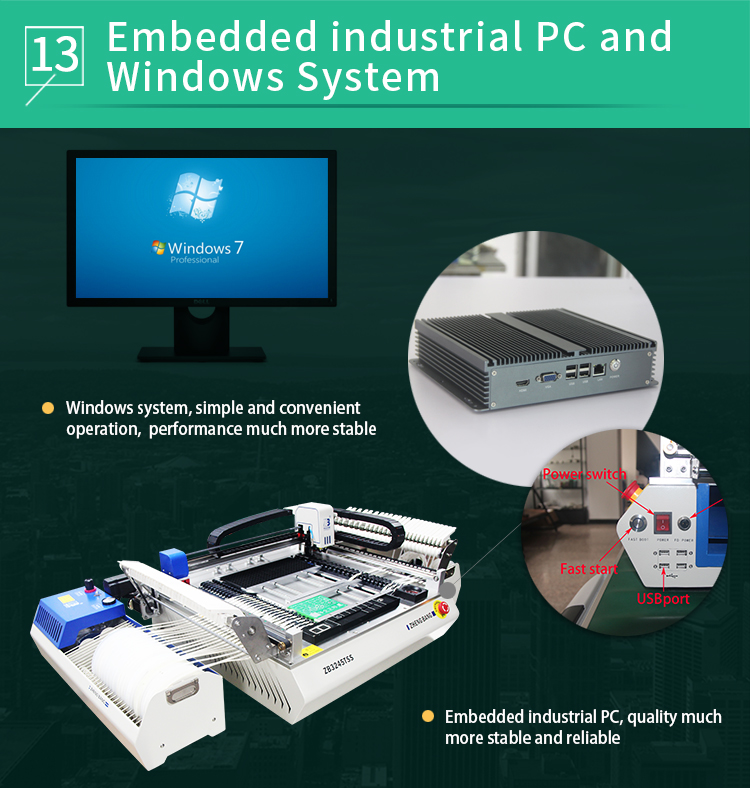

4.Industrial computer: Install the WIN7 system, the operation is simpler, the network can be connected, and the remote assistance debugging is supported.
5. Independent research and development system.
6.27Various plating materials.
7. S deceleration, the performance is the same as the general servo motor.
8. YesHD CCD camera, accurate and fast.
9. Yes2 pick and place heads, the type of high precision nozzle, as the compatibility of Juki.

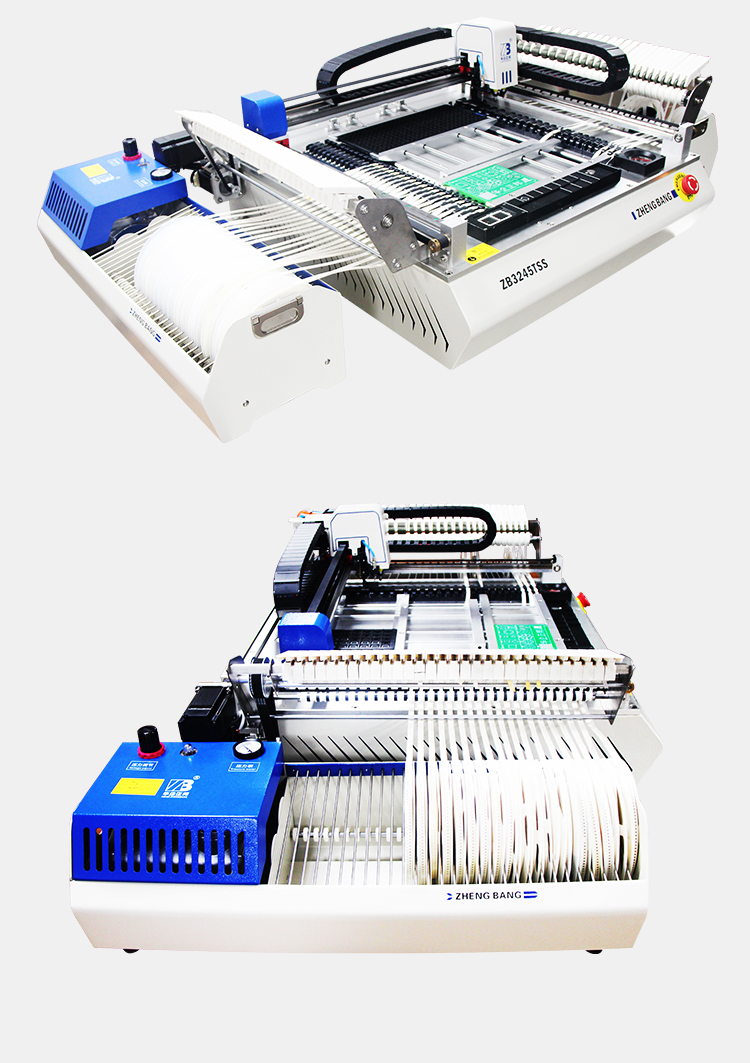

product photo
