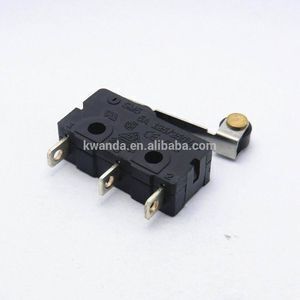

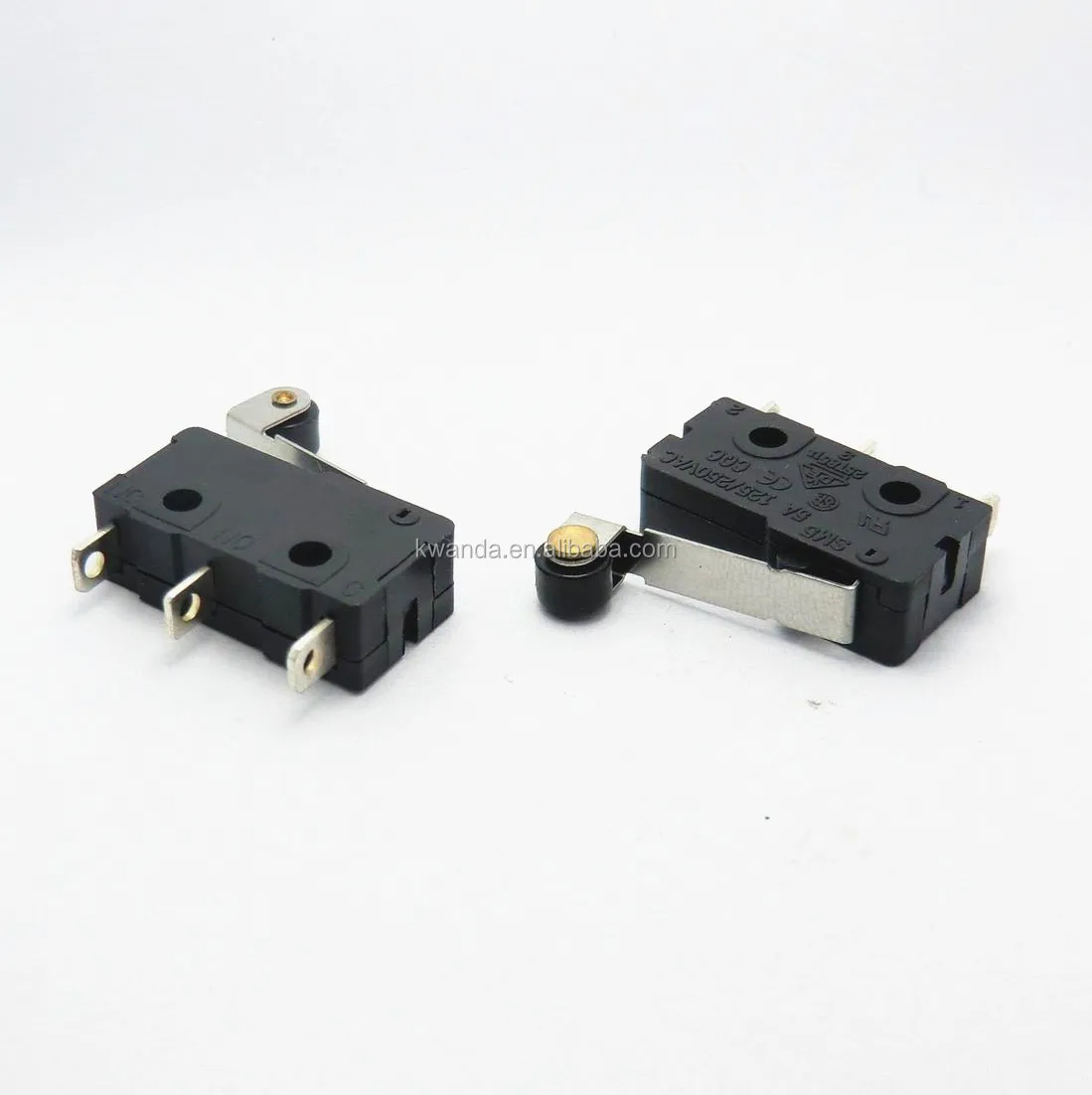

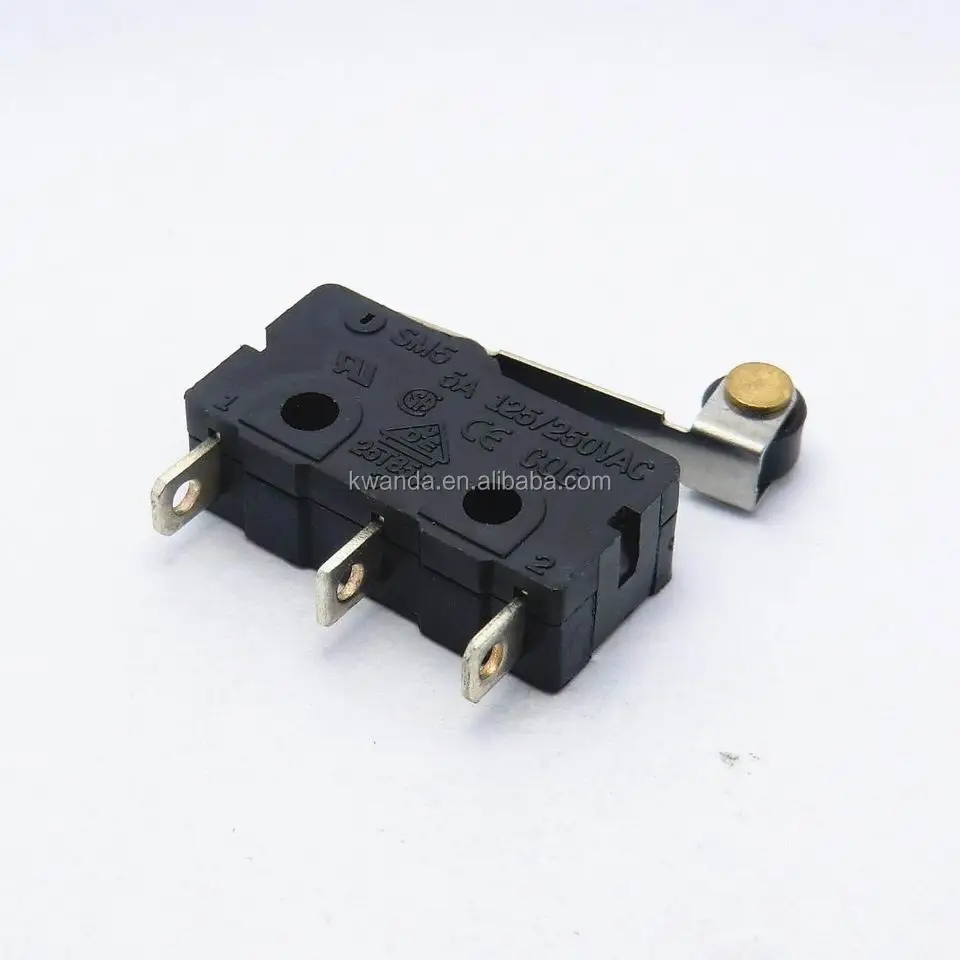

3 terminal 3a 125 or 250vac microswitch with roller lever
- 0.30 >=1000 pieces
Registered Supplier
Direct Contact
Inquiry via Message
Product Details
| Description: | 3 terminal 3a 125 or 250vac microswitch with roller lever; | Protection Level: | safe; |
| Application: | Automation Equipment; | Supply Ability: | 30000000 Piece/Pieces per Month; |
| Model Number: | MX-98; | Brand Name: | KD; |
| Max. Current: | 3A; | Port: | Hong kong or Shen Zhen; |
| Payment Terms: | T/T,Western Union; | Rating: | 3A 125VAC; |
| Product Name: | MX-98; | Operating Temperature: | -16-60; |
| Material: | PBT; | Terminal: | Ag Plated; |
| Samples: | Free; | Certification: | CE UL VDE; |
| Color: | Black; | Packaging Detail: | Standard Export Packing.; |
| Max. Voltage: | 125V AC / 250V AC; | Mechanical Life: | 100000 times; |
| Place of Origin: | Guangdong China (Mainland); |
3 terminal 3a 125 or 250vac microswitch with roller lever
Model No:MX-98
Specification: | |
·Rating | 3A 125V/250V AC |
·Contact resistance | 50MΩ max |
·Insulation resistance | 100MΩ min at 500V DC |
·Dielectric strength | 500V AC for 1 min |
·Lifespan | 100,000Cycles |
·Practical temperature range | -16 to 60 degrees Celsius |
·RoHS | Yes |
| |
√Our products’ Advantages: |
u More than 2,000 models of switches and jacks.
u Monthly production capacity: 30 million pieces.
u MOQ: 5,000pcs, it’s negotiable.
u Import Raw Materials with factory price.
u Offer freesamples.
u Various of operation force, height, and color for your choice.
u More order quantities, more discounts!
+

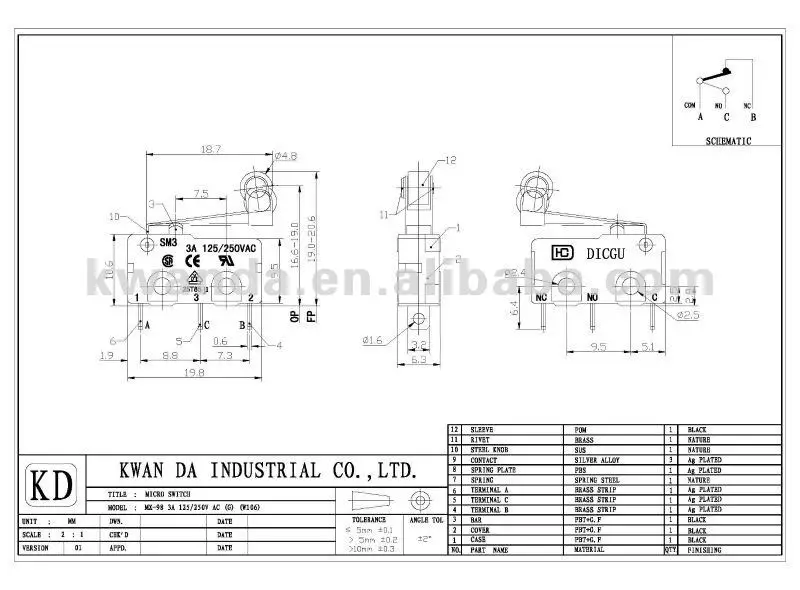

---Drawing--- |
![MX-98[1].jpg](http://sc01.alicdn.com/kf/HTB1344RmBmWBuNkSndVq6AsApXaX/200662862/HTB1344RmBmWBuNkSndVq6AsApXaX.jpg)
