3 pin smd Mini Slide Switch 0.3A 6V DC
- 0.04 >=1000 pieces
Registered Supplier
Direct Contact
Inquiry via Message
Product Details
| Function: | 1P2T; | Pack: | Tape; |
| Brand Name: | KD; | Max. Current: | 0.3A; |
| Place of Origin: | Guangdong China; | Terminal: | Ag Plated; |
| Product type: | Mini Slide Switch; | Port: | Hongkong or Shenzhen; |
| Product name: | MSK12C01; | Mechanical Life: | 10,000 cycles min; |
| Max. Voltage: | 6V DC; | Model Number: | MSK12C01-G1.5; |
| Packaging Detail: | Standard Export Packing, tape and reel.; | Travel: | 2.0mm; |
| Certificate: | ROHS SGS ISO9001/14001; | Supply Ability: | 30000000 Piece/Pieces per Month; |
| Payment Terms: | T/T,Western Union; | Application: | Telecommunication; |
| Description: | 3 pin smd Mini Slide Switch 0.3A 6V DC; | Sample: | Free; |

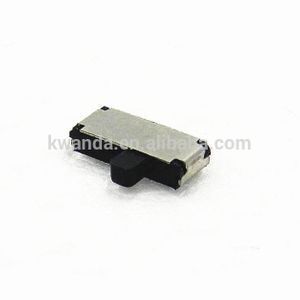

3 pin smd Mini Slide Switch 0.3A 6V DC
Model No.: MSK12C01
ITEM | PERFORMANCE |
Title | MINI SLIDE SWITCH |
Model | MSS12A01 |
Rating | 0.1A 30V DC |
Function | 1P2T |
Timing | Non-shorting |
ContactResistance(mohms) | 100mΩ max |
Insulation Resistanc(Mohms) | 100MΩ min at250V DC |
Dielectric Strength(V) | AC 250V for 1 min |
LifeTest | 100,000 Cycles |
Regarding to our products: |
u More than 2,000 models of switches and sockets.
u Monthly production capacity: 30 million pieces.
u MOQ: 5,000pcs, it’s negotiable.
u Good quality with competitive price.
u We can offer free samples with shipping and taxes pay by the buyer.
u Various operation force, height, and color for your choice.
u The discount depends on your order quantity.
+

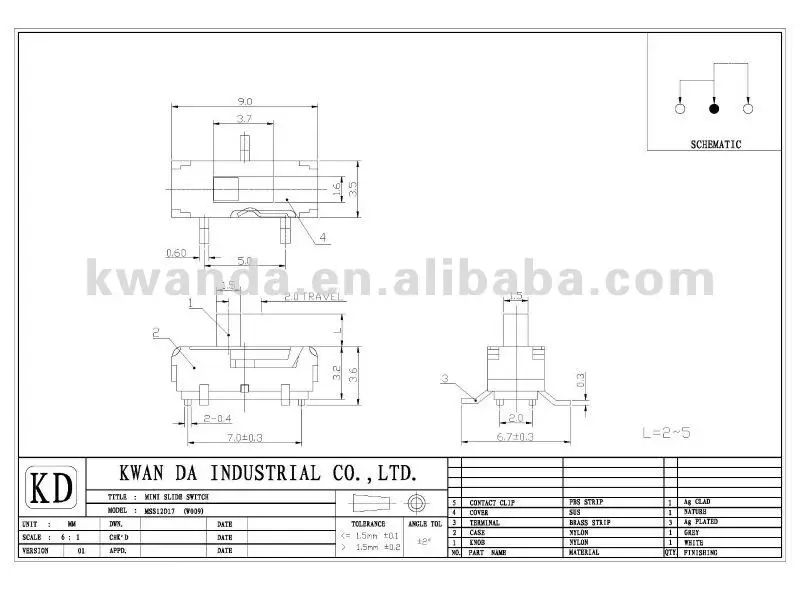

---Drawing--- |
