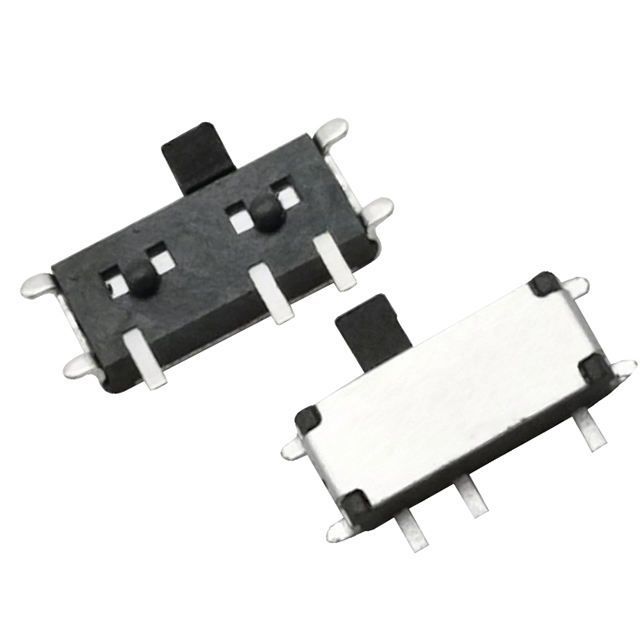

2 Position Metal Slide Switch MSK12C02 Customizable 0.3A Power Switch SMD Mini Slide

Supplier: Shenzhen Hanxia Electronics Co., Ltd.
Region: Guangdong, China
Contact: Ms Florence Zeng
Price: $0.03 / >=3000 pieces
Min. Order: 3000 pieces

Click here to contact

Product details

maximum. Voltage:	4V	payment terms:	L/C, Western Union, D/P, D/A, T/T, MoneyGram
score:	DC 4V 0.3A	Supply capacity:	1,000,000 pieces per week
brand:	cold summer	product name:	slide switch
Operating force:	180±30gf	maximum. current:	0.3a
Contact resistance:	50mΩ max	port:	Shenzhen
Origin:	China	Package preview:
Mechanical life:	100,000 times	model:	MSK12C02, MSK12C02
travel:	1.5 mm	Life:	≥100,000 times
Certification:	CE

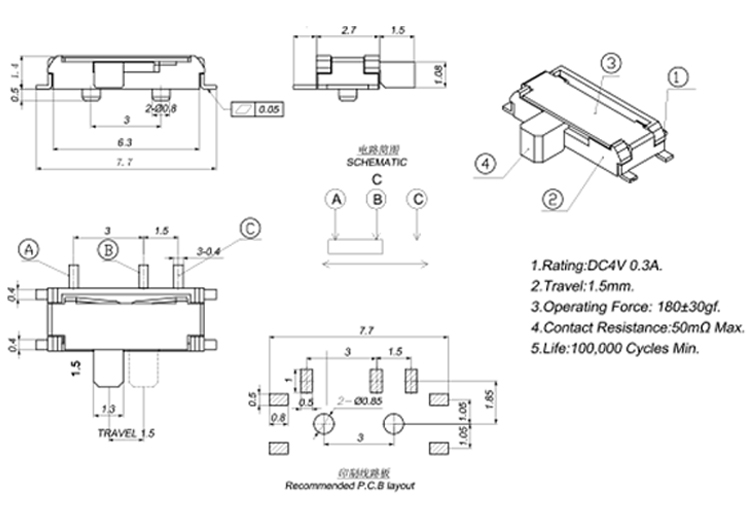

product name	slide switch
model	MSK12C02
score	DC 4V 0.3A
travel	1.5 mm
operating force	180±30gf
Contact resistance	50mΩ max
Life	≥100,000 times

About Han Xia

Shenzhen Hanxia Electronics Co., Ltd. was established in 2020. The company is mainly engaged in the sales of electronic components such as tact switches, connectors, and sockets. Hanxia focuses on the R&D, production and sales of electronic switch socket series products. Products are mainly used in household appliances, 3C consumer electronics, power equipment, medical security, automotive electronics and other fields. Hanxia Factory originated in Incheon, South Korea. It has a research and development center in South Korea, a foundry in Wenzhou, Zhejiang, and a sales branch in Shenzhen, Guangdong. Hanxia provides green products that meet environmental protection (ROHS) standards. Some safety products have international certifications such as CQC/3C, American UL, and European ENEC, and enjoy a number of independent patented technologies. Hanxia adheres to the customer value creation-oriented operation, adheres to the core values of "first-class quality, quick response", and creates a corporate culture within the company that is "one of the highest employee happiness indexes in the industry". Thousands of households" mission has been working hard.
