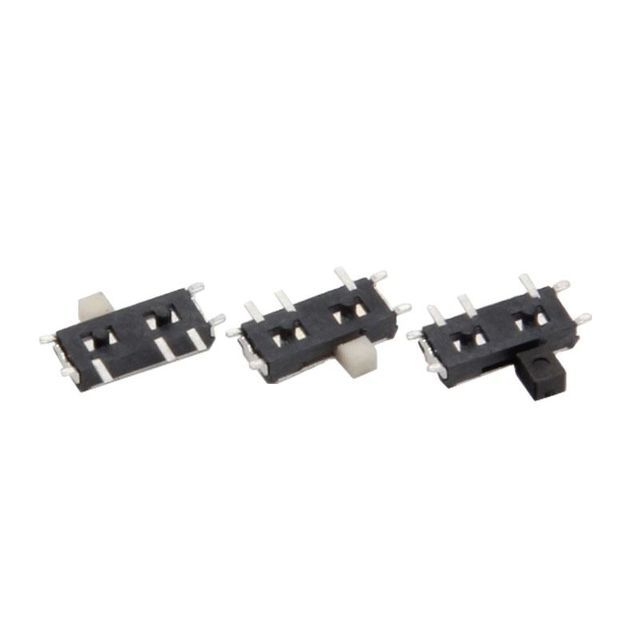

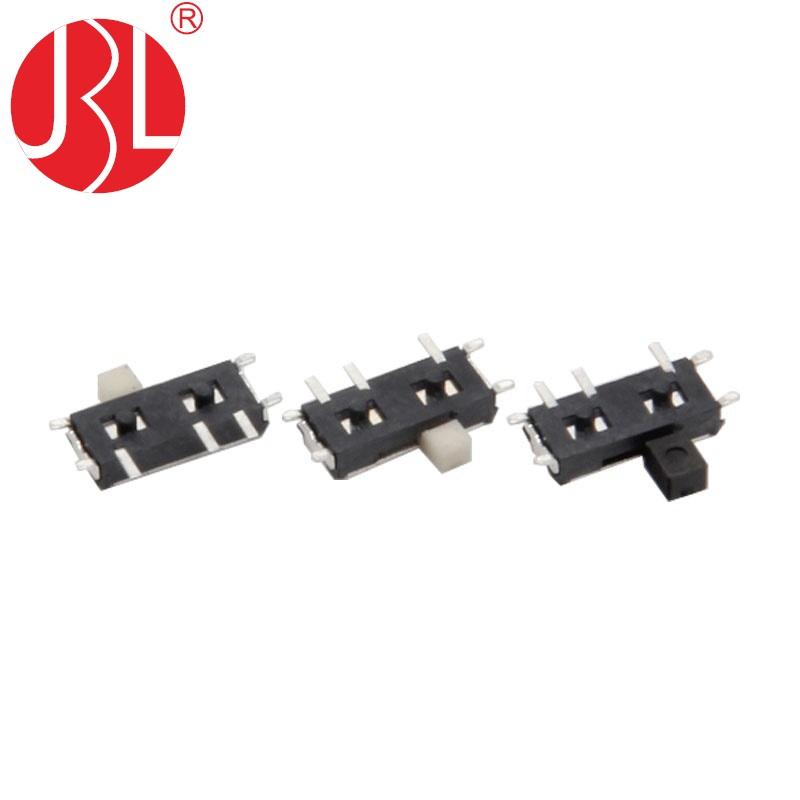

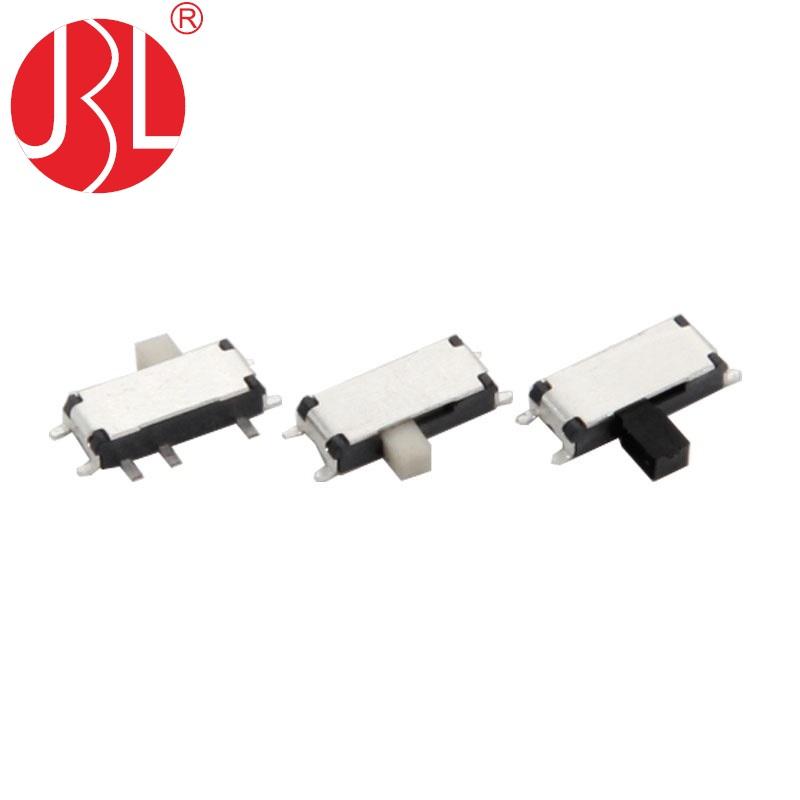

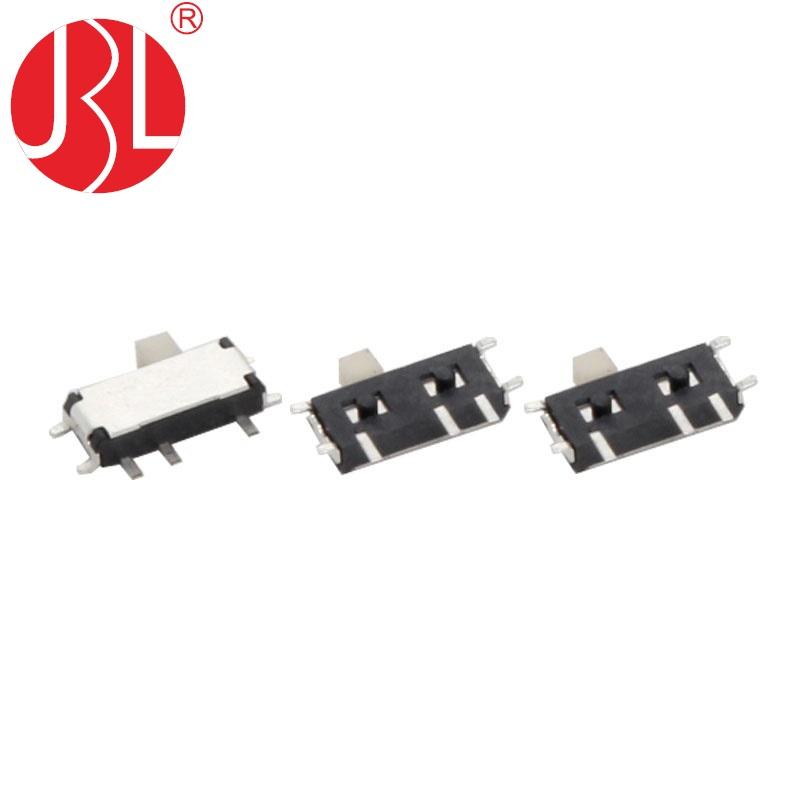

Slide switch MK-12C02 SPDT 1P2T right angle SMT type mini slide switch spdt
- 0.06 1000 - 4999 pieces
- 0.05 5000 - 9999 pieces
- 0.04 >=10000 pieces
Registered Supplier
Direct Contact
Inquiry via Message
Product Details
| Packaging Details: | PE bag packaging | Is it smart: | No |
| maximum. Voltage: | 12V | Salt spray test: | NSS 24H (can be customized according to customer requirements) |
| Certification: | RoHS / ISO9001 / IATF 16949 | Mechanical life: | custom |
| Service life: | 10,000 cycles | payment terms: | L/C, T/T |
| Origin: | Guangdong, China | Operating force: | 200gf±80gf (can be customized according to customer requirements) |
| brand: | jbl | maximum. current: | 0.05A |
| model: | MK-12C02 |
Product Description

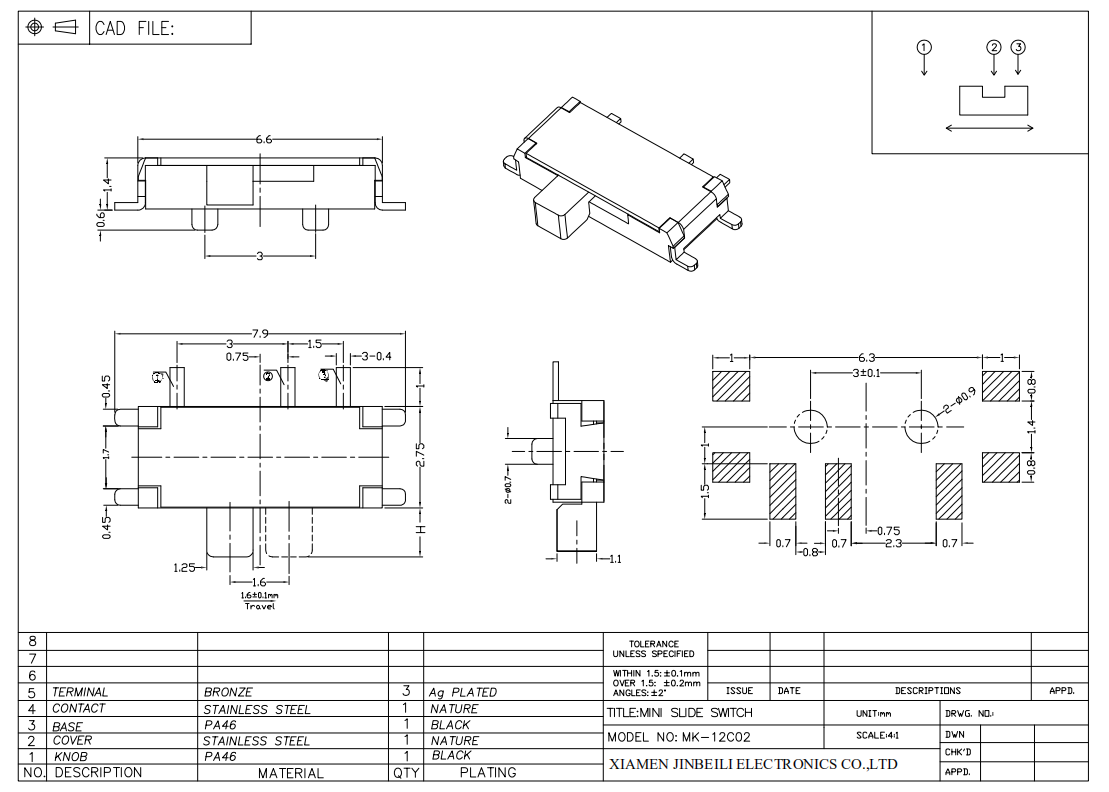

detailed drawing
Product parameters
1. Rated value: DC 12V 0.5A 2. Function: 1P2T 3. Timing: non-short circuit 4. Contact resistance: 100mΩMax 5. Insulation resistance: 100MΩMin 6. Dielectric strength: AC 500V for 1min 7. Operating force: 200gf±80gf (Can be customized according to customer requirements) 8. Service life: 10,000 cycles 9. Salt spray test: NSS 24H (can be customized according to customer requirements)
If you need customized products, please contact me
IIf you need the original PDF format date or other product details please contact us
E-mail: sales06@jblec.com
Tel: +86-592-7390769
URL: www.jblec.com
Hot/More Products
How our products are used

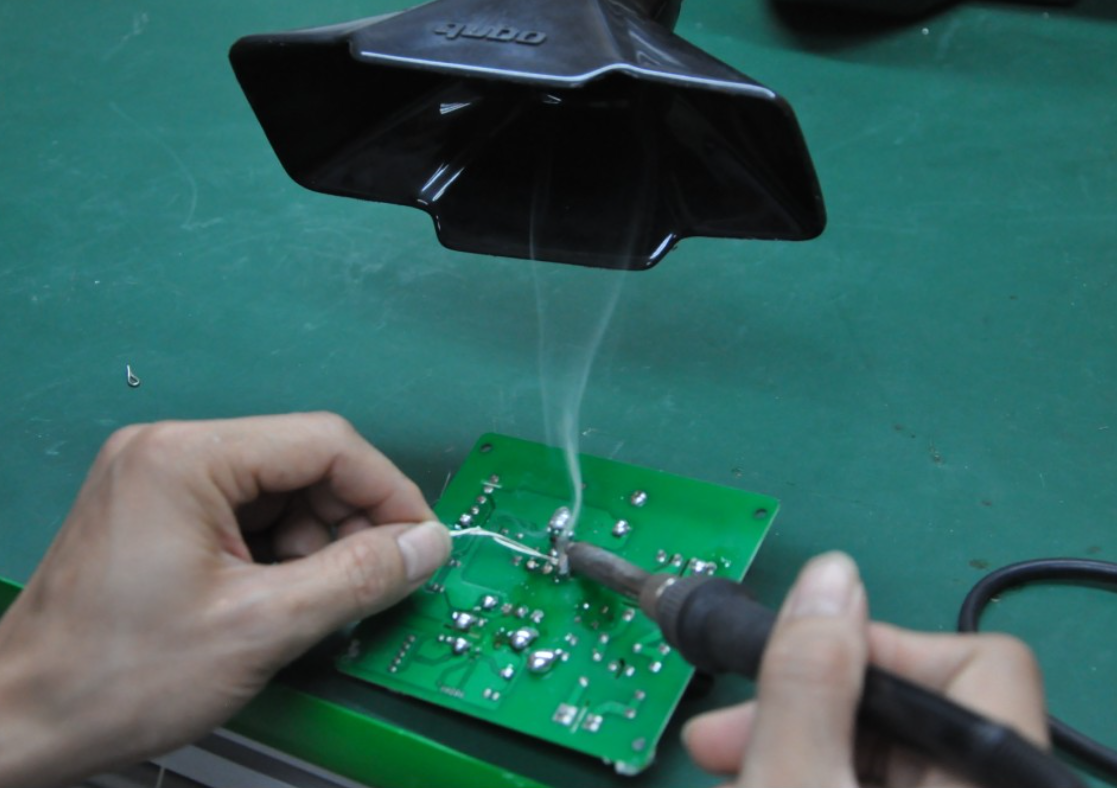

manual welding:
Temperature: up to 360°c
Time: 25 MAX
Re-soldering times: 25 times

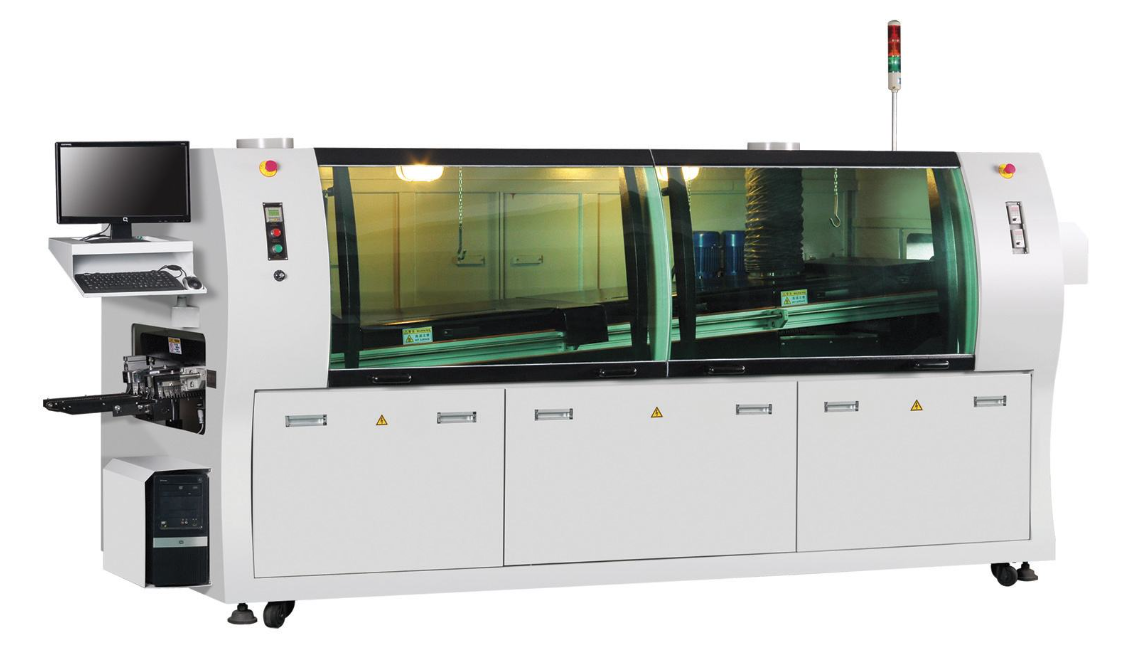

wave soldering
Preheating temperature: 130°c
Preheating time: 1.3min
Soldering temperature: 250°c max
Welding time: 2-3s
Chain speed (transmission speed): 1300mm/min
Reflow soldering product surface temperature
Automatic flow soldering (for SMT products, soldering according to the following conditions
