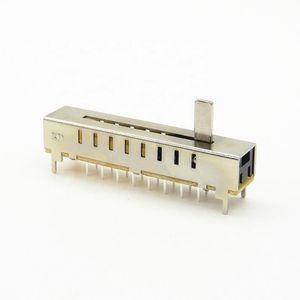

8 position 8 way vertical slide switch
- 0.02 >=1000 pieces
Registered Supplier
Direct Contact
Inquiry via Message
Product Details
| Port: | Hongkong or Shenzhen; | Terminal: | Silver Plating; |
| Timing: | Shorting; | Packaging Detail: | Standard Export Packing.; |
| Product name: | SS18H01; | Max. Current: | 0.5A; |
| Supply Ability: | 30000000 Piece/Pieces per Year; | Model Number: | SS18H01; |
| Place of Origin: | Guangdong China; | Mechanical Life: | 10,000 CYCLES min; |
| Mechanical life: | 10000 times; | Brand Name: | KD; |
| Rating: | 0.3A 30VDC; | Travel: | 4.0 mm; |
| Max. Voltage: | 50V DC; | Function: | 1P8T; |
| Samples: | Free; | Certificate: | ROHS SGS ISO9001/14001; |
| Payment Terms: | T/T,Western Union; | Application: | Telecommunication; |
8 position 8 way vertical slide switch
Model No:SS18H01
Specification: | |
·Rating | 0.5A 50V DC |
·Contact resistance | 30MΩ max |
·Insulation resistance | 100MΩ min at 500V DC |
·Dielectric strength | 500V AC for 1 min |
·Lifespan | 10,000Cycles |
·Practical temperature range | -16 to 60 degrees Celsius |
·RoHS | Yes |
| |
√Our products’ Advantages: |
u More than 2,000 models of switches and jacks.
u Monthly production capacity: 30 million pieces.
u MOQ: 5,000pcs, it’s negotiable.
u Import Raw Materials with factory price.
u Offer freesamples.
u Various of operation force, height, and color for your choice.
u More order quantities, more discounts!
+

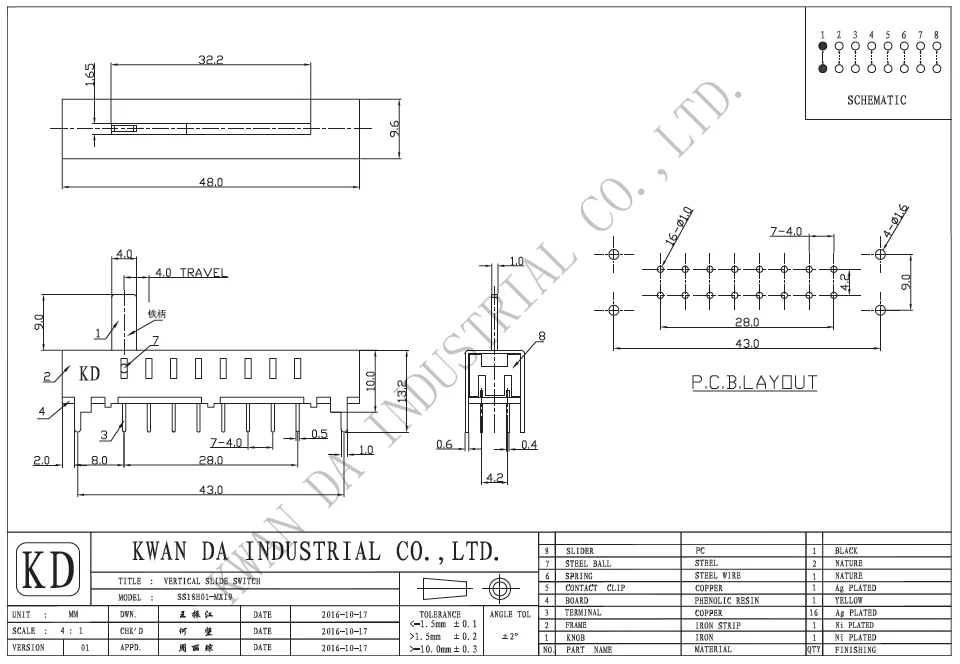

---Drawing--- |
