6 pin electronic dpdt slider switches 2 position sliding switch
- 0.02 >=5000 pieces
Registered Supplier
Direct Contact
Inquiry via Message
Product Details
| Certificate: | ROHS SGS ISO9001/14001; | Supply Ability: | 30000000 Piece/Pieces per Month; |
| Packaging Detail: | Standard Export Packing.; | Mechanical life: | 10,000Cycles; |
| Application: | Telecommunication; | Rating: | 0.5A 50VDC; |
| Payment Terms: | T/T,Western Union; | Model Number: | SS22F37; |
| Timing: | Non shorting; | Max. Voltage: | 50V DC; |
| Brand Name: | KD; | Function: | 2p2t; |
| Port: | Hongkong or Shenzhen; | Travel: | 3.2mm; |
| Product type: | Vertical Slide Switch; | Place of Origin: | Guangdong China; |
| Mechanical Life: | 10,000Cycles; | Max. Current: | 0.5A; |
| Sample: | Free; | Terminal: | Silver Plating; |

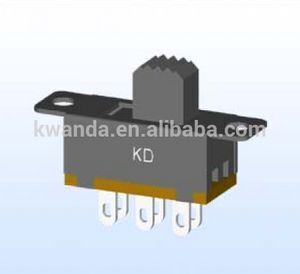

6 pin electronic dpdt slider switches 2 position sliding switch
Model No:SS22F37
Specification: | |
·Rating | 0.5A 50V DC |
·Contact resistance | 30MΩ max |
·Insulation resistance | 100MΩ min at 500V DC |
·Dielectric strength | 500V AC for 1 min |
·Life Test | 10,000Cycles |
·Practical temperature range | -16 to 60 degrees Celsius |
·RoHS | Yes |
| |
√Our products’ Advantages: |
u More than 2,000 models of switches and jacks.
u Monthly production capacity: 30 million pieces.
u MOQ: 5,000pcs, it’s negotiable.
u Import Raw Materials with factory price.
u Offer freesamples.
u Various of operation force, height, and color for your choice.
u More order quantities, more discounts!

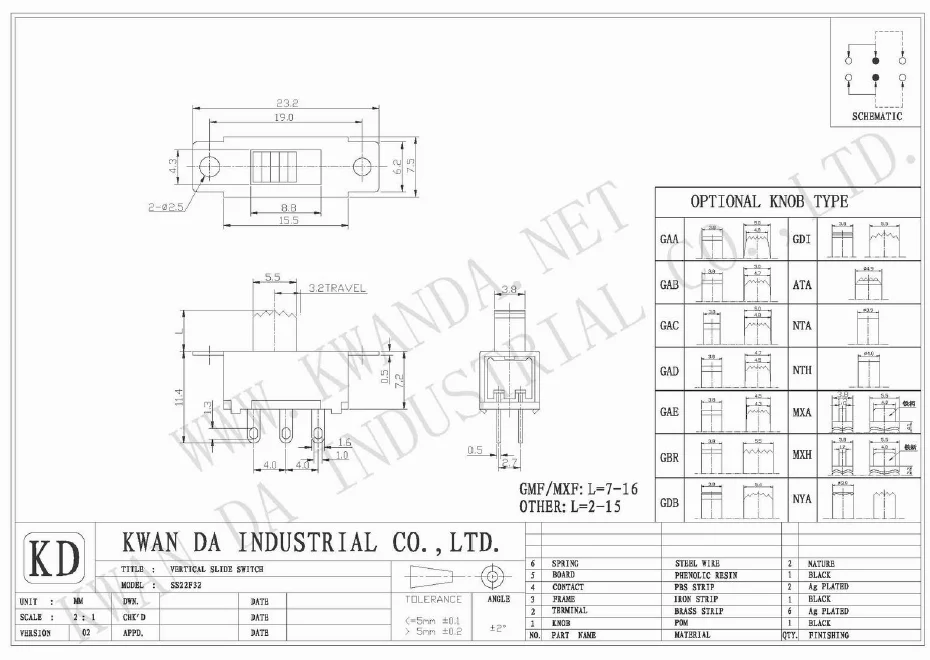

---Drawing--- |
