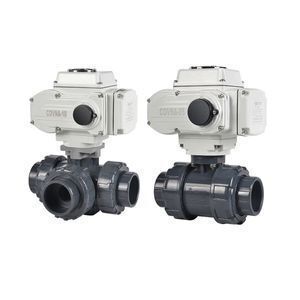

COVNA DN50 2 inch 2 Way Full Port 12V DC Electric Actuated PVC Plastic True Union Ball Valve

Supplier: COVNA Industry Automation Co., Ltd.
Region: Guangdong, China
Contact: Mr Bond COVNA
Price: $89.99 /set
Min. Order: 1 set

Click here to contact

Product details

Pressure:	Low Pressure;	Model Number:	HK60-Q-P PVC Ball Valve;
Brand Name:	COVNA;	Structure:	Ball;
Number of Ways:	2 Way Ball Valve;	Material:	Plastic;
Port Size:	2 inch Ball Valve;	Packaging Detail:	COVNA DN50 2 inch 2 Way Full Port 12V DC Electric Actuated PVC True Union Ball Valve;
Payment Terms:	T/T,Western Union;	Power:	Electric Actuator Ball Valve;
Media:	Water;	Port:	Shenzhen;
Sealing Material:	NBR, EPDM, FKM (VITON), PTFE;	Place of Origin:	Guangdong China (Mainland);
Media:	Air, Gas, Oil, Liquid;	End Connection:	Double Union, Flange End;
Supply Ability:	10000 Set/Sets per Month Stocking Items Same Day Shipping;	Control Mode:	On Off Electric Actuator;
Material:	PVC Ball Valve;	Power:	Electric Actuated;
Port Size:	DN50 Ball Valve;	Temperature of Media:	Low Temperature,Medium Temperature,Normal Temperature;
Type:	Electric Ball Valve;	Voltage:	12V DC Electric Actuator;
Application:	General;

Specifications

HK60Q-Q-3PS 3PC Ball Valve

HK60-Q-WT Sanitary Ball Valve

HK60-Q-PT Plastic Ball Valve

HK60-Q-F Flange Ball Valve

HK60-D Wafer Butterfly Valve

HK60-D-M Lug Butterfly Valve

In Stock, Start Order Now!

Item	COVNA DN50 2 inch 2 Way Full Port 12V DC Electric Actuated PVC True Union Ball Valve
Size Range	DN50, 2"
Operating Pressure	1.0MPa (145PSI)
Body Material	PVC
Core Material	PVC
Sealing Material	PTFE
Structure	2 Way, 3 Way are Available
End Connection	True Union
Applicable Media	Control of Water, Air, Gas, Oil, Liquid
Temp. of Media	Range from -10 to +180°C (14 to 356°F) with PTFE Sealing
Application	Food & Beverage, Water & Wastewater, Ultra Pure Water, Desalination, Chemical, Textile, Pharmaceutical, Pulp & Paper, Mining, Boiler and Power Industries

Technical Parameter for Actuator

Control Mode	Function
ON-OFF Type	Feedback: the Active Contact Signal, Passive Contact Signal, Resistance
Regulation Type	Input & Output Signal: DC 4-20mA, DC 0-10V
Field Operation	The Field, Remote Control Switch Regulation and MODBUS, PROFIBUS Field Bus

Shell Material	Die-Cast Aluminum Alloy (Powder Coated)
Lifespan	100,000 (Ten Thousand) Times
Output Torque	50 to 4000Nm
Angle of Rotation	90° ±4°
90° Cycle Time	15S/30S/60S
Optional Voltage	DC24V (±10%), AC110-220V, 50/60Hz
Insulation Resistance	DC24V: 100MΩ/250V; AC110/220V/380V: 100MΩ/500V
Withstand Voltage	DC24V: 500V; AC110/220V: 1500V; AC380V: 1800V 1Minute
Protection Class	IP65
Explosion Proof	EX d II BT4
Optional Accessories	Over Torque Protectors, Dehumidify Heater, Stainless Steel Coupling & Yoke
Ambient Temp.	Range from -20 to +60°C (For Use In Temperatures Below 0°C, We Suggest Anti-Condensate Elements)

Wiring Diagram

ON/OFF Type with Passive Contact Signal Feedback
AC Voltages

Regulation Type with Servo Controller Module
AC Voltages

Production Flow

GERMAN TECHNOLOGY

COVNA havs invested in quality assurance, state-of-the-art machining and testing facilities in order to assist customers in safely controlling their processes.

MADE BY EXPERIENCED ENGINEERS

All products are designed, engineered and manufactured by experienced engineers to provide safe, reliable and dependable valves, actuators and solutions.
